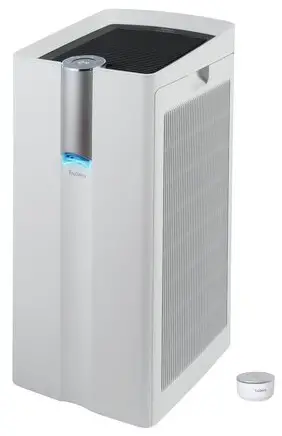

TruSens Z6000 Performance Series Air Purifiers User Guide
Plug and Play Performance Purification
TruSens SensorPodTM and multiple levels of purification including True HEPA, Activated Carbon & UV-C LED Light all ensure that the whole room benefits from clean air.
IMPORTANT
Before operation, follow these steps and read our TruSens Owner’s Manual at www.trusens.com/support/owners-manuals.

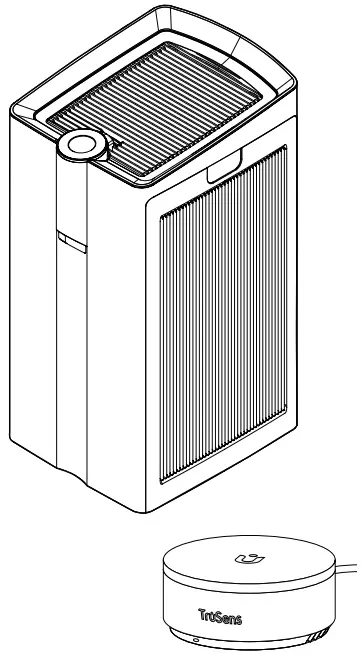

Included in your box
- 1 Air Purifier + Power Cord
- 1 SensorPod + Adapter
- 2 Filters (left side + right side)
Directions for use
Install the filter (combination True HEPA/Carbon)
Remove side panel door (a), prefilter (b) then bagged True HEPA/Carbon filter.
Remove plastic bag from filter (c) and install inside the purifier with HEPA layer (white) on the inside, and the Carbon layer (black) on the outside. Replace the prefilter and side panel door.
NOTE: Perform steps on both left and right sides.
Set Up
Plug-in your air purifier unit and power on.
Plug-in your SensorPod™.
For optimal results, place SensorPod on a tabletop or counter across the room, within line of sight of the purifier.
Signal strength may vary by location.
Filter Replacement
| Model No. | Item Number | Filter Type | Suggested Replacement/Cleaning |
| Z-6000 | AFCHZ6000-01 (2-pack) | Combination True HEPA/ Carbon Filter | Every 12 months* |
| Z-7000 | AFCHZ7000-01 (2-pack) |
*Replacement indicator will glow red on control panel to notify you to change.
NOTE: UV-C LED lights will not require replacement. Prefilter and purifier can be cleaned with a dampened cloth as needed.

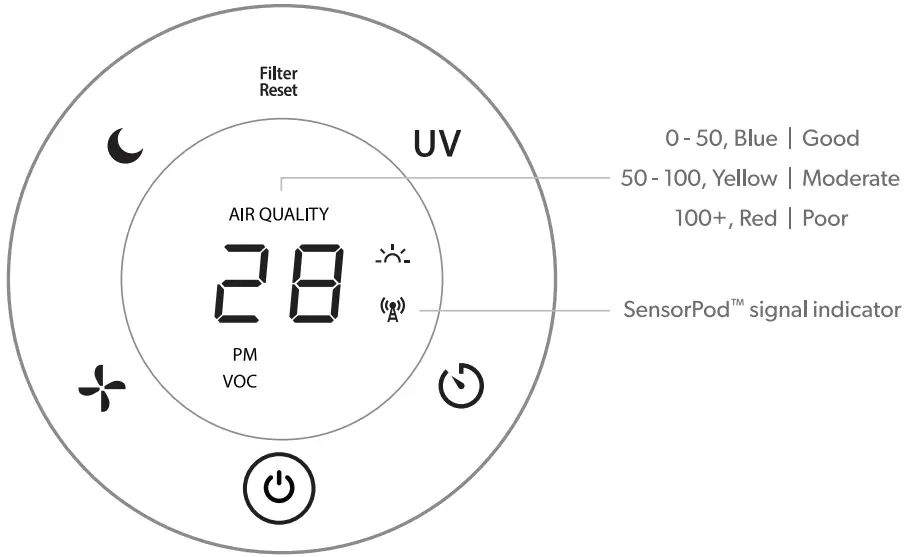

Control Panel
Power on/off
Fan speed : Auto/Whisper/1/2/3/Turbo
Dimmer on/off
HEPA/Carbon replacement
UV mode on/off
Timer : 2h/4h/8h/12h
©2022 ACCO Brands. All rights reserved.
TruSens™, U™ + Design and SensorPod™ are trademarks of ACCO Brands.
[email protected] | 1-833-TRUSENS (1-833-878-7367)
Support and Warranty Terms at www.trusens.com
