M15256 Mini PIR Sensor
User Manual
M15256 Mini PIR Sensor
User manual for Mini PIR-sensor
facebook.com/telldus
@telldus
You can also read the manual online.
Just follow the link: telld.us/m15256
Installation

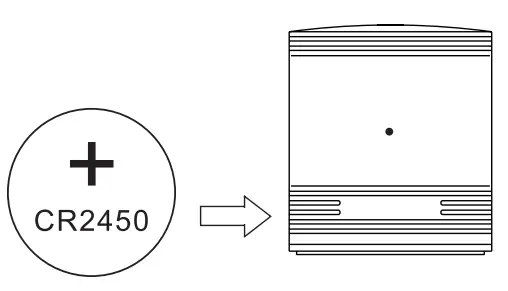

Remove the small plastic tab from the battery in the Mini PIR-sensor.
(When changing the battery – turn the lower part of the PIR-sensor clockwise.)

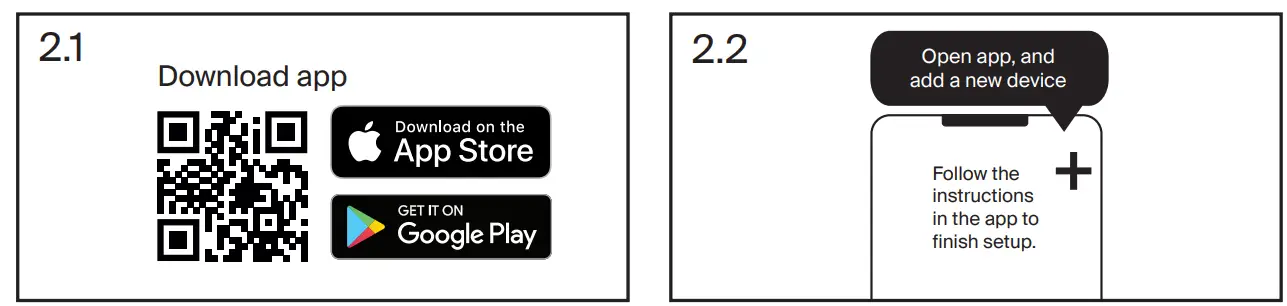

Connect sensor to app
Placing the sensor
Recommended height for installation is 2.0-2.2 meters to cover maximal detection area. Detecting range of sensor is 5 meterX110°.
Maintenance
4.2 Wake up sensor

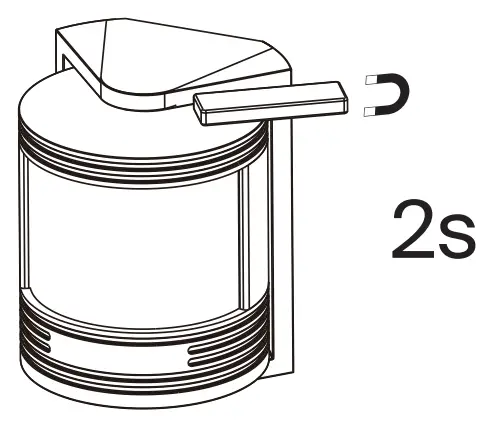

Place magnet as shown for 2 seconds when you want to change the settings of the sensor from the App. PIR flashes fast.
4.2 Reset sensor

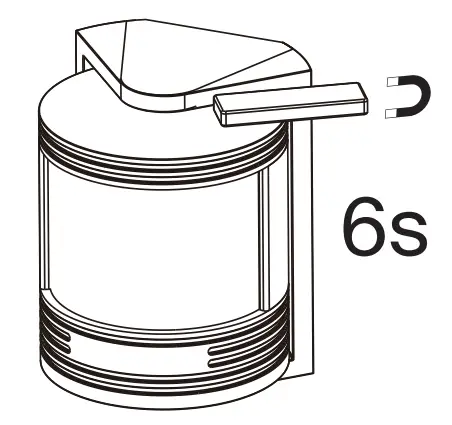

Place magnet as shown for 6 seconds when you cannot include the sensor using the App. PIR flashes fast then slow.
Read this before installation
- This detector may not be installed outdoors.
- Avoid installing the detector near air-conditioners, heat sources, where pets move or exposed to sunlight.
- Try to avoid installing at ventilation exits.
- For rough surfaces: Fix bracket into wall by using the included screws, then clip the detector onto bracket.
- For smooth surfaces: You may use double adhesive tape for fastening the detector.
- Adjust detector according to actual condition.
Specifications
Article number: 15256
Size: 30x38mm
Detection area : 5m, 110°
Battery : 3V CR2450
Range : 0-30m
Protection class : IP20
Frequency : Bluetooth 2.4GHz
Operating temperature : -10– + 55
