Preamps Effects
Owner’s Manual
PRE-PZ
www.pickups.gr

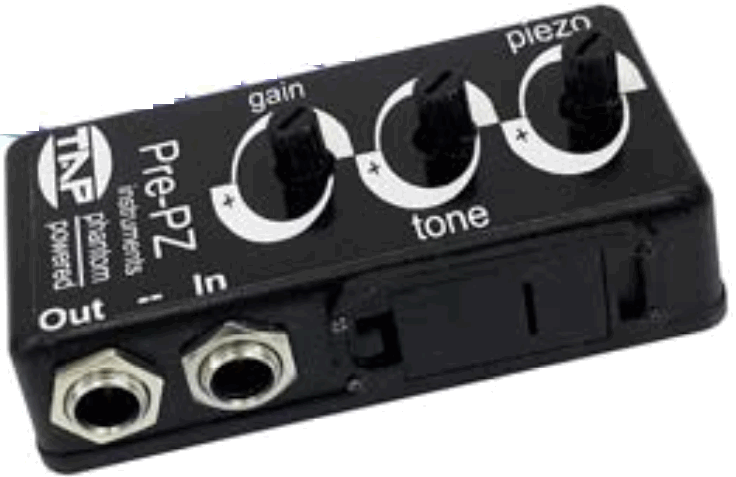

PRE-PZ Preamps Effects
The special Preamp make any acoustic instrument, to an electro – acoustic. Suitable for Guitar, Violin, Bouzouki, Laouto, etc. It’s advanced circuit produce the richest sound your instrument can de- liver. On Preamp includes volume, gain and tone controls that allows realism sound with excellent response. The Preamp has 4 input jack for Piezo and % jack output.
Can plug your preamp directly into a P.A. or acoustic amp. Compatible with most wireless systems and effect pedals. Easy installation on instrument’s with fastener tape (Hook and loop).

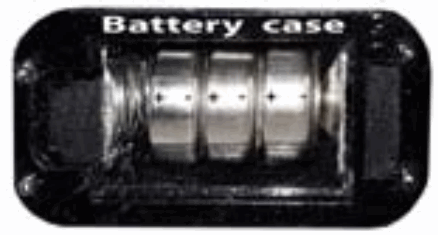

Fully equipped with battery case. Powered by 3 X LR44 alkaline (watch) battery.
Low-current design of the preamp allows up to 400 hours between battery changes.
Alternative provides supplied by phantom power (48 Volt) when plug in to Mic input XLR.
Power is switched off when jack is removed. Dimensions : L 80 x W 20 x H 30 mm
