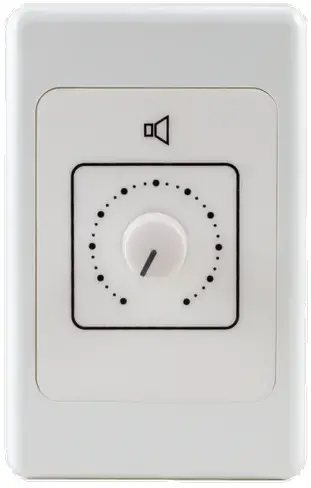

AUSTRALIAN MONITOR VC10 VC Series High Quality Attenuator for 100V Line Speaker Systems
VC SERIES
VC10 (10W), VC25 (25W), VC50 (50W), VC100 (100W)
- High quality attenuator for 100V line speaker systems, providing 11 stepped level settings.
- When installing the attenuator, ensure the total speaker load (Watts) does not exceed the attenuator power rating.
- The VC includes a relay to bypass the attenuator, typically for evacuation purposes. Apply +/-24VDC to activate the relay to provide maximum ouput level.
BLOCK DIAGRAM

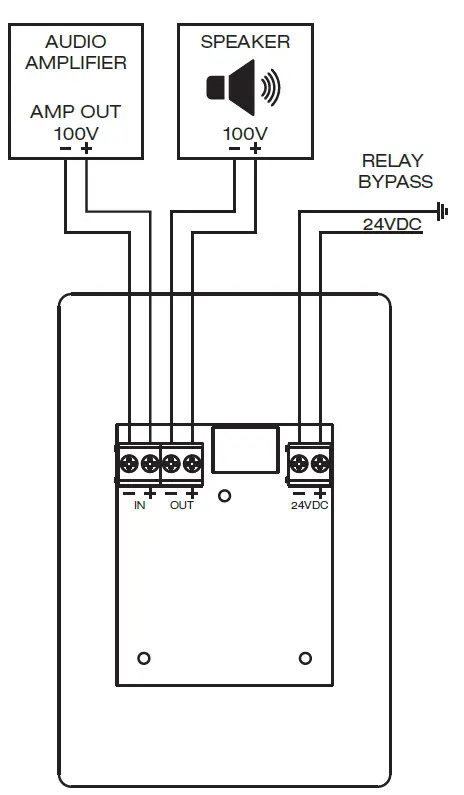

WIRING GUIDE
DIMENSIONS
ENGINEERED BY AUSTRALIAN MONITOR
