INSTALLATION AND OPERATION MANUAL

XDS SERIES
FULL RANGE PASSIVE LOUDSPEAKERS
XDS8, XDS10, XDS12
SUBWOOFER XDS212

IMPORTANT SAFETY INFORMATION

1.  Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution
    when moving the cart/apparatus combination to avoid injury from tip-over.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply
    cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
    does not operate normally, or has been dropped.
12. This appliance shall not be exposed to dripping or splashing water and that no object filled with a liquid such as vases shall be placed on the
    apparatus.
13. The mains plug is used as the disconnect device and shall remain readily accessible. If the mains plug is not readily accessible due to mounting in a
    19” rack, then the mains plug for the entire rack must be readily accessible.
14. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

INTRODUCTION

XDS SERIES
The XDS range of speakers includes 8”, 10”, and 12” models all with high-quality compression drivers and a dual 12″ subwoofer model.

The XDS range of speakers is perfect for a driveway or corporate hire as well as live sound installations. With features including multi-angle enclosure design so speakers can be used for the front of house or foldback applications, terminal strip or four-pole connectors, pole mount, fly points plus a variety of bracket options and contemporary styling, the XDS range of speakers and subs offer the contractor an extremely high-quality speaker system with common voicing across the range at an amazing price point.

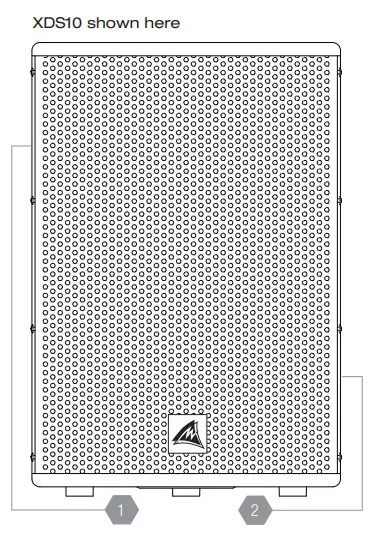

FRONT PANEL

Full range enclosures

1. High-Frequency Driver
   A single horn-loaded compression driver.
   XDS8 1 x 1.35”. Flare: 100º x 100º non-rotatable
   XDS10 1 x 1.35”. Flare: 50-100º x 50º rotatable
   XDS12 1 x 1.7”. Flare: 80º x 50º rotatable
2. Low-Frequency Driver
   Driver sizes:
   XDS8 1 x 8”
   XDS10 1 x 10”
   XDS12 1 x 12”

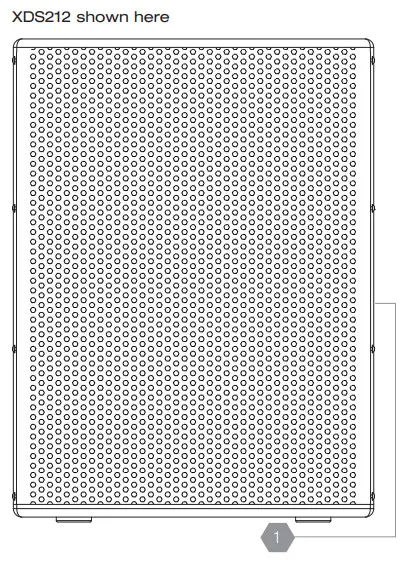

Subwoofer
A dual 12″ bandpass subwoofer is available in the XDS range.

1. Low-Frequency Driver
   Driver sizes:
   XDS212 2 x 12”

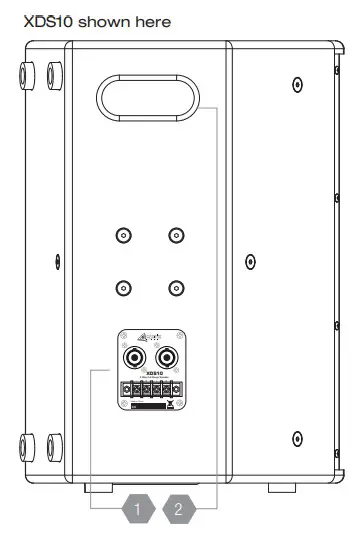

REAR PANEL

1. Speaker Input
   Speaker inputs are via a pair of 4 pole twist-lock connectors (Neutrik speakON or compatible) wired in parallel.
   The twist-lock connectors are wired using pins 1+ and 1- only, with both connectors wired in parallel. Either connector may be used as the input with the other used as a loop through the connector.
2. Handle
   A single recessed carry handle.

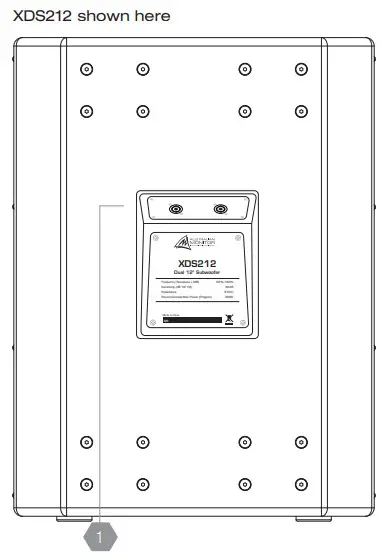

1. Speaker Input
   Speaker inputs are via a pair of 4 pole twist-lock connectors (Neutrik speakON or compatible) wired in parallel.
   The twist-lock connectors are wired using pins 1+ and 1- only, with both connectors wired in parallel. Either connector may be used as the input with the other used as a loop through the connector.

MOUNTING

Wall Mount Brackets
A number of wall mount options are available for the XDS speaker range.

The wall mount U brackets permit speaker mounting in either horizontal or vertical orientation. The brackets are supplied with enclosure mounting plates to replace the standard pole mount and blank plate fitted to the speakers as standard.

The XDSWMB wall mount bracket permits vertical installation with a wide range of angular adjustments in the horizontal and vertical axis.

U brackets

Subwoofers
The XDS212 subwoofer is designed to be freestanding for floor-mounted installation.

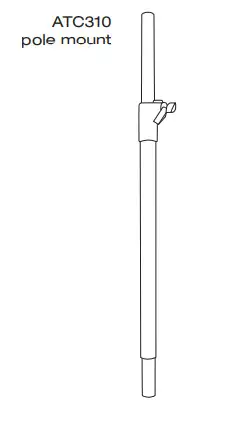

It is supplied with a top-mounted 35 mm pole mount boot to suit satellite mounting via the ATC310 pole mount.

When mounting via a bracket or eyebolts the following must be considered.

The mounting of a permanently installed speaker may be dangerous unless undertaken by a qualified professional with the required experience.

Walls and mounting surfaces must be capable of supporting the speaker and bracketry in a safe and secure manner.

All fixings must be safely attached to the speaker cabinet and the mounting surface. All fixings must be fitted in accordance with the manufacturer’s instructions and specifications.

Suspending with Eyebolts
The XDS range of speakers provides a number of secured mounting points for use with M10 eye bolts.
When suspending an XDS8, XDS10, or XDS12 loudspeaker, the two mounting points towards the front of the cabinet should be used, with the 3rd point used to angle the enclosure as needed.

All XDS eyebolt fittings are M10.

M10 Eyebolts with a minimum of 20 mm usable thread must be used.

ACCESSORIES

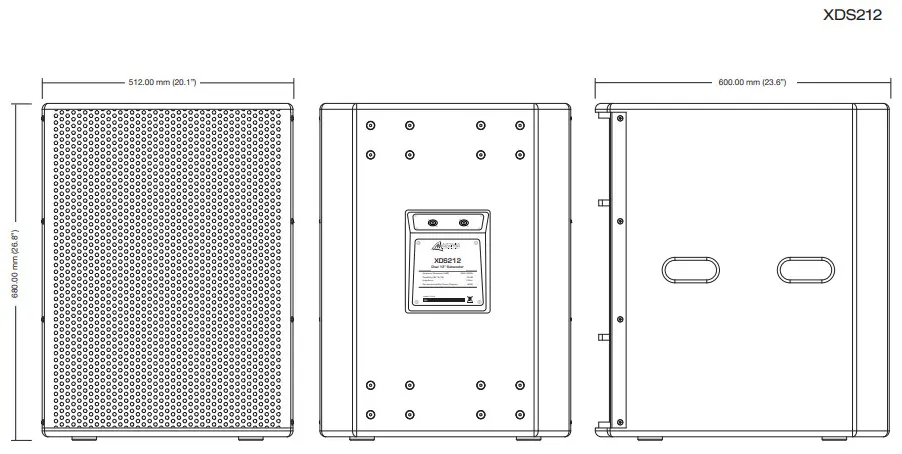

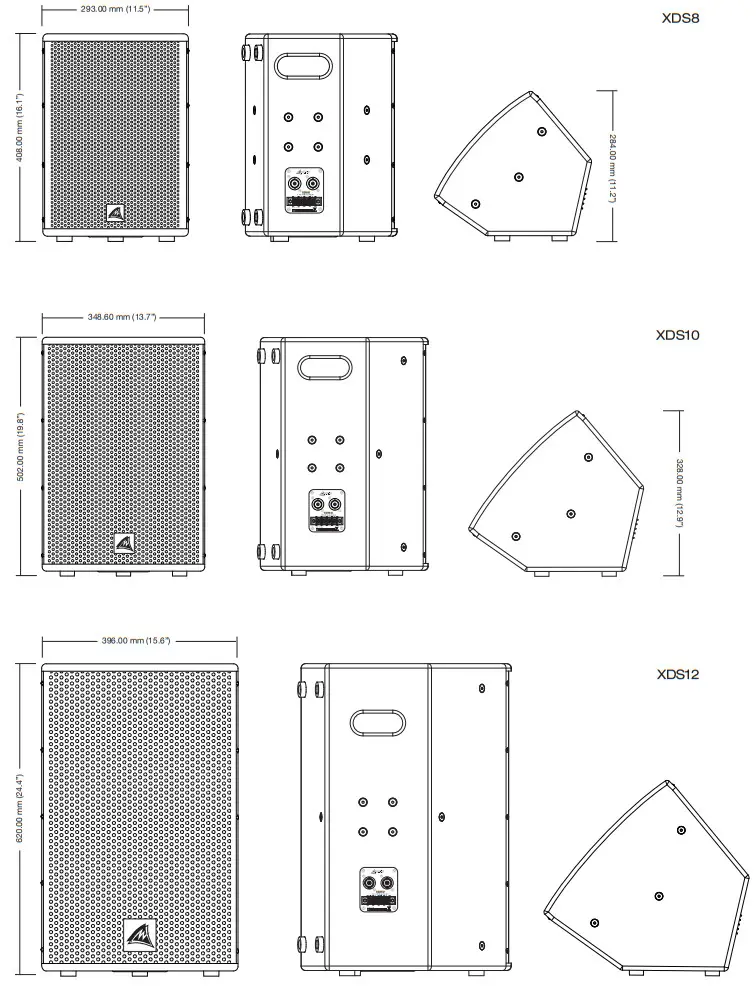

DIMENSIONS

SPECIFICATIONS

ENGINEERED BY AUSTRALIAN MONITOR
Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia
Website: www.australianmonitor.com.au
International enquiries email: [email protected]
ABN 86 003 231 187
