Omnitronic PCS 230 SPEAKER 100V

Thank you for purchasing this speaker for wall mounting. The speaker is especially designed for applications in PA systems operating with 100 V technology. The speaker is protected against splash water and thus can be used in outdoor areas. The connection must be made by skilled personnel only. Please read these operating instructions carefully before using the product. They contain important information for the correct use of your product. Please keep them for future reference.

SAFETY INSTRUCTIONS

• Only use the product according to the instructions given herein. Damages due to failure to follow these operating instructions will void the warranty! We do not assume any liability for any resulting damage.
• We do not assume any liability for material and personal damage caused by improper use or non-compliance with the safety instructions. In such cases, the warranty/guarantee will be null and void.
• Unauthorized rebuilds or modifications of the product are not permitted for reasons of safety and render the warranty invalid.
  This product is not a toy. Keep it out of the reach of children. Do not leave packaging material lying around carelessly.
• This product is in accordance with protection grade IP44 and can be used in outdoor areas. However, do not immerse the product in water, this will destroy it.
• Protect the product against excessive humidity and heat. The recommended temperature is -5 to +45°C.
• Speaker cables are sensitive to electrical interference. Hence, it is recommended to lay them at a distance of several meters to sources of interference (e.g. dimmers, light switches).
• Make sure that the product is installed securely and cannot fall down. Serious injury to persons can be caused if the speakers fall down. Comply with the standards and rules that apply in your country.
• For commercial use the country-specific accident prevention regulations of the government safety organization for electrical facilities must be complied with at all times.
• Make sure that impedance and power rating specified in the technical data match the connected amplifier’s data. Otherwise, the speakers or the amplifier may be damaged. The total impedance for the connected speakers must not be less than the minimum impedance for the amplifier.
• This product is maintenance-free, except for occasional cleaning. You can use a slightly dampened cloth for cleaning.
• Never open the product. If this product is no longer working properly or is visibly damaged, take it out of operation and consult your local dealer. Do not attempt to repair the product yourself.

ELECTRICAL CONNECTION

During operation, there is a hazard of contact with a voltage of up to 100 V at the connection wires. The installation must be carried out by skilled personnel only. Always insulate the connection cables which are not used. Observe the load of the PA amplifier by the speakers. An overload may damage the amplifier! The total power of all speakers connected must not exceed the amplifier power.

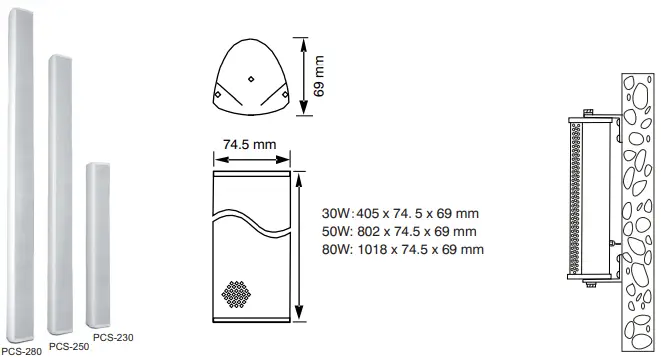

• Mount the speaker to the wall using the supplied bracket.
• Turn off the amplifier before making any connection.

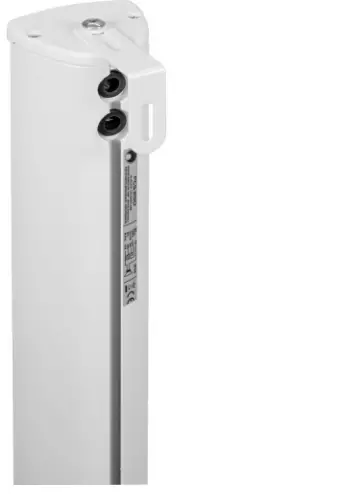

• Unscrew the cover with the cable inlets on the rear to access the connections.
• Connect the speaker via two of the cables to the 100 V output of the PA amplifier: Use the black cable COM (negative pole) and, according to the desired power rating one of the other colored cables (see housing indication).
• Alternatively, it is possible to connect the speaker to a low-impedance amplifier output.
• When connecting several speakers, make sure that all speakers have the same polarity and that the amplifier is not overloaded.

PROTECTING THE ENVIRONMENT

When to be definitively put out of operation, take the product to a local recycling plant for a disposal which is not harmful to the environment. Devices marked with this symbol must not be disposed of as household waste. Remove any inserted batteries and dispose of them separately from the product at an official collection point. Contact your retailer or local authorities for more information.

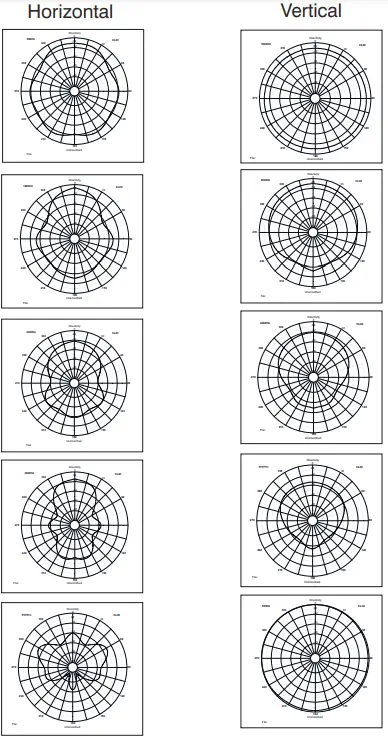

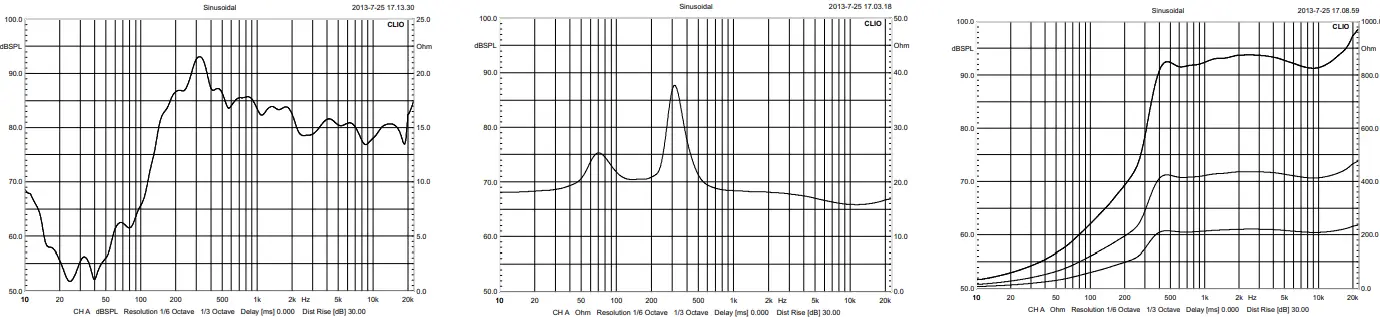

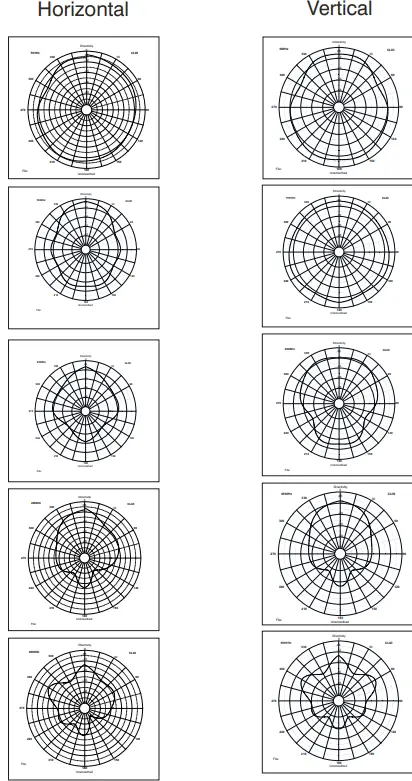

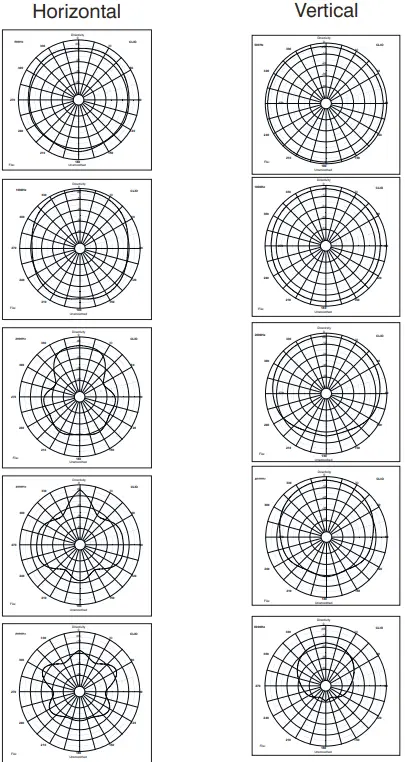

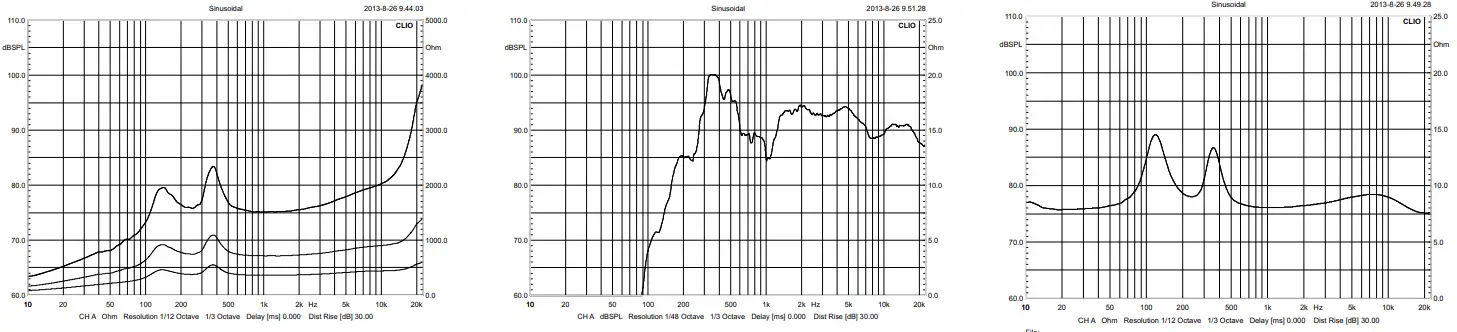

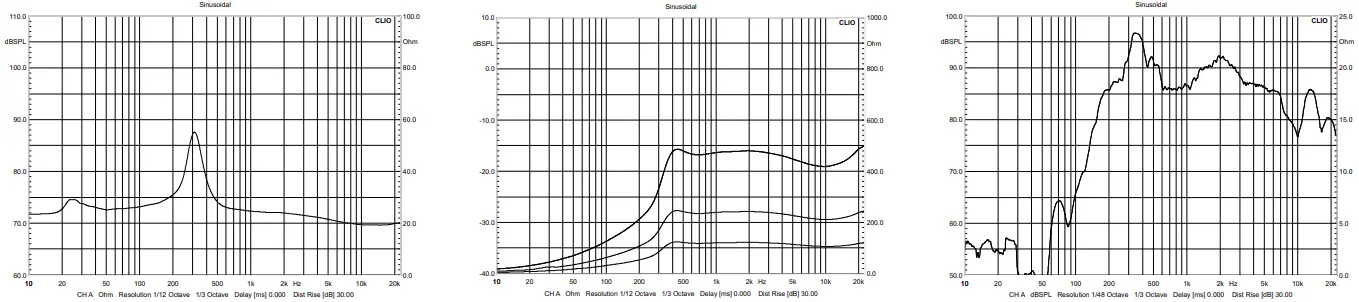

SPECIFICATIONS

PCS-230

PCS-250

PCS-280
