CARSON CP-24 Magniflash Magnifier Instructions
Instructions
- High power aspheric lens provides maximum magnification with minimal distortion
- Super-bright LED light provides crisp, bright images
- Also functions as an LED flashlight
- Perfect for those with low-vision
- Includes neck strap and protective case
| Item | Magniÿcation | Focal Length (mm) | Diopter |
| CP-16 | 5x | 62.59 mm | 16D |
| CP-24 | 7x | 41.81 mm | 24D |
| CP-32 | 9x | 31.75 mm | 32D |
| CP-40 | 11x | 25.18 mm | 40D |
Specifications:
Lens Material: PMMA
LED Life: About 50,000 hours
Battery Type: AAA, 1.5V, 3 pcs.
Battery Life: About 40 hours under normal use (using alkaline batteries)
Lens Cleaning Instructions:
Blow away any dust or debris on the lens (or use a soft lens brush). To remove dirt, grease or fingerprints, clean with a soft cotton cloth rubbing in a circular motion. Use of a coarse cloth or unneccessary rubbing may scratch the lens surface causing permanent damage.

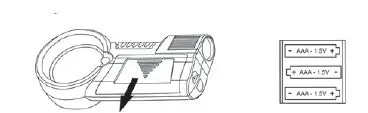

Battery Installation:
Slide battery cover in direction of arrow. Install batteries according to polarity indicator. Replace battery door.
Warning: Do not leave batteries installed during extended periods of disuse. Do not mix new and old batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
Caution: Fire hazard. Keep magnifier away from direct sunlight to prevent accidental fire.
Important: Clean using a microfiber lens cloth only. Do not use any abrasives, chemical cleaners or solvents.
