HYDRA
XLR STUDIO MICROPHONE
THANK YOU FOR PURCHASING THE HYDRA XLR STUDIO MICROPHONE PLEASE READ THE MANUAL BEFORE USAGE. KEEP THIS MANUAL HANDY FOR FUTURE REFFERENCE
SAIVE® USER MANUAL

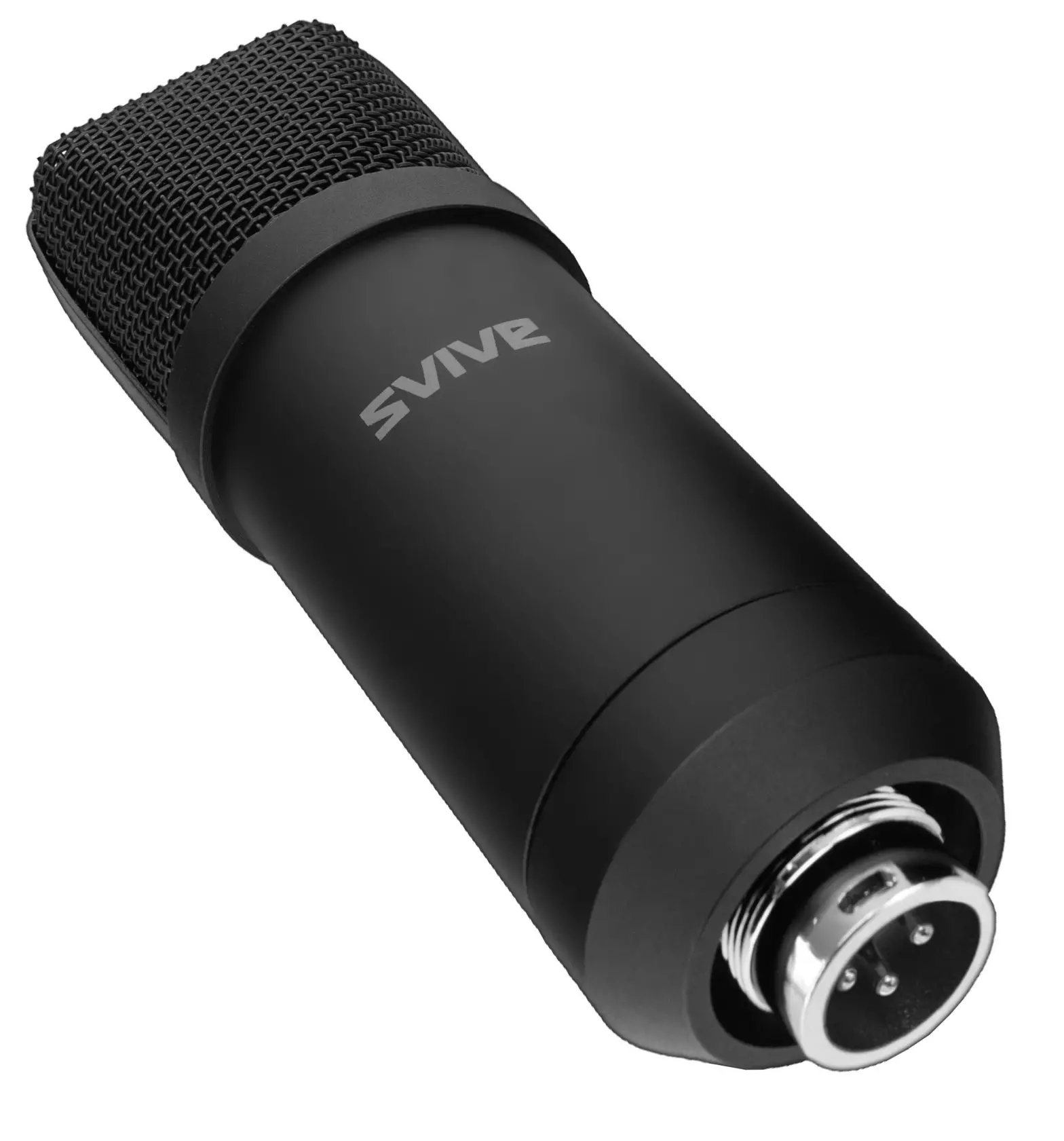

Cardioid Condenser XLR Studio Microphone
The Hydra XLR Studio microphone is a condenser microphone with cardioid polar pattern. it is designed for voiceover, vocal, podcasting, singing…etc.
The microphone output by standard 3-pin XLR connector.
The cardioid polar pattern of the microphone is more sensitive to sound sources directly in front side, making it useful in controlling feedback, reducing pickup of unwanted sounds and providing isolation between performers.
Features
Studio microphone and cable included Cardioid polar pattern improving isolation of desired sound source Large 16mm diaphragm condenser capsule Standard 3-pin XLR Connector output Excellent sound for all studio applications 15~52V wide voltage phantom power adaptable Full metal casing
Specification
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 20 -18,000 Hz |
| SENSITIVITY | 34dB±3dB |
| IMPEDANCE | 200 ohms ±30% |
| MAXIMUM INPUT SOUND LEVEL | 140 dB SPL, 1 kHz at 1% T.H.D. |
| SIGNAL TO NOISE RATIO | 75 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 48V DC, 3 mA typical |
| OUTPUT CONNECTOR | 3-pin XLR |

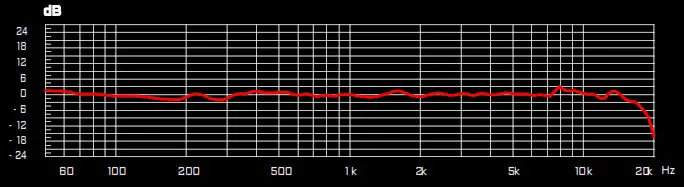

Frequency Response: 20-18,00Hz
Polar pattern: Cardioid
Operation and Maintainance
The Hydra XLR requires 48V DC phantom power, which may be provided by a mixer or console, or by a separate, in-line source Output from the microphone’s XLR connector is low impedance (Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” positive acoustic pressure produces positive voltage at Pin 2. To avoid phase cancellation and poor sound, all mic cables must be wired consistently: Pin 1-to-Pin 1, etc. Avoid leaving the microphone in the open sun or in areas where temperatures exceed 110° F (43° C) for extended periods. Extremely high humidity should also be avoided.
Cardioid polar pattern for front side use only

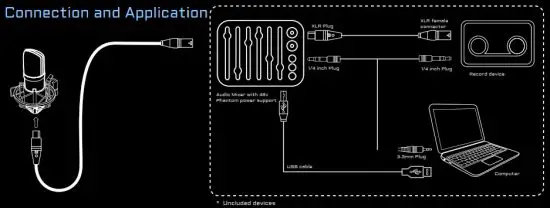

Connection and Application
Technical Support:
survive.gg/support
Imported by Svive Østre Kullerød 4, N-3241 Sandefjord, Norway svive.gg Made in China
Svive - Ready to Play
