KOBE Range Hood
Brillia Series
INX26 SQB-700-3 Series
Model No.: INX2630SQB-700-3 (30”)
INX2636SQB-700-3 (36”)

INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

IMPORTANT READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of the package(s).
2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects.
3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial number ready.
3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects.
4. For all other issues, email [email protected].

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR PARTS

– READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING –
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN IN ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

– PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION –

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, OBSERVE THE FOLLOWING:

1. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction.
2. When cutting or drilling into a wall or ceiling, be careful not to damage electrical wiring or other hidden utilities.
3. Ducted fans must be vented to the outside.
   a) Before servicing or cleaning the unit, open the light panel and SWITCH the POWER OFF AT SERVICE PANEL.
   b) Clean all grease-laden surfaces frequently. To reduce the risk of fire and to disperse air properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or garages.

NOTE
– This warranty is void without an authorized agent’s receipt or if unit is damaged due to misuse, poor installation, improper use, mistreatment, negligence or any other circumstances beyond the control of KOBE RANGE HOODS authorized agents. Any repair carried out without the supervision of KOBE RANGE HOODS’ authorized agents will automatically void the warranty.
– KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container, and grease-laden surfaces clean. Grease should not be allowed to accumulate on the fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn the hood ON when cooking.
3. Use high settings on the cooking range ONLY when necessary.
4. Do not leave the cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch the power off at the service panel and lock the service panel (if possible) to prevent power from switching on accidentally.
8. Clean ventilating fan frequently.

What To Do In The Event Of a Range Top Grease Fire

1. SMOTHER FLAMES with a tight-fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
2. NEVER PICK UP A BURNING PAN – You May Get Burned.
3. DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
4. Use an extinguisher ONLY if:
   a) You have a Class A, B, and C extinguisher and know how to operate it.
   b) The fire is small and contained in the area where it started.
   c) The fire department has been called.
   d) You can fight the fire with your back to an exit.

What To Do If You Smell Gas

1. Extinguish any open flame.
2. Do not try to turn on the lights or any type of appliance.
3. Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and Fire Department right away.

CAUTION

1. For general ventilation use only. Do not use it to exhaust hazardous or explosive materials and vapors.
2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFLA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch may cause ignition or an explosion.
5. Due to the size and weight of this hood, an installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – This can result in serious injury or death. Disconnect appliance from electric power before servicing. If equipped, the fluorescent light bulb contains small amounts of mercury, which must be recycled or disposed of according to Local, State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)
Range Hood Box

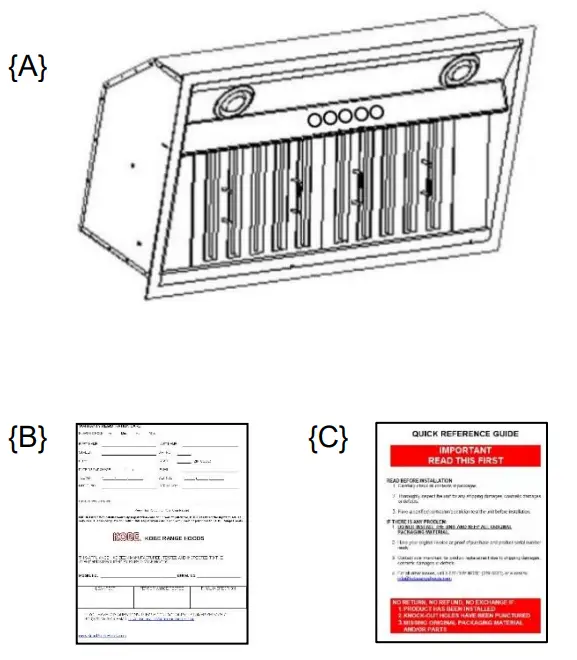

{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide

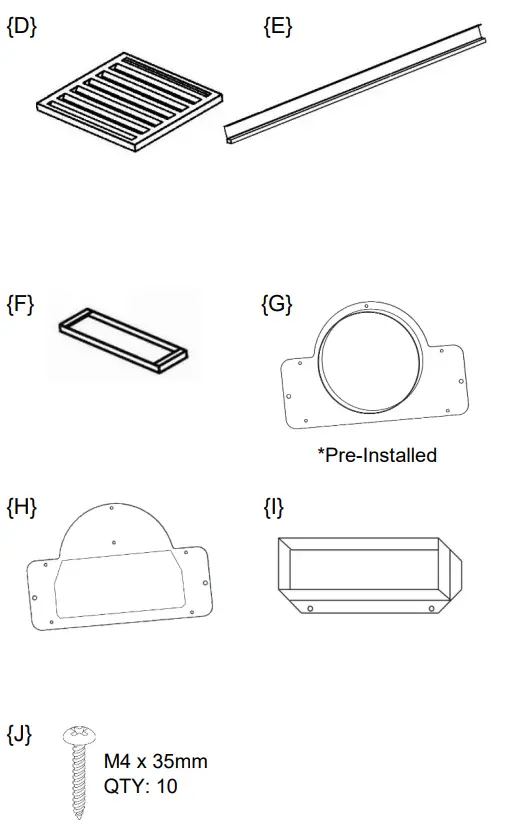

{D} Baffle Filter – 30” x 2pcs – 36” x 3pcs
{E} Oil Tunnel x 1pcs
{F} Stainless Steel Spacer x 2pcs
{G} 6” Round Exhaust Plate
{H} Rectangular Exhaust Plate
{I} Rectangular Exhaust Vent Adapter
{J} Screws Package

• FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com.

INSTALLATION

PLEASE READ THE ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

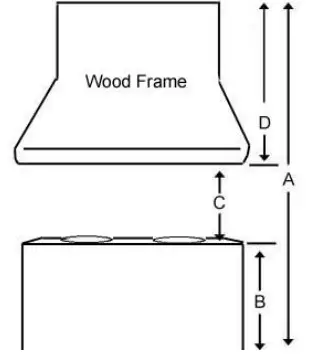

To calculate installation, please refer to TABLE 1. (All calculations in inches)

– FORE BUILT-IN / INSERT –

TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Height of Counter Top to Wood Frame Bottom (Recommended 26” to 30”) D = Height of Wood Frame

SAFETY WARNING

• THE HOOD MAY HAVE SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLATION, CLEANING, OR SERVICING.
• BE CAREFUL WHEN USING AN ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. USING HAND TOOLS IS RECOMMENDED. DO NOT OVER-TIGHTEN SCREWS.
• MAKE SURE TO PREVENT ANY DEBRIS FROM ENTERING THE VENT OPENING TO AVOID DAMAGE OR MALFUNCTION.

Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING.

• Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

• A straight, short vent run will allow the hood to perform more efficiently.
• Try to avoid as many transitions, elbows, and long runs as possible. This may reduce the performance of the hood.
• Temporarily wire the hood to test for proper operation before installing.
• Important: Peel the protective film off the hood, if any.
• Use duct tape to seal joints between pipe sections.

CAUTION: If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS RANGE MOVING A GAS RANGE. And use a protective covering to protect the cooktop and/or countertop from damage.

Customer Hood Preparation

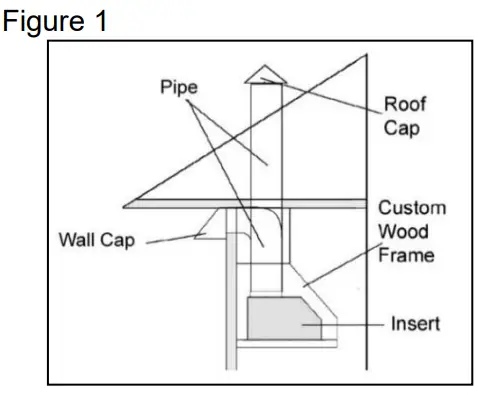

1. The custom hood frame must be designed according to the shape and weight of the insert. Refer to Measurements & Diagrams on Page 11.
2. A sturdy base (3/4-inch thick plywood recommended) is needed to sustain the weight of the insert.

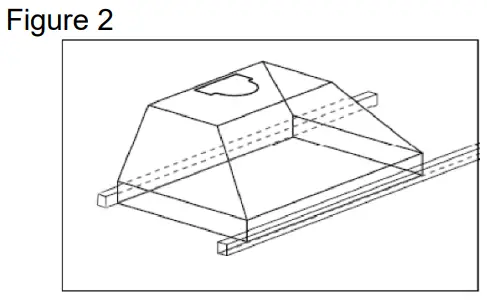

3. It is recommended to install front & rear stud support (not included). Refer to Figure 2. For safety purposes, extra installation holes on the side of the insert are provided. Prepare the side stud support if needed.
4. Determine and mark the centerlines on the base of the hood frame where the insert will be installed.

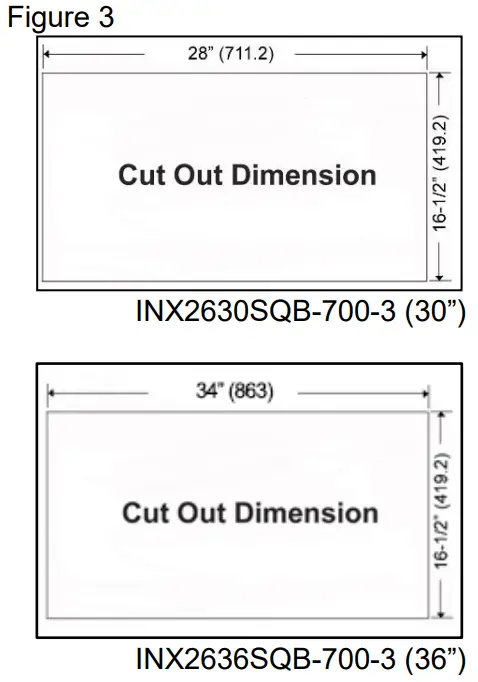

5. Determine the proper location for the Power Supply Cable. Make a wiring access hole using a drill bit. Install the wire cable and seal the gap around hole. Cut out the opening where the insert will be installed. (Figure 3)

6. Hood Preparation Before Installation
   CAUTION: If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.
7. Choose the required vent option. The Round Exhaust Plate is pre-installed for top vent.

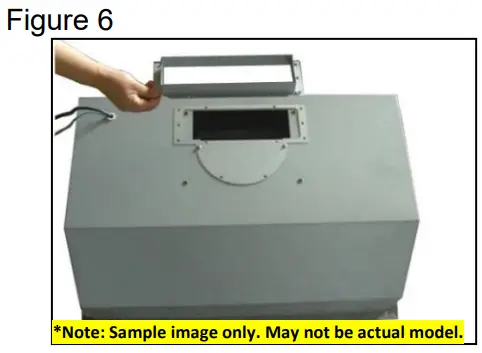

8. For Top 3-1/4” x 10” Rectangular installation only:

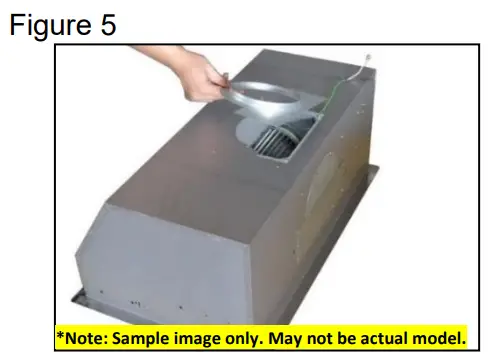

   – Remove the pre-installed Round Exhaust Plate (Refer to Figure 5). Keep screws to attach Rectangular Exhaust Plate and Rectangular Exhaust Adapter.
   – Place Rectangular Exhaust Plate over the vent and secure with 3 screws (Refer to Figure 6). Place Rectangular Exhaust Adapter over the Rectangular Exhaust Plate and secure it with 2 screws (Refer to Figure 6).
   – Use the remaining screws to secure the exhaust plate.
   For Rear Vent Options Only:
   NOTE: The blower is pre-installed for the top vent. If installing a rear vent, follow the steps below:

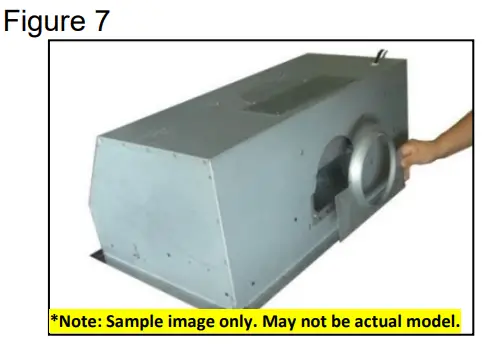

9. For Rear 6” Round installation only:

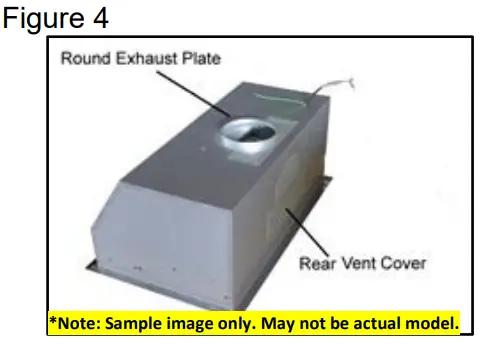

   – Remove the Rear Vent Cover (Refer to Figure 4). Keep screws to attach Round Exhaust Plate to the rear vent.
   – Remove the pre-installed Round Exhaust Plate from the top vent (Refer to Figure 5). Attached it to the rear vent (Refer to Figure 7) using screws removed from the vent cover.
   – Use the vent cover removed from the rear vent to seal the top vent.

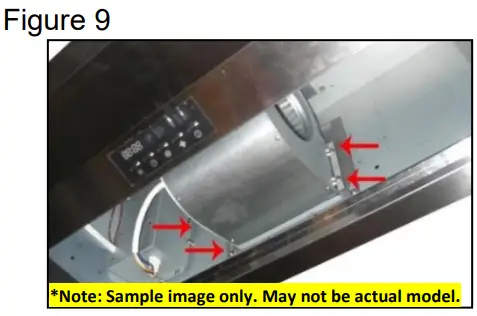

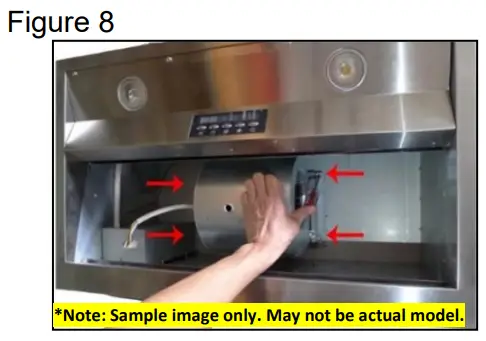

   – Remove the 4 screws that secure the blower system (Refer to Figure 8). Hold the blower to keep it from dropping as you remove the screws. Keep screws to re-attach the blower. Slowly rotate the blower system to align with mounting holes at the back of the insert. Secure blower using 4 screws (Refer to Figure 9).

10. For Rear 3-1/4” x 10” Rectangular installation only:
    – Remove the Rear Vent Cover (Refer to Figure 4). Keep screws to attach Rectangular Exhaust Plate and Rectangular Exhaust Adapter.

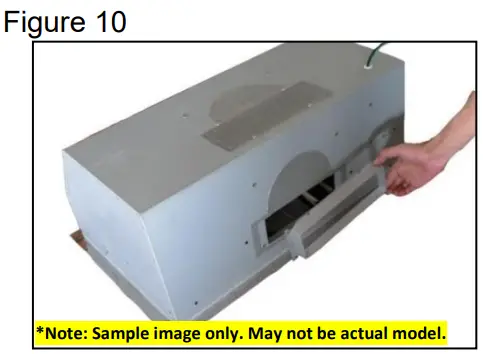

    – Place the Rectangular Exhaust Plate over the vent and secure it with 3 screws (Refer to Figure 10). Place Rectangular Exhaust Adapter over the Rectangular Exhaust Plate and secure it with 2 screws (Refer to Figure 10).
    – Use the remaining screws to secure the exhaust plate.
    – Remove the pre-installed Round Exhaust Plate from the top vent and keep screws (Refer to Figure 4). Use the vent cover removed from the rear to seal the top vent.
    – Remove the 4 screws that secure the blower system (Refer to Figure 8).
    Hold the blower to keep it from dropping as you remove the screws. Keep screws to re-attach the blower. Slowly rotate the blower system to align with mounting holes at the back of the insert. Secure the blower using 4 screws (Refer to Figure 9).
    Ductwork Installation
11. Determine and make all necessary cuts in the wall or ceiling for the ductwork.
    NOTE: Install the ductwork before installing the insert.
12. Use a steel pipe to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and airtight.
13. Please refer to local codes for the usage of a damper (included).
    Electrical Wire
14. Connect the range hood to an outlet.
15. If hardwired is desired, cut off the plug and connect three wires (black, white, and green) to the outlet wires and cap with wire connectors. Connect the wires according to color (ex: black to black)
    Hood Installation
    NOTE: USE HAND TOOLS ONLY. DO NOT OVER-TIGHTEN SCREWS. IT MIGHT BE CAUSED DAMAGE TO THE HOOD.

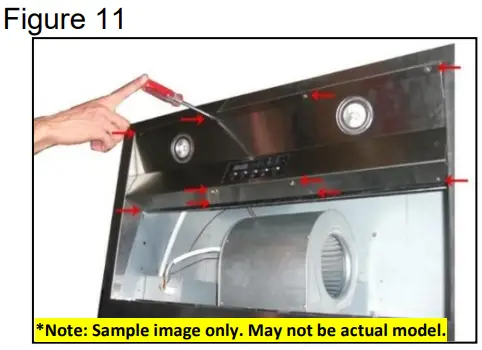

16. Remove 10 screws located at the bottom of the insert (Refer to Figure 11). Carefully remove the light support panel.
17. Position the insert inside the custom wood frame and secure the insert to the front and rear stud support (Refer to Figure 2) by using the front and rear mounting holes  (screws included).

18. For a more secure installation, use the mounting holes located on the side of the insert.
19. Make sure the insert is secure before releasing it.
20. Re-install the light support panel. (Do not tighten screws)
    CAUTION: MAKE SURE HOOD IS SECURE BEFORE RELEASING.
    Final Assembly

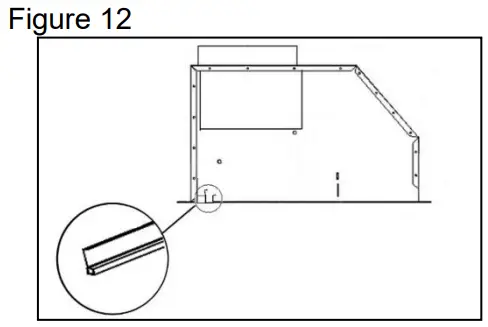

21. Install the oil tunnel into recess support near the rear of the hood. Refer to Figure 12.

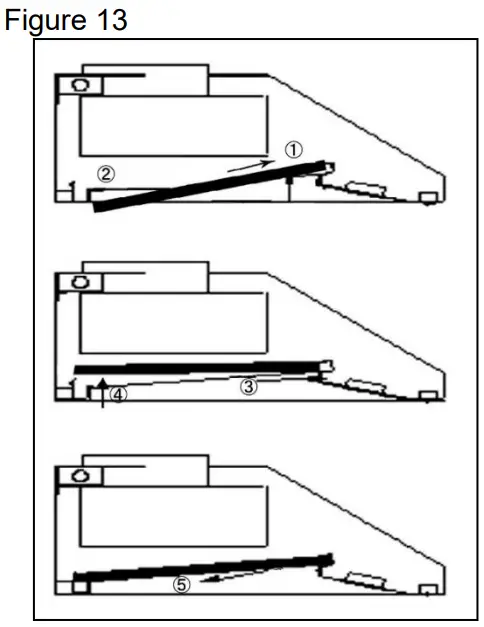

22. Install baffle filters. Angle baffle filter toward the back of hood ①. Push baffle filter up until almost level ②. Slide forward into a recess behind the front of the hood ③. Lower baffle filter ④. Slide back until it fits into the resting position ⑤. Refer to Figure 13.


OPERATING INSTRUCTIONS

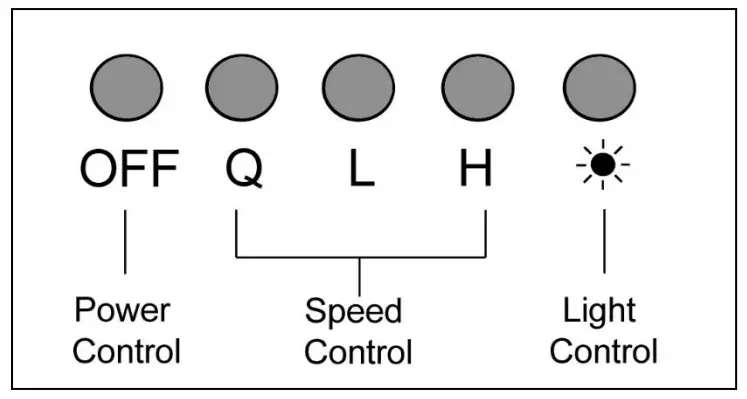

3-Speed Mechanical Control
NOTE: For best result, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as necessary.

To operate the fan function

• Press the button to choose from the speed
  o Q = QuietMode™ speed
  o L = Low speed
  o H = High Speed
• Press “OFF” to turn the fan off

To operate the light function

• Press the Light Control to turn lights on and off

MAINTENANCE

For optimal performance, clean the range hood surface and baffles regularly.

To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
***Regular care will help preserve its fine appearance.

1. Use only mild soap or detergent solutions. Dry surfaces using a soft cloth.
2. If the hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting cleaning solutions onto or into the control panel. Follow the directions of the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to the hood finish. Use a soft towel to wipe off the cleaning solution, and gently rub off any stubborn spots. Use a dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a clean lint-free cloth.

For Baffle Filter models only: to Clean Baffle Filter / Oil Tunnel

CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO PREVENT OVERFLOW.

1. Remove all the baffle filters, spacers, and oil tunnels.
   Note: Not all models have spacers and oil tunnels.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
   CAUTION: SHARP EDGES (NOTE: Baffle Filters are top-rack dishwasher safe)

SPECIFICATIONS

MODEL / SIZE INX2630SQB-700-3 / 30” INX2636SQB-700-3 / 36”
COLOR 20-Gauge Commercial Grade Stainless Steel
CONSUMPTION / AMPERE  224W / 1.5A
VOLTAGE  110V 60Hz
NUMBER OF MOTORS 1
DESIGN Seamless / Satin Finish
FAN TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage
EXHAUST
Top – 6” Round
3-1/4” x 10” Rectangular
Rear – 6” Round
3-1/4” x 10” Rectangular
CONTROL Mechanical Push Button (3-Speed)
LIGHT 3-Watt LED Light x 2
HOOD DIMENSION (W x D x H) 30” x 18-1/2” x 12” 36” x 18-1/2” x 12”
OPTIONAL ACCESSORIES (W x D x H)
1) 30” Stainless Steel Back Panel
SSP30: 30” x 1/10” x 32”
2) 36” Stainless Steel Back Panel
SSP36: 36” x 1/10” x 32”
HOOD WEIGHT (lbs)
INX2630SQB-700-3 (30”)
INX2636SQB-700-3 (36”)
NET 41.0 45.4
GROSS 47.0 52.1
Blower Air Capacity (cfm) Sone*
QuietMode™
180 2.0
Low
317 4.5
High
630 7.0
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications are subject to change without notice.

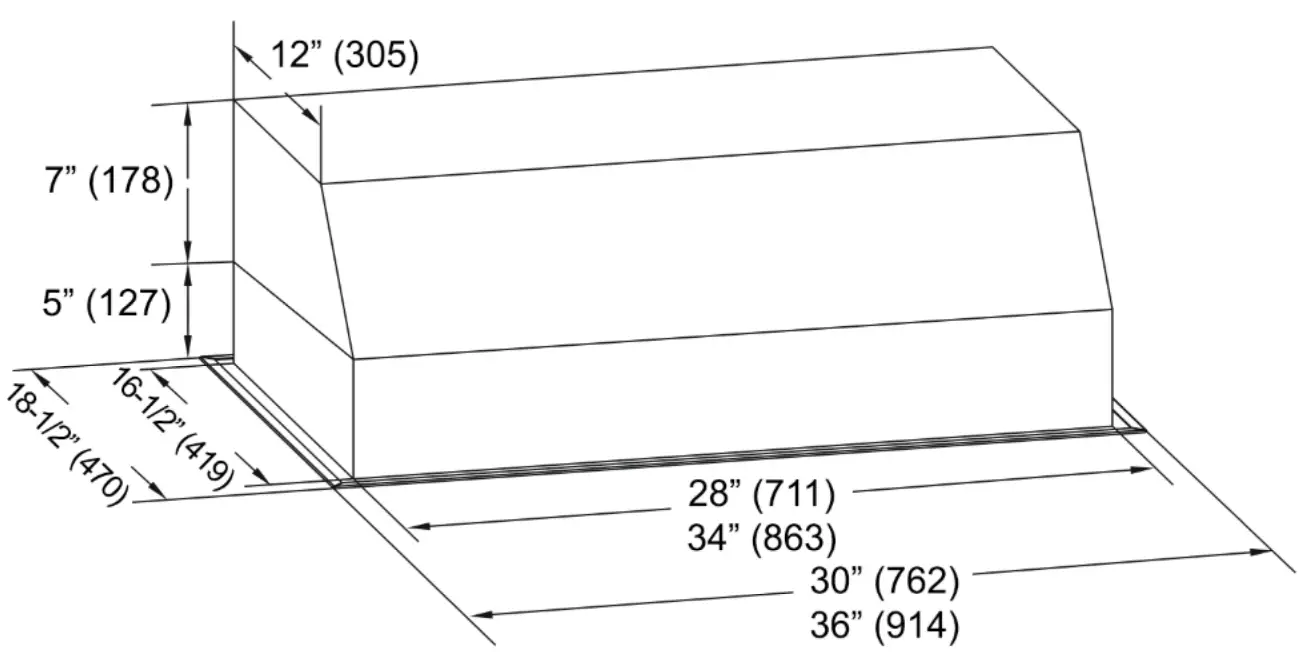

MEASUREMENTS & DIAGRAMS

***All ( ) are in millimeters.
***All inch measurements are converted from millimeters. Inch measurements are estimated.

MODEL NO.: INX2630SQB-700-3 (30”) INX2636SQB-700-3 (36”)

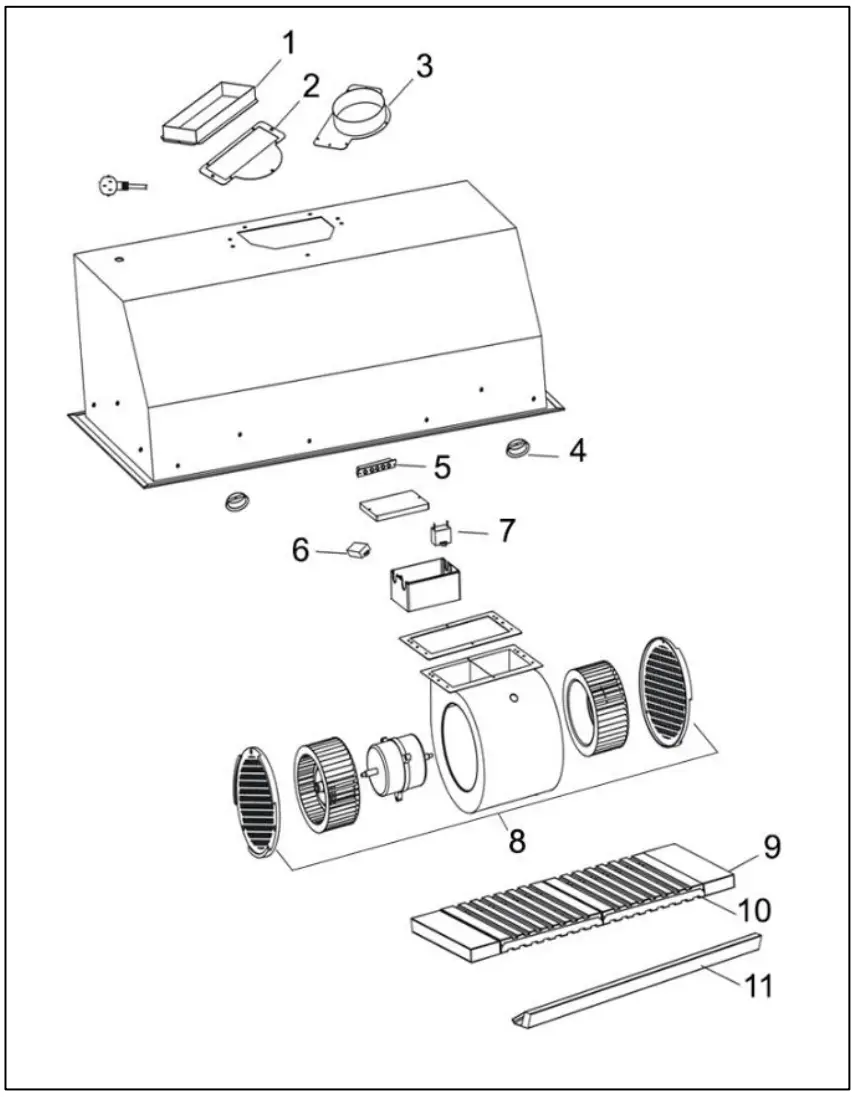

PARTS LIST

MODEL NO.: INX2630SQB-700-3 (30”)
INX2636SQB-700-3 (36”)

MODEL NO.: INX2630SQB-700-3 (30”)
INX2636SQB-700-3 (36”)

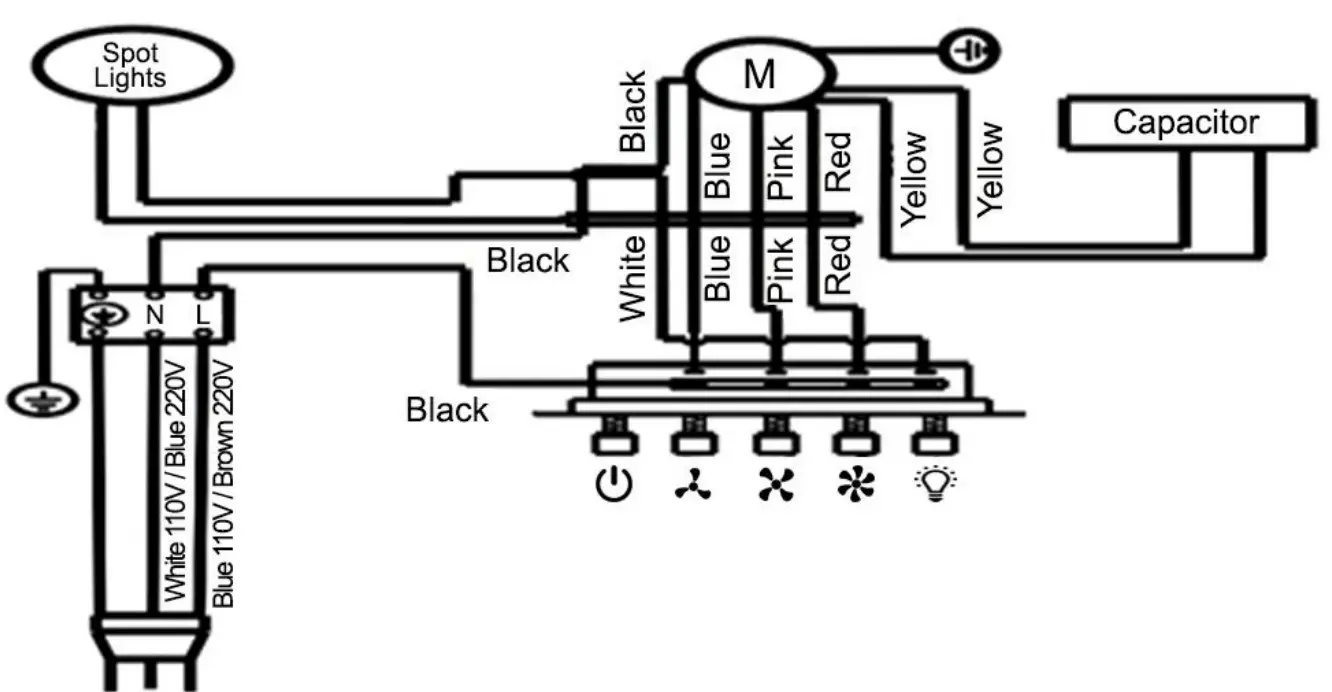

CIRCUIT DIAGRAM

MODEL NO.: INX2630SQB-700-3 (30”)
INX2636SQB-700-3 (36”)

TROUBLESHOOTING

WARRANTY

WARRANTY CERTIFICATE
In order to obtain warranty service, you must provide proof of original purchase from a KOBE-authorized Dealer. Please keep a copy of your original invoice as proof of purchase.

ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES:
For one year from the date of your original from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects.  KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.
It is your sole responsibility to ensure the product is readily accessible for the service technician to perform repairs. The service technician will not, under any circumstances, remove, alter or modify any fixture built around and/or connected to the product to gain access to perform repairs.
TWO-YEAR LIMITED PARTS WARRANTY ON KOBE BRILLIA SERIES:
For two years from the date of your original invoice from a KOBE authorized dealer, we will provide non-consumable replacement parts or components free of charge that failed due to manufacturing defects. Consumable parts such as light bulbs, filters, fuses, and oil cups are not covered by this warranty.
WHAT IS COVERED:
This warranty is valid in the United States and Canada. It is non-transferable and applies only to the original purchaser and does not extend to subsequent owners of this product. In Hawaii, Alaska, and Canada, this warranty is limited. There may be additional shipping charges for parts and service technician travel costs in remote areas or locations 30 miles outside of the KOBE-authorized service area.

WHAT IS NOT COVERED:

1. Normal wear and tear, regular service, and maintenance are required for the product.
2. Consumable parts such as light bulbs, filters, fuses, and oil cups.
3. Chips, scratches, or dents due to abuse or misuse of the product, or use of corrosive and abrasive cleaning products.
4. Damages are caused by accidents, fire, floods, and other Acts of God.
5. Services in remote areas or locations 30 miles outside of KOBE authorized service area.
6. Labor costs incurred in connection with the removal of range hood, and reinstallation of replacement range hood, nor does it cover any other contingent expenses.
7. Scratches inside the hood, back of the baffle filter, and inside the duct cover.

THIS WARRANTY WILL BE VOIDED WHEN:

1. Improper installation and failure to follow installation instructions.
2. Any repair, alteration, or modification not authorized by KOBE.
3. Duct alteration, modification, and connection.
4. Incorrect electric current, voltage, or wiring.
5. Improper usage of the product such as commercial, outdoor, or another usage other than its intended purpose is residential indoor usage only.
6. The product is purchased from an unauthorized KOBE dealer.
7. The product is damaged due to negligence, misuse, abuse, or accident.

If we determine that the warranty exclusions listed above apply or if you fail to provide all necessary documentation for warranty service, you will be responsible for all expenses associated with the requested service, including parts, labor, shipping, traveling, and any other expense related to the service request.

TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER:

From the 48 contiguous states:
Email (best): [email protected]
Phone: 1-626-775-8880
Toll-Free: 1-877-BUY-KOBE (289-5623)

For Alaska, Hawaii and Canada:
Email (best): [email protected]
Phone: 1-626-775-8880

WARRANTY INFORMATION FORM

Fill in the blacks and keep this paper with the original invoice in a safe place for future service purposes:

1. Date of purchase : __________________________
2. Model No. : __________________________
3. Serial No. : __________________________

For warranty service or spare parts purchase in US, contact:
KOBE Service Center
Email (best): [email protected]
Phone: 1-626-775-8880
Toll-Free: 1-877-BUY-KOBE (289-5623)

For warranty service or spare parts purchase in Canada, contact:
Email (best): [email protected]
Phone: 1-626-775-8880

This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.

KOBE Range Hoods
11775 Clark Street
Arcadia, CA 91006 USA
www.koberangehoods.com

References

• Range Hoods - KOBE Range Hoods: So quiet, you won't believe it's on!
• Range Hoods - KOBE Range Hoods: So quiet, you won't believe it's on!
