V I V O Mount-e-fd70 Remote Control Instruction Manual (+ PDF)

Contents hide

2 Product Information: MOUNT-E-FD70 Remote Control

MOUNT-E-FD70 Remote Control

Product Information: MOUNT-E-FD70 Remote Control

The MOUNT-E-FD70 Remote Control is a device that allows you to
control the position of your TV mount. It comes with a manual that
provides detailed instructions on how to use it. You can also scan
the QR code or follow the link provided in the manual for helpful
videos and specifications related to the product. The remote
control operates on two AAA batteries (not included) and can be
paired with multiple units. It also comes with memory buttons that
allow you to save and recall up to two memory locations.

Product Usage Instructions

Install two AAA batteries in the remote control.
Plug in the mount. The mount will beep once and be ready for
operation.
Make sure the mount is in the correct orientation, as it relies
on gravity for correct operation. It will not operate while resting
on a table or other surface.
If the mount is installed on a pitched surface, follow these
steps:
1. Press and hold the OK button for 6 seconds. The mount will
  retract to the minimum (folded) position.
2. Press the down button to lower the TV. Press OK when the TV has
  reached the fully lowered position.
3. Press and hold the mem1 button until the mount beeps. Repeat 4
  times. Mount will give a long beep, indicating that the maximum
  tilt angle has been set. The mount is now ready for use.
To save a certain location to memory, press and hold the mem1
or mem2 buttons for 2 seconds. The mount will beep, indicating the
position has been saved to memory.
To recall memory locations, press the (1) or (2) button. The TV
mount will automatically adjust to saved memory locations 1 or
2.
To adjust the TV mount to the minimum position (resting against
the ceiling), simply give it a slight push. The mount will
automatically return to the minimum position. Note: the mount must
be lowered using the remote.
If the original remote has been lost, contact the manufacturer
for a replacement. To pair the replacement remote with the mount:
1. Use a thin tool (such as a paperclip) to press the small button
  on the left side of the mount. The mount will beep once.
2. Press the SET button on the replacement remote. The mount will
  beep repeatedly for 10 seconds to indicate that the remote is being
  programmed to the mount. When the beeping has stopped, the mount
  will be ready for operation.
If the TV ceiling mount operates abnormally, it may be
necessary to perform a reset of the mount. To reset the TV ceiling
mount, unplug the mount from power for 10 seconds and plug back in.
Hold the OK button for 6 seconds to return mount to the minimum
(folded) position. Press the down button and allow mount to fully
lower.

View Fullscreen

MOUNT-E-FD70 Remote Control
Instruction Manual

SKU: MOUNT-E-FD70 Remote Control
Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-e-fd70
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

[email protected]

www.vivo-us.com Chat live with an agent!

309-278-5303

WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

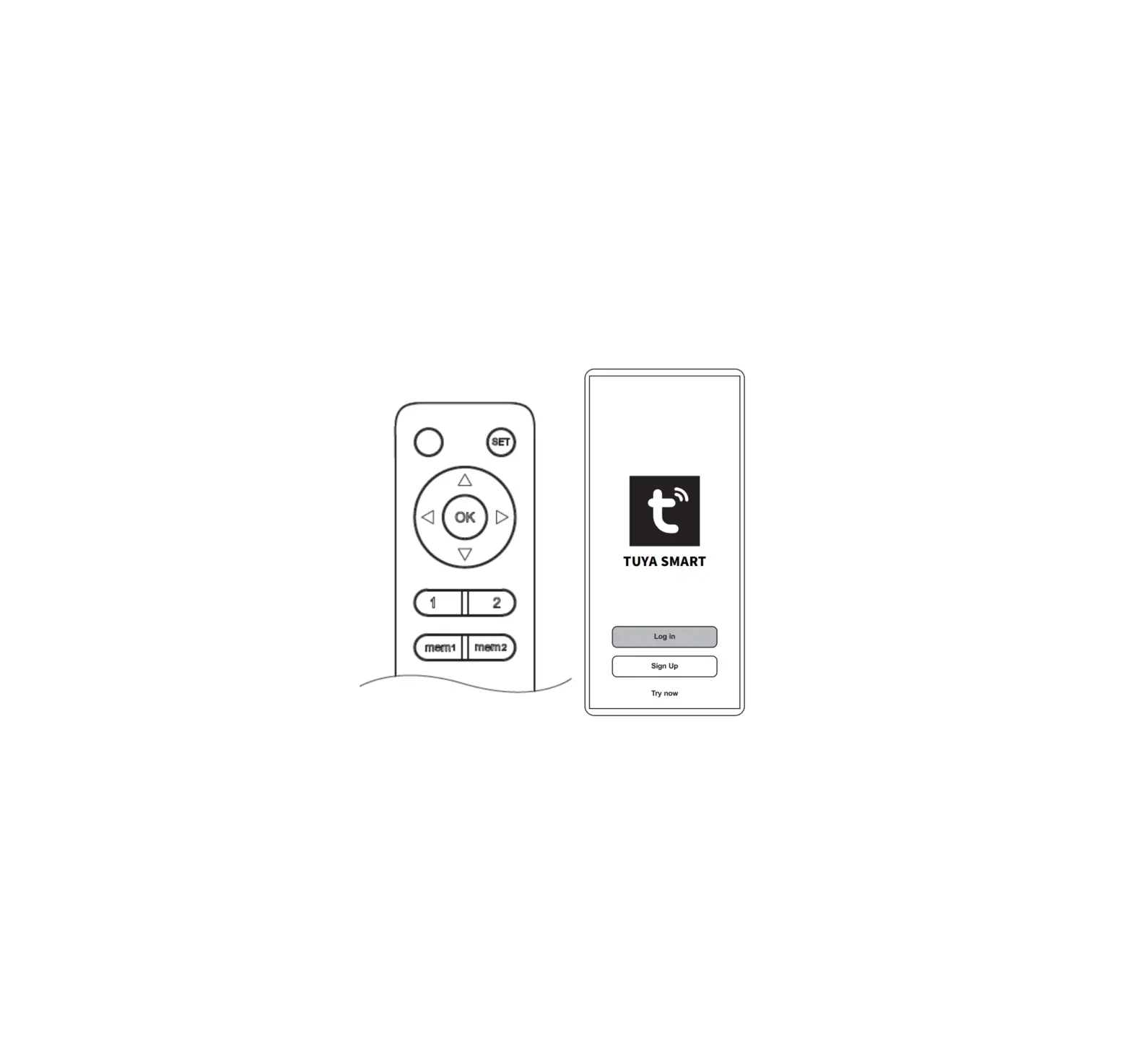

BUTTON FUNCTIONS

Downward Movement

Upward Movement

Stop

Memory Button 1: Press Memory Button 2: Press

and hold for 2 seconds, and hold for 2 seconds,

the mount will beep twice. the mount will beep twice.

Location 1 is saved.

Location 2 is saved.

Recall Memory Recall Memory

Position 1

Position 2

REMOTE CONTROL OPERATING INSTRUCTIONS
Install two AAA batteries (not included) in the remote.
STEP 1 Plug the mount in. The mount will beep once, and will be ready for operation.
NOTE: The mount relies on gravity for correct operation and will only operate when in the correct orientation. The mount will not operate while resting on a table or other surface.
IF MOUNT IS INSTALLED ON A PITCHED SURFACE: 1. Press and hold the OK button for 6 seconds. The mount will retract to the minimum
(folded) position. 2. Press the down button to lower the TV. Press OK when the TV has reached the fully
lowered position. 3. Press and hold the mem1 button until the mount beeps. Repeat 4 times. Mount will
give a long beep, indicating that the maximum tilt angle has been set. The mount is now ready for use.
SAVE AND RECALL MEMORY To save a certain location to memory, press and hold the mem1 or mem2 buttons for 2 seconds. The mount will beep, indicating the position has been saved to memory. To recall memory locations, press the ( 1 ) or ( 2 ) button. The TV mount will automatically adjust to saved memory locations 1 or 2.

MANUAL POSITION ADJUSTMENT
To adjust TV mount to minimum position (resting against the ceiling), simply give it a slight push. The mount will automatically return to minimum the position. NOTE: The mount must be lowered using the remote.
2

REPLACING THE REMOTE CONTROL
If the original remote has been lost, please contact us for a new one. To pair the replacement remote with the mount: 1. Use a thin tool (such as a paperclip) to press the small button on the left side of the mount. The mount will beep once. 2. Press the SET button on the replacement remote. The mount will beep repeatedly for 10 seconds to indicate that the remote is being programmed to the mount. When the beeping has stopped, the mount will be ready for operation.

PAIRING A REMOTE TO MULTIPLE UNITS
The included remote may be paired to multiple units, allowing all installed mounts to be controlled simultaneously. Follow the steps outlined above in “Replacing the Remote Control” for each mount to pair to a single remote.
To change each unit back to using individual remotes, repeat the programming steps using the individual remotes for each.

RESET MOUNT
If the TV ceiling mount operates abnormally, it may be necessary to perform a reset of the mount. To reset the TV ceiling mount, unplug the mount from power for 10 seconds and plug back in. Hold the OK button for 6 seconds to return mount to the minimum (folded) position. Press the down button and allow mount to fully lower.

PROBLEM

SOLUTION

Remote Control Range is Too Short

Replace the batteries. If the problem is not resolved, please contact us to replace the remote control.

Abnormal Operation Mount Will Not Operate

Reset the system by following instructions under Reset Mount. If problem is not resolved, contact us to
replace the product.
Ensure power supply is properly connected to the product. If so, ensure power outlet is working. If there is no beeping sound or red light (power indication) on the TV mount, please contact us to replace the power
supply.

Abnormal Noise

Please contact us to replace the product.

Mount beeps when pressing up and/or down and won’t move

Follow Reset procedure. Verify that you are using the pitch ceiling function if your mount is installed on a
pitched ceiling.
3
