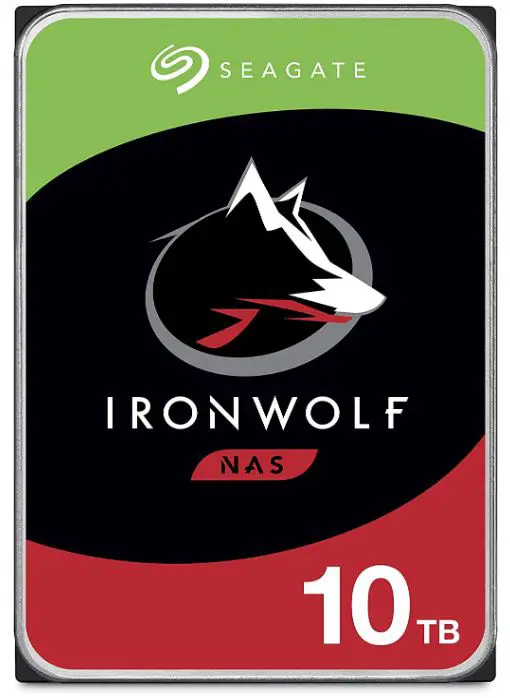

Seagate ST10000VN000 IronWolf 10TB NAS Internal Hard Drive
Description
IronWolf is ideal for teams needing to store more and work more quickly because it was specifically designed for multi-user NAS settings. These internal hard drives are specifically made for less wear and tear, little to no noise/vibration, no lags or downtime, enhanced file-sharing performance, and lower power consumption. They are designed for up to 8 bays and offer 10TB with speeds of up to 180MB/s. Easy hard drive health monitoring is possible with the integrated IronWolf Health Management system. With a 1M hours MTBF and a three-year Seagate Rescue Data Recovery service and a 3-year limited warranty protection plan, you can count on long-term dependability.
Key Advantages
- Optimized for NAS with AgileArray™ enables Dual-Plane Balancing and Time-Limited Error Recovery to deliver best-in-class RAID performance in multi-bay systems.
- Always On, Always Accessible IronWolf drives are designed for 24×7 usage, allowing users to access their data anytime, anywhere.
- All-CMR Portfolio All IronWolf drives utilize Conventional Magnetic Recording (CMR) technology for consistent, best-in-class NAS performance.
- Up to 12 TB Broad range of capacity options to deliver scalable and cost-efficient storage solutions.
- Built Tough IronWolf drives are rated for a 180 TB/year workload, allowing consumer and commercial NAS users to seamlessly store and work with large amounts of networked data.
- Superior Reliability and Dependability IronWolf drives are rated for 1M hours MTBF and include a 3-year limited warranty for hassle-free data storage and best-in-class total cost of ownership (TCO)
- Rotational Vibration (RV) sensors1. Built-in RV sensors for vibration tolerance and consistent performance in multi-bay systems.
- IronWolf Health Management (IHM)2 Actively protect your NAS data with Prevention, Intervention, and Recovery recommendations to ensure peak system health.
- Peace of mind with Data Recovery3 IronWolf drives include three years of complimentary Rescue Data Recovery Services – in-house secure facilities, with an industry-leading recovery rate of 95% – so you do not have to incur high recovery costs in the event of accidental data corruption or drive damage.
Specifications
| Specifications | 12 TB | 10 TB | 10 TB | 8 TB | 6 TB |
| Capacity | 12TB | 10TB | 10TB | 8TB | 6TB |
| Standard Model Number | ST12000VN0008 | ST10000VN0008 | ST10000VN000 | ST8000VN004 | ST6000VN001 |
| Interface | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s |
| Features and Performance | |||||
| Drive Bays Supported | 1 – 8 Bays | 1 – 8 Bays | 1 – 8 Bays | 1 – 8 Bays | 1 – 8 Bays |
| Recording Technology | CMR | CMR | CMR | CMR | CMR |
| Drive Design (Air or Helium) | Helium | Helium | Air | Air | Air |
| Workload Rate Limit (WRL) | 180 | 180 | 180 | 180 | 180 |
| Rotational Vibration (RV) Sensor | Yes | Yes | Yes | Yes | Yes |
| Dual-Plane Balance | Yes | Yes | Yes | Yes | Yes |
| Error Recovery Control | Yes | Yes | Yes | Yes | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 210MB/s | 210MB/s | 210MB/s | 210MB/s | 190MB/s |
| Spindle Speed (RPM) | 7,200 | 7,200 | 7,200 | 7,200 | 5,400 |
| Cache (MB) | 256 | 256 | 256 | 256 | 256 |
| Reliability | |||||
| Load/Unload Cycles | 600,000 | 600,000 | 600,000 | 600,000 | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 | 1 per 10E14 |
| Power-on Hours | 8,760 | 8,760 | 8,760 | 8,760 | 8,760 |
| Mean Time Between Failures (MTBF, hours) | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 |
| Rescue Data Recovery Services (years)4 | 3 | 3 | 3 | 3 | 3 |
| Warranty, Limited (years) | 3 | 3 | 3 | 3 | 3 |
| Power Management | |||||
| Startup Current, Typical (12V, A) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Average Operating Power | 7.3 | 7.8 | 10.1 | 10.1 | 5.3 |
| Idle Power Average (W) | 5.1 W | 5 W | 7.8 W | 7.8 W | 3.4 W |
| Standby Mode/Sleep Mode, Typical (W) | 1.17/1.17 | 1.17/1.17 | 1/1 | 1/1 | 0.25/0.25 |
| Voltage Tolerance, Inc. Noise (5V / 12V) | ±5% / ±10% | ±5% / ±10% | ±5% / ±10% | ±5% / ±10% | ±5% / ±10% |
| Environmental/Temperature | |||||
| Operating Temperature (ambient, min °C) | 0 | 0 | 0 | 0 | 0 |
| Operating Temperature (drive reported, max °C)5 | 65 | 65 | 65 | 65 | 65 |
| Nonoperating Temperature (ambient, min / max °C) | -40 / 70 | -40 / 70 | -40 / 70 | -40 / 70 | -40 / 70 |
| Environmental/Shock | |||||
| Shock, Operating/Non-operating: 2 ms (max) | 50 Gs/200 Gs | 70 Gs/250 Gs | 70 Gs/300 Gs | 70 Gs/300 Gs | 70 Gs/250 Gs |
| Environmental/Acoustics | |||||
| Acoustics, Idle (typical, measured in Idle 1 state) (dBA) | 2.8 bels | 18 | 28 | 28 | 26 |
| Acoustics, Seek (typical) (dBA) | 3.0 bels | 28 | 32 | 32 | 27 |
| Physical | |||||
| Height (mm/in) | 26.11 mm/1.028 in | 26.11 mm/1.028 in | 26.11 mm/1.028 in | 26.11 mm/1.028 in | 26.11 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in | 101.85 mm/4.01 in | 101.85 mm/4.01 in | 101.85 mm/4.01 in | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in | 146.99 mm/5.787 in | 146.99 mm/5.787 in | 146.99 mm/5.787 in | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 650 g/1.433 lb | 690 g/1.521 lb | 720 g/1.59 lb | 720 g/1.59 lb | 610 g/1.345 lb |
| Carton Unit Quantity | 20 | 20 | 20 | 20 | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 | 40/8 | 40/8 | 40/8 | 40/8 |
| Specifications | 4 TB | 4 TB | 3 TB | 3 TB | 2 TB |
| Capacity | 4TB | 4TB | 3TB | 3TB | 2TB |
| Standard Model Number | ST4000VN006 | ST4000VN008 | ST3000VN006 | ST3000VN007 | ST2000VN004 |
| Interface | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s |
| Features and Performance | |||||
| Drive Bays Supported | 1 – 8 Bays | 1 – 8 Bays | 1 – 8 Bays | 1 – 8 Bays | 1 – 8 Bays |
| Recording Technology | CMR | CMR | CMR | CMR | CMR |
| Drive Design (Air or Helium) | Air | Air | Air | Air | Air |
| Workload Rate Limit (WRL) | 180 | 180 | 180 | 180 | 180 |
| Rotational Vibration (RV) Sensor | Yes | Yes | Yes | No | No |
| Dual-Plane Balance | Yes | Yes | Yes | Yes | Yes |
| Error Recovery Control | Yes | Yes | Yes | Yes | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 202MB/s | 180MB/s | 202MB/s | 180MB/s | 180MB/s |
| Spindle Speed (RPM) | 5,400 | 5,900 | 5,400 | 5,900 | 5,900 |
| Cache (MB) | 256 | 64 | 256 | 64 | 64 |
| Reliability | |||||
| Load/Unload Cycles | 600,000 | 600,000 | 600,000 | 600,000 | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 |
| Power-on Hours | 8,760 | 8,760 | 8,760 | 8,760 | 8,760 |
| Mean Time Between Failures (MTBF, hours) | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 |
| Rescue Data Recovery Services (years)4 | 3 | 3 | 3 | 3 | 3 |
| Warranty, Limited (years) | 3 | 3 | 3 | 3 | 3 |
| Power Management | |||||
| Startup Current, Typical (12V, A) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Average Operating Power | 4.8 | 4.8 | 4.8 | 4.8 | 4.3 |
| Idle Power Average (W) | 3.96 W | 3.95 W | 3.96 W | 4.8 W | 3.56 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.5/0.5 | 0.5/0.5 | 0.5/0.5 | 0.5/0.5 | 0.5/0.5 |
| Voltage Tolerance, Inc. Noise (5V / 12V) | ±5% / ±10% | ±5% / ±10% | ±5% / ±10% | ±5% / ±10% | ±5% / ±10% |
| Environmental/Temperature | |||||
| Operating Temperature (ambient, min °C) | 0 | 0 | 0 | 0 | 0 |
| Operating Temperature (drive reported, max °C)5 | 65 | 65 | 65 | 65 | 65 |
| Nonoperating Temperature (ambient, min / max °C) | -40 / 70 | -40 / 70 | -40 / 70 | -40 / 70 | -40 / 70 |
| Environmental/Shock | |||||
| Shock, Operating/Non-operating: 2 ms (max) | 80 Gs/300 Gs | 80 Gs/300 Gs | 80 Gs/300 Gs | 80 Gs/300 Gs | 80 Gs/300 Gs |
| Environmental/Acoustics | |||||
| Acoustics, Idle (typical, measured in Idle 1 state) (dBA) | 23 | 23 | 23 | 23 | 19 |
| Acoustics, Seek (typical) (dBA) | 27 | 25 | 27 | 25 | 21 |
| Physical | |||||
| Height (mm/in) | 20.2 mm/0.795 in | 26.11 mm/1.028 in | 20.2 mm/0.795 in | 26.11 mm/1.028 in | 26.11 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in | 101.85 mm/4.01 in | 101.85 mm/4.01 in | 101.85 mm/4.01 in | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in | 146.99 mm/5.787 in | 146.99 mm/5.787 in | 146.99 mm/5.787 in | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 490 g/1.08 lb | 610 g/1.345 lb | 490 g/1.08 lb | 610 g/1.345 lb | 535 g/1.18 lb |
| Carton Unit Quantity | 25 | 20 | 25 | 20 | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 | 40/8 | 40/8 | 40/8 | 40/8 |
| Specifications | 1 TB |
| Capacity | 1TB |
| Standard Model Number | ST1000VN002 |
| Interface | SATA 6Gb/s |
| Features and Performance | |
| Drive Bays Supported | 1 – 8 Bays |
| Recording Technology | CMR |
| Drive Design (Air or Helium) | Air |
| Workload Rate Limit (WRL) | 180 |
| Rotational Vibration (RV) Sensor | No |
| Dual-Plane Balance | Yes |
| Error Recovery Control | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 180MB/s |
| Spindle Speed (RPM) | 5,900 |
| Cache (MB) | 64 |
| Reliability | |
| Load/Unload Cycles | — |
| Non-recoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-on Hours | 8,760 |
| Mean Time Between Failures (MTBF, hours) | 1,000,000 |
| Rescue Data Recovery Services (years)4 | 3 |
| Warranty, Limited (years) | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.2 |
| Average Operating Power | 3.76 |
| Idle Power Average (W) | 2.5 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.5/0.5 |
| Voltage Tolerance, Inc. Noise (5V / 12V) | ±5% / ±10% |
| Environmental/Temperature | |
| Operating Temperature (ambient, min °C) | 0 |
| Operating Temperature (drive reported, max °C)5 | 65 |
| Nonoperating Temperature (ambient, min / max °C) | -40 / 70 |
| Environmental/Shock | |
| Shock, Operating/Non-operating: 2 ms (max) | 80 Gs/300 Gs |
| Environmental/Acoustics | |
| Acoustics, Idle (typical, measured in Idle 1 state) (dBA) | 21 |
| Acoustics, Seek (typical) (dBA) | 23 |
| Physical | |
| Height (mm/in) | 20.2 mm/0.795 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 415 g/0.915 lb |
| Carton Unit Quantity | 25 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
- Refer to specifications table for models supported.
- IHM is enabled on all leading NAS systems. Please check with your NAS vendor or a Seagate sales representative for more details.
- Rescue services not available in all countries. Contact your Seagate sales representative for further details.
- Rescue services are not available in all countries. Contact your Seagate sales representative for more info.
- It is not recommended to operate at sustained drive temperatures above 60°C. Higher temperatures may affect drive health.
Trademarks
seagate.com ©2021 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology, and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. AgileArray and IronWolf are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners. When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual data rates may vary depending on the operating environment and other factors. Seagate reserves the right to change, without notice, product offerings or specifications.
FAQ’s
What is the Seagate ST10000VN000 IronWolf 10TB NAS Internal Hard Drive?
The Seagate ST10000VN000 IronWolf is an internal hard drive specially designed for NAS systems, offering a substantial 10TB storage capacity to meet the demanding needs of home and small office environments.
What interface does the IronWolf 10TB hard drive use?
The IronWolf 10TB hard drive utilizes the SATA 6Gb/s interface (SATA III), ensuring efficient and rapid data transfer rates.
What is the physical size of this hard drive?
The Seagate IronWolf 10TB hard drive has a 3.5-inch form factor, which conforms to the standard size used in desktop and NAS hard drives.
What is the rotational speed of this hard drive?
The IronWolf 10TB hard drive operates at 7200 RPM (Revolutions Per Minute), providing quick access to data and faster transfer speeds.
What is the data transfer rate of this hard drive?
The hard drive offers data transfer rates of up to 210 MB/s (Megabytes per second), ensuring efficient and responsive data read and write processes.
How much cache memory does this hard drive have?
The IronWolf 10TB hard drive comes equipped with a 256MB cache memory, contributing to improved overall performance and responsiveness.
What is the workload rate limit for this hard drive?
The workload rate limit for the IronWolf 10TB hard drive is 180TB per year, making it suitable for continuous 24/7 operation in NAS systems.
Does the hard drive have advanced error recovery control?
Yes, the IronWolf 10TB hard drive is equipped with advanced error detection and correction technology, ensuring data integrity and minimizing data loss risks.
Can multiple users access data simultaneously on this hard drive in a NAS setup?
Certainly, the hard drive supports multi-user optimization, enabling concurrent data access for multiple users in a NAS environment.
Does the IronWolf 10TB hard drive have built-in health management features?
Yes, it includes IronWolf Health Management (IHM), which monitors drive health, ensuring reliability, and optimizing performance in NAS systems.
Is the hard drive designed to operate quietly and with minimal vibration?
Yes, the IronWolf 10TB hard drive is engineered for quiet and smooth operation, making it suitable for noise-sensitive home and small office environments.
Does the hard drive have power management features for energy efficiency?
Yes, the hard drive is energy-efficient and contributes to reduced power consumption in NAS systems, promoting cost savings and environmental friendliness.
