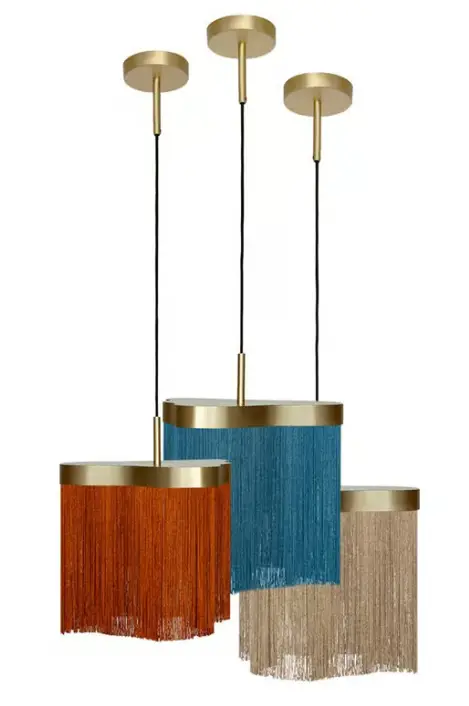

contardi Arcipelago SO Suspension Lamp
INSTALLING INSTRUCTIONS
ALL OPERATIONS MUST BE CARRIED OUT BY QUALIFIED PERSON

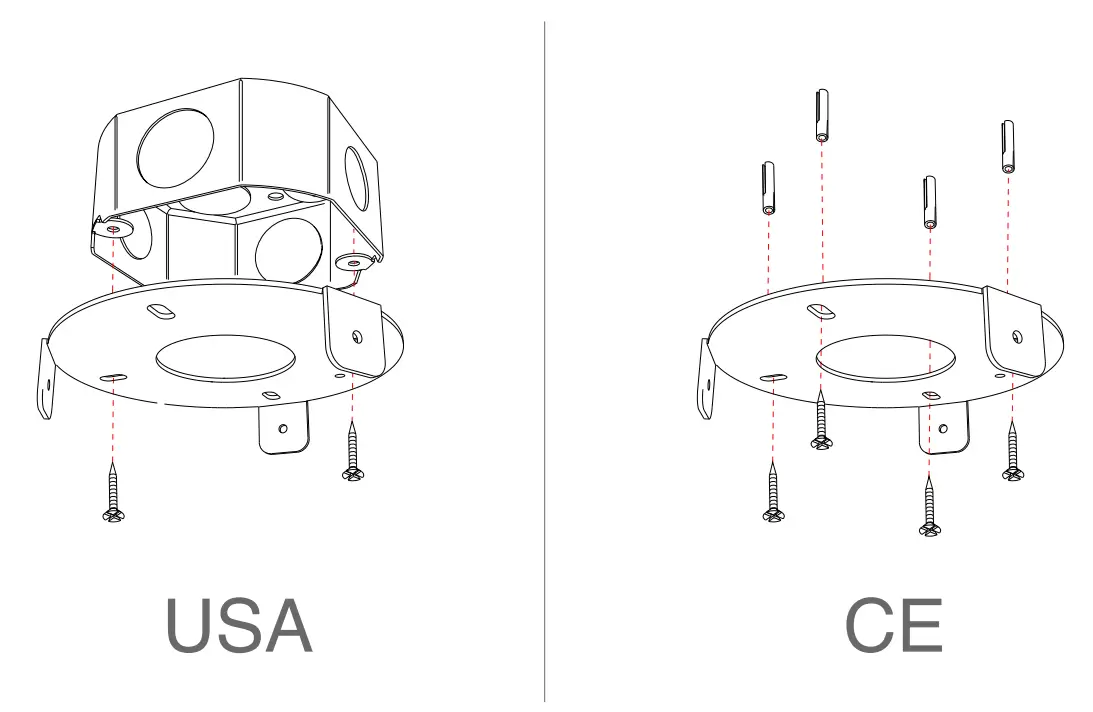

- Fix the bracket on the ceiling (use appropriate anchors depending on the type of ceiling).
- Complete the wiring as shown in the diagram.

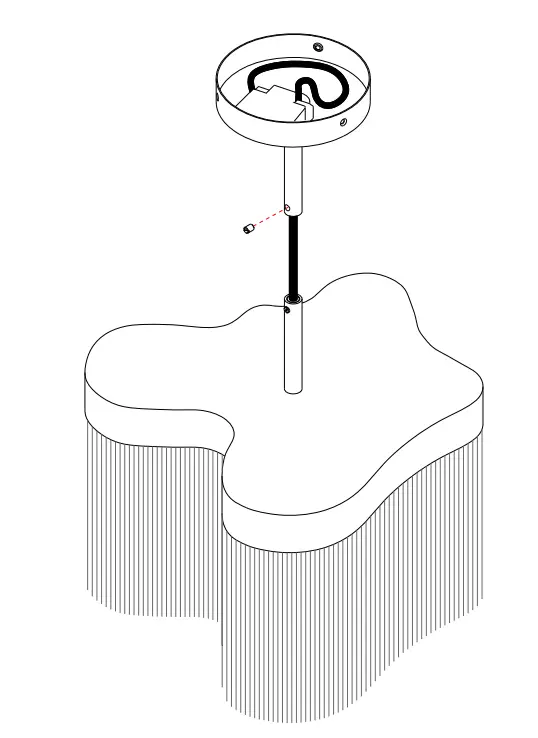

- Loosen the grain of the pipe to adjust the height to which you want to place the accumulating lamp excess cable in the rose.
WARNING!

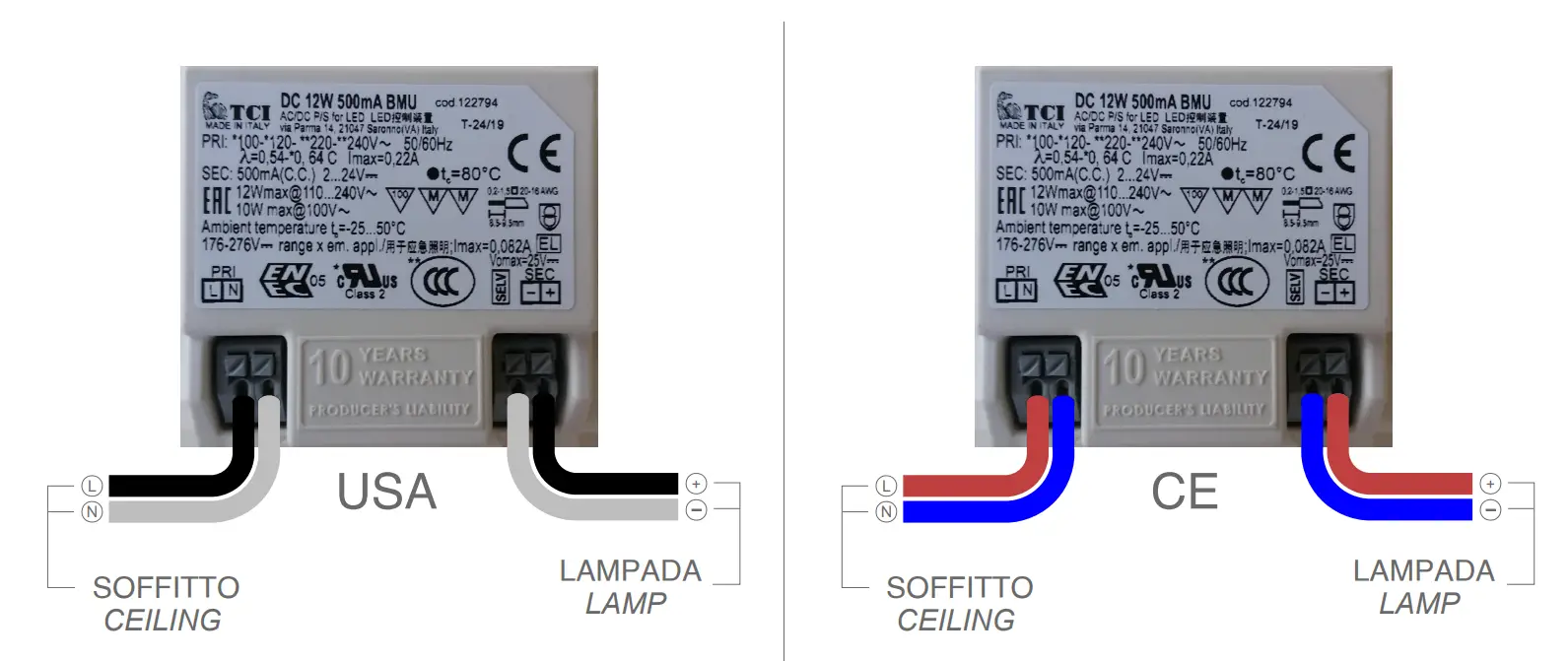

In case you decide to shorten the lamp cable, follow the diagram below to reconnect the cables to the driver.

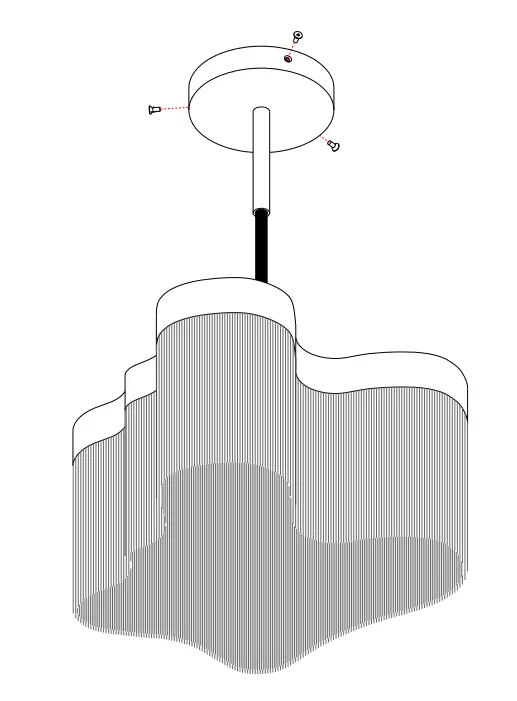

- Once the height is adjusted, tighten the grain and the rosette to the plate through the screws supplied.
WARNING!

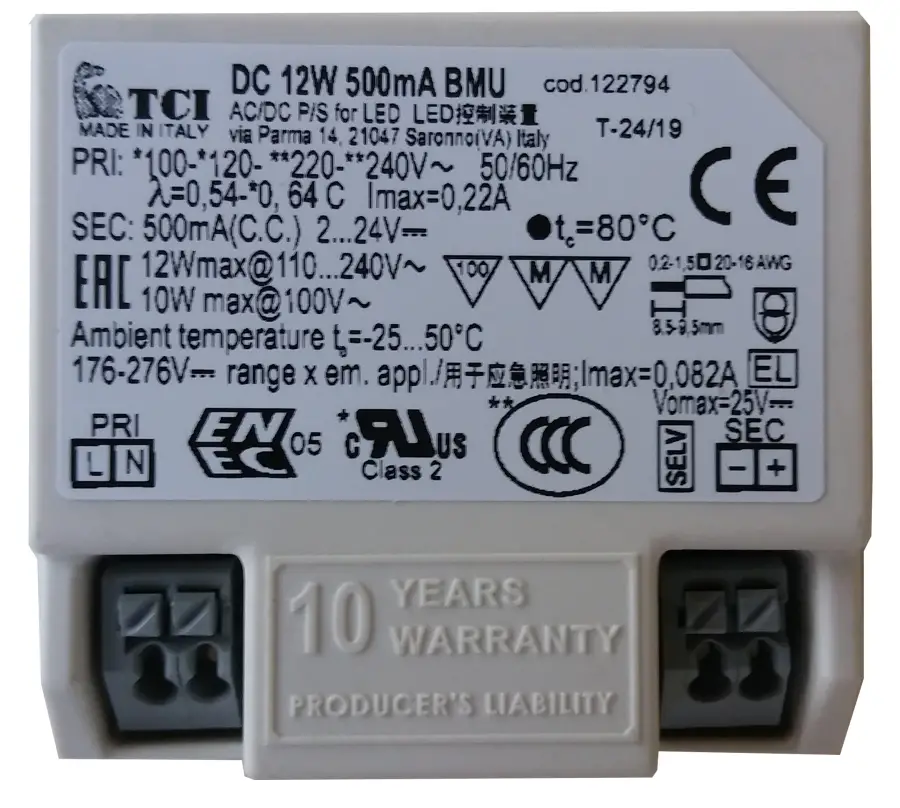

ALIMENTATORE DRIVER

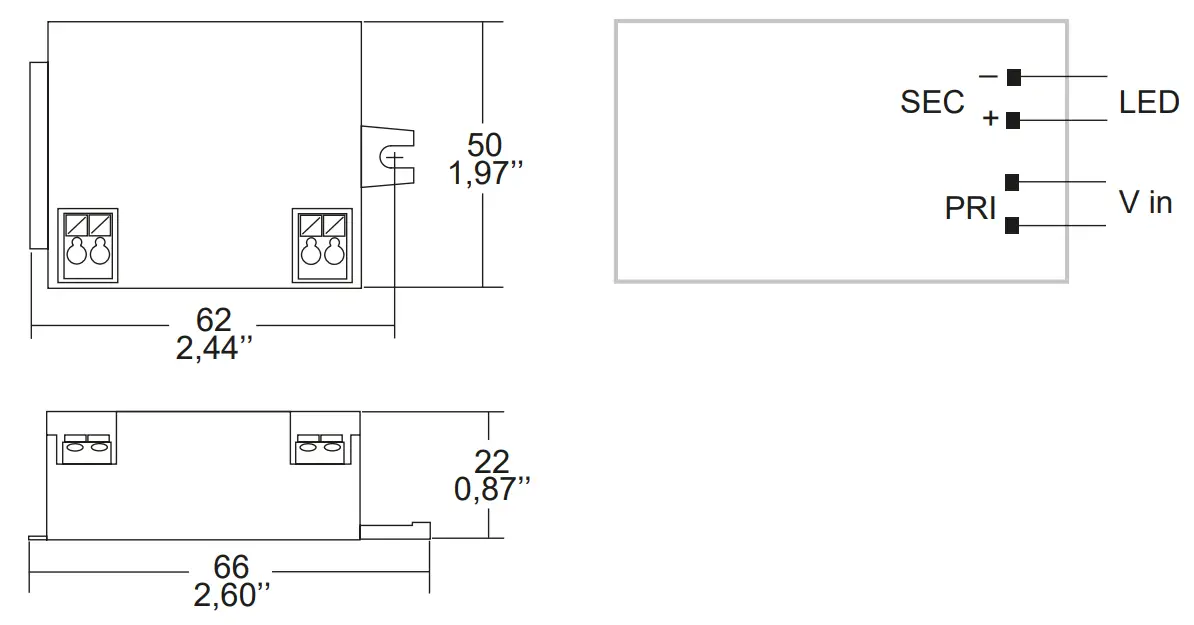

WIRING DIAGRAM
