Starter batteries for motorcycles
LFPS-X7L [12.8V2.4Ah]
Physical Specification
Nominal Voltage | 12.8V 2.4Ah | |
Dimension | Length | 113±2mm (4.45 inches) |
| Weight | Approx 0.52kg (1.15lbs) | |
* Motorcycle Li-ion battery
* Powerful 170 cranking amps
* Shipped pre-charged and ready to install
* Built in BMS to monitor the battery status in real time and protect the battery
* Replaces YTZ7S/YTX7L-BS battery

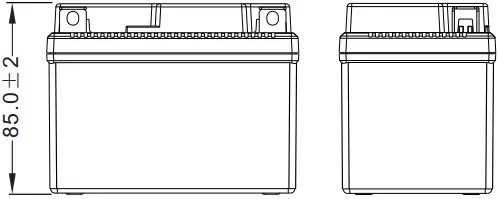

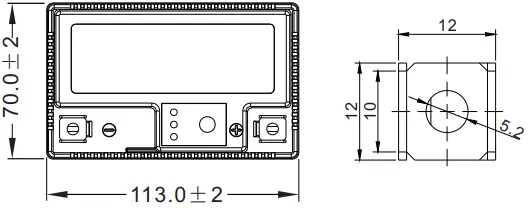

Dimensions (mm)
Electrical Specification
Rated Capacity | 0.1C rate (0.24A) 0.5C rate (1.20A) 10C rate (24.0A) 70C rate (170.0A) | 2.40Ah 2.40Ah 2.16Ah Peak Current |
| Capacity affected by Temperature | 40 °C (104 °F) 25 °C (77 °F) 0 °C ( 32 °F) -20 °C ( -4 °F) | 98% |
Self Discharge | Approximately 1.5% per month | |
Charging Methods | Full Charge Constant-Voltage Charge: | |

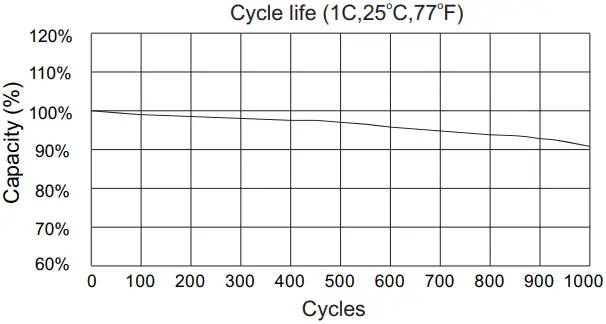

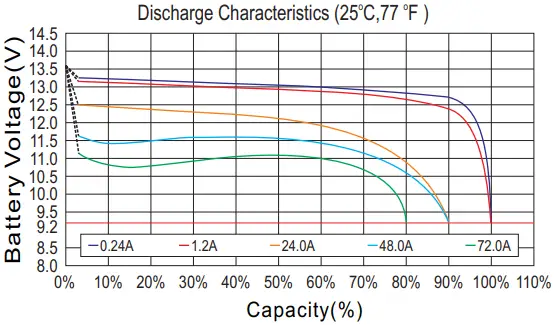

Curve Specification
Publication No :LB-LFPS-X7L-PD-EN-V1.3-202112
Http//:www.leoch.com
[email protected]
Leoch International Technology Limited
Add:Floor 18, Huide building, Minzhi street, Longhua District, Shenzhen, China, 518131
© 2021 LEOCH. All rights reserved.
Trademarks and logos are the property of LEOCH and its affiliates unless otherwise noted.
Subject to revisions without prior notice.
