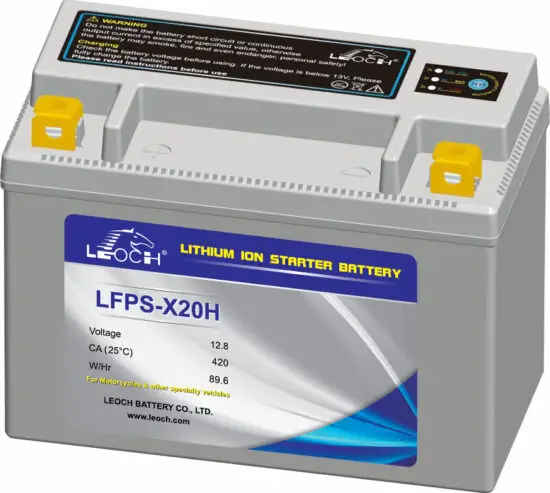

LEOCH LFPS-X20H Starter Batteries for Motorcycles Instructions

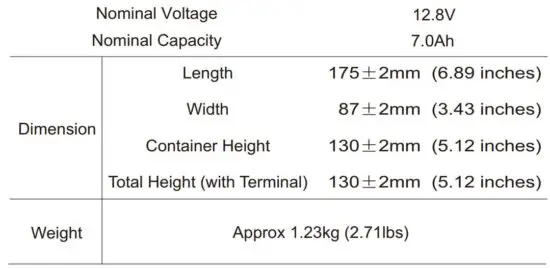

Physical Specification

* Motorcycle Li-ion battery
* Powerful 420 cranking amps
* Shipped pre-charged and ready to install
* Built in BMS to monitor the battery status in real time and protect the battery
* Replaces GYZ20H/YTX20H-BS/YTX20-BS/YB16-B-CX/YB16-B/YB18-A/Y50-N18A-A battery

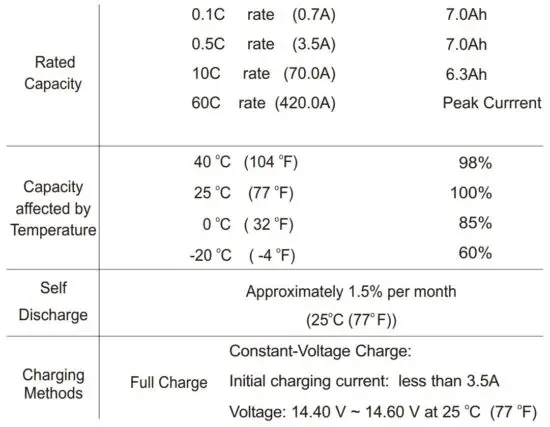

Electrical Specification

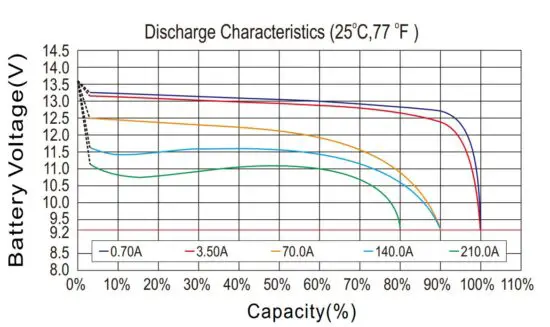

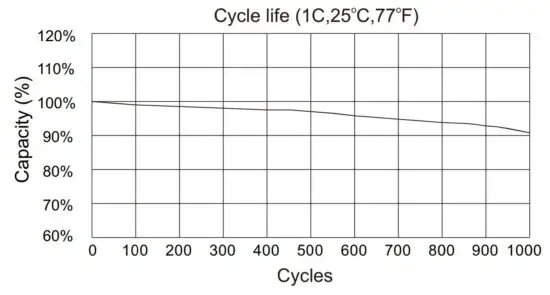

Curve Specification

Http//:www.leoch.com
[email protected]
Leoch International Technology Limited
Add:Floor 18, Huide building, Minzhi street, Longhua District, Shenzhen, China, 518131

© 2021 LEOCH. All rights reserved.
Trademarks and logos are the property of
LEOCH and its affiliates unless otherwise noted.
Subject to revisions without prior notice.
