Set up your XPS 15 9510

NOTE: The images in this document may differ from your computer depending on the configuration you ordered

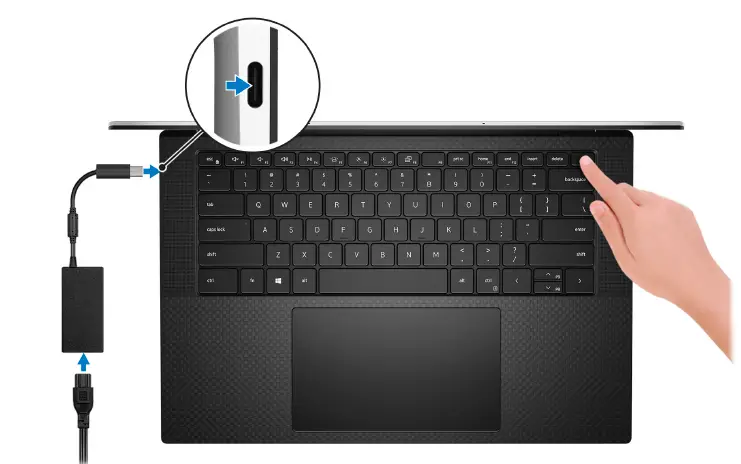

1. Connect the power adapter and press the power button..
   NOTE: You can charge your XPS 15 9510 by connecting the power adapter to one of the Thunderbolt 4 (USB4) USB
   Type-C ports that are located on the left side of your computer or to the USB 3.2 Gen 2 USB Type-C port located on the right side of your computer.
   NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.
2. Finish Windows setup
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you
   •  Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when  prompted.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
   Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see SupportAssist for Home PCs User’s Guide at www.dell.com/ serviceabilitytools. Click SupportAssist and then, click SupportAssist for Home PCs. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article 000149088 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 000129837 at www.dell.com/support.

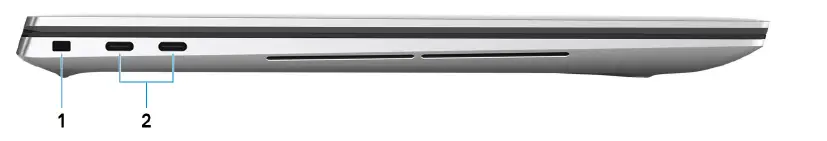

Left

1.  Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.
2. Thunderbolt 4 (USB4) USB Type-C port with Power Delivery (2)
   Supports USB4 Gen 3×2, DisplayPort 1.4a and Thunderbolt 4. Enables you to connect to an external display using a display adapter. Provides data transfer rates up to 40 Gbps for USB4 Gen 3×2 Thunderbolt 4. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/ 3 A power output that enables faster charging.

NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
NOTE: A 40 Gbps-certified cable is required to achieve the maximum performance of 40 Gbps.
NOTE: Thunderbolt 4 supports two 4K displays or one 8K display.
NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
NOTE: You can connect a Dell docking station to the Thunderbolt 4 ports. For more information, see the knowledge base article 000124295 at www.dell.com/support.

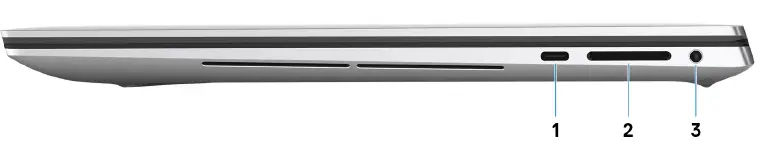

Right

1. USB 3.2 Gen 2 (Type-C) port with Power Delivery/DisplayPort
   Connect peripherals such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps for USB 3.2 Gen 2×1 port.
   Supports DisplayPort and also enables you to connect an external display using a display adapter.
   Supports Power Delviery that enables two-way power supply between devices. Provides up tp 5 V/1.5 A power output.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
2.  SD-card slot
   Reads from and writes to the SD card. The computer supports the following card types:
   •  Secure Digital (SD)
   • Secure Digital High Capacity (SDHC)
   • Secure Digital Extended Capacity (SDXC)
3. Headset port
   Connect headphones or a headset (headphone and microphone combo).

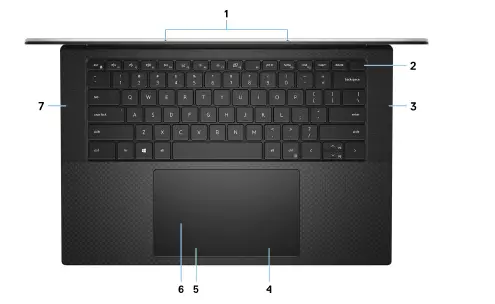

Top

Microphones (2)

1. Provide digital sound input for audio recording, voice calls, and so on.
2. Power button with fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
   Place your finger on the power button to log in with the fingerprint reader.
   NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell atwww.dell.com/support/manuals.
   NOTE: In Windows, Windows Hello supports a defined number of fingerprints per account. For more information aboutconfiguring your fingerprint reader with Windows Hello, see the knowledge base article 000142015 at
   www.dell.com/support.
3. Right speaker
   Provides audio output.
4. Right-click area
   Press to right-click.
5. Left-click area
   Press to left-click.
6. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.
7. Left speaker
   Provides audio output.

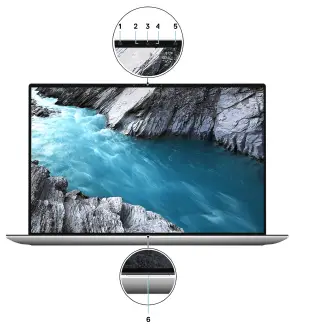

Front

1. Infrared emitter
   Emits infrared light, which enables the infrared camera to sense and track motion.
2. Ambient-light sensor
   The sensor detects the ambient light and automatically adjusts the keyboard backlight and display brightness.
3. RGB-infrared camera
   This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos.
4. Camera-status light
   Turns on when the camera is in use.
5. Infrared emitter
   Emits infrared light, which enables the infrared camera to sense and track motion.
6. Battery-status light
   Indicates the battery-charge status.

Specifications of XPS 15 9510

Dimensions and weight

The following table lists the height, width, depth, and weight of your XPS 15 9510. Table 2. Dimensions and weight

Processor

The following table lists the details of the processors supported by your XPS 15 9510. Table 3.
Processor

Chipset

The following table lists the details of the chipset supported by your XPS 15 9510. Table 4.
Chipset

Operating system

Your XPS 15 9510 supports the following operating systems:

• Windows 11 Home, 64-bit
• Windows 11 Pro, 64-bit
• Windows 11 Pro National Academic, 64-bit
• Windows 10 Home, 64-bit
• Windows 10 Pro, 64-bit

Memory

The following table lists the memory specifications of your XPS 15 9510. Table 5.
Memory specifications

Internal slots

The following table lists the internal slots of your XPS 15 9510. Table 6.
Internal slots

External ports

The following table lists the external ports on your XPS 15 9510. Table 7
External ports

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module supported on your XPS 15 9510. Table 8.
Wireless module specifications

Audio

The following table lists the audio specifications of your XPS 15 9510. Table 9.
Audio specifications

Storage

This section lists the storage options on your XPS 15 9510. Your XPS 15 9510 supports the following
storage options:

• One M.2 2230 solid-state drive
• One M.2 2280 solid-state drive

Table 10. Storage specifications

Table 10. Storage specifications (continued)

Media-card reader

The following table lists the media cards supported by your XPS 15 9510.

Table 11 Media-card reader specifications

Keyboard

The following table lists the keyboard specifications of your XPS 15 9510
Table 12. Keyboard specifications

Camera

The following table lists the camera specifications of your XPS 15 9510.
Table 13. Camera specifications

Touchpad

The following table lists the touchpad specifications of your XPS 15 9510.
Table 14. Touchpad specifications

Power adapter

The following table lists the power adapter specifications of your XPS 15 9510.
Table 15. Power adapter specifications

Battery

The following table lists the battery specifications of your XPS 15 9510.
Table 16. Battery specifications

Battery specifications (continued

Display

The following table lists the display specifications of your XPS 15 9510.
Table 17. Display specifications

Display specifications (continued)

Fingerprint reader

The following table lists the fingerprint-reader specifications of your XPS 15 9510.
NOTE: The fingerprint reader is located on the power button.
Table 18. Fingerprint reader specifications

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 15 9510.
Table 19. GPU—Integrated

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your XPS 15 9510.
Table 20. GPU—Discrete

Operating and storage environment

This table lists the operating and storage specifications of your XPS 15 9510.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment

Computer environment (continued)

Measured using a random vibration spectrum that simulates user environment.
Measured using a 2 ms half-sine pulse when the hard drive is in use.]

Dell low blue light display

WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain,
eye fatigue, or damage to the eyes.
The ComfortView feature on Dell laptops and displays is designed to minimize blue light emitted from the display for better eye comfort.
To reduce the risk of eye strain after looking at the laptop’s display for an extended period of time, it is recommended that you:

1. Set the laptop’s display at a comfortable viewing distance between 20 inches and 28 inches (50 cm and 70 cm) from your eyes.
2. Blink frequently to moisten your eyes, or wet your eyes with water.
3. Take a break for 20 minutes every two hours.
4. Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Keyboard shortcuts of XPS 15 9510

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain
the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform
secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is
pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2,
2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + esc. Subsequently, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1-F12) by changing Function Key Behavior in BIOS setup program.

Table 22. List of keyboard shortcuts

Function key	Redefined key (for multimedia control)	Behavior
		Mute audio

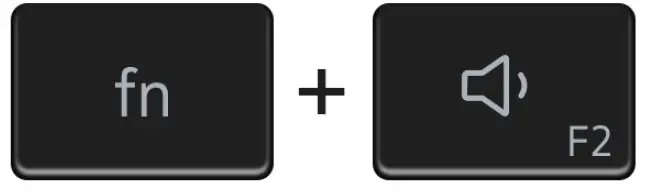

		Decrease volume

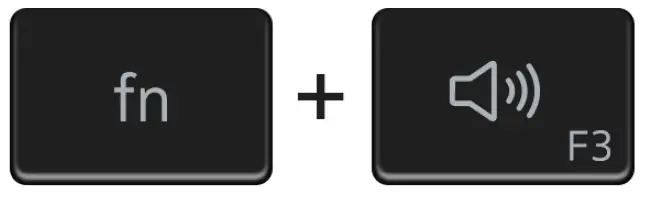

		Increase volume
		Play/Pause
		Toggle keyboard backlight
		Decrease brightness
		Increase brightness

List of keyboard shortcuts (continued)

Function key	Redefined key (for multimedia control)	Behavior
		Switch to external display

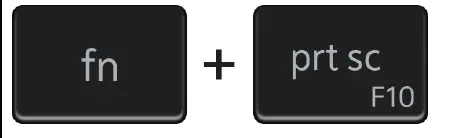

		Print screen
		Home

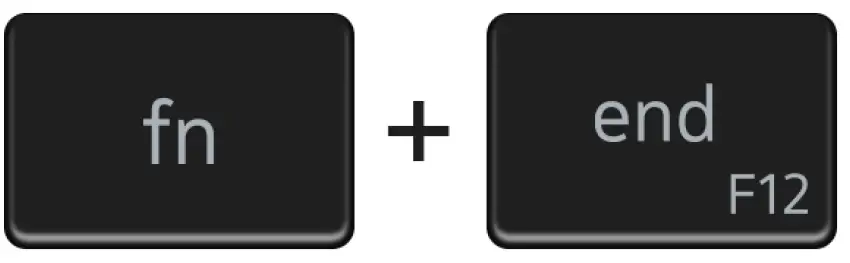

		End

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 23. List of keyboard shortcuts

Function key	Behavior
	Pause/Break
	Toggle scroll lock
	System request

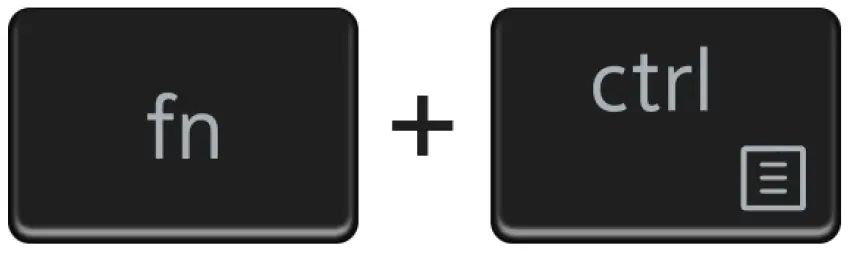

	Open application menu
	Toggle Fn-key lock

Keyboard shortcuts of XPS 15 9510

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:
Table 24. Self-help resources

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
