Doggy Dative Water Bowl

Doggy Daptive Water Bowl

by Pace Occupational Therapy

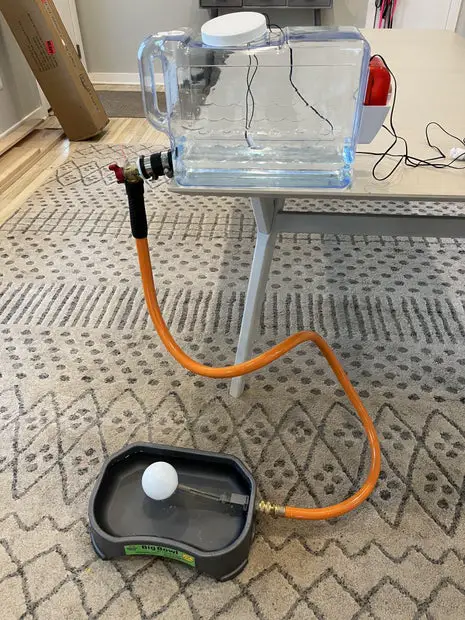

The Doggy Dative water bowl is a hose connected water dispenser to a dog bowl. A sensor in the dog bowl allows for the bowl to be lled and stop automatically when the water reaches a certain height. Within the water dispenser, a sensor connected to an alarm allows for the dog’s caretaker to be alerted when the water dispenser needs to be reeled.
The design of this device allows for individuals with visual impairments to independently rell the water dispenser and thus care for a guide dog while including automation aspects to support pet care and maintain safety.

Supplies:

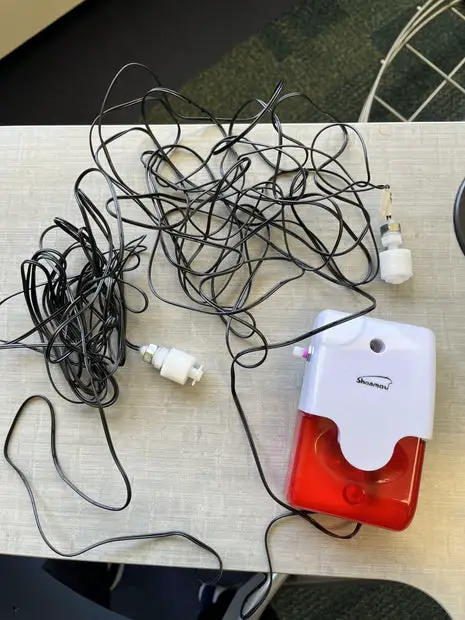

(1) High/Low Water Level Sensor Detector Alarm 120 dB Red Strobe Siren https://www.amazon.com/dp/B085Y4ZV1K?psc=1&ref=ppx…

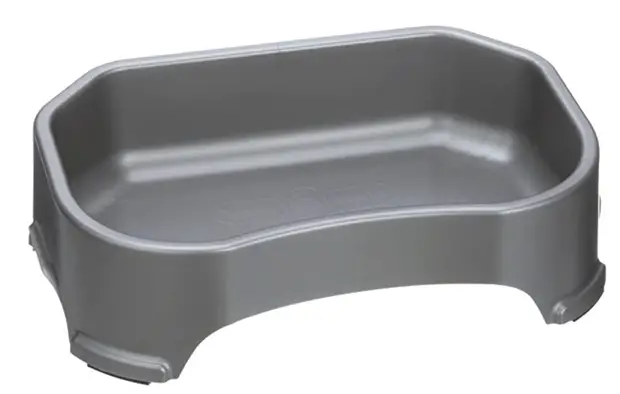

(1) Extra Large Water Bowl for Dogs (1.25 Gallon) https://www.amazon.com/dp/B085Y4ZV1K?psc=1&ref=ppx…

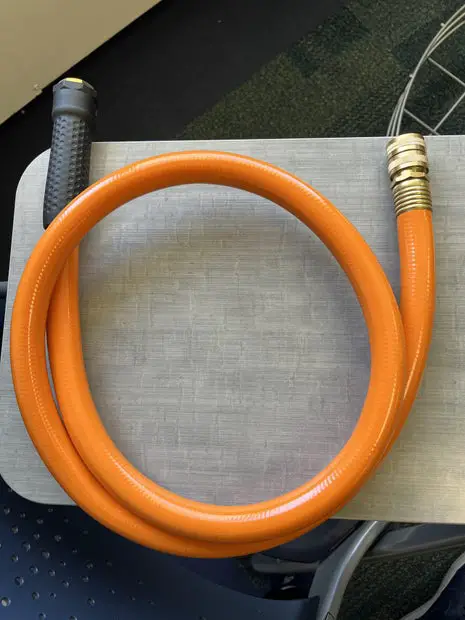

(1) Short Garden Hose 3/4 in. x 5ft https://www.amazon.com/dp/B08T1HQ37Q?psc=1&ref=pp…
(1) Brass Garden Hose Fitting https://www.amazon.com/dp/B08T1HQ37Q?psc=1&ref=pp…
(1) Slimline Beverage Dispenser, 2.5-Gal https://www.amazon.com/dp/B08T1HQ37Q?psc=1&ref=pp…

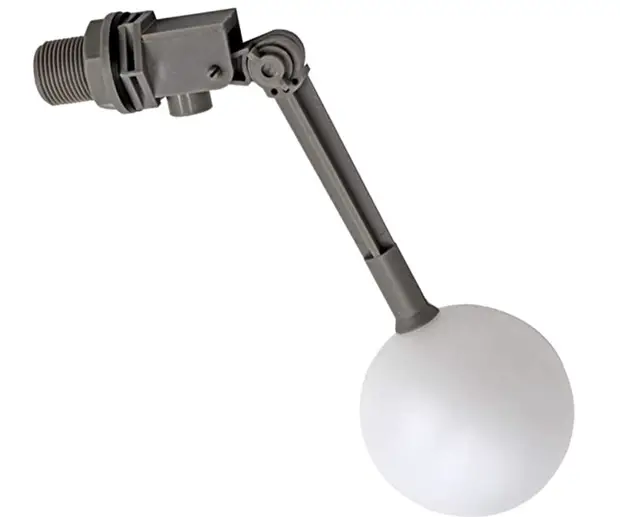

(1) Water Float Valve with Adjustable Arm https://www.amazon.com/dp/B08T1HQ37Q?psc=1&ref=pp…

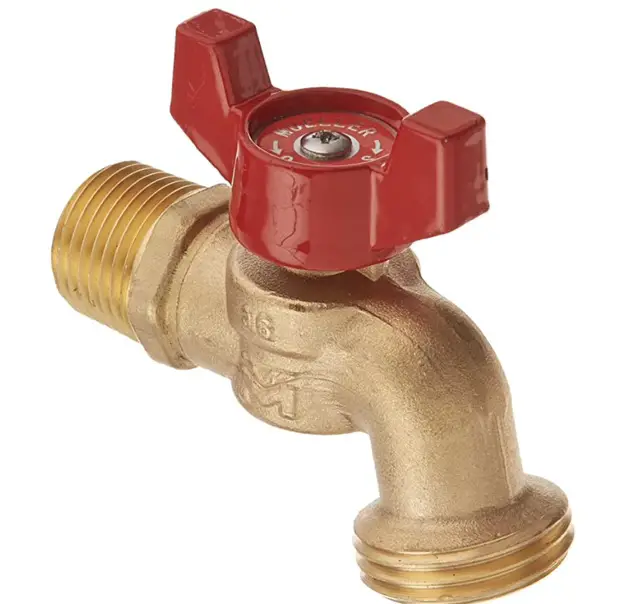

(1) 1/2″ Hose Bibb https://www.amazon.com/dp/B08T1HQ37Q?psc=1&ref=pp…

Step 1:

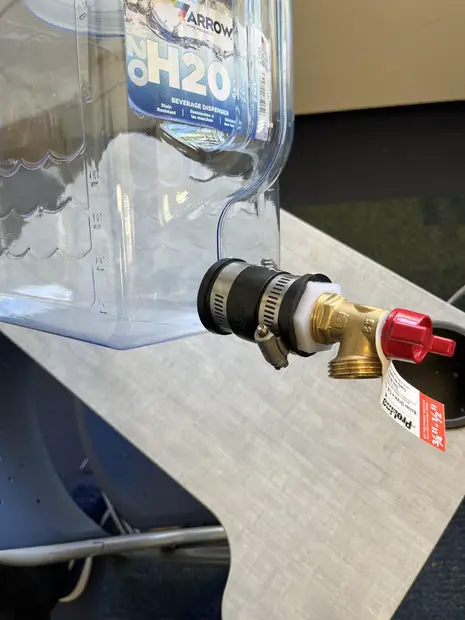

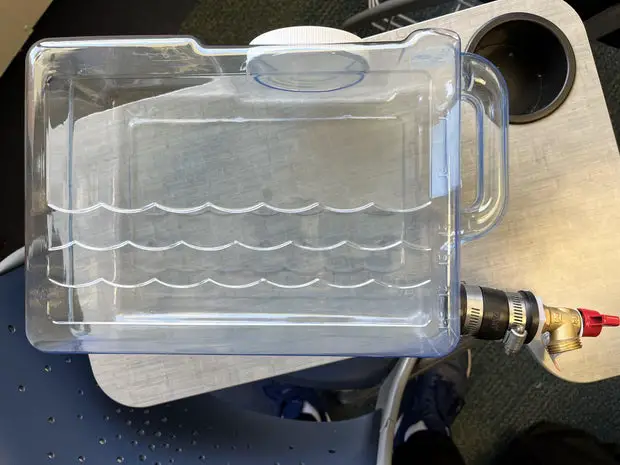

First, remove the waterspout of the beverage dispenser and connect the hose bibb to the dispenser.

Step 2:

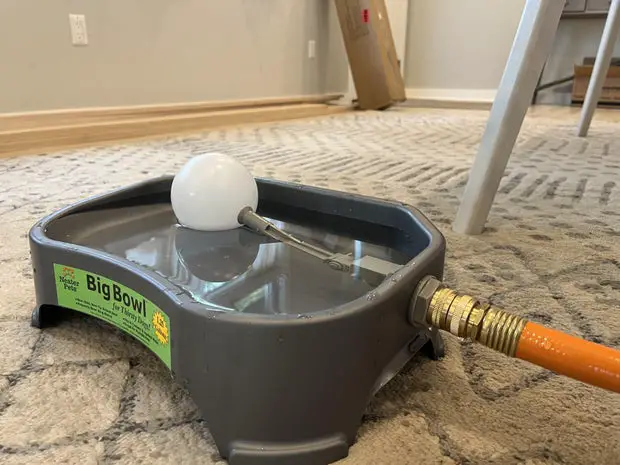

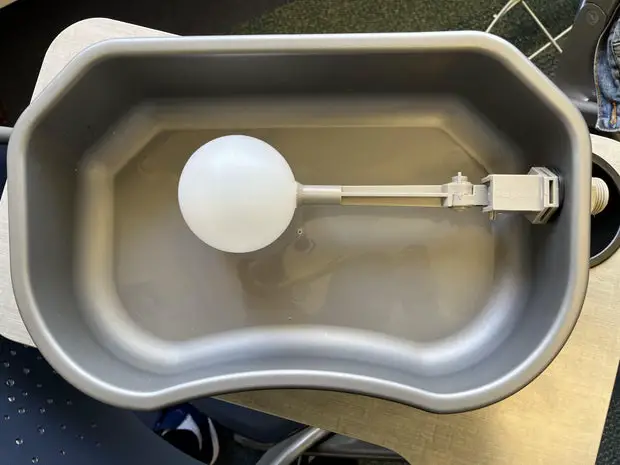

In the second step, drill a hole through the water bowl and t the water oat valve through the hole, with the ball facing inside the bowl.

Step 3:

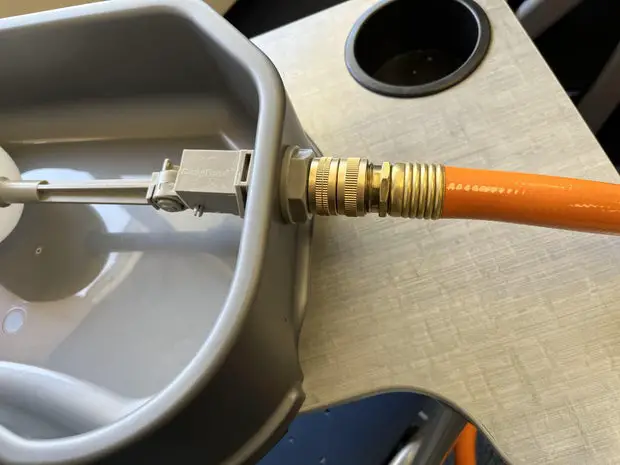

Next, connect the hose to the water oat valve, and tighten to seal the hole.

Step 4:

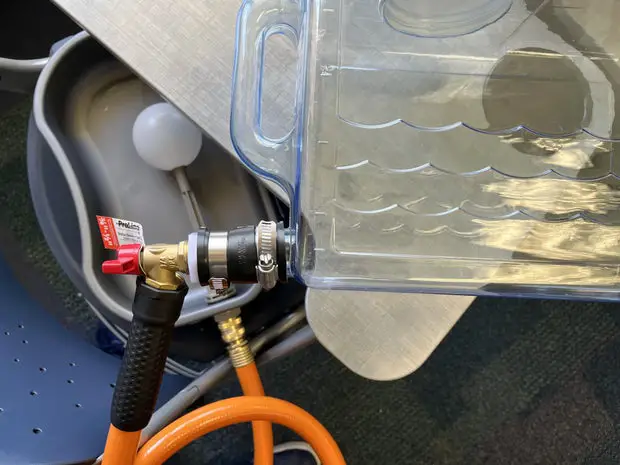

After, connect the other end of the hose to the hose bibb that is attached to the water dispenser.

Step 5:

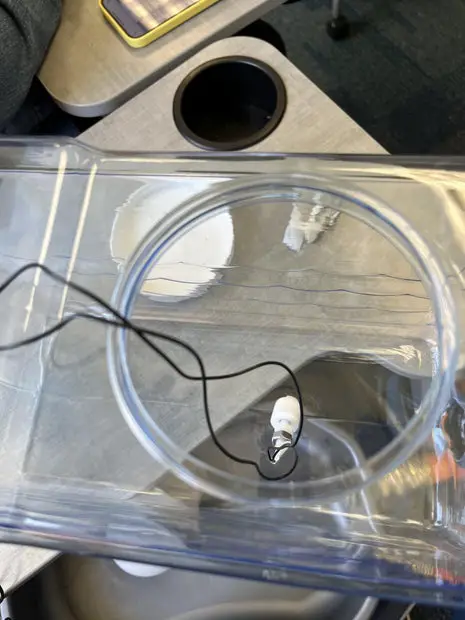

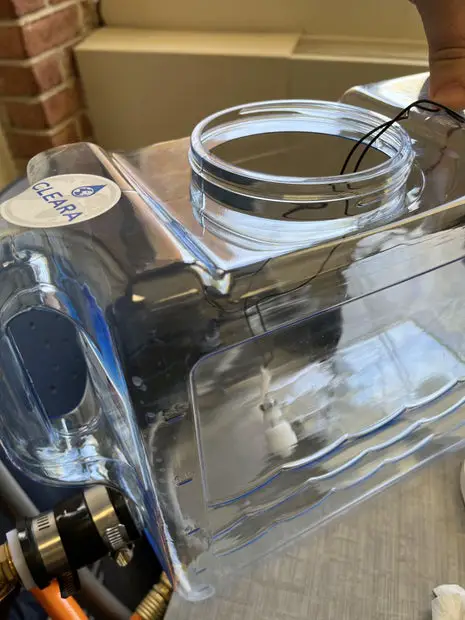

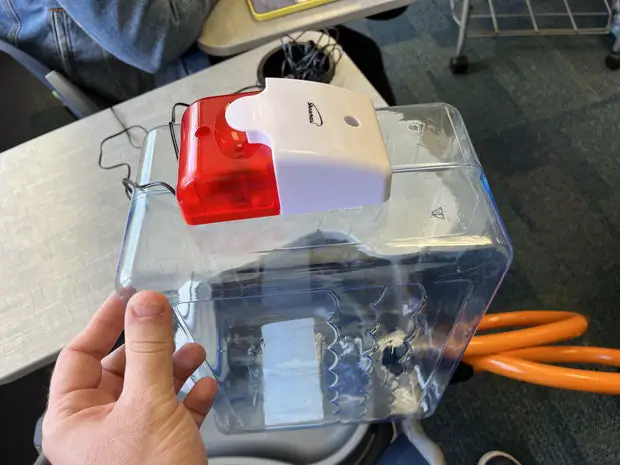

Attach the water level sensor to the back of the beverage container with command strips. Install the water level sensor by hanging it vertically inside the beverage dispenser.

Step 6:
Fill the water dispenser with water. When the alarm sounds, it is signifying a low water level in the dispenser. Rell the water dispenser through the hole on the top of the dispenser.

DoggyDaptive
Water Bowl
