ZM-721
7 x 21mm Monocular
Congratulations on selecting your new MonoZoom™ monocular! In order to achieve optimum performance, please follow instructions for proper use and care.

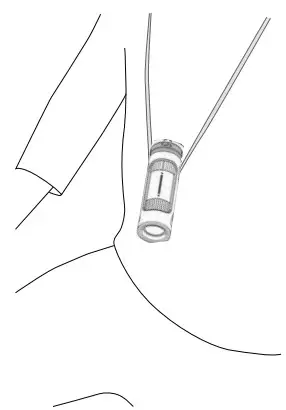

ASSEMBLING NECK STRAP:
- Turn adapter counterclockwise and remove.
- Insert the loop through a slot in the adapter.
- Pull loop back around the adapter.
- Pull back on loop to tighten into pter as shown
- Attach adapter with a strap to monocular.
USING YOUR MONOCULAR:

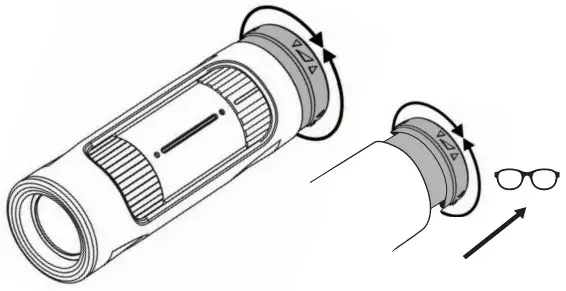

- To reduce glare, twist the eyecup into the outermost position. If you wear eyeglasses, you can twist eyecup down to improve field of view.

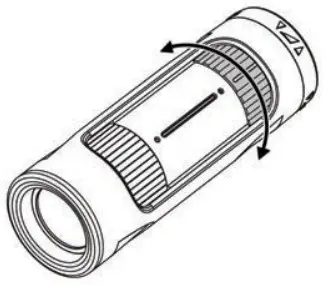

- To focus, turn the focus knob until the image is clear.

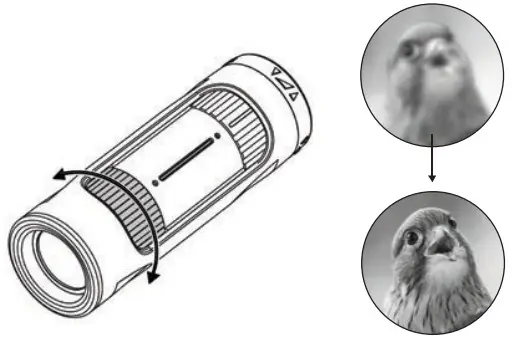

- To zoom in or out, turn the zoom knob to the desired magnification.
CLEANING MONOCULAR:
Blow away any dust or debris on the lens (or use a soft lens brush). To remove dirt, grease or fingerprints, clean with a soft microfiber cloth, rubbing in a circular motion. Use of coarse cloth or unnecessary rubbing may scratch the lens surface and cause permanent amage. For a more thorough cleaning, photographic type lens cleaning fluid may be used. Always apply the fluid to the cleaning cloth, never directly on the lens.
WARNING:
- Do not expose the monocular to excessive moisture.
- Do not view the sun with this monocular. Viewing the sun can cause permanent eye damage.
Customer Service:
If you experience any difficulties, please contact us and we will be happy to help you.
In the U.S.A.
Email: [email protected]
In the U.K.
Email: [email protected]
In the U.K.
Email: [email protected]
For warranty information, visit www.carson.com/warranty
