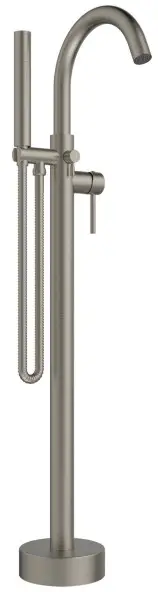

FLOOR MOUNT BATHTUB FILLER
ROBINET AUTOPORTANT POUR BAIGNOIRE
DEL45CBN
For warranty and to register your product
belangerH2O.com

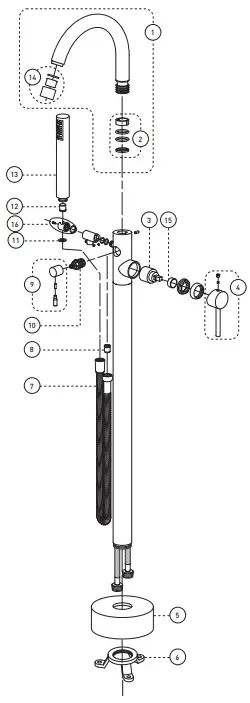

| No | Description Part | Piece |
| 1 | Spout assembly | FCSPSA013BN |
| 2 | Spout repair kit | FCKTS9057 |
| 3 | Cartridge (35mm) | FC9M6-00 |
| 4 | Handle | FCKTS2049BN |
| 5 | Base flange cover | FCDEC7044BN |
| 6 | Base flange | FCOTH9019 |
| 7 | Hose | 96179BN |
| 8 | Check valve (14mm) | FC98244CV |
| 9 | Diverter handle | FCKTS2050BN |
| 10 | Diverter | FCDCARD003 |
| 11 | Washer (19mm x 9.5mm x 2.5mm) | FCWAA1007 |
| 12 | Check valve (15mm) | FCVAL1001 |
| 13 | Hand shower | FCSPS2001 BN |
| 14 | Aerator assembly | FCAERA038BN |
| 15 | Temperature limiting device | FCCARL9M6 |
| 16 | Hand shower support | FCKTS5009BN |
IMPORTANT
Bélanger recommends using a professional plumber for all installation and repair. Please inform yourself about the Canadian Plumbing Code’s regulations and your local municipality plumbing codes before installation. The Canadian Plumbing Code requires the installation of surge arresting devices to eliminate water hammering. ALLOW AN ADEQUATE OPENING IN ORDER TO EASILY ACCESS CONNECTIONS OR OTHER PLUMBING DEVICES FOR MAINTENANCE OR REPAIR.
Technical drawing – Dessin technique
1* The height can vary depending of the installation

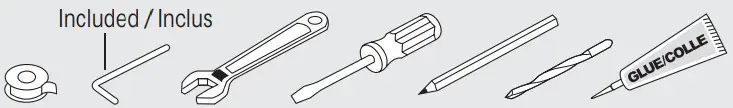

RECOMMENDED TOOLS
* Apply thread seal tape on threaded connections.
The model shown in the installation steps may differ from the one in box however connection type and installation steps are the same.

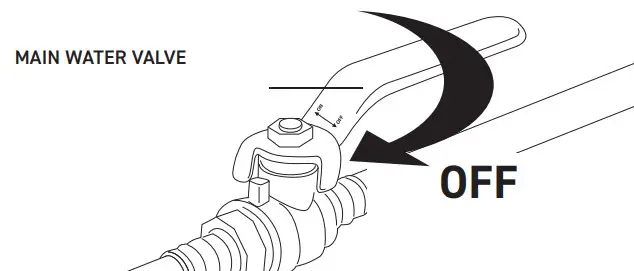

Before you begin
Installation steps

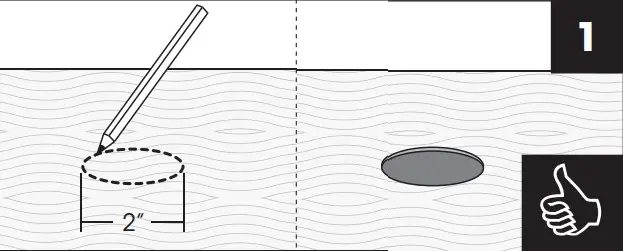

TRACE A 2” DIAMETER CIRCLE ON THE FLOOR ABOVE THE ALREADY INSTALLED WATER SUPPLIES AND CUT ON THE DIE LINE TO MAKE A HOLE

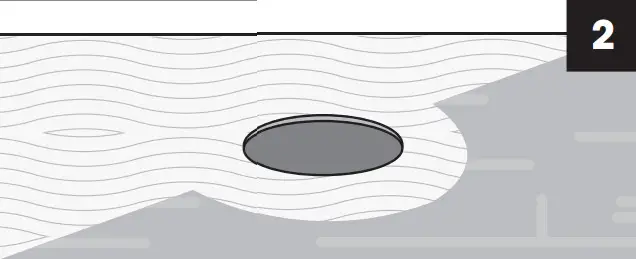

INSTALL THE FLOORING AROUND THE HOLE LEAVING A 5” DIAMETER CIRCLE OF SPACE TO INSTALL ROUGH-IN (TRIPOD)
Customer Service
Monday to Friday:
8 a.m. – 4:30 p.m. E.S.T.
Tel: 1-800-361-5960
[email protected]
Replacement parts are available on order
CARE INSTRUCTIONS
Rinse the product with clear water.
Dry the product with a soft cloth.
DO NOT:
Use abrasive cleaners, cloths, or paper towels. Use any cleaning agents containing acid, polish, wax, alcohol, ammonia, bleach, solvent or any other corrosive or harsh chemical cleansers.
IBDEL45CBN_v210713
