progetto C1500 Como Floor Mount Bath Filler and Handshower Instruction Manual
[email protected]
www.plumbline.co.nz
RECOMMENDATIONS FOR INSTALLATION
ATTENTION: Failure to follow these recommendations may void the warranty. It is recommended that a qualified, licensed tradesperson install this product.

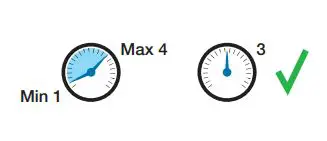

Water Pressure: 3 bar
Product performance cannot be guaranteed if pressure is less than 1 bar. Above 4 bar a pressure regulator must be installed. Failure to do so voids the product warranty.
Stop Taps/Filters
Angle valves and/or filters are recommended to prevent impurities and debris entering the mixer.

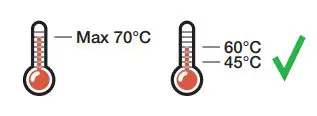

Water Temperature: 45°-65°C

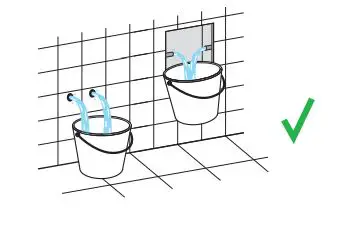

Pre-Flush
Always flush out the pipework before connecting any tapware. Failure to do so voids the product warranty.
CLEANING & MAINTENANCE
Cleaning
Clean with warm soapy water and a smooth cloth. Avoid abrasive sponges or detergents as these will damage the finish.

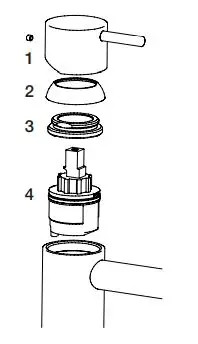

Cartridge Replacement
Before you start, turn off the water supply to the mixer.
- Remove the handle
- Unscrew the dome (hand tightened)
- Unscrew the locking nut
- Remove the cartridge
Re-assemble in reverse order
Max tightening torque on locking nut: 10-12 Nm
Aerator Maintenance
Remove the aerator with an aerator cartridge key.
Immerse for half a day in water-vinegar solution (80-20%).
Wash, then reassemble.
Warranty Information
For full details about our warranty visit plumbline.co.nz/warranty-information

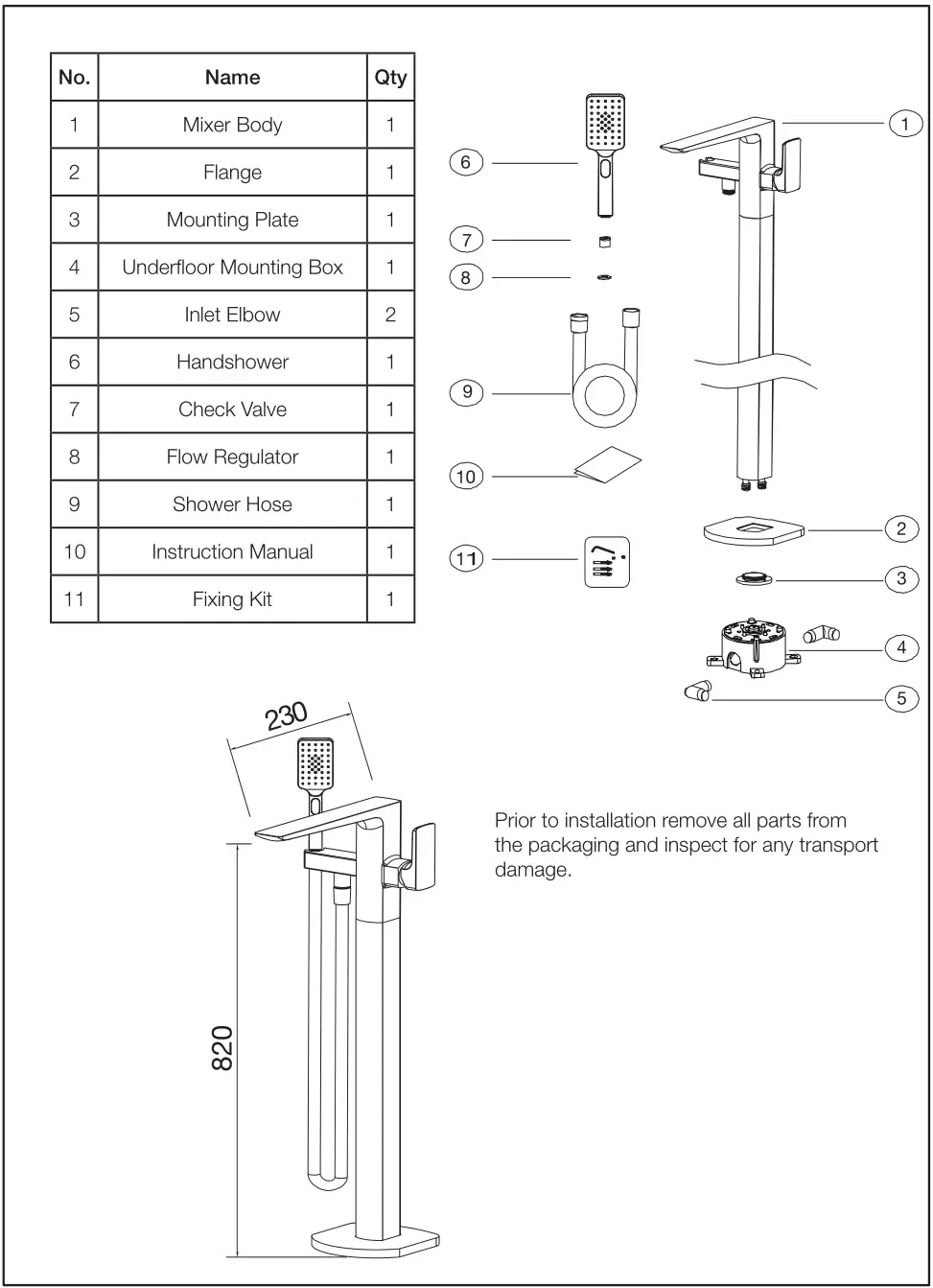

INSTALLATION INSTRUCTIONS

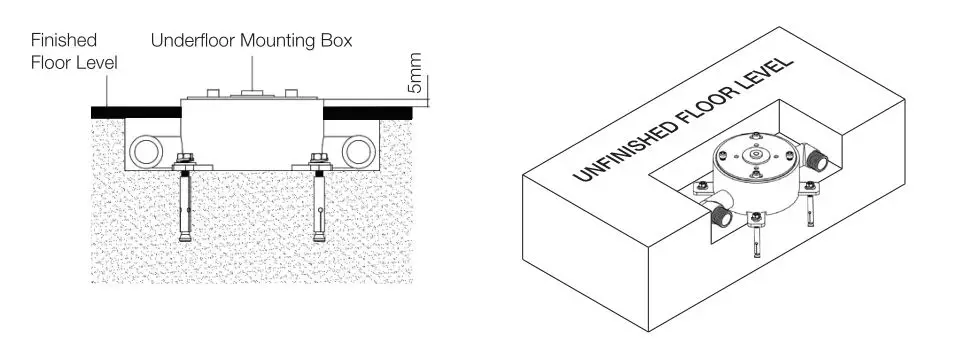

The Underfloor Mounting Box must be recessed into the floor and levelled (using the spirit level provided) as shown.

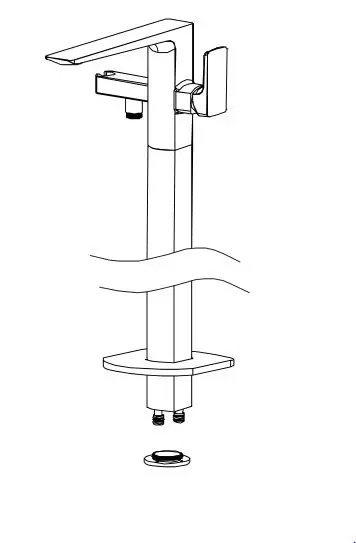

- Slide the flange over the bottom part of the mixer body and attached the mounting plate to the underside of the mixer body.

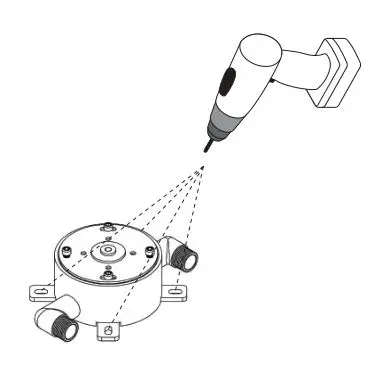

- Drill the holes for mounting the Underfloor Mounting Box

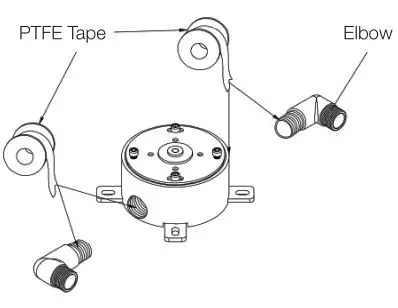

- Wrap PTFE tape on the inlet elbows provided and screw them into the Underfloor Mounting Box.
Set the Underfloor Mounting Box into the recess in the floor and level using the spirit level provided.

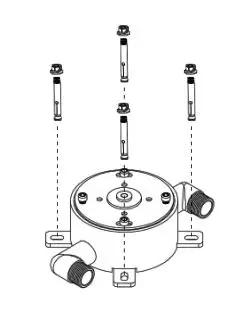

- Fix the Underfloor Mounting Box to the floor with toggle bolts provided.

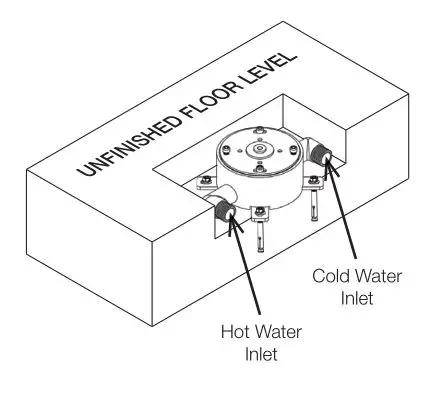

- Connect the hot & cold inlet pipes to the inlet elbows.
Pressure test the whole unit before sealing the floor to ensure there are no leaks.

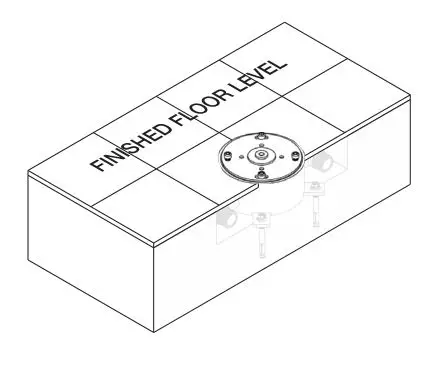

- Complete the finished floor surface, ensuring the floor surface is finished up to the edge of the Underfloor Mounting Box.

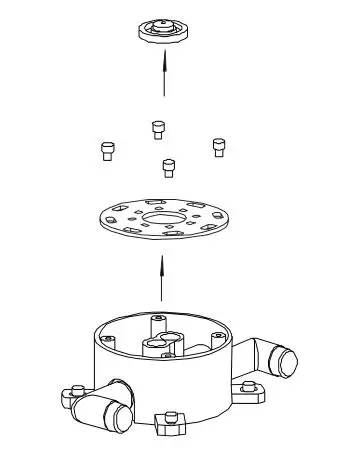

- Remove the fixing plate, spirit level and blank cover caps.

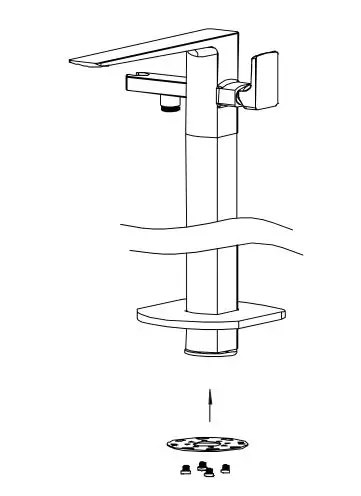

- Fit the fixing plate onto the mounting plate (already attached to the Mixer Body in step 1).

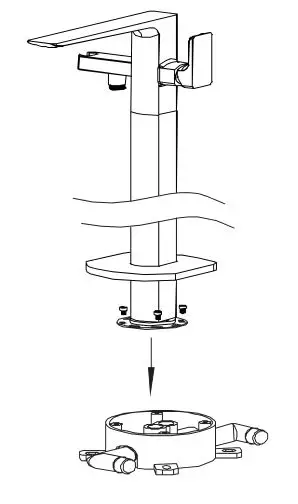

- Align the copper pipes with the relevant hot & cold connector holes on the Underfloor Mounting Box. Fasten the fixing plate to the Underfloor Mounting Box.

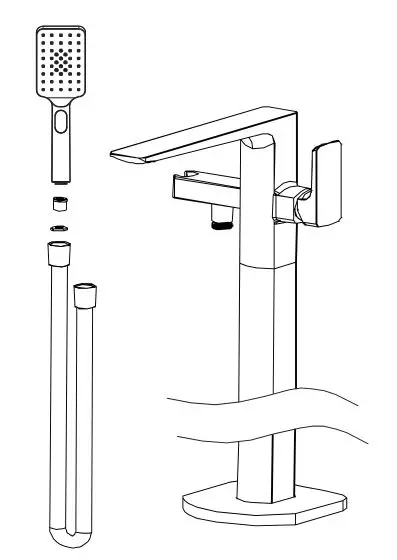

- A check valve is pre-installed in the handshower. Connect flow regulator to the handshower if necessary.
DIVERTER OPERATION

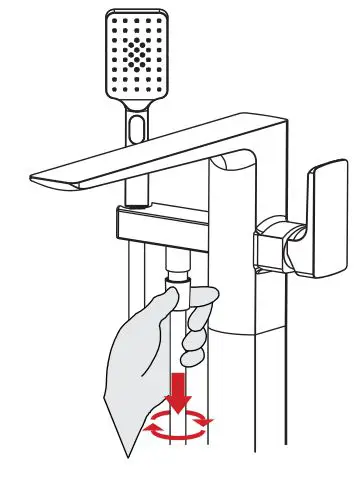

Handshower On

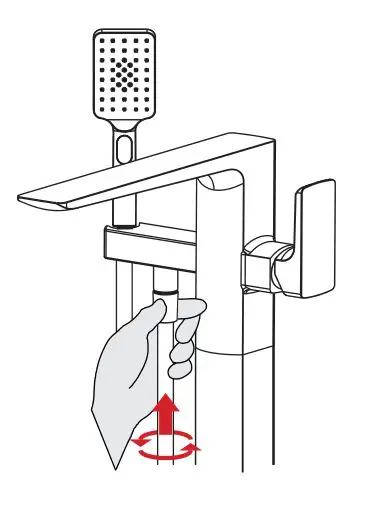

Handshower Off
V 16.11.2020
