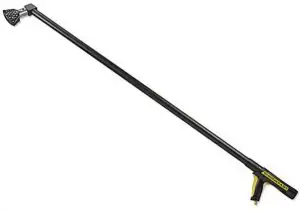

ULINE H-1302/H-1303 Shrinkfast 998 Extension Installation Guide

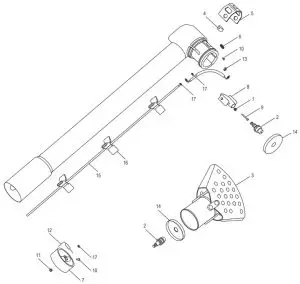

Inductions parts
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Contact Spring | 1 | H-950-SPRING | 19026A |
| 2 | Spark Plug | 1 | H-950-PLUG | 190280 |
| 3 | Combustor | 1 | H-950-CMBSTR | 190300 |
| 4 | Button | 1 | H-950-31 | 190310 |
| 5 | Strap | 1 | H-950-PART34 | 190340 |
| 6 | Button Spring | 1 | H-950-35 | 190350 |
| 7 | Contact Base | 1 | H-1303-7 | 190630 |
| 8 | Socket | 1 | H-1302SOCKET | 190670 |
| 9 | 4-40 x 3/4″, S/S Contact Screw | 1 | H-1303-9 | 190690 |
| 10 | 10-32 x 3/8″ Screw Set | 1 | ———– | 190780 |
| 11 | 6-32 Hex Cap Nut Brass | 1 | H-1302-11 | 190800 |
| 12 | Resistor | 1 | H-1303-12 | 190810 |
| 13 | 4-40 S/S Nut | 1 | H-1302-13 | 190820 |
| 14 | Screen | 1 | H-950-SCREEN | 190830 |
| 15 | Contact Assembly (For H-1303 Only) | 1 | H-1303-15 | 198840 |
| 16 | Plastic, 3 Pointer Spacer (For H-1303 Only) | 3 | H-1303-16 | 190870 |
| 17 | 6-32 Hex Nut (For H-1303 Only) | 3 | H-1303-18 | 190890 |
| O-Ring (Not Shown) | 1 | H-950-190330 | 190330 | |
| 6-32 x 1″ Phillips Pan Head Screw (Not Shown) | 1 | ———– | 190620 |
