Immax Neo 07732L Smart Thermostatic Head

PRODUCT SPECIFICATIONS

Power supply: 2 x AA1.5 V, alkaline batteries
Temperature measurement accuracy: + -0.5°C
Sensor: NTC (10k) 1%
Max. extension: 4.5 mm
Temperature setting range: 5 ~ 35°C
Working temperature: -10 ~ 60°C
Size (mm): 53 * 89.5mm
Temperature display range: 1 ~ 70°C

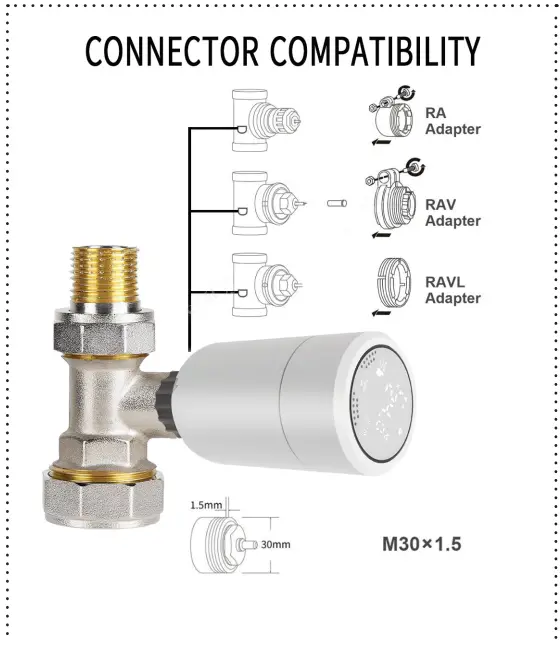

Thread Size: M30 * 1,5
Protocol: Zigbee
Frekvence: 2400MHz~2483.5MHz
Maximum RF output power: 10dBm – max 19dBm
Download the “Immax NEO PRO” app from Google Play and the App Store or load the attached QR code

Advanced function setting password: 123456

After the ZigBee gateway is configured, enter the gateway to add sub-devices, and wait for the actuator to be powered on and the system self-check is completed.
long press flashing access network connected mode. Please refer to the gateway manual for Zigbee gateway configuration.

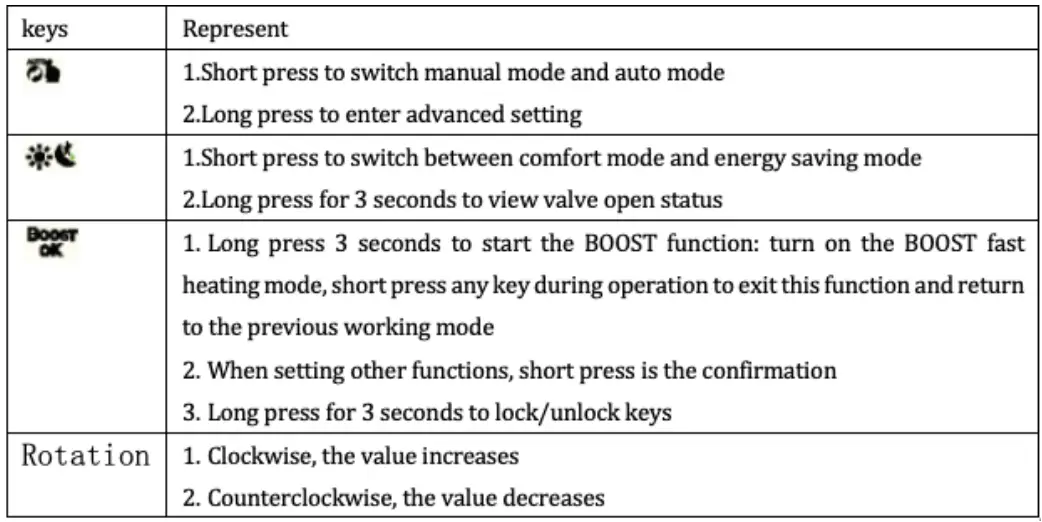

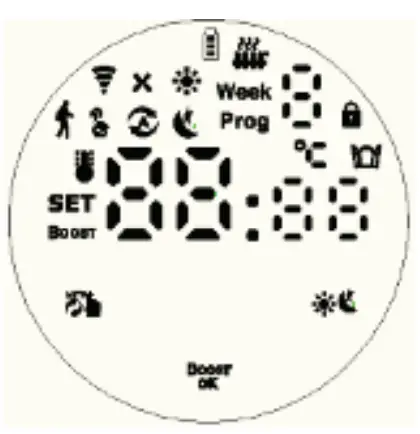

DISPLAYS AND BUTTONS

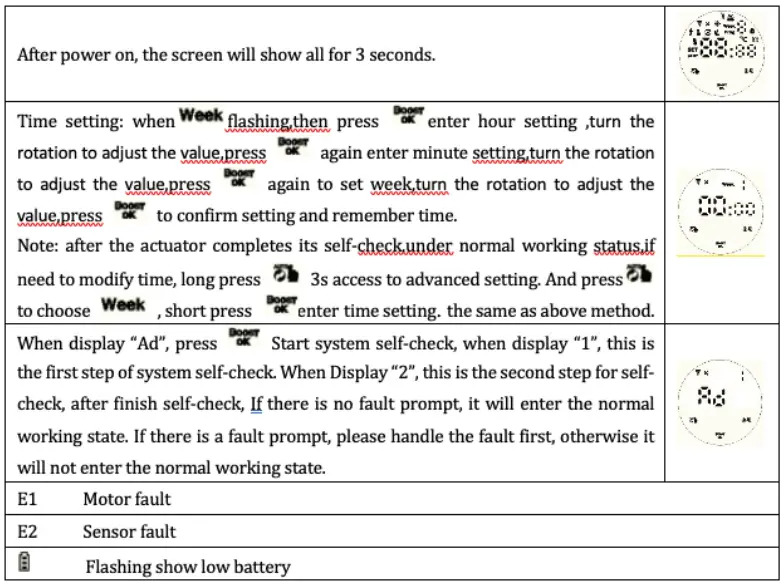

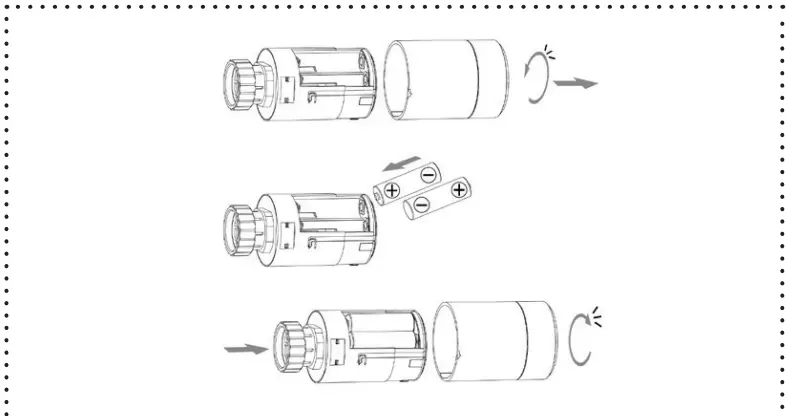

INSTALLATION AND INITIAL COMMISSIONING

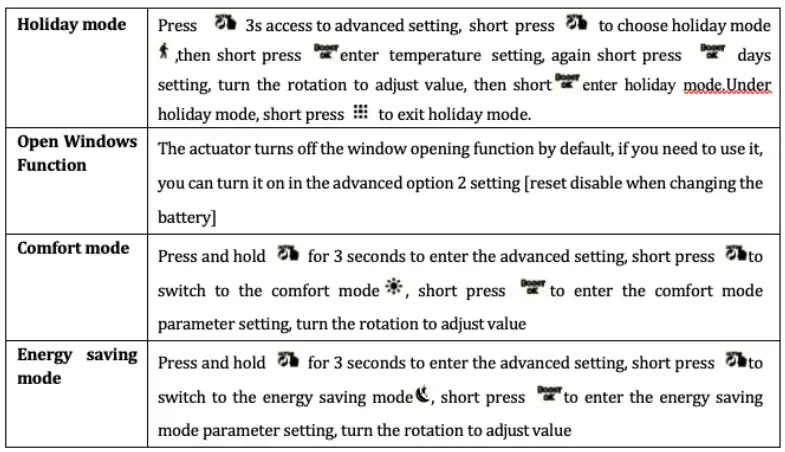

SPECIAL FUNCTION DESCRIPTION

AUTO MODE SETTING

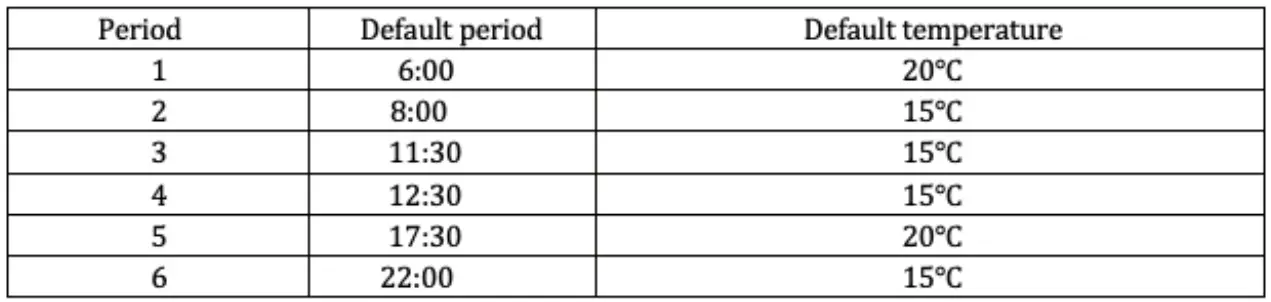

Long press about 3s access to advanced setting, short press switch to auto mode setting short press access to auto mode setting, short press to choose which item you want. First set the auto mode to 5 means:5=5+2 days, 6 = 6+1 days, 7 = 7 days, after press to access to hour or minute setting, short press again access to temperature setting, turn the rotation to adjust value. short press choose: hour,minute, time period, and turn the rotation to adjust value,finished setting, about 10 seconds will automatic save and exist.

Valve control type

The thermostatic head controls the valve based on a learning algorithm that works with thermody-namic properties of the object (cooling rate, etc.)
The valve behaviour is set as follows:
- if the desired room temperature is 2 degrees higher than the actual temperature measured by the thermostatic valve.
  the valve opens 100%.
- If the desired room temperature is 1 degree higher than the actual temperature measured by the thermostatic valve, the valve will turn on 100%. the valve will open to 75%.

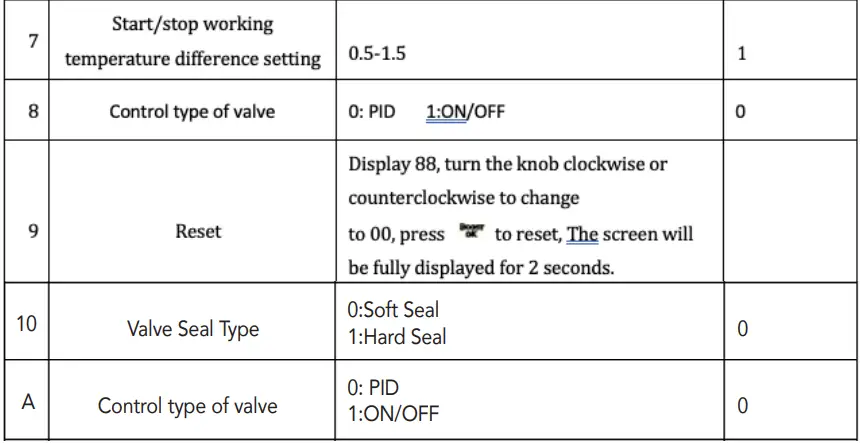

ADVANCED OPTIONS

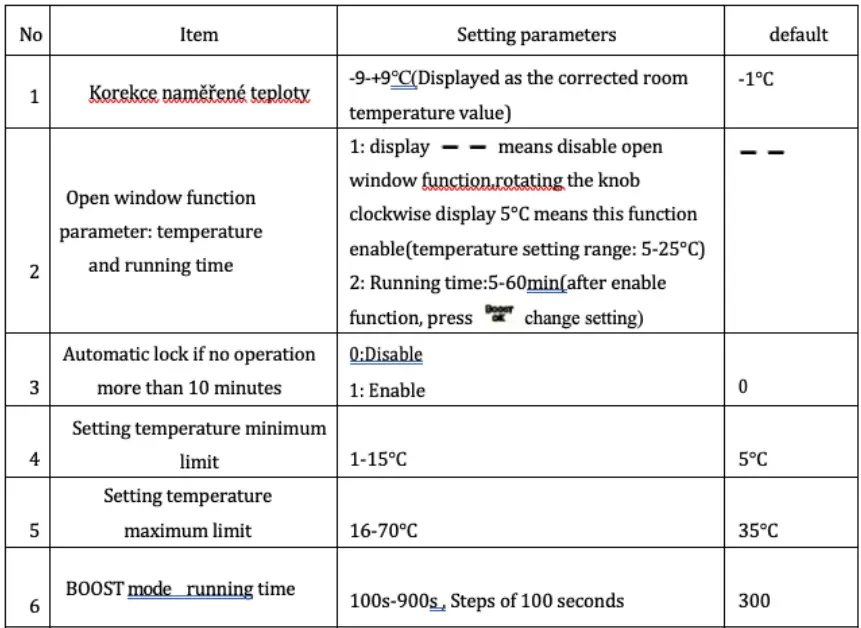

Press for 3-5s to access to advanced setting, short press to select the advanced option parameter setting icon SET, short press to enter the advanced option parameter setting turn the rotation to adjust value, after each parameter is set, short press to enter the next option setting all After the setting is completed, the key is not operated for 10 seconds, the parameters are saved and the setting is exited.

if the desired room temperature is 0.5 degrees higher than the actual temperature measured by the thermostatic valve the valve will open to 50%.
if the desired room temperature is 1 degree lower than the actual temperature measured by the thermostatic valve the valve will open to 25%.
if the desired room temperature is 2 degrees lower than the actual temperature measured by the thermostatic valve the valve closes (0%).

Safety Information

CAUTION: Keep out of reach of children. This product contains small parts, which may cause suffoca-tion or injury if swallowed.
WARNING: Every battery has the potential to leak harmful chemicals that can damage skin, clothing or area where the battery is stored. To avoid the risk of injury, do not allow any substance from the battery to come into contact with the eyes or skin. Every battery may burst or even explode if exposed to fire or other forms of excessive heat. Take care when handling the batteries. To reduce the risk of injury from mishandling the batteries, take the following precautions:

Do not use different brands and types of batteries in the same device
When replacing the batteries, always replace all the batteries in the device
Do not use rechargeable or reusable batteries.
Do not allow children to insert batteries without supervision.
Follow the battery manufacturer’s instructions for proper battery handling and disposal.
- CAUTION: The product and batteries should be disposed of at a recycling centre. Do not dispose of them with normal household waste.
- CAUTION: To ensure safe use of the product, wires must be brought at the installation site according to valid regulations. The installation must only be carried out by an individual with the appropriate certification in the field of electronics. During installation or when a fault is detected, the power cable must always be disconnected from the socket (in the case of direct connection, the relevant circuit breaker must be switched off). Improper installation can damage the product and cause injury.
- CAUTION: Do not disassemble the product, electric shock may occur.
- CAUTION: Use only the original power adapter provided with the product. Do not operate the device if the power cord shows signs of damage.
- CAUTION: Follow the instructions in the enclosed manual.

Maintenance

Protect the device from contamination and soiling. Wipe the device with a soft cloth, do not use rough or coarse materials.
DO NOT USE solvents or other aggressive cleaners or chemicals.
A Declaration of Conformity has been issued for this product. More information can be found at www.immax.cz
