Kayoba 650266 Outboard Trolley Instruction Manual

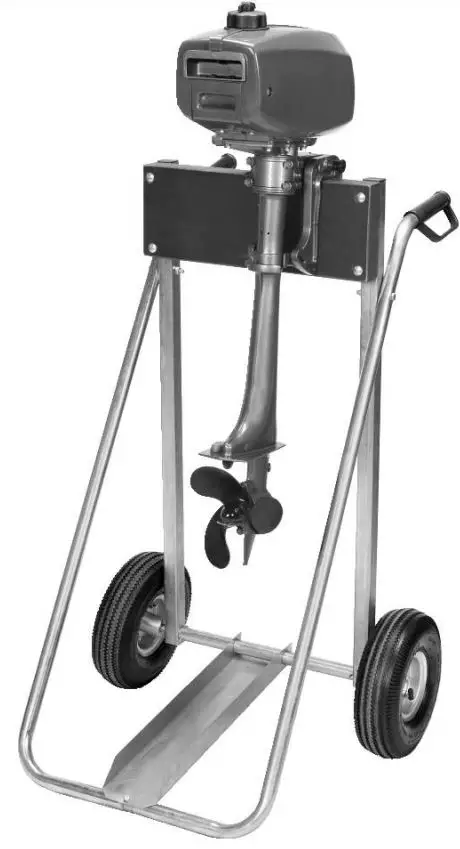

KAYOBA 650266 Outboard Trolley

Read these instructions carefully before use!

TECHNICAL DATA

• Load capacity 80 kg
• Dimensions 600 x 1100 x 690 mm

ASSEMBLY

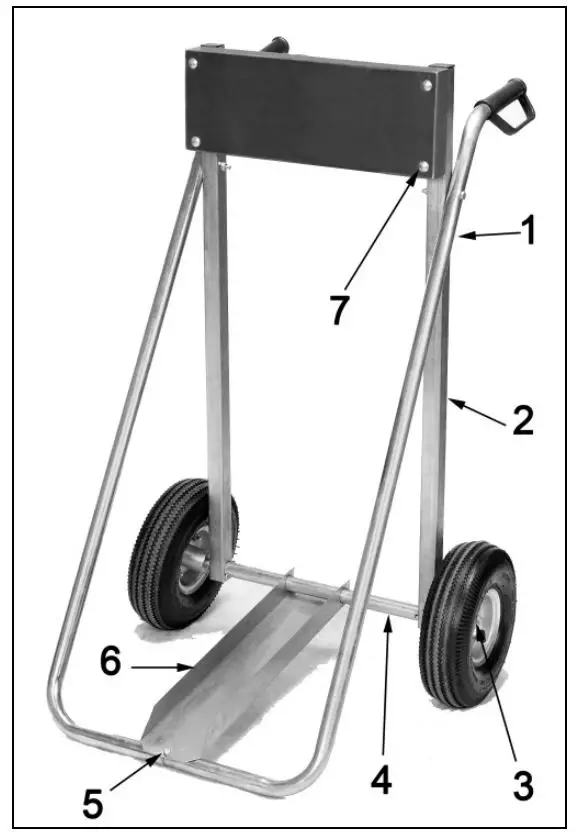

1. Fit the tubular frame (1).
2. Join the vertical legs (2) and the tubular frame (1) together.
3. Fit the wooden board on which the outboard is fastened. Fasten with the 4 screws, M6 x 80 mm, and supplied nuts (7).
4. Assemble the wheel axle (4) and the vertical legs (2), with the screws, M8 x 60 mm, and washers. Lubricate the wheel axle (4) at the ends where the wheels are to be fitted (3). Fit the wheels.
5. Fit the U-plate (6) with a 6 mm screw and wing nut (5).
