HUGEIC TX-AH-R900xxx Wireless Transceiver Module
Revision History
| Date | Version | Description | Author |
| 2021/1/4 | V1.1 | Add TX-AH-R900PTR | Wangying |
| 2020-12-05 | V1.0 | Create | Wangying |
INTRODUCTION
TX-AH-R900xxx is a serial of 802.11ah wireless transceiver modules designed by Zhuhai Huge-IC Co.,LTD. The module is based on TXW83xx which complies with Wi-Fi 802.11ah standard. It could be widely applied to IOT devices for smart home, smart industry and healthcare. Note: TX-AH-R900xxx includes TX-AH-R900A/ TX-AH-R900ANR/ TX-AH-R900P/ TX-AH-R900PNR/ TX-AH-R900PTR.
Basic Parameters
Up to 32.5Mbps of PHY rate
Support 802.11ah
1/2/4/8 Channel bandwidth
Support AP, STA
Rich peripheral interfaces: RMII, USB, SDIO, SPI, I2C, UART, GPIO
Support security method: WPA2
Specification
| Item | Parameter |
| Model | TX-AH-R900xxx |
| Chipset | TXW83xx |
| Temperature | -20℃~70℃ |
| Humidity | Working:0~85%（noncondensing） Storage:0~85%（noncondensing） |
| size | (17.00±0.10)mm×(15.00±0.10)mm×(2.40±0.10)mm |

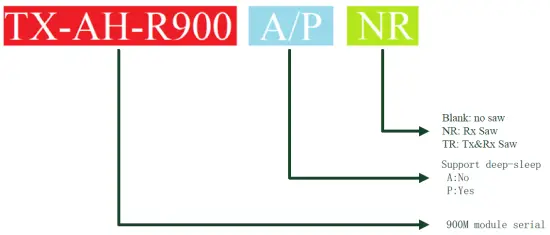

| Type | Support deep-sleep | Support Rx Saw | Support Rx Saw |
| TX-AH-R900A | No | NO | NO |
| TX-AH-R900ANR | No | Yes | Yes |
| TX-AH-R900P | Yes | NO | NO |
| TX-AH-R900PNR | Yes | Yes | Yes |
| TX-AH-R900PTR | Yes | Yes | Yes |
ELECTRONICAL CHARACTERISTICS
Input voltage
| Item | Function | Min Voltage(V) | Typical Voltage(V) | Max Voltage(V) |
| VCC | Power of Module | 3 | 3.3 | 3.6 |
| VCC1/VCC2 (only apply to TX-AH R900Pxx) | Power of RF | 3 | 3.3 | 3.6 |
| SVCC | Power of IOA6~11 | 3.3 or 1.8 (optional) | ||
| VDD1V3A/VDD1V3 D | Power of vdd of TXW83xx | 1.3 | 1.3 | 1.4 |
| IO other than IOA6~11 | IO voltage | 3 | 3.3 | 3.6 |
RF Performance
| Common | |||||
| Item | Condition | Min. | Typ. | Max. | Unit |
| Frequency Range | 902 | 928 | MHz | ||
| Transmit | |||||
| Item | Condition | Min. | Typ. | Max. | Unit |
| Tx Power Level | 18 | 20 | 22 | dBm | |
| Frequency Tolerance | -5 | 0 | 5 | ppm | |
| Spectral Mask （8M） | +/-8M offset | -28 | dBc | ||
| Spectral Mask （4M） | +/-4M offset | -28 | dBc | ||
| Spectral Mask （2M） | +/-2M offset | -28 | dBc | ||
| Spectral Mask （1M） | +/-1M offset | -28 | dBc | ||
| Modulation Accuracy | -27 | dB | |||
| Receive | |||||
| Item | Condition | Min. | Typ. | Max. | Unit |
| Min. Input(8M) | MCS=0, PER<10% | -95 | dBm | ||
| MCS=2, PER<10% | -92 | dBm | |||
| MCS=7, PER<10% | -80 | dBm | |||
| 802.11ah Receive (4M) | MCS=0, PER<10% | -99 | dBm | ||
| MCS=2, PER<10% | -96 | dBm | |||
| MCS=7, PER<10% | -82 | dBm | |||
| 802.11ah | MCS=0, | -101 | dBm | ||
| Receive (2M) | PER<10% | ||||
| MCS=2, PER<10% | -99 | dBm | |||
| MCS=7, PER<10% | -87 | dBm | |||
| 802.11ah Receive (1M) | MCS=10, PER<10% | -107 | dBm | ||
| MCS=0, PER<10% | -104 | dBm | |||
| MCS=2, PER<10% | -102 | dBm | |||
| MCS=7, PER<10% | -90 | dBm |

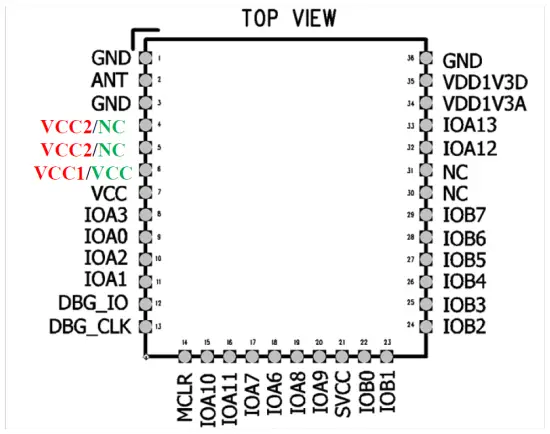

Module Pins Definition
Note:
Pins in black color are that shared of TX-AH-R900A xx and TX-AH-R900Pxx;
Pins in red color are that of TX-AH-R900Pxx;
Pins in green color are that of TX-AH-R900Axx;

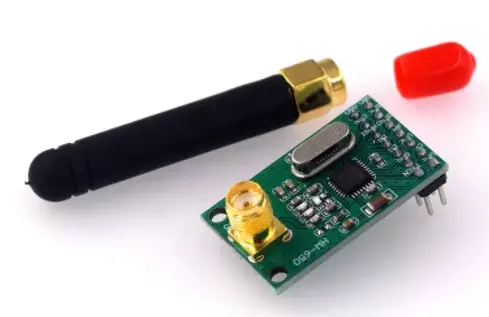

Antenna Information
The TX-AH-R900xxx has one specification external antenna.
The following is a monopole antenna commonly used by TX-AH-R900xxx:
Frequency range: 900-930
Input impedance: 50 OHM
Standing wave ratio: < 2.0
Gain: 0 dbi
Polarization: vertical
Directionality: Omni-directional
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying
RF exposure compliance
Note
- This module certified that complies with RF exposure requirement under mobile or fixed condition, this module is to be installed only in mobile or fixed applications.
A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement.
A fixed device is defined as a device is physically secured at one location and is not able to be easily moved to another location. - Any modifications made to the module will void the Grant of Certification, this module is limited to OEM installation only and must not be sold to end-users, end-user has no manual instructions to remove or install the device, only software or operating procedure shall be placed in the end-user operating manual of final products.
- Additional testing and certification may be necessary when multiple modules are used.
- To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this may depend on the details of how the module is integrated with the host, Zhuhai Huge-ic co., Ltd. shall provide guidance to the host manufacturer for compliance with the Part 15B requirements.
- FCC ID label on the final system must be labeled with “Contains FCC ID: 2AXPI-R900” or “Contains transmitter module FCC ID: 2AXPI-R900”.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module.
