TX-AH-R900ATR User Manual
Revision History
| Date | Version | Description | Author |
| 2020-10-15 | V1.2 | Add Antenna Information | Wangying |
| 2020-09-21 | V1.1 | Add 1M BW | Wangying |
| 2020-09-01 | V1.0 | Create | Wangying |
INTRODUCTION
TX-AH-R900ATR based on TXW83xx is the first 802.11ah module in the world developed by Zhuhai Huge-IC Co., LTD. It could be widely applied to IOT devices for smart homes, smart industries, and healthcare.
1.1 Basic Parameters
32.5M Mbps
Support 802.11ah
1/2/4/8 Channel bandwidth
Support AP,STA
Rich peripheral interfaces:RMII, USB, SDIO,SPI,I2C,I2S,PCM,UART, GPIO Support security method: WPA2
Specification
| Item | Parameter |
| Model | TX-AH-R900ATR |
| Chipset | TXW83XX |
| Temperature | -20℃~70℃ |
| Humidity | Working:0~85%（noncondensing） Storage:0~85%（noncondensing） |
| size | (17.00±0.10)mm×(15.00±0.10)mm×(2.40±0.10)mm |
ELECTRONICAL CHARACTERISTICS
3.1 Input voltage
| Item | Function | Min Voltage(V) | Typical Voltage(V) | Max Voltage(V) |
| VCC | Power voltage of Module | 3 | 3.3 | 3.6 |
| SVCC | Power of IOA6~11 | 3.3 or 1.8 (optional) | ||
| VDD1V3A/VDD1V3D | Power of vdd of TXW83xx | 1.3 | 1.3 | 1.4 |
| IO other than IOA6~11 | IO voltage | 3 | 3.3 | 3.6 |
3.2 RF Performance
| Common | |||||
| Item | Condition | Min. | Typ. | Max. | Unit |
| Frequency Range | 902 | 928 | MHz | ||
| Transmit | |||||
| Item | Condition | Min. | Typ. | Max. | Unit |
| Tx Power Level | 18 | 20 | 22 | dBm | |
| Frequency Tolerance | -5 | 0 | 5 | ppm | |
| Spectral Mask （8M） | +/-8M offset | -28 | dBc | ||
| Spectral Mask （4M） | +/-4M offset | -28 | dBc | ||
| Spectral Mask （2M） | +/-2M offset | -28 | dBc | ||
| Spectral Mask （1M） | +/-1M offset | -28 | dBc | ||
| Modulation Accuracy | -27 | dB | |||
| Receive | |||||
| Item | Condition | Min. | Typ. | Max. | Unit |
| Min. Input(8M) | MCS=0, PER<10% | -95 | dBm | ||
| MCS=2, PER<10% | -92 | dBm | |||
| MCS=7, PER<10% | -80 | dBm | |||
|
802.11ah Receive (4M) | MCS=0, PER<10% | -99 | dBm | ||
| MCS=2, PER<10% | -96 | dBm | |||
| MCS=7, PER<10% | -82 | dBm | |||
|
802.11ah Receive (2M) | MCS=0, PER<10% | -101 | dBm | ||
| MCS=2, PER<10% | -99 | dBm | |||
| MCS=7, PER<10% | -87 | dBm | |||
|
802.11ah Receive (1M) | MCS=10, PER<10% | -107 | dBm | ||
| MCS=0, PER<10% | -104 | dBm | |||
| MCS=2, PER<10% | -102 | dBm | |||
| MCS=7, PER<10% | -90 | dBm |

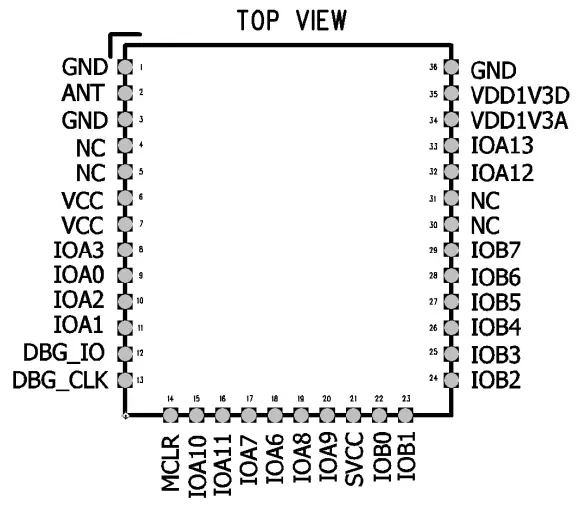

3.3 Module Pins D Definition
Antenna Information
The TX-AH-R900ATR has one specification external antenna.

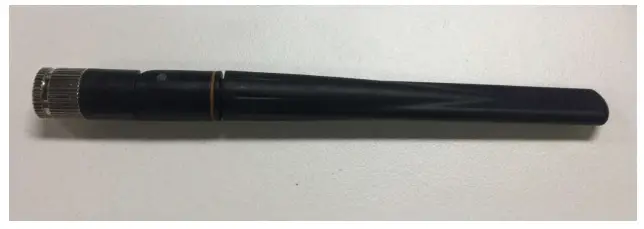

The following is a monopole antenna commonly used by TX-AH-R900ATR:
Frequency range: 900-930
Input impedance: 50 OHM
Standing wave ratio: < 2.0
Gain: 0 dbi
Polarization: vertical
Directionality: Omni-directional
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End usersmust follow the specific operating instructions for satisfying RF exposure compliance.
Note 1: This module is certified that complies with RF exposure requirements under mobile or fixed conditions, this module is to be installed only in mobile or fixed applications.
A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement.
A fixed device is defined as a device that is physically secured at one location and is not able to be easily moved to another location.
Note 2: Any modifications made to the module will void the Grant of Certification, this module is limited to OEM installation only and must not be sold to end-users, end-user have no manual instructions to remove or install the device, only software or operating procedure shall be placed in the end-user operating manual of final products.
Note 3: Additional testing and certification may be necessary when multiple modules are used.
Note 4: To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter-certified module and a module is added, the host the manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this may depend on the details of how the module is integrated with the host, Zhuhai Huge-ic co., Ltd. shall provide guidance to the host manufacturer for compliance with the Part 15B requirements.
Note 5: FCC ID label on the final system must be labeled with “Contains FCC ID: TBD” or“Contains transmitter module FCC ID: TBD”.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module.
| Date | 10/15/2020 | TX-AH-R900ATR User Manual | Document No. | |
| Version | V1.2 |
Zhuhai Huge-ic Co., Limited
Copyright © 2020 by HUGE-IC All rights reserved
