29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600 | Fax: 02 9554 9433
[email protected] | www.domuslighting.com.au

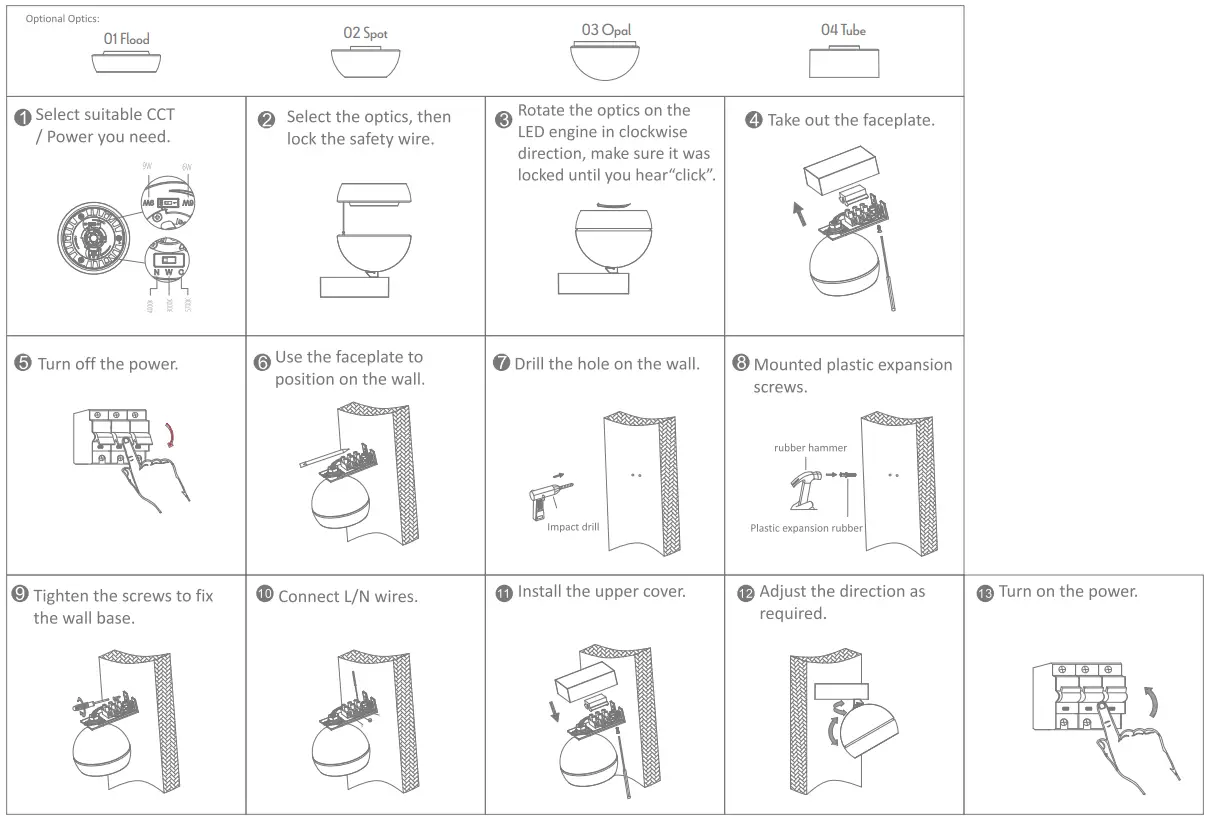

Installation Manual
Date: April 12, 2022 11:02 AM
MOON WALL
| Variants | ||||
| Blk | Wht | Item No. | Colour Temp | |
| 22820 | 22821 | MOON-WALL | FLD | TRIO |
| 22822 | 22823 | OPAL | ||
| 22824 | 22825 | SPOT | ||
| 22826 | 22827 | TUBE | ||
Thank you for purchasing your new MOON-WALL Light, Please take the time to read and understand the instruction sheet below.
Failure to do so may void warranty.
Specifications
| Voltage: | 240V | CCT: | 3000K – 4000K – 5700K (Switchable) | Dimmable: | Ye s | Lifespan: | 50,000hrs |
| Power: | 6/9W | IP Rating: | 20 | CRI: | >80 |
Please refer to the data sheet for lumen output.
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
