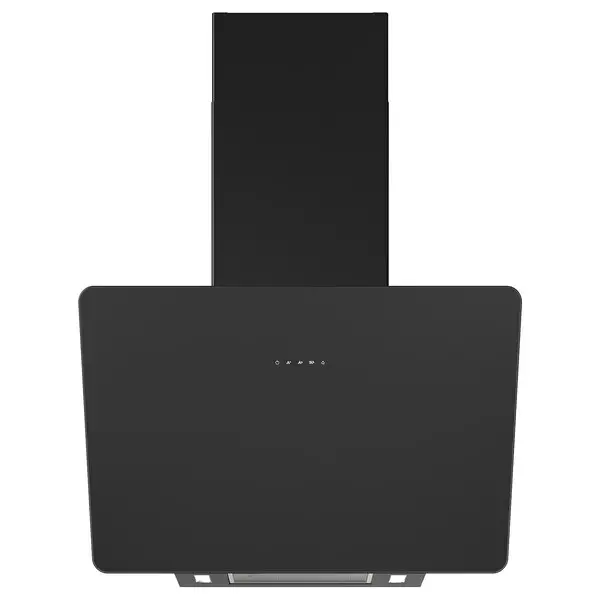

IKEA FINSMAKARE Wall Mounted Range Hood
Instruction

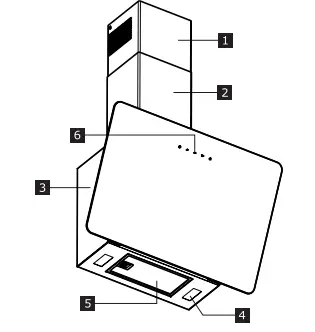

Product description
- Upper chimney
- Lower chimney
- Hood body
- LED Lighting
- Grease filter
- Control panel

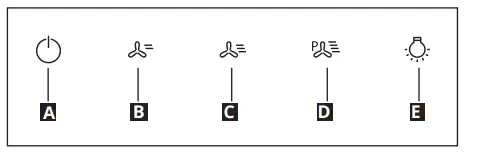

Control panel
| A Speed | Turns the motor on/off at speed one. |
|
B Speed | Turns the motor on at speed two / Activate charcoal filter alarm. |
| Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the Activated Charcoal Filter alarm on. LED (A) flashes twice to confirm To turn the alarm off, press the button again and hold for at least 2 seconds.The relevant LED flashes once (A). Only for recirculation mode. | |
|
C Speed | Turns the Motor on at speed three / Reset alarm grease filter saturation. |
| Press and hold the button for approximately 2 sec- onds, with all the loads turned off (Motor+Lights), to reset the grease filter saturation alarm. LED (A) flashes three times. | |
| D Speed | Turns the motor on at Booster speed. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of the time. To deactivate it, press button D or press button A. |
| E Light | Press briefly: Turns the lighting system on and off at maximum intensity. Press and hold to change the lighting intensity up or down. |
Filters Alarm.
When the filter alarm is activated, the following messages will appear over time:
Grease filter alarm must be cleaned: “A” key flashes once per second. Anti-odour filter alarm must be cleaned: “A” key flashes twice per second. Once the filters have been regenerated reset the alarm signal.
Energy efficiency
| Product fiche information, according to 65/2014 | Unit | Value |
| Supplier’s name | IKEA | |
| Model identifier | FINSMAKARE 803.923.20 | |
| Annual Efficiency Consumption | kWh/a | 35,1 |
| Energy Efficiency Class | A++ | |
| Fluid Dynamic Efficiency | 37.6 | |
| Fluid Dynamic Efficiency Class | A | |
| Lighting Efficiency | lux/Watt | 45 |
| Lighting Efficiency Class | A | |
| Grease Filtering Efficiency | % | 75,1 |
| Grease Filtering Efficiency Class | C | |
| Air flow at minimum speed | m3/h | 270 |
| Air flow at maximum speed | m3/h | 400 |
| Air flow at boost speed | m3/h | 740 |
| Airborne acoustical A-weighted sound Power Emission at minimum speed | dbA | 53 |
| Airborne acoustical A-weighted sound Power Emission at maximum speed | dbA | 59 |
| Airborne acoustical A-weighted sound Power Emission at boost speed | dbA | 70 |
| Power Consumption in off mode | Watt | 0,49 |
| Power Consumption in standby mode | Watt | N/A |
| Additional information according to 66/2014 | ||
| Time increase factor | 0,6 | |
| Energy Efficiency Index | 35,7 | |
| Measured Air flow rate at best efficiency point | m3/h | 429,0 |
| Measured air pressure at best efficiency point | Pa | 464 |
| maximum air flow | m3/h | 740,0 |
| Measured electric power input at best efficiency point | W | 147,0 |
| Nominal power of the lighting system | W | 4,0 |
| Average illumination of the lighting system on the cooking surface | lux | 180 |
| Sound power level at the highest setting | dBA | 59 |
