CULTEGA T COM LED Compact Desktop Luminaire
Instruction Manual
CULTEGA T COM LED Compact Desktop Luminaire
For your safety
Read all instructions and mounting steps carefully. Keep the instructions for maintenance or disassembly work.
Explanation of the warning levels
Observe and follow the warnings. Non-observance of the warnings may lead to injuries or material damage!
WARNING! Indicates dangers which can result in serious and/or fatal injuries.
CAUTION! Indicates dangers which can result in injuries or health hazards.
NOTICE. Indicates dangers which can result in material damage or malfunctions.
TIP. Indicates information containing advice or a useful note.
Explanation of important symbols and pictograms
Indicates professional personnel who are trained and authorised to carry out the electrical connection.
Indicates professional personnel who are trained and authorised to carry out the mounting.
Safety notes
WARNING! Risk of electric shock! Never work with voltage applied. CAUTION! Do not place objects on the luminaire. Do not cover the luminaire with e.g. jackets, blankets or cloths.NOTICE. The light source of this luminaire cannot be replaced! When the light source has reached the end of its service life the whole luminaire shall be replaced.
NOTICE. Wear clean installation gloves to prevent soiling.

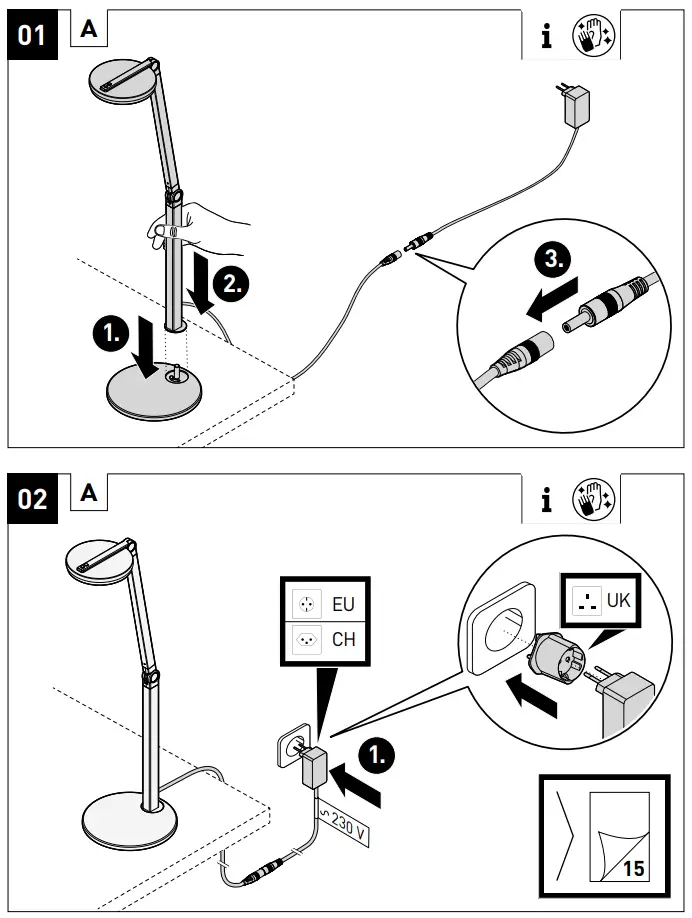

NOTICE! Disconnect the connection cable from the socket only by pulling the mains plug. NOTICE! Operate the luminaire only with an undamaged outer cable. If the outer cable is damaged, it must be replaced by a special cable or by a cable available exclusively from TRILUX or its service partner.
Intended use
Intended for indoor use with a maximum ambient temperature of: to 25°C Safety class: II Protection rating: IP20

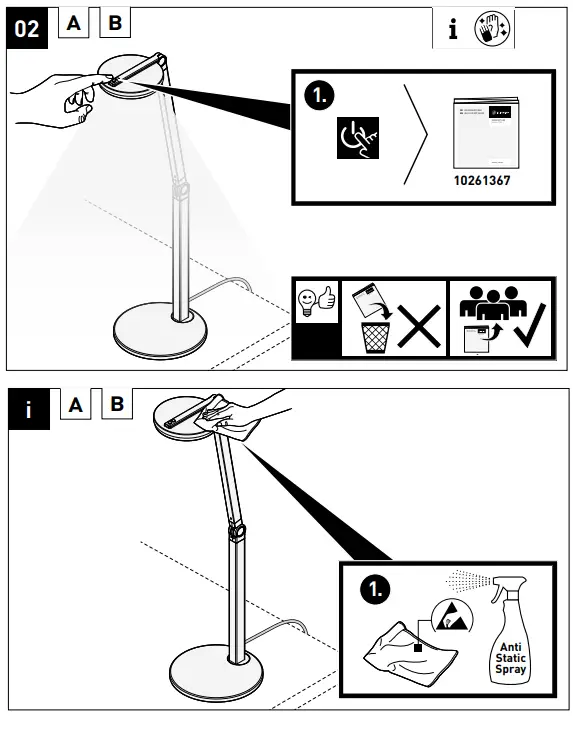

Cleaning
TRILUX recommends: Clean the plastic parts with a light soap solution. Then treat the plastic parts with an antistatic agent.
Disposal of waste electrical and electronic equipment
Always collect and dispose of old electrical and electronic equipment separately at the end of its service life. In case of doubt, seek information about environmentally-compliant waste disposal from your local district authority or special waste disposal companies. Current information on the energy efficiency class of the selected product version can be found in the corre-sponding data sheet for the luminaire. Instruc-tions for replacing or removing the light source in accordance with Regulation 2019/2020/EU can be found at: www.trilux.com/EcoDesign

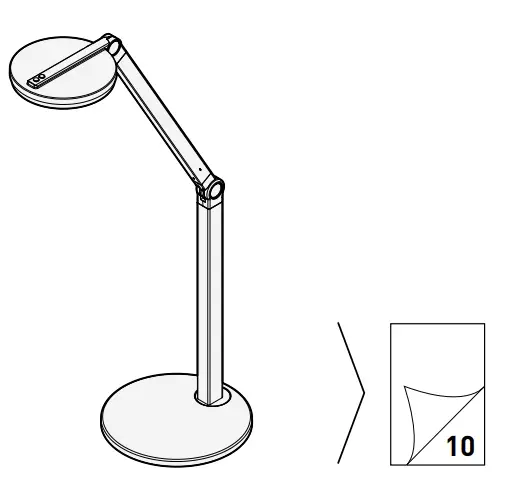

CULTEGA T COM…… ETDI
CULTEGA ACT T COM…………. ETDI
CULTEGAACTTSMC……… ETDI

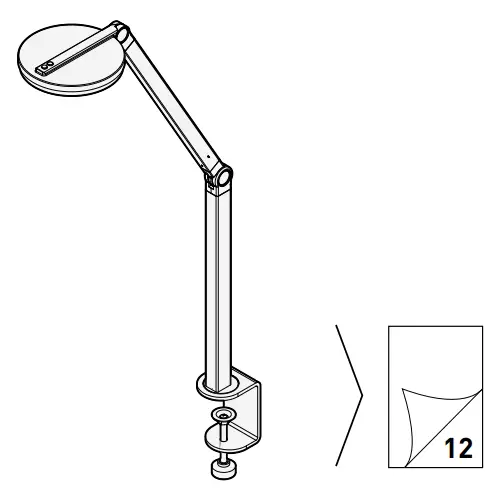

CULTEGA T COM…… ETDI KL ………….
CULTEGA ACT T COM ……..ETDI KL…..
CULTEGAACTTSMC……….. ETDI KU–
| Type | kg |
| CULTEGA T COM …. ETDI …….. !COMFORT] | 2,8 |
| CULTEGA ACT T COM ……..ETDI ……… !COMFORT] | 2,8 |
| CULTEGA ACT T SMC ………. ETDI ISMART CONNECT) | 2,8 |
| Type | kg |
| CULTEGA T COM ….. ETDI KL……… ‘COMFORT) | 1,4 |
| CULTEGA ACT T COM ……….. ETDI KL ……….(COMFORT) | 1,4 |
| CULTEGA ACT T SMC …………. ETDI KL …….. (SMART CONNECT] | 1,4 |
