Eagle Peak Ghs22-grn-az 56 Inch W X 56 Inch D X 77 Inch H Green Portable Gardening Plant Walk-in 2-tiers 8 Shelves Greenhouse Instruction Manual

D x 77 Inch H Green Portable Gardening Plant
Walk-in 2-Tiers 8 Shelves Greenhouse
Instruction Manual

Green Portable Gardening Plant Walk-in 2-Tiers 8 Shelves Greenhouse

Do not return your greenhouse to the place of purchase. For warranty service, repair parts, or product questions please contact Eagle Peak through Amazon’s website and we’ll reply immediately.

SET UP THE GREENHOUSE

Assemble the metal frame as shown in the below diagram. All the connectors are marked with letters that correspond to the letters in the assembly instructions.
NOTICE: Please make sure all the tubes are fitted together snugly with no gaps.

No.	Part	QTY	No.	Part	QTY
1		3	10		16
2		30	A		4
3		32	B		6
4		20	C		2
5		6	D		6
6		8	E		26
7		1	H		1
8		10	J		2
9		4

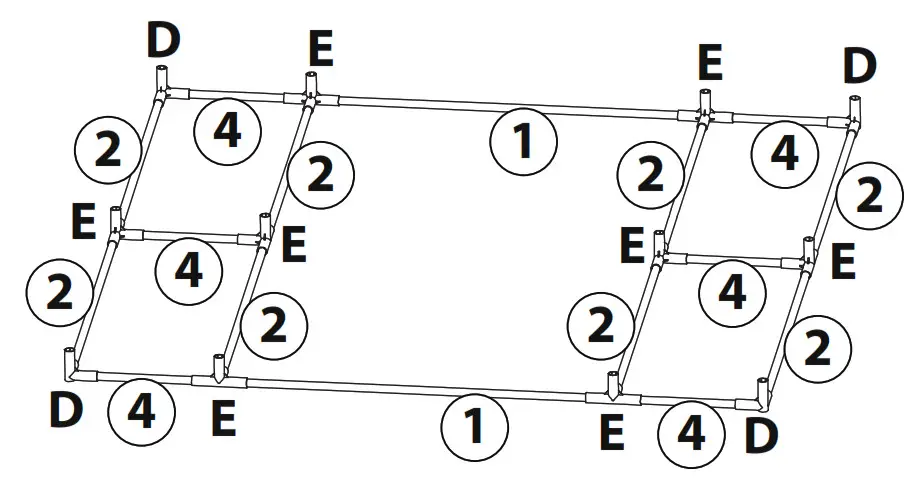

Step 1

1		2
2		8
4		6
D		4
E		8

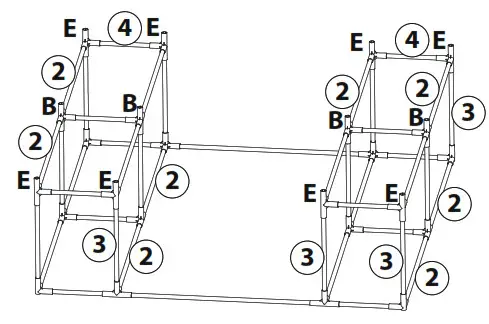

Step 2

2		8
3		12
4		6
B		2
D		2
E		8

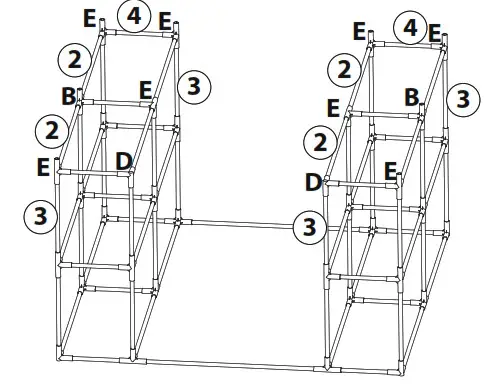

Step 3

2		8
3		12
4		6
B		2
D		2
E		8

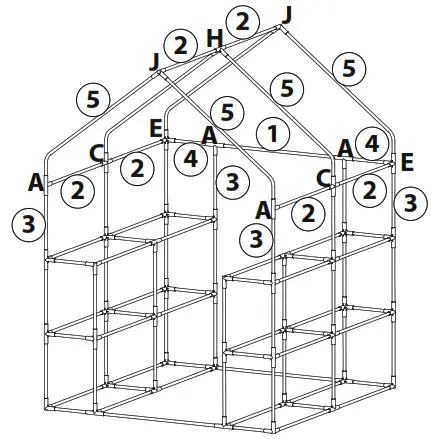

Step 4

1		1
2		6
3		8
4		2
5		6
A		4
C		2
E		2
H		1
J		2

Thank you for choosing Eagle Peak!
