Vizio M213ad Sound Bar Dolby Atmos User Guide

Quick Setup Guide

Get easy setup videos and more.
Scan with your phone camera or QR reader.

http://vizio.com/QR/M213ad-K8?source=qsg

Connect.

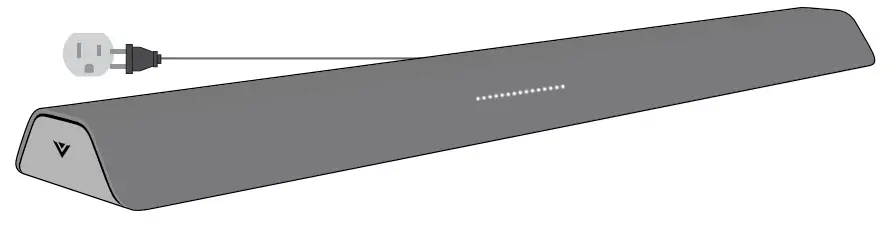

1. Plug in the power cable to power on your sound bar.

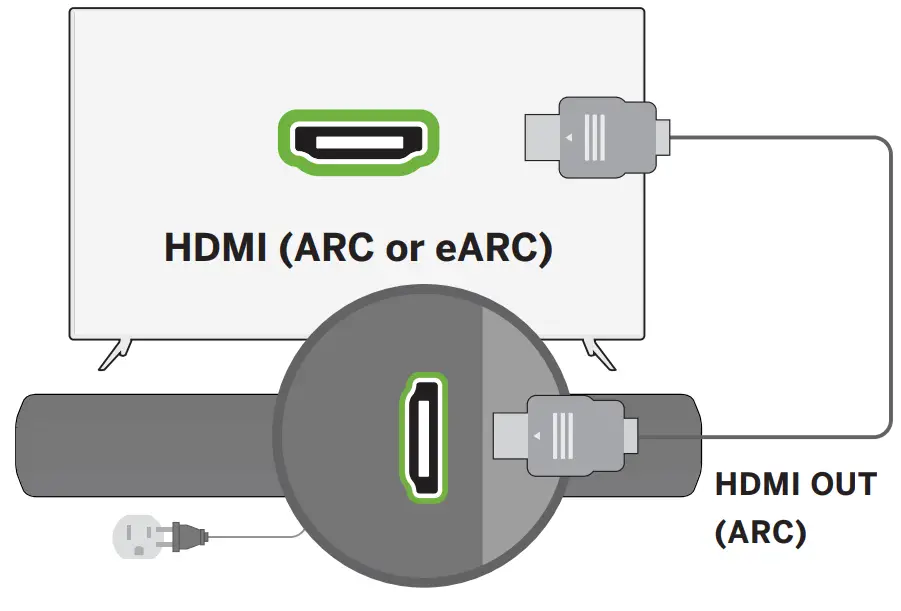

2. Then use the included HDMI cable to connect to your TV.

Why HDMI? Highest Quality Connection.
Connect to the HDMI ARC/eARC port on your TV for the best possible sound quality.

Best speaker placement for my sound bar?

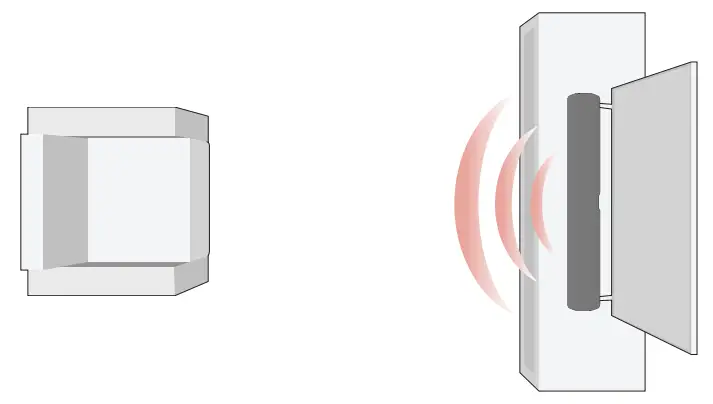

For the best sound experience, position the sound bar as shown. The sound bar should be close to ear level.
If the built-in subwoofer is too boomy or lacking impact, adjust the bass level with your remote control.

How do I adjust sound settings and levels?

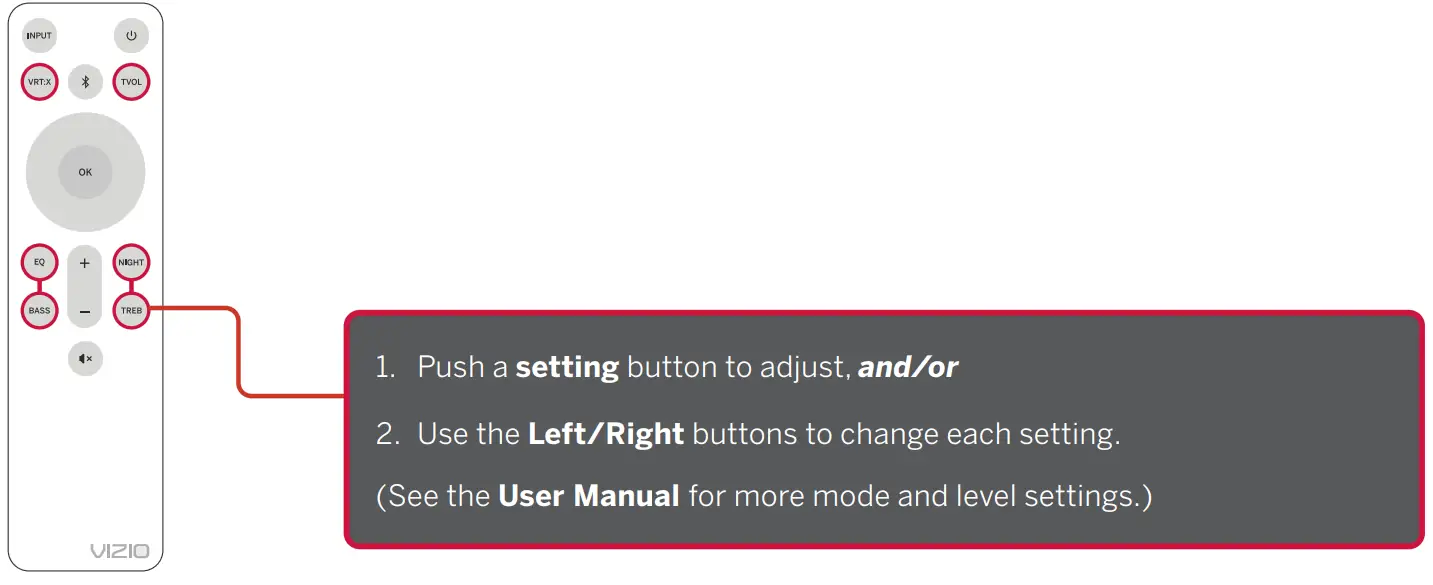

Using the included remote, you can easily adjust many different sound settings and levels to optimize your listening experience, including EQ modes, bass level, treble level, and more.

Can I connect to a Voice Assistant (VA) device?
Connect your voice assistant devices (sold separately) to the sound bar for an amplified audio experience that’s always ready to respond. Please see the User Manual for more information.

Connect to the AUX VA port	OR	Bluetooth Connection

The sound bar will automatically lower the volume while watching a movie or listening to music when a VA device is connected.

Unlock the best picture and audio quality with a VIZIO SmartCast® TV.
Scan here to shop our M-series™ TVs: https://www.vizio.com/en/tv/m-series
More questions?
Get customer support help and view the User Manual here:
support.vizio.com
