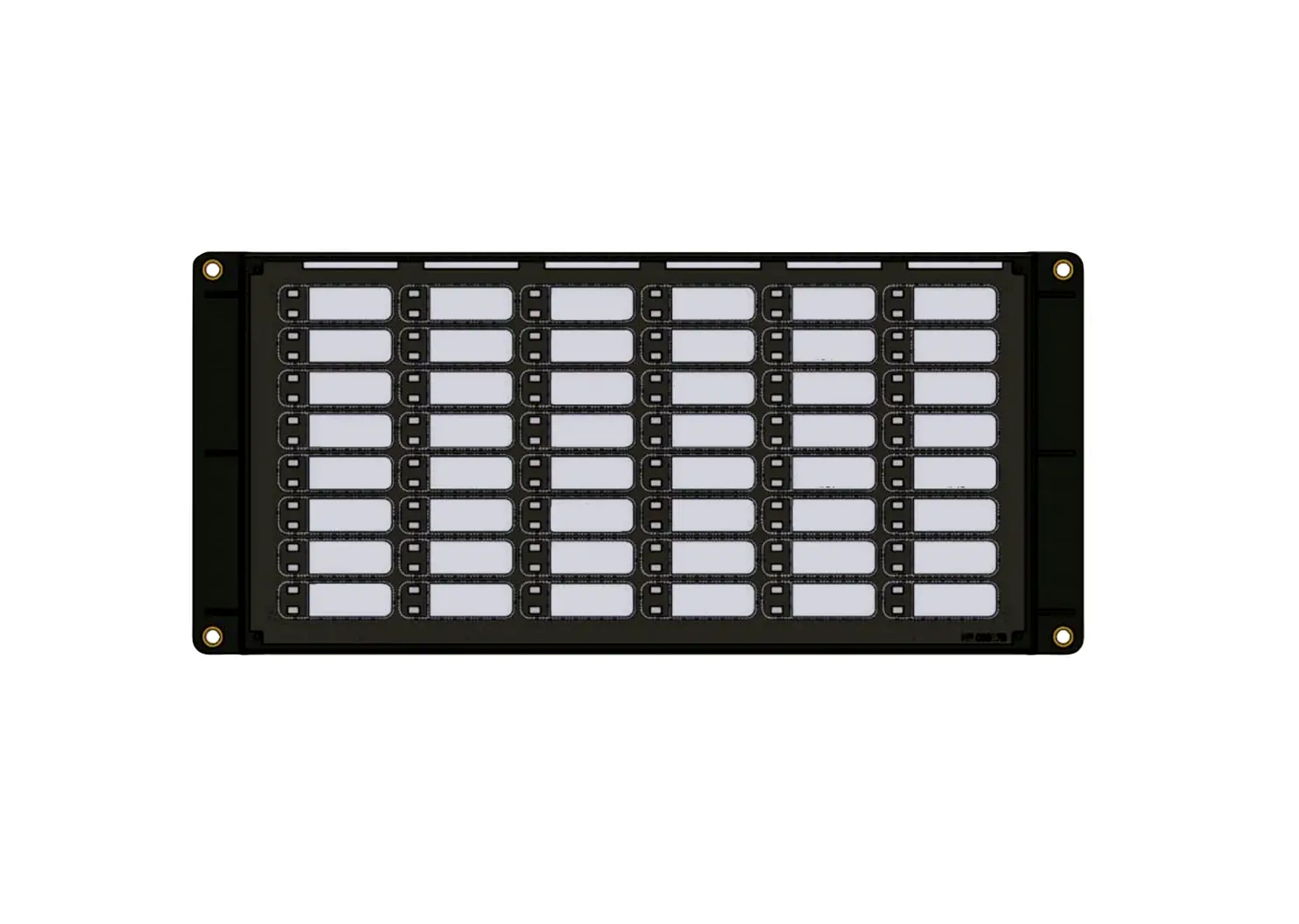

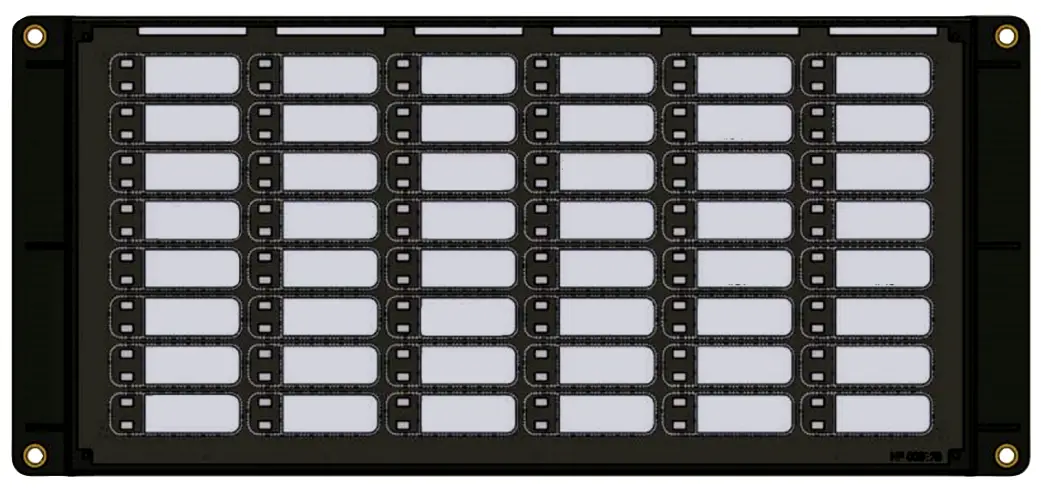

MGC IPS-4848DS Programmable Input Switches Module
Description
The IPS-2424DS Programmable Input Switches Module, mounts into a series of enclosures as part of the fire alarm system. This adder module provides 48 programmable switches, 48 bi-coloured (red/amber) LEDs for fire alarm zone annunciation and 48 amber trouble LEDs. Compatible with FX-2000, FleX-NetTM (FX-2000N) and MMX Fire Alarm panels.
The bi-colored Led will flash red to indicate an alarm or it will flash amber to indicate that a supervisory alarm will be processed when the switch is returned to normal (unbypassed) position.
Features
- Provides 48 programmable switches
- 48 bi-coloured (red/amber) LEDs for fire zone annunciation
- 48 Amber Trouble LEDs
- Programmable for Zoned/Group/Device bypass
- Connects to to the main panel or RAX-LCD, RAXN-LCD, or RAXN-LCDG
- Compatible with FX-2000 & FleXNetˇ (FX2000N) and MMX Fire Alarm panels panels

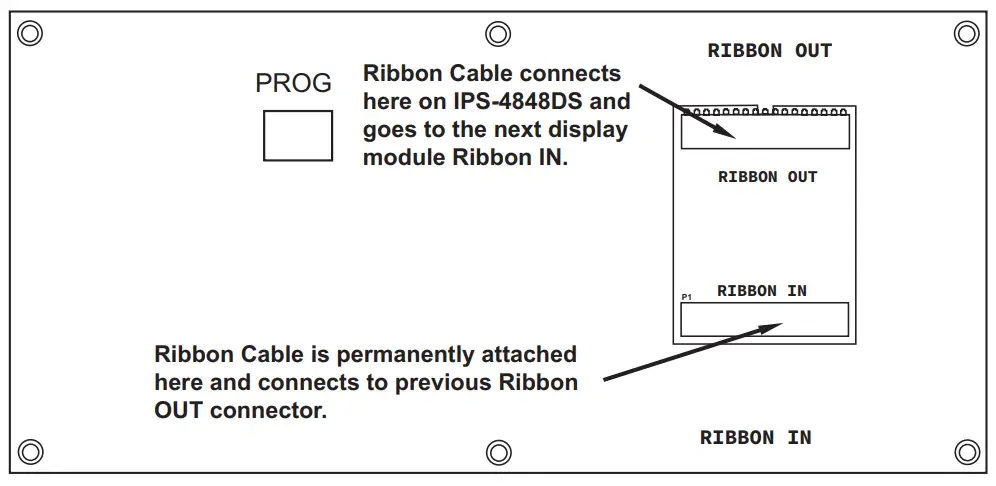

Cable Connections
Power Consumption
| Voltage | 24VDC |
| Standby Current | 10 mA |
| Alarm Current | 22 mA |
Ordering Information
| Model | Description |
| IPS-4848DS | 48 Programmable Input Switches Module |
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.
CATALOG NUMBER 5335
