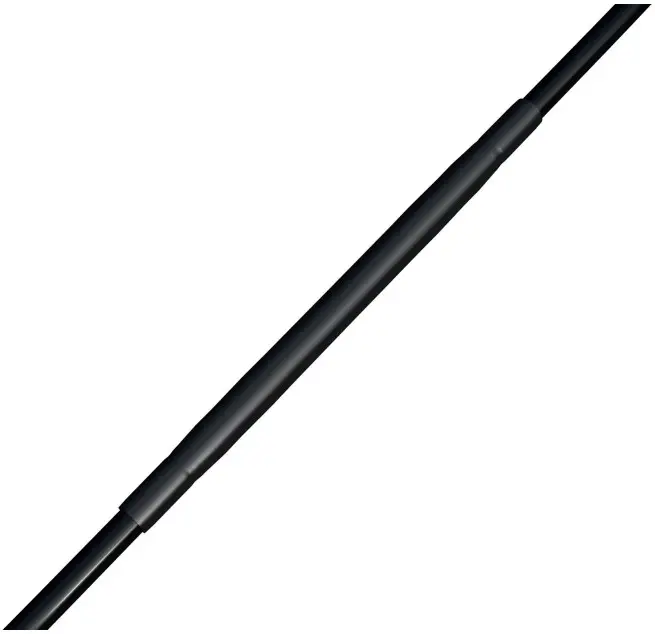

ENSTO HJ11.24045C Coupling Sleeve Instructions
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury

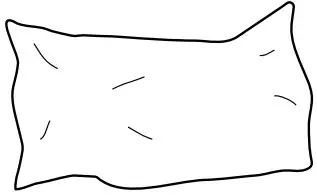

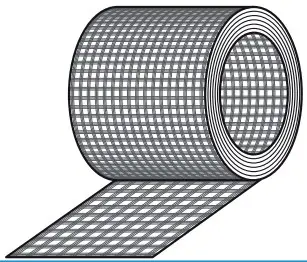

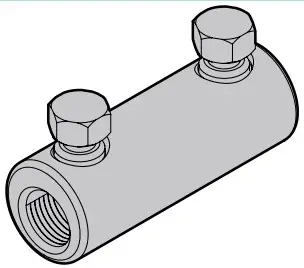

Package Content
| CPEEPL85-25 | 800 mm | 1 |  | PEE64.1/600 | 1 |
 | SIST26 | 520 mm | 1 |  | PEE64/150 | 1 |
 | SISCT65 | 480 mm | 1 |  | PEE225W | 1 |
| CA400SB4 | 1 |  | PEM-HJ11_24045C | 1 | |
| SLJ1.27 | 1 | ||||
| STCTA49.3 | 3000 mm | 2 | |||
 | SSCTA85.10 | 1000 mm | 3 | |||
| SSCTA85.1 | 1×100 mm | 2 | |||
| SSM83.3 | 1×360 mm | 2 | |||
| CT149 | 1 | ||||
| PA23 | 1 | ||||

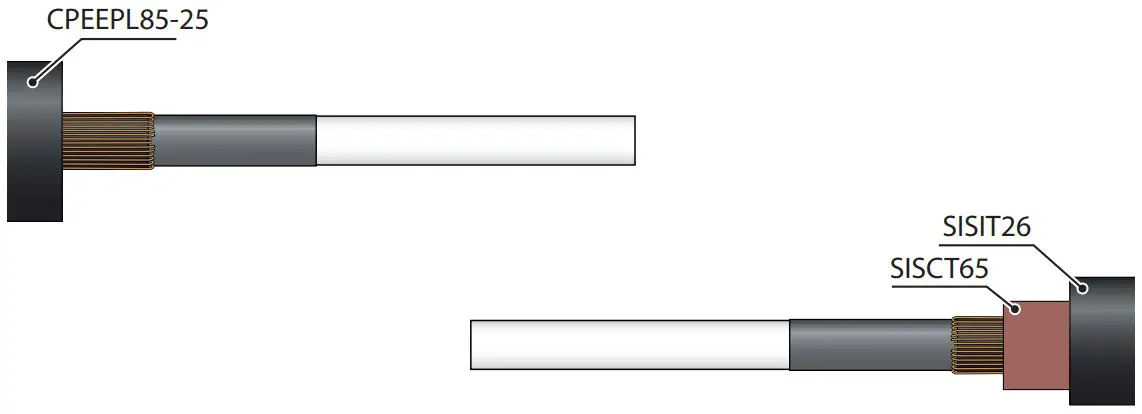

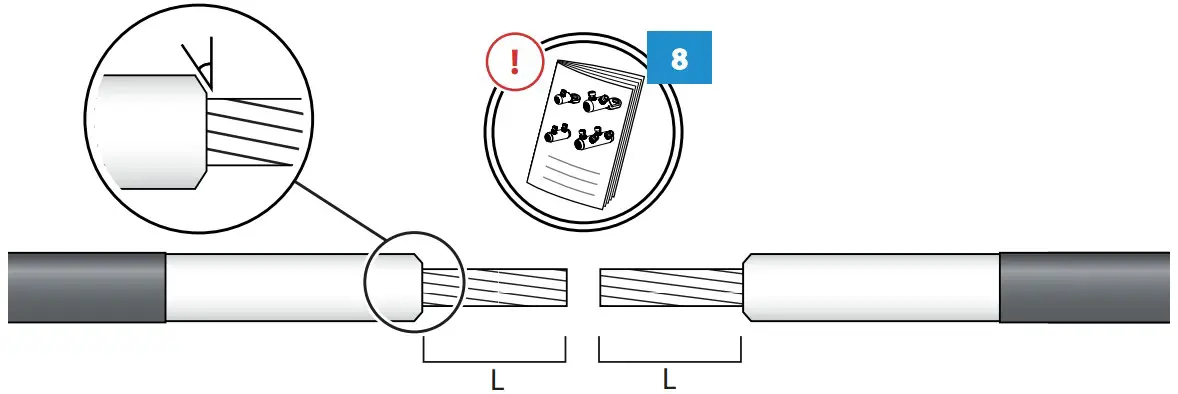

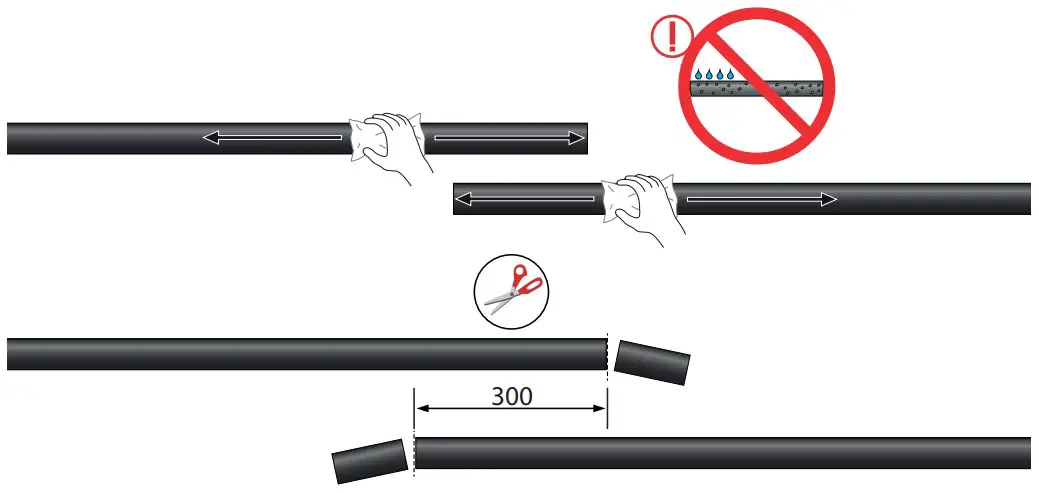

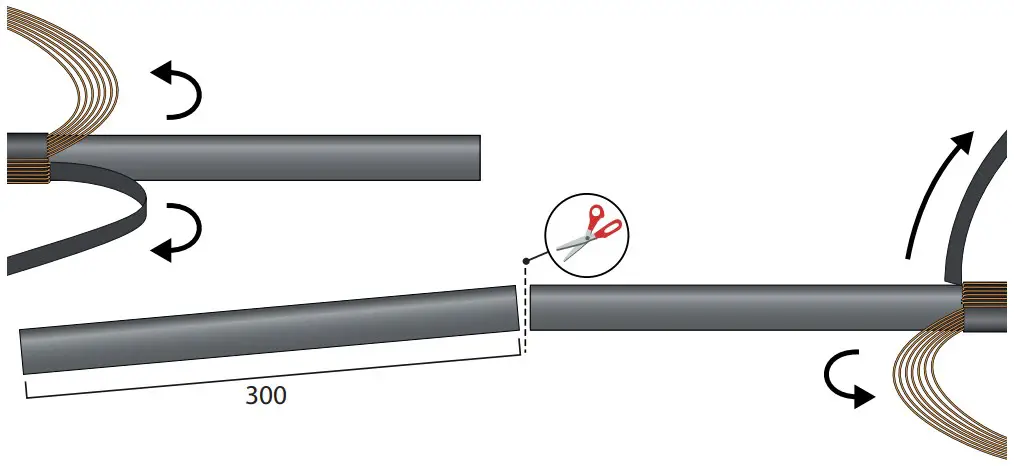

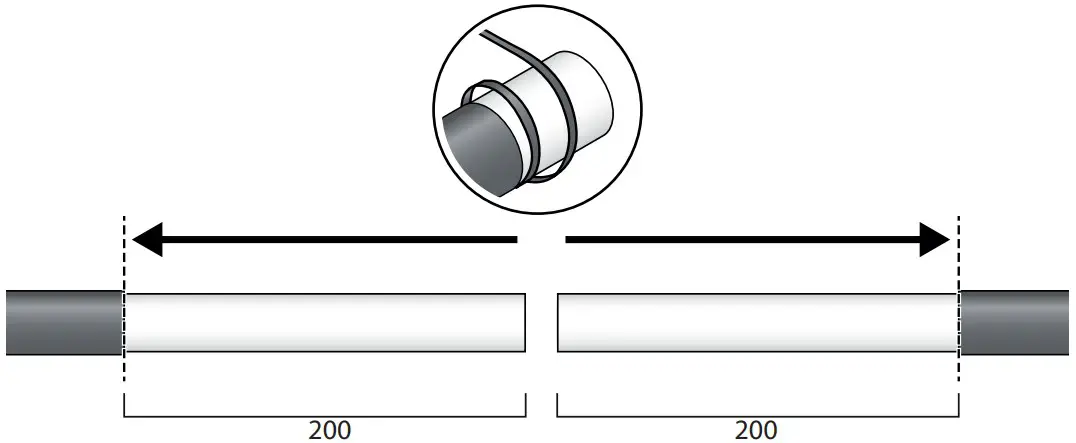

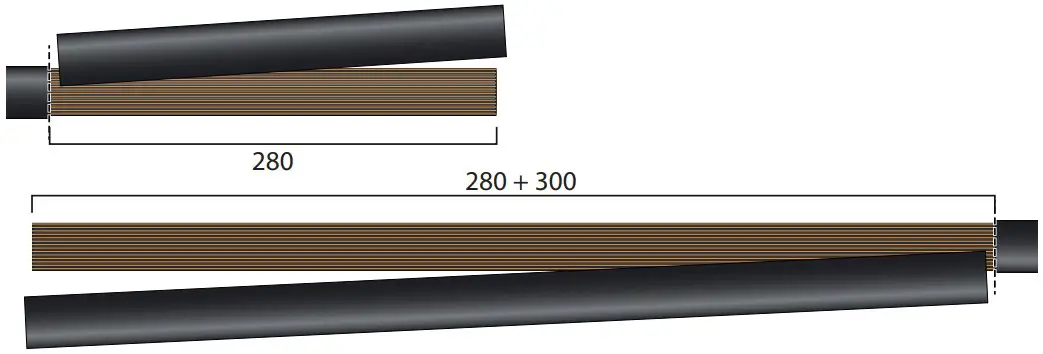

Installation instruction
PEE64.1/600
CPEEPL85-25
SIST26
SISCT65 SISCT65

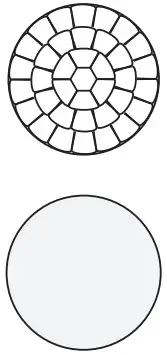

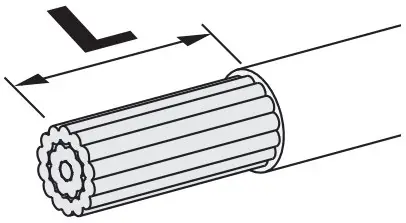

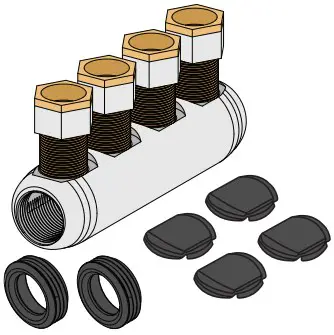

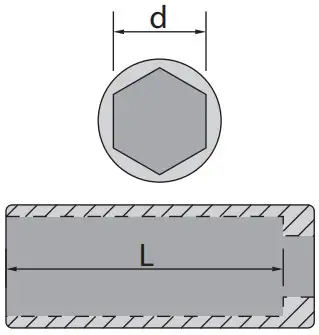

Accessories
|
|
|
|
|
|
|
|
| mm | mm² | mm² | mm² | mm | mm² | Mm | |
| CA400SB4 | 15.3 – 24.6 | 185 – 400 | 90° 185-240 120° 185-240 | 90° 185-240 120° 185-240 | 85 | 185-240 | d = 26 Lmin= 32 |

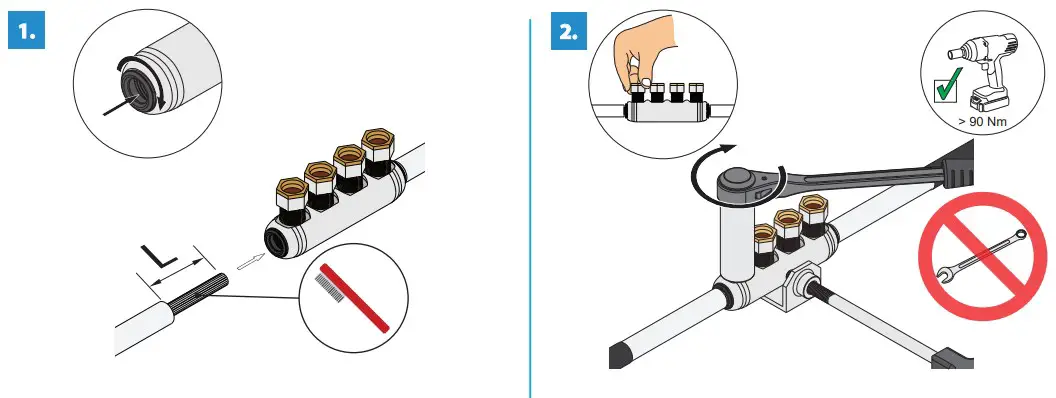

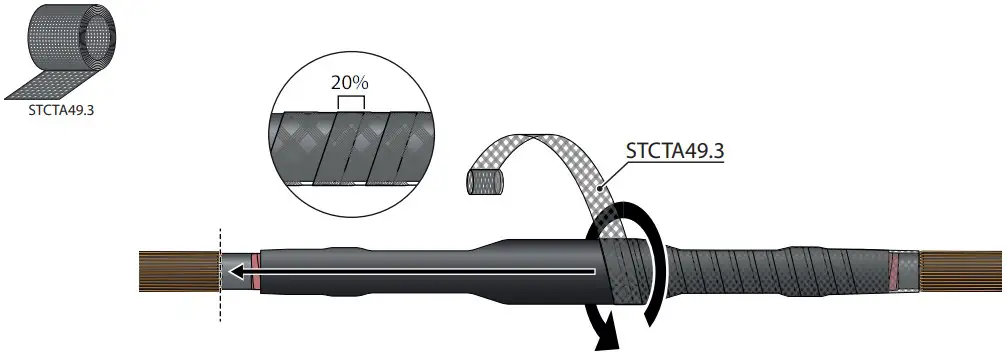

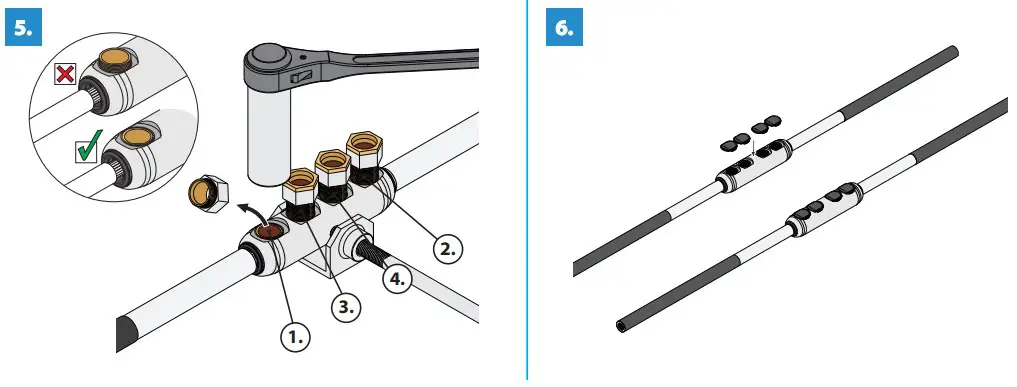

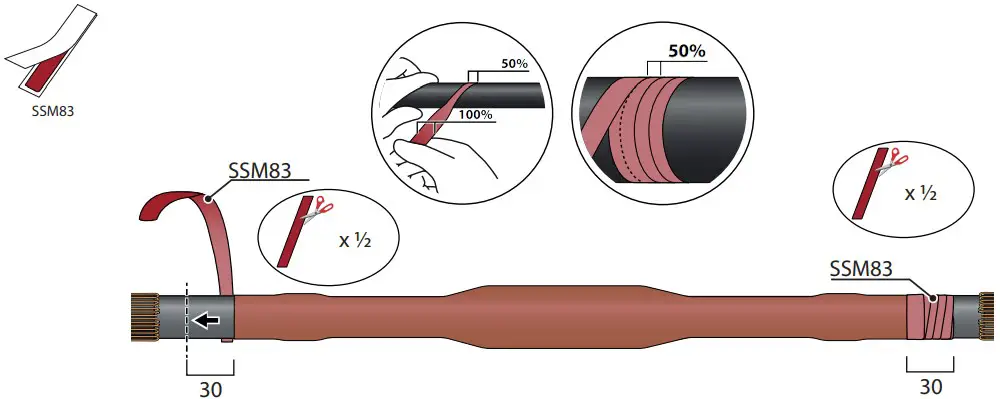

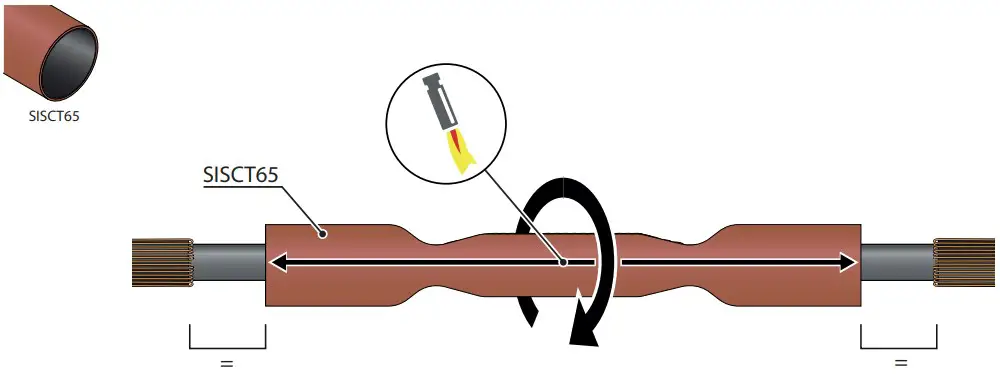

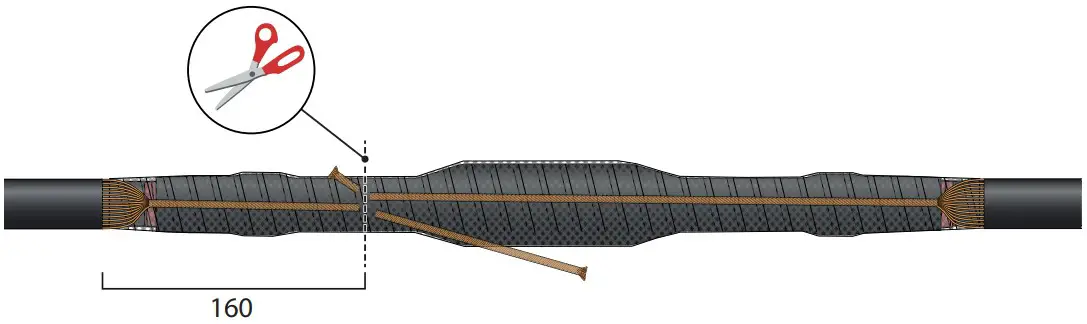

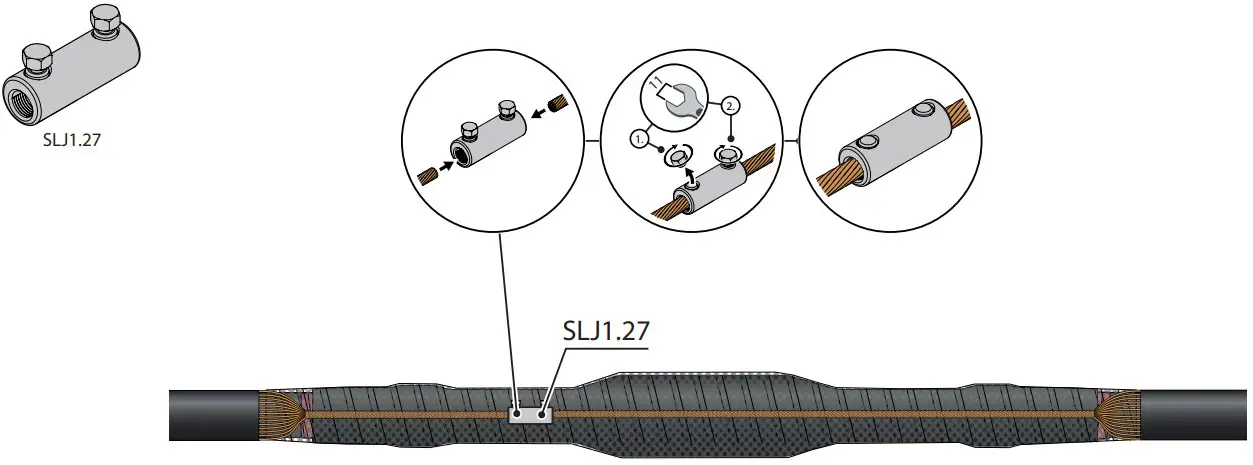

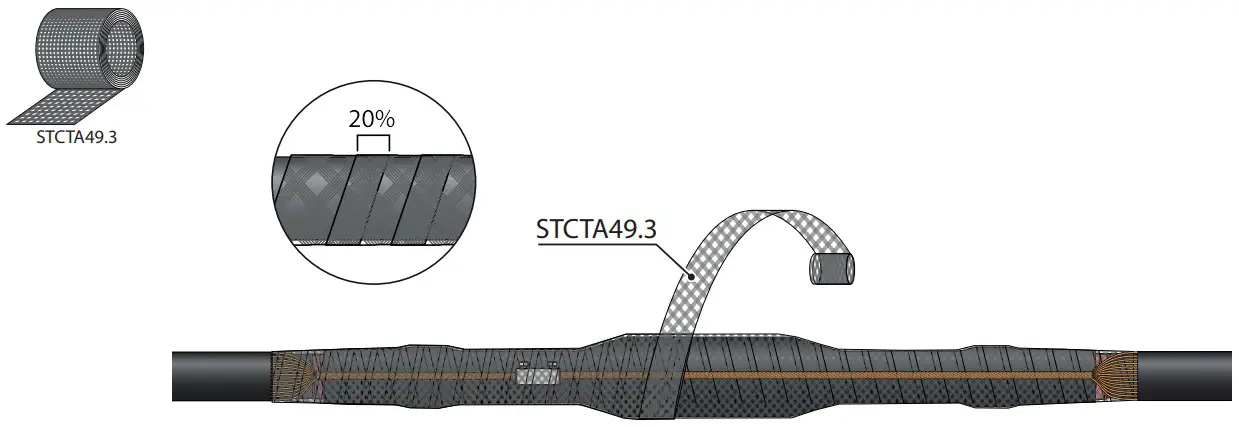

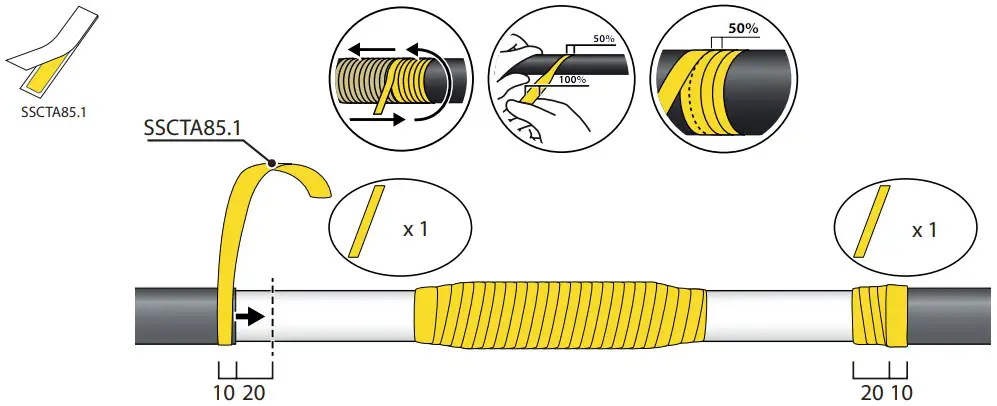

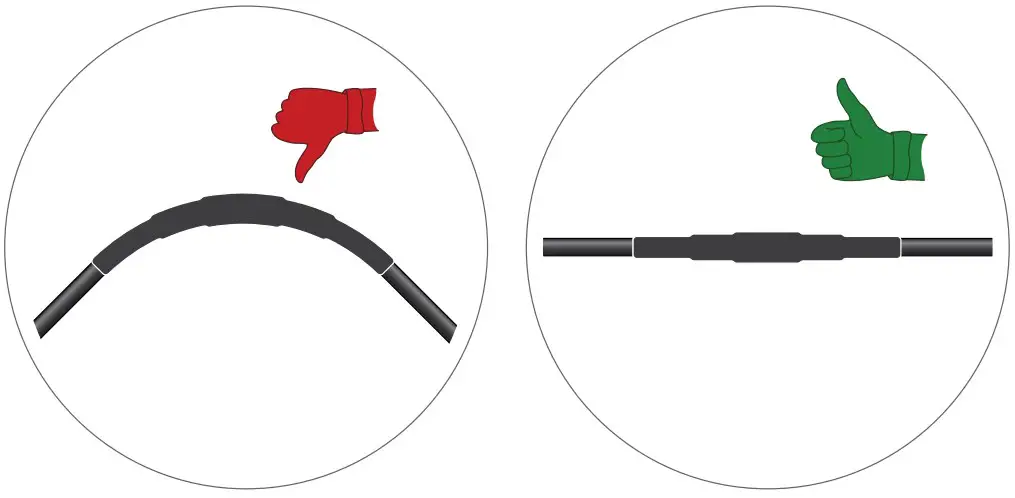

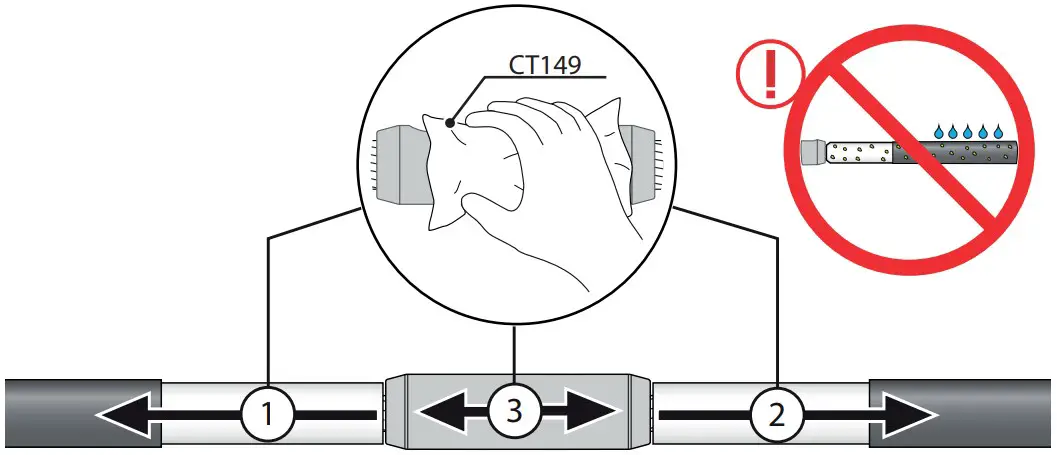

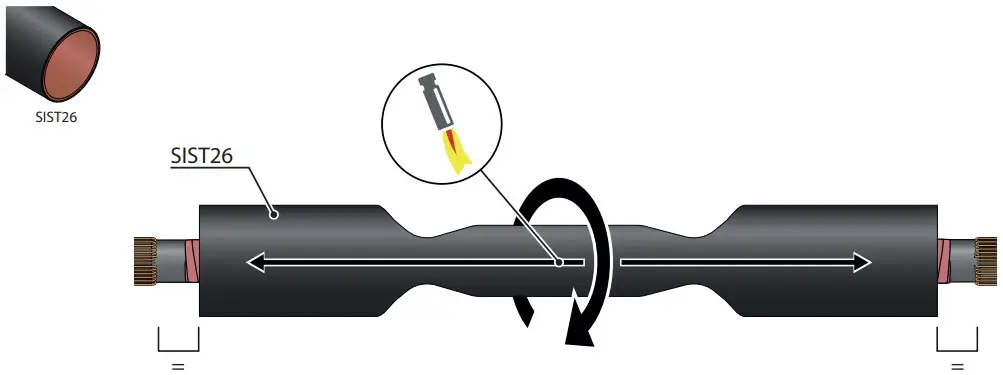

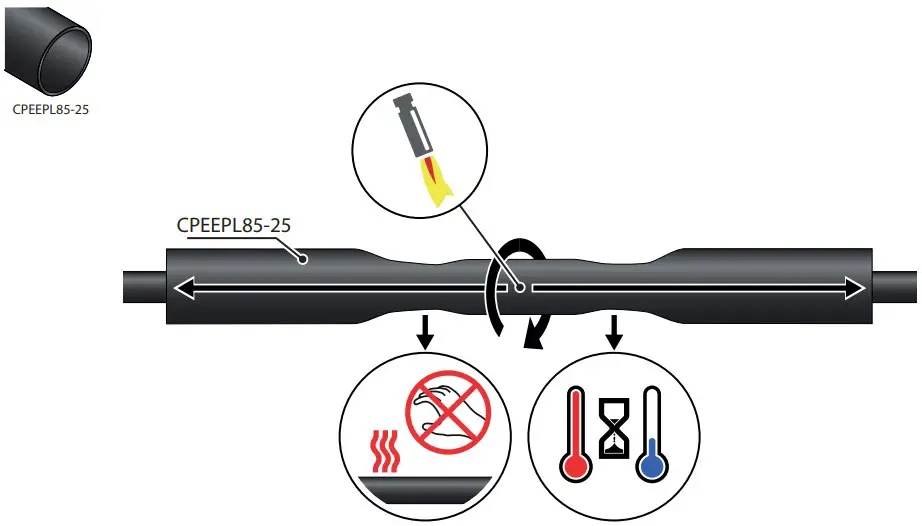

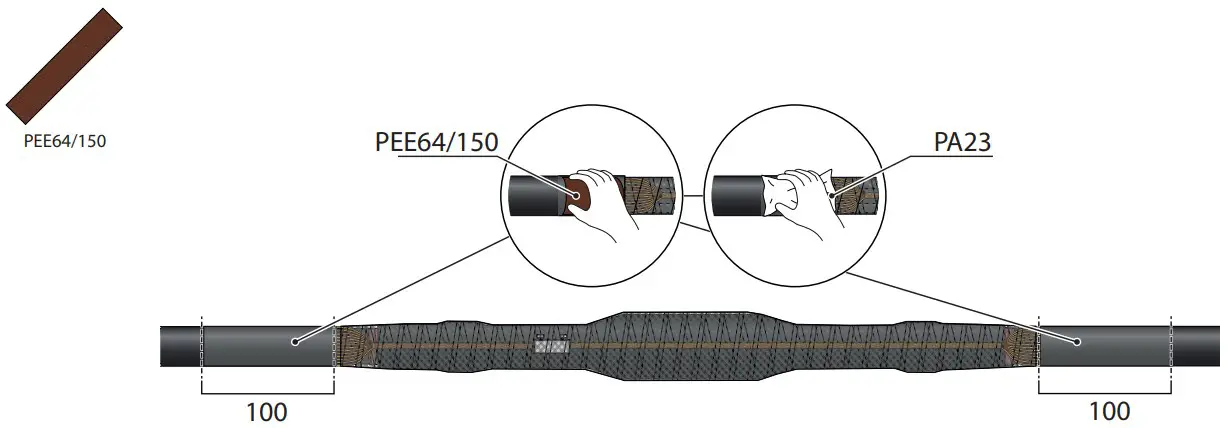

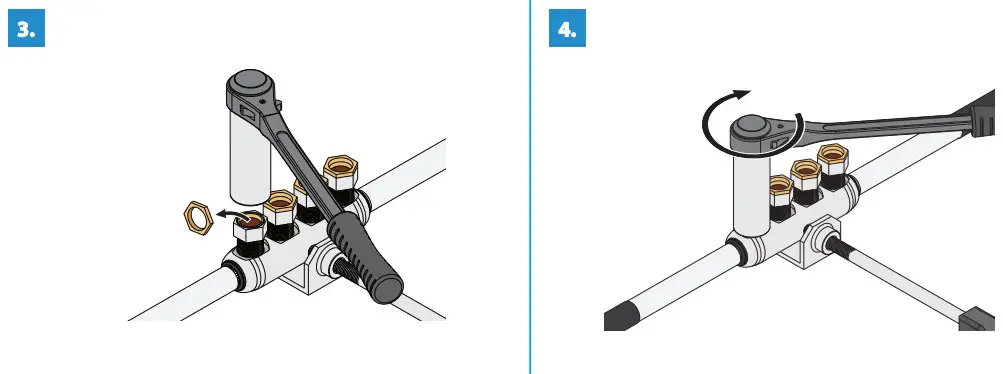

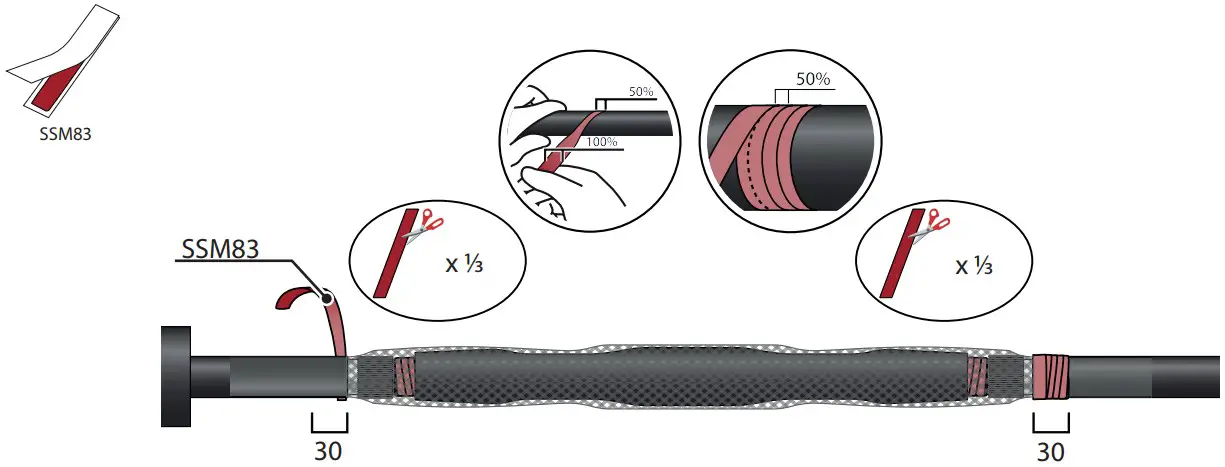

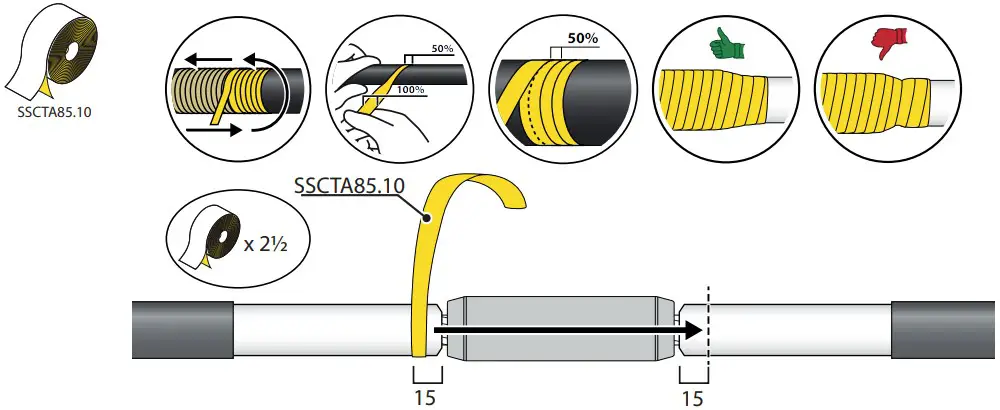

Assembly instruction
