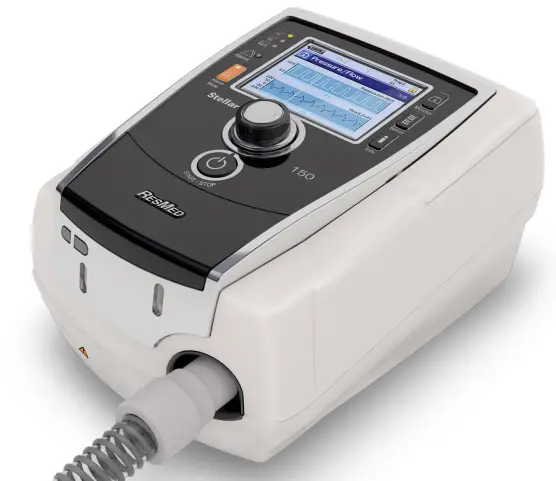

ResMed Stellar 150 Series Non-Invasive Ventilator

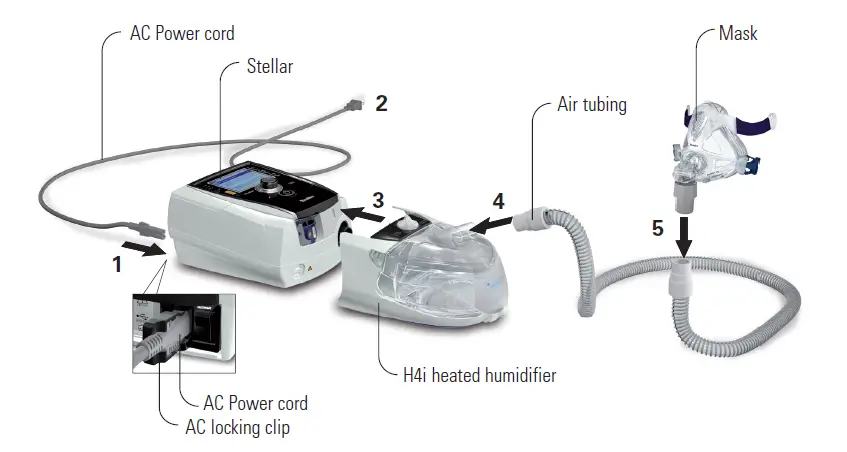

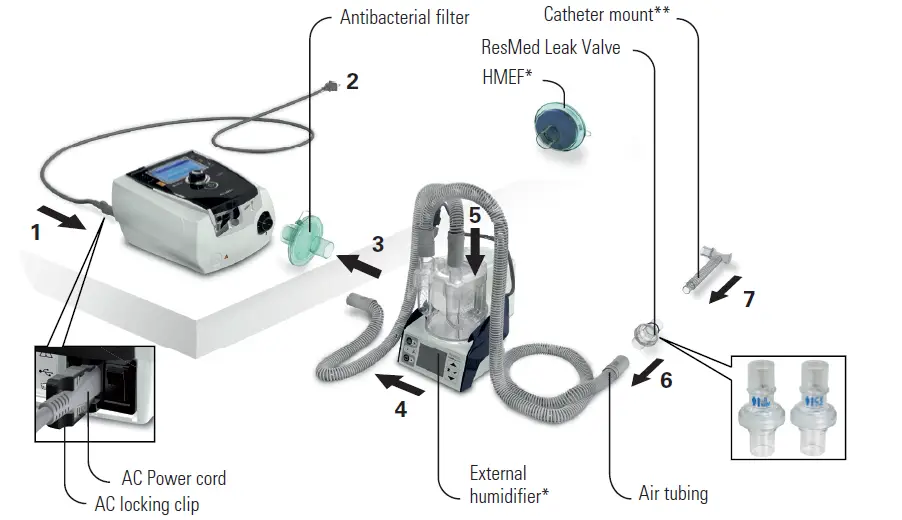

Setup

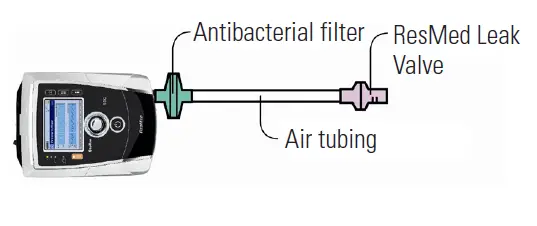

Noninvasive use
Invasive use
- If not using an external humidifier, connect the HMEF to the ResMed Leak Valve.
- The ResMed Leak Valve or the HMEF can be connected to standardized tracheostomy interfaces including connector pieces like catheter mounts.
- The catheter mount and the external humidifier are not part of the ResMed component.

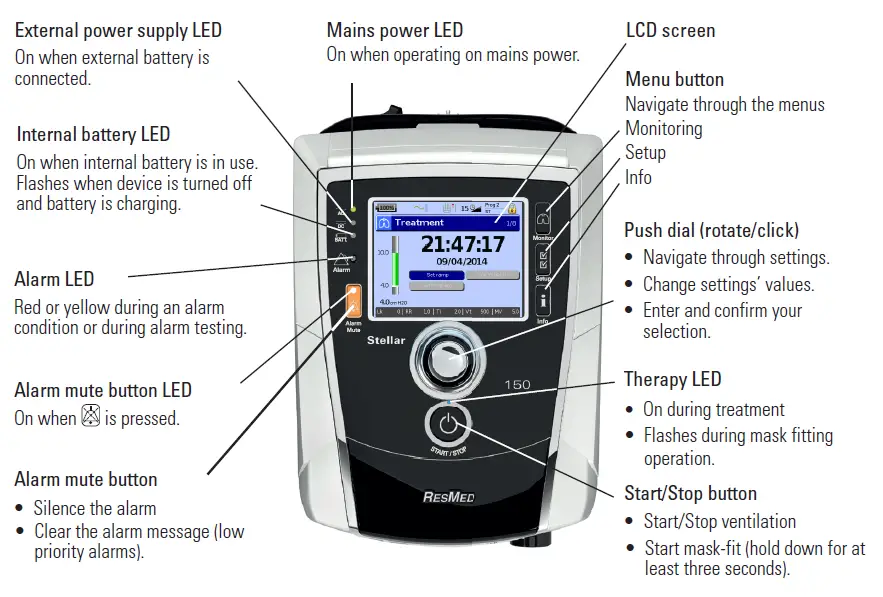

About the control panel

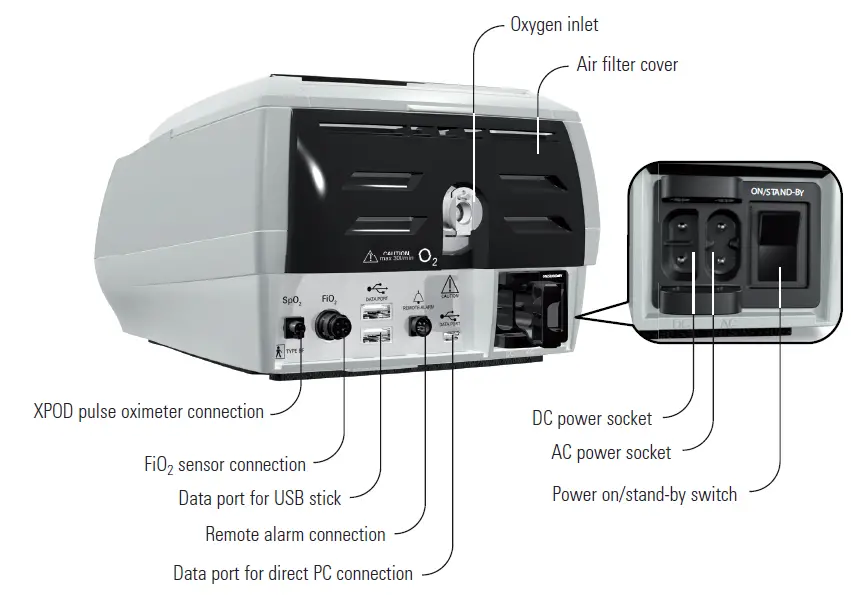

Rear panel
Turning the ventilator on/off
- To turn the ventilator on, press the power switch at the rear of the device. Wait until the Treatment screen is displayed.
- To turn the ventilator off, press the power switch at the rear of the device. Follow the onscreen instructions.

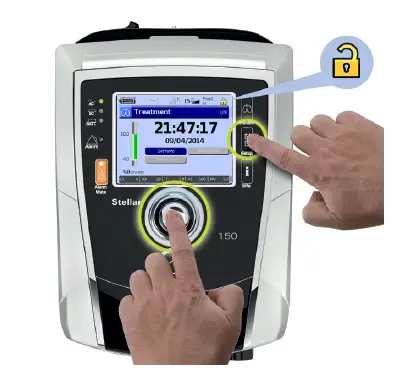

Accessing Clinical mode
Press and simultaneously for three seconds until the duration options appear. Follow the onscreen instructions. To return to the Patient menu, press simultaneously for at least three seconds.
Treatment settings

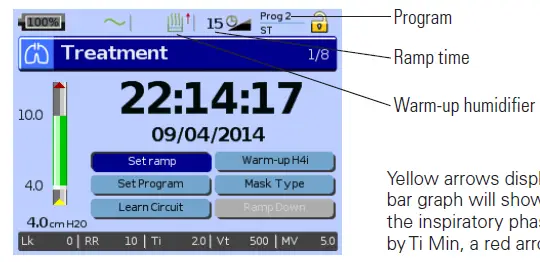

Yellow arrows display at the top or bottom of the pressure bar graph will show if a machine trigger or cycle occured. If the inspiratory phase extends beyond the spontaneous cycle by Ti Min, a red arrow is displayed. Selecting the mask type and performing a Learn circuit enables to calculate the impedance and leak for controlled therapy pressure.
Learn Circuit configuration
Do not connect patient interfaces prior to performing the Learn Circuit. Patient interfaces include any components placed after the ResMed Leak Valve (eg, HMEF, catheter mount, tracheostomy tube).
With an external humidifier
Without an external humidifier

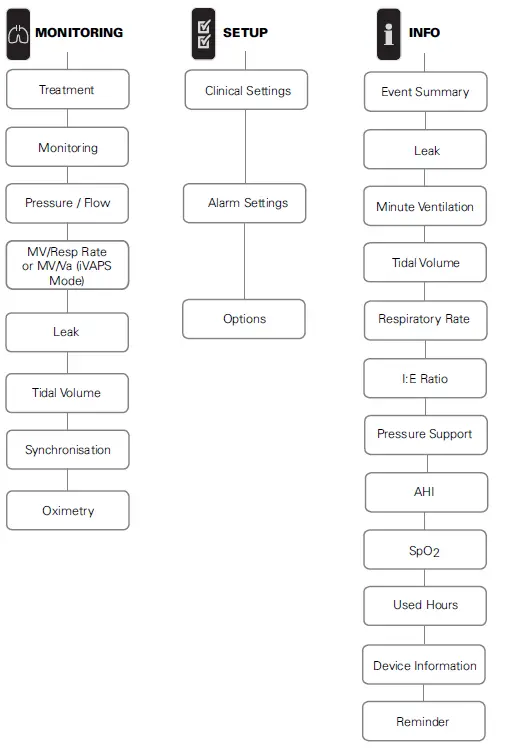

Menu overview

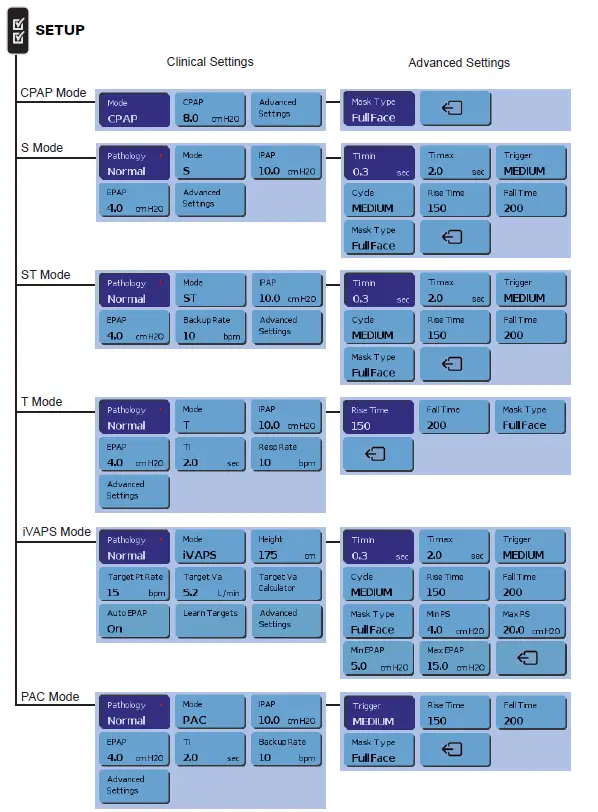

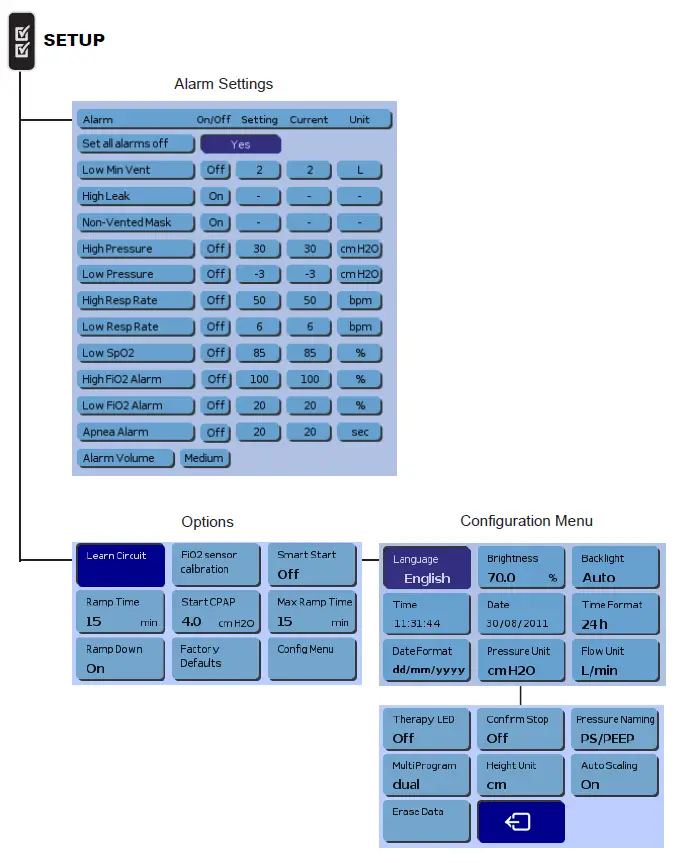

Overview Clinical Settings
Overview Alarm Settings and Options
Pathology defaults
| Setting | Mode | Obstructive lung disease | Restrictive lung disease | Obesity Hypoventilation Syndrome | Normal lung mechanics | ||||
| S ST T PAC iVAPS | |||||||||
| IPAP [cm H2O] | 13 | 11 | 16 | 11 | |||||
| EPAP or PEEP [cm H2O] | 5 | 5 | 8 | 5 | |||||
| PS [cm H2O] | 8 | 6 | 8 | 6 | |||||
| Rise time [ms]* | 150 | 300 | 300 | 200 | |||||
| Fall time [ms]* | 200 | 200 | 200 | 200 | |||||
| Trigger sensitivity | Medium | Medium | Medium | Medium | |||||
| Cycle sensitivity | High | Low | Medium | Medium | |||||
| Min PS [cm H2O] | 4 | 4 | 4 | 2 | |||||
| Max PS [cm H2O] | 20 | 20 | 18 | 20 | |||||
| Min EPAP [cm H2O] | 5 | 5 | 8 | 5 | |||||
| Max EPAP [cm H2O] | 15 | 15 | 15 | 15 | |||||
| Ti Min [sec] | 0.3 | 0.5 | 0.5 | 0.5 | |||||
| Ti Max [sec] | 1.0 | 1.5 | 1.5 | 1.5 | |||||
