BUNKER 29779 57 Drawer TrolleyBUN
Stock No. 29779 / 29792
ASSEMBLY INSTRUCTIONS

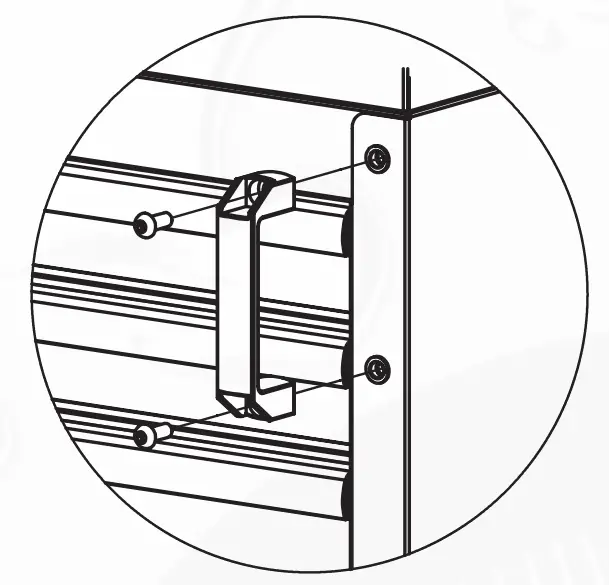

- Attach Handles
Attach handles to front angled side with 4 pieces of M8 x 20mm bolt. Do not fully tighten.
To make assembly easier we recommend having two persons aid one another in assembly

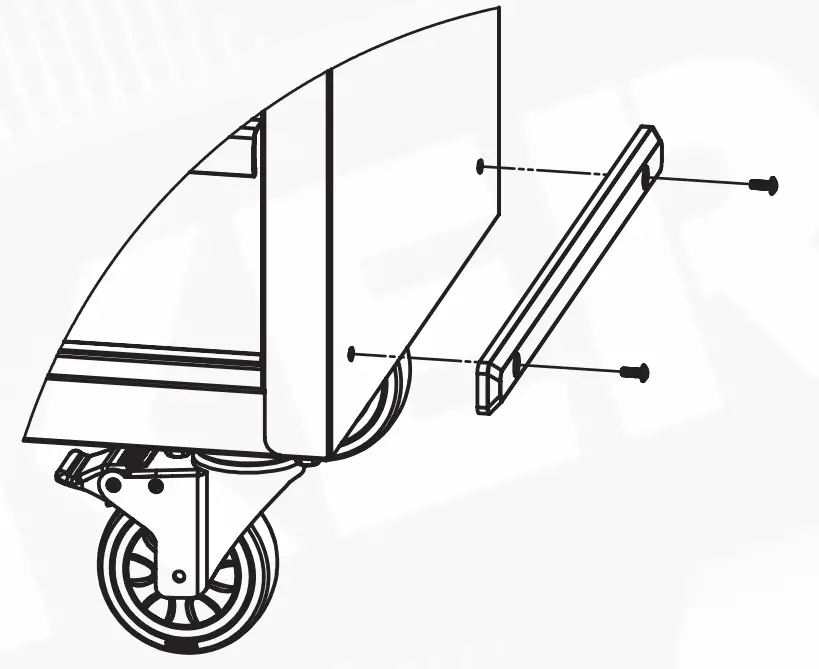

- Attach Bumpers
Attach bumpers to side panel with 4 pieces of M4 x 10mm bolt. Do not fully tighten.

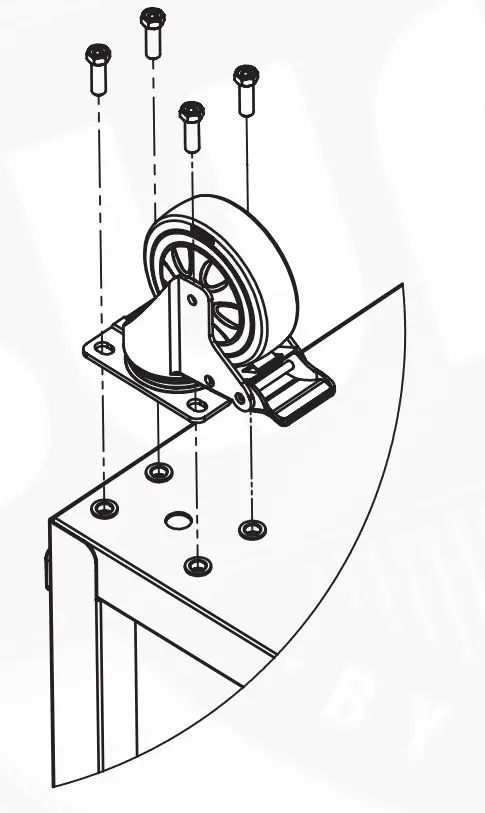

- Attach Castors
Attach castors to the bottom of unit with 16 pieces of M8 x 20mm bolt. Do not fully tighten.

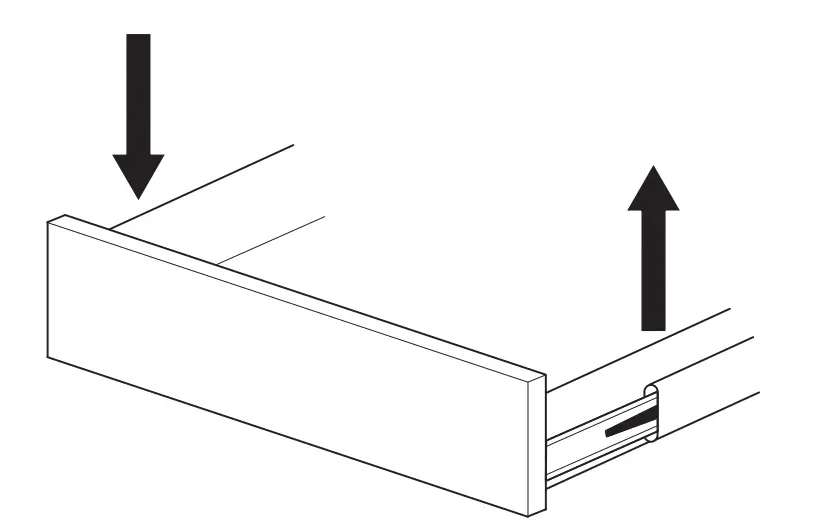

REMOVING AND REPLACING THE DRAWERS:
- Pull the drawer completely out
- Press down the left tab and lift up the right tab
- Pull drawer off sliders
- To reinstall the drawer, realign with the internal drawer slider and push in until locked in place
CASTOR MAINTENANCE
Grease the castors annually using high-quality bearing grease.
CARE AND CLEANING
Periodically the surfaces should be cleaned with a mild detergent and water. Grease and oil can be removed with most standard cleaning fluids. For safety, use a non-flammable cleaning fluid.
Auto wax will preserves the storage unit’s luster finish and protects against scratches
