DD60D2HNX9 Built-Under Double DishDrawer Dishwasher
Product Information

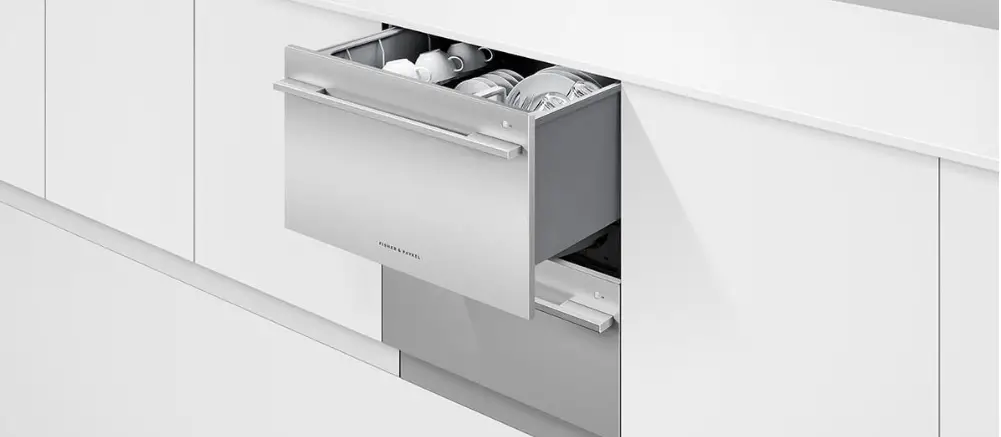

The DD60D2HNX9 is a built-under Double DishDrawerTM Dishwasher
from the Sanitise Series 7 by Fisher & Paykel. It features a
contemporary stainless steel design and is designed to be installed
under your benchtop. The dishwasher has recessed handles for a
seamless look and can wash one drawer while you load the other.
Each drawer has enough room for full-size dinner plates.
The dishwasher offers seven wash programs, including additional
Quick wash, Sanitise, and Dry+ modifiers. The Quick wash modifier
delivers a faster wash while maintaining performance. The Sanitise
option provides extra protection by killing 99.9% of bacteria in
the final rinse. The Dry+ setting is perfect for plastic dishes.
The dishwasher also has flexible racking, allowing you to customize
the internal shelves to suit your needs.
It is Wi-Fi enabled and can be controlled remotely using the
SmartHQTM app. The dishwasher’s dimensions are 820 – 880mm in
height, 599mm in width, and 573mm in depth.
Product Usage Instructions
To use the DD60D2HNX9 DishDrawerTM Dishwasher:
- Ensure that the dishwasher is properly installed under your
benchtop with the recessed handles. - Load your dishes into the drawers, making adjustments to fit a
variety of dishes using the flexible racking system. - Select the desired wash program using the intuitive capacitive
touch controls. You can choose from programs such as Eco,
Glassware, Heavy, Light, and Medium. - If needed, apply modifiers such as Dry+, Quick, or Sanitise to
customize the wash cycle. - Optionally, enable the child lock feature to prevent accidental
operation. - Press the start button to begin the wash cycle. The dishwasher
will display the time remaining on the LED display. - After the wash cycle is complete, unload the clean dishes from
the drawers.
Note: The dishwasher operates quietly and efficiently, using the
energy it needs without compromising on wash performance. It can
accommodate round plates and has adjustable tines for easy loading.
The dishwasher also features a built-in water softener,
fan-assisted drying, flood protection, and flow-through detergent.
It comes with a warranty for parts and labor.
QUICK REFERENCE GUIDE > DD60D2HNX9
Built-under Double DishDrawerTM Dishwasher, Sanitise
Series 7 | Contemporary Stainless Steel
Wash one drawer while you load the other, with room in each drawer for full-size dinner plates.
Designed to be installed under your benchtop, with recessed handles for a seamless look Seven wash programs, as well as additional Quick wash, Sanitise and Dry+ modifiers Flexible racking allows you to customise internal shelves to suit your needs
Wi-Fi enabled and works with the SmartHQTM app for remote control and notifications
DIMENSIONS
Height Width Depth
820 – 880mm 599mm 573mm
FEATURES & BENEFITS
SEAMLESS FIT Our built-under DishDrawerTM Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps. Designed to match the Fisher & Paykel family of kitchen appliances with recessed handles for a streamlined look.
Date: 06.07.2023 > 1
EASE OF USE DishDrawerTM Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITISE AND DRY+ OPTIONS The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria* in the final rinse. The Dry+ setting is perfect for plastic dishes. *Certified to NSF/ANSI Standard 184
TRUE HALF LOAD Each drawer holds a true half load for small, fast washing that won’t waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
INDEPENDENT WASH With the ability to use both drawers independently and select different wash programs, the DishDrawerTM Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
QUIET PERFORMER Running at a very low decibel rating, these DishDrawerTM Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
EFFICIENT PERFORMANCE Our DishDrawerTM Dishwashers use the energy they need without compromising on wash performance.
SPECIFICATIONS
Accessories
Cutlery basket
·
Knife clip and multipurpose
·
QUICK REFERENCE GUIDE > DD60D2HNX9
Capacity and loading Accommodates round plates Adjustable height, foldable Fold down tines Pitch adjustable tines Place settings Place settings per drawer
Consumption Energy rating Energy usage Water usage (per wash cycle)
Controls Child lock Energy saving delay start Intuitive capacitive touch Rinse aid indicator light Time remaining LED display Wi-Fi connectivity
Features Built-in water softener Fan assisted drying Flood protection Flow through detergent Motor type Quiet operation SmartDriveTM technology
280mm · · ·
12 6
E 54kWh/100 cycles
7.8L
· · · · · ·
· · · · BLDC · ·
Performance Noise on standard cycle top
Power requirements Amperage Supply frequency Supply voltage
Product dimensions Depth Height Width
Warranty Parts and labour
Wash Program Modifiers Dry + Quick Sanitise Wash modifiers
Wash Programs 60 min Eco Glassware Heavy Light Medium
45dBA
8.5A 50Hz 220V
573mm 820 – 880mm
599mm
5 years
Rinse Wash programs
Water connection Water pressure Water supply
Date: 06.07.2023 > 2 · 7
100kPa – 1000kPa 3/4″ BSP (20mm) Connector
SKU
82892
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
· · · 3
· · · · · ·
QUICK REFERENCE GUIDE > DD60D2HNX9
Other product downloads available at fisherpaykel.com Service & Warranty User Guide DishDrawerTM Installation Guide Double DishDrawerTM Preliminary Specification Guide Double DishDrawerTM
A PEACE OF MIND SALE 24 Hours 7 Days a Week Customer Support T 08000 886 605 Wwww.fisherpaykel.com
Date: 06.07.2023 > 3
