Marmitek Audio Anywhere 630 Transmitter Instructions

Audio Anywhere 630 Transmitter

Product Information

The Audio Anywhere 630 is a digital wireless stereo audio
transmitter. It allows you to connect your audio source wirelessly
and transmit sound from your TV, audio source, or computer to your
hi-fi system or home cinema set. The transmitter uses digital audio
technology for interference-free transmission and delivers CD
quality sound. It has gold plated inputs and outputs for the best
connection. You can also extend your audio to multiple rooms
throughout your home with the multi-room feature. The transmitter
supports multiple receivers, allowing you to connect up to 10
receivers.

Technical Specifications

• Transmitter Audio transfer method: Digital 2.4 GHz
• Transmitter frequency: Up to 100 meters line of sight, up to 20
  meters through walls and ceilings
• Connection with receiver: Up to 2 Mbps, GFSK modulation
• Operating range: 20 Hz – 20 kHz
• Latency: < 12.5 ms
• Power: 100-240 VAC 50/60 Hz, 5 VDC USB-C adapter or via USB-C
  cable
• Receiver Frequency range: 20 Hz – 20 kHz
• Power: 100-240 VAC 50/60 Hz, 5 VDC USB-C adapter or via USB-C
  cable
• Multiple receivers: Up to 10
• Connections:
  • Interface audio input: 2x RCA (stereo L/R)
  • Interface audio output: 2x RCA (stereo L/R)
• General:
  • Dimensions (h x w x d): 22 x 90 x 75 mm (transmitter), 95 x 90
    x 75 mm (receiver)
  • Dimensions incl. antenna (h x w x d): 95 x 90 x 75 mm
    (transmitter), N/A (receiver)
  • Weight: 160 grams
  • Linking (pairing): Automatic
  • Power consumption: 0.9 W (transmitter) and 0.3 W
    (receiver)
  • Standby power consumption: < 0.25 W (transmitter) and <
    0.25 W (receiver)

Product Usage Instructions

1. Connect the audio source to the transmitter using the provided
   2x RCA (stereo L/R) cables.
2. Connect the transmitter to a power source using the provided
   USB-C adapter or USB-C cable.
3. Place the receiver near your hi-fi system or home cinema
   set.
4. Connect the receiver to your audio system using the provided 2x
   RCA (stereo L/R) cables.
5. Connect the receiver to a power source using the provided USB-C
   adapter or USB-C cable.
6. The transmitter and receiver will automatically pair with each
   other.
7. Adjust the volume and settings on your audio source and enjoy
   wireless audio transmission.

Note: You can connect multiple receivers (up to 10) to one
transmitter, allowing you to transmit audio to multiple rooms
throughout your home. Make sure the receivers are within the
operating range of the transmitter.

Audio Anywhere 630
Audio transmitter | digital | wireless | stereo

audio

– Easy to install – Interference-free transmission – Connect multiple receivers

EN Connect your audio source wirelessly – Transmit the sound from your TV, audio source
or computer wirelessly to your hi-fi system or home cinema set. – Extend your audio to multiple rooms throughout your home (multi-room). – Digital audio technology for interference-free transmission and CD quality sound. – Gold plated inputs and outputs for the best connection. – Connect any audio source wirelessly to a pair of powered speakers. – Multiple receivers (max. 10) can be connected to one transmitter.
FR Connectez votre source audio sans fil – Envoyez le son de votre téléviseur, source
audio ou de votre ordinateur sans fil sur votre chaîne hifi ou sur votre home cinema set. – Diffusez le son dans plusieurs pièces de votre maison (multiroom). – Technologie audio numérique pour une transmission sans interférence et un son de qualité CD. – Entrées et sorties plaquées or pour une connexion optimale. – Connectez n’importe quelle source audio sans fil à une paire d’enceintes amplifiées. – Plusieurs récepteurs (10 au maximum) peuvent être connectés à un seul émetteur.

NL Verbind je audiobron draadloos – Stuur het geluid van je tv, audiobron of
computer draadloos door naar je geluidsinstallatie of home cinema set. – Breid audio uit naar meerdere kamers in jouw huis (multiroom). – Digitale audiotechnologie voor storingsvrije overdracht en geluid van cd-kwaliteit. – Vergulde in- en uitgangen voor de beste verbinding. – Sluit elke audiobron draadloos aan op een paar actieve luidsprekers. – Op één zender kunnen meerdere ontvangers (max. 10) worden aangesloten.
ES Conecta tu fuente de audio de forma inalámbrica – Transmite el sonido del TV, fuente de audio o
ordenador inalámbricamente al equipo estero o homecinema. – Amplía el audio a varias habitaciones de la casa (multihabitación). – Tecnología de audio digital para una transmisión sin interferencias y un sonido con calidad de CD. – Entradas y salidas chapadas en oro para una mejor conexión. – Conecta cualquier fuente de audio de forma inalámbrica a un par de altavoces activos. – Se pueden conectar varios receptores (máx. 10) a un transmisor.

DE Verbinden Sie drahtlos Ihre Audioquelle – Senden Sie den Ton Ihres Fernsehers,
Audioquelle oder PC drahtlos zu Ihrer Stereo- oder Heimkinoanlage. – Weiten Sie Ihr Audiosignal auf mehrere Räume in Ihrem Zuhause aus (Multiroom). – Digitale Audiotechnologie sorgt für störungsfreie Übertragung und Klang in CD-Qualität. – Vergoldete Ein- und Ausgänge zur Gewährleistung einer optimalen Verbindung. – Verbinden Sie drahtlos eine beliebige Audioquelle mit zwei Aktivlautsprechern. – Mehrere Empfänger (max. 10) können an einen Sender angeschlossen werden.
IT
Collega la tua sorgente audio in modalità wireless – Trasferire senza fili il suono del TV, sorgente
audio o computer all’impianto stereo o sistema Home Cinema. – Estendi il tuo audio attraverso la casa in più di una stanza (multi-room). – Tecnologia audio digitale per una trasmissione libera da interferenze e qualità audio CD. – Ingressi e uscite con rivestimento in oro per garantire la connessione migliore. – Collega qualunque sorgente audio a un paio di altoparlanti amplificati. – È possibile collegare più di un ricevitore (max. 10) a un solo trasmettitore.

Audio Anywhere 630

Technical specifications

Transmitter Audio transfer method Transmitter frequency Connection with receiver Operating range
Data transfer speed Power
Receiver Frequency range Latency Power
Multiple receivers
Connections Interface audio input Interface audio output
General Dimensions (h x w x d) Dimensions incl. antenna (h x w x d) Weight Linking (pairing) Power consumption Standby power consumption

Digital 2.4 GHz Digital Up to 100 metres line of sight, up to 20 metres through walls and ceilings Up to 2 Mbps, GFSK modulation 100-240 VAC 50/60 Hz, 5 VDC USB-C adapter or via USB-C cable
20 Hz – 20 kHz < 12.5 ms 100-240 VAC 50/60 Hz, 5 VDC USB-C adapter or via USB-C cable Up to 10
2x RCA (stereo L/R) 2x RCA (stereo L/R)
22 x 90 x 75 mm
95 x 90 x 75 mm 160 grams Automatic 0.9 W (transmitter) and 0.3 W (receiver) < 0.25 W (transmitter) and < 0.25 W (receiver)

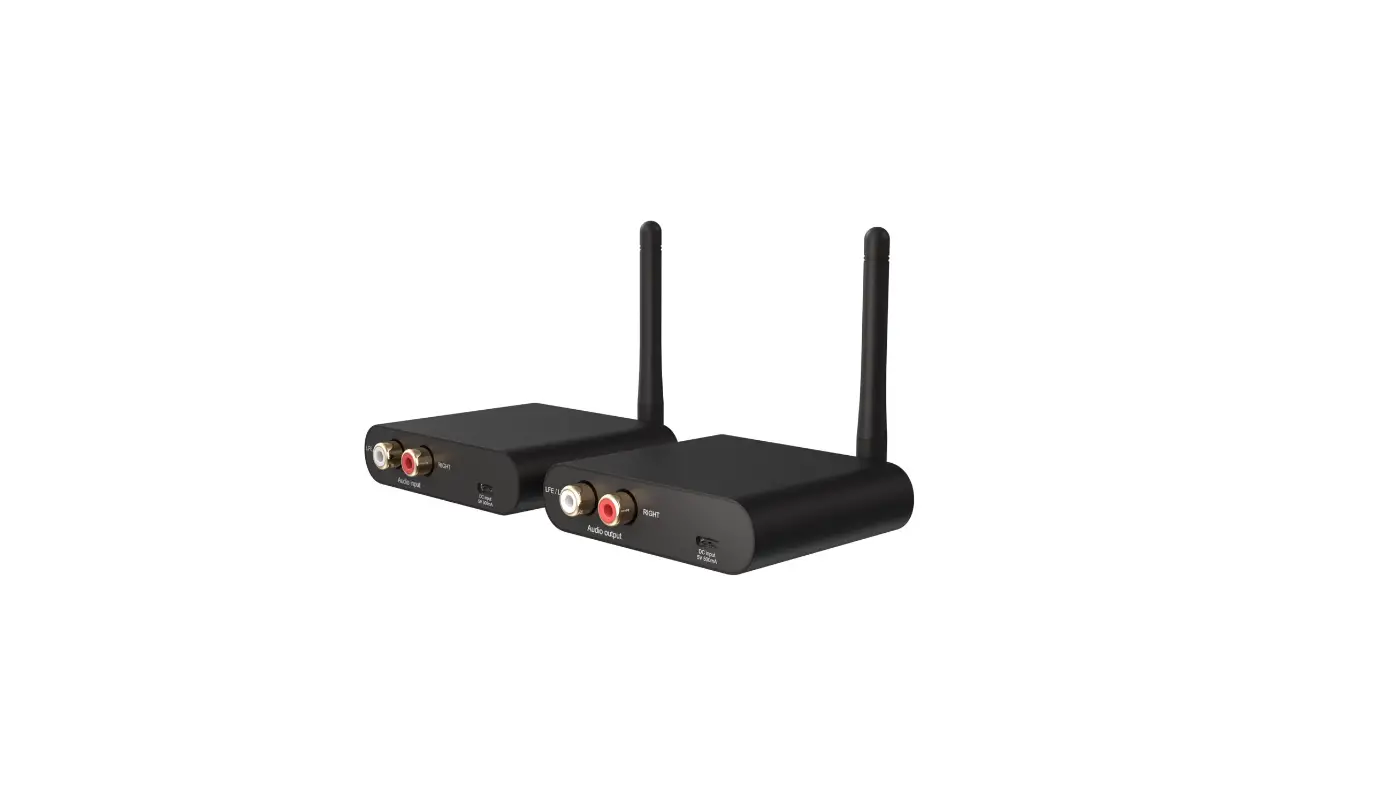

Connections
1 Audio inputs (RCA) 2 Audio outputs (RCA) 3 USB-C power
transmitter
receiver

Order information
Audio Anywhere 630 EU version art. no. 08416 EAN 8718164534164 UK version art. no. 08417 EAN 8718164534171 Packaging size (h x w x d): 155 X 130 X 75 mm (height incl. eurolock 185 mm)
AA630RX (additional receiver) EU version art. no. 08420 EAN 8718164534201 UK version art. no. 08421 EAN 8718164534218
In order to continue improving the product, Marmitek reserves the right to change specifications and/or designs without prior notice.
© Marmitek

Set includes
· 1x Transmitter · 1x Receiver · 2x Stereo RCA cable · 2x Mini-jack > RCA adapter cable | 10 cm · 2x USB Type C cable | 80 cm · 2x USB power adapter · 1x User manual
www.marmitek.com
26101/20220530
