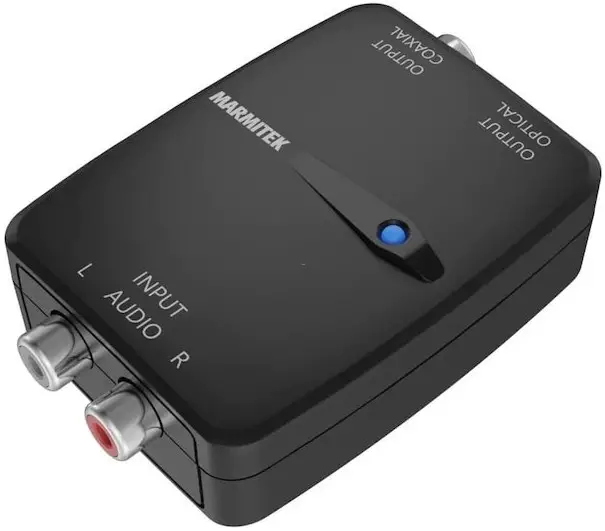

Connect AD12
Digital audio converter
Instruction Manual
Convert your analogue stereo signal into a digital audio signal
Package content
- 1x Audio converter
- 1x RCA (cinch) audio cable, 90 cm
- 1x 5V USB-A Power adapter
- 1x Power cable, black, 100 cm
- 1x Quick guide
Safety instructions
Please read these instructions thoroughly before you use the device and keep them for future reference.
- Only for indoor use.
- Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
- This product is not a toy. Keep out of reach of children.
- Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates.
- Never connect a power adapter if it’s damaged. In such cases, please contact your supplier.
- Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.
- Never open the product: the device may contain parts with deadly voltage.
- Repairs or service should only be performed by qualified personnel.
- Record players need special phono pre-amplification to make vinyl records sound right. Many turntables have this built in, some do not. This product does not have a built-in phono preamp.
Installation
- We recommend that you switch off your equipment before connecting cables in order to prevent any of the devices being damaged.
- At all times, avoid bending the optical (Toslink) cable as it is very delicate.

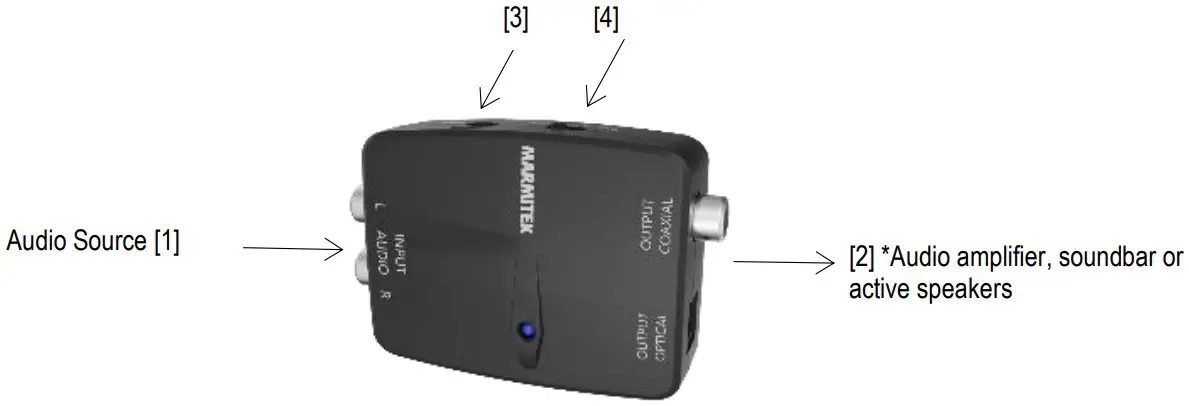

- Connect the Audio Source to the analog input[1] on the Connect AD12™ using the RCA audio cable.
- Connect the Audio Amplifier to the digital audio output [2] on the Connect AD12™ using a Coaxial or Optical audio cable.
- Connect the power adapter [3] and plug into the electrical socket.
- Set the switch [4] in the ON position and check that the audio connection works.
Usage
If the audio connection does not work (properly), consult the instructions for the Audio Source and/or the Audio Amplifier for the correct settings.
Frequently asked questions (FAQs)
Please go to www.marmitek.com if you have any questions.
Technical specifications
| Inputs and outputs | |
| Audio input: | 1x left/right stereo (RCA) |
| Input level: | 2 V (Vrms) Typ. |
| Frequency response: | 20-20 kHz, +/- 3 dB |
| ADC SNR: | ≥ 80 dB |
| Audio output 1: | 1x S/PDIF optical (Toslink) |
| Audio output 2: | 1x S/PDIF coaxial |
| Supported Audio Format: | LPCM 44.1 KHz |
| Housing | |
| Dimensions (H x W x D): | 80 x 51 x 23mm |
| Weight: | 45 g |
| Power | |
| External Power adapter: | 100-240VAC @ 50-60Hz |
| Input: | 5VDC @ 600mA |
| Dissipation Current @5V: | Max. 120 mA |
Declaration of Conformity
Hereby, Marmitek BV, declares that this Connect AD12™ is in compliance with the essential requirements of the 2014/30/EU, 2014/35/EU, 2017/2102 and 2009/125/EC: 2019/1782 Directives.
Full Declaration of Conformity is available at www.marmitek.com/en/declarations-of-conformity/
More detailed user guide and instructions are available on our website at www.marmitek.com
Connect
20763/20220223 | Connect AD12™
All rights reserved © MARMITEK
