Essl Tyre Killer Series User Manual

eSSL Tyre Killer Series

Technical Parameter

1. System : 220V electric drive
2. Passing pressure: Max 80T container truck
3. Power supply: 220 ( Control voltage 24V)
4. System dynamic power (w): 180W
5. Rising time: :Sl-2S
6. Lowering time: :Sl-2S
7. Working Temperature: -35°C~ 75°C
8. Storage Environment : -10°C~65°C
9. Material: A3 steel, with anti-rust paint
10. Color: Optional
11.  Weight: 0.3T/0.4T
12. Casing Size

Surface /Flush mounted type

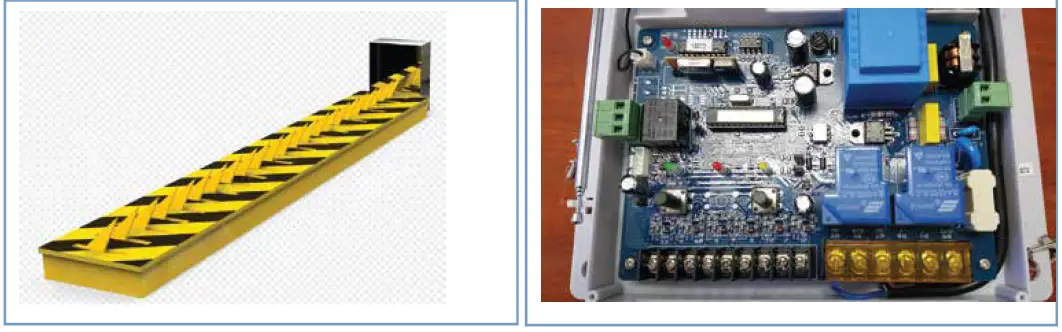

Components

1. Tyre killer
2. Controller
3. Motor
4. Remote controller

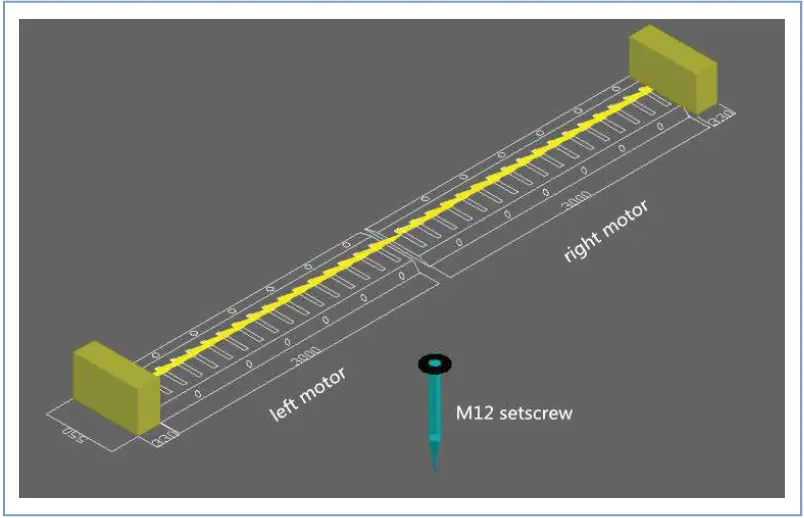

Construction installation and bill of materials

1. Locating based on client request
2. Find good levels on both sides±l0mm
3.  Prepared M 12 setscrews
4.  AC220V power supply (2*1.5-2.Smm)
5. Open-Close signal cable (4*1mm) (4: I.COP)

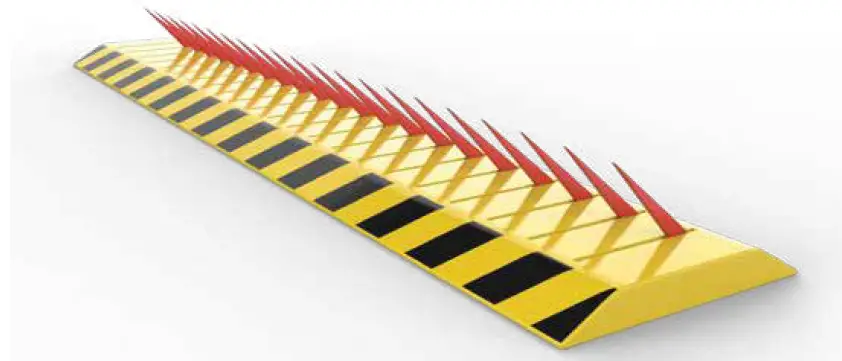

Surface Mounted STK-201

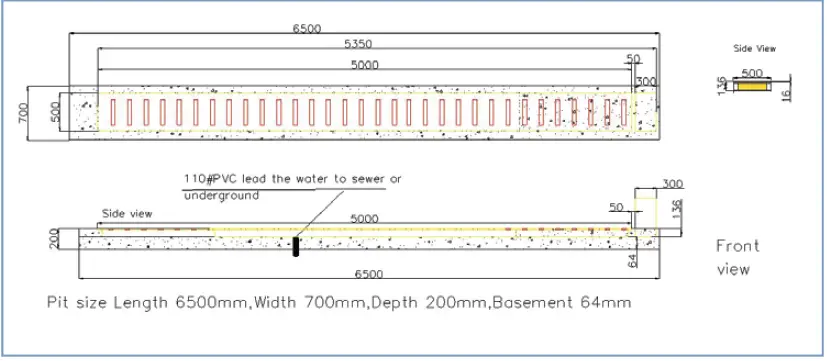

Flush Mounted Tyre Killer FTK-202

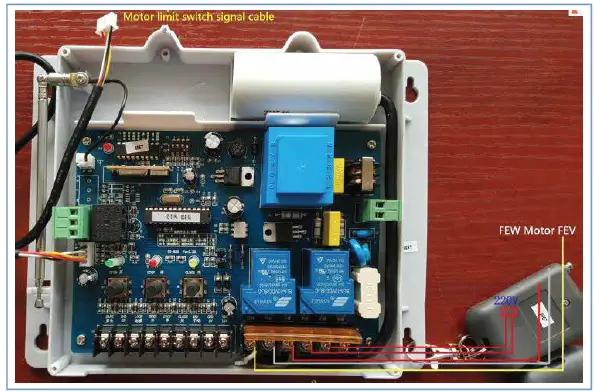

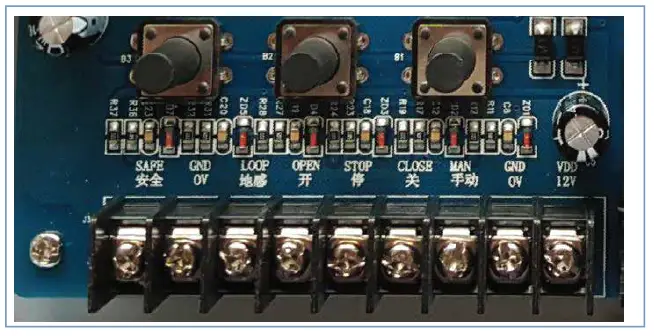

Controller diagram

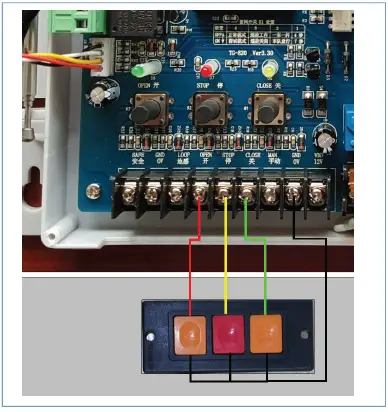

Link control connection

1. The link control with parking system, access control system, license plate recognition system, etc. can be realized, by the relay signal
2.  Control with parking barrier


   Item	Parking barrier		Tyre killer
   1	COM	to	ov
   2	Open	to	Close(parking barrier open, tyre killer close ,vehicle access)
   3	Close	to	Open (parking barrier close, tyre killer open, vehicle stop)

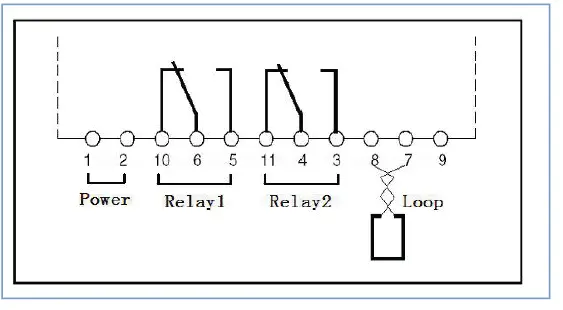

3. Connect with loop detector for automatic closing

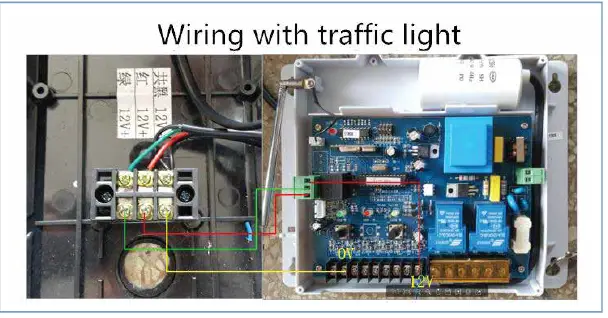

Traffic Light Connection

1. Please use DC 12V traffic light
2. Wiring as below

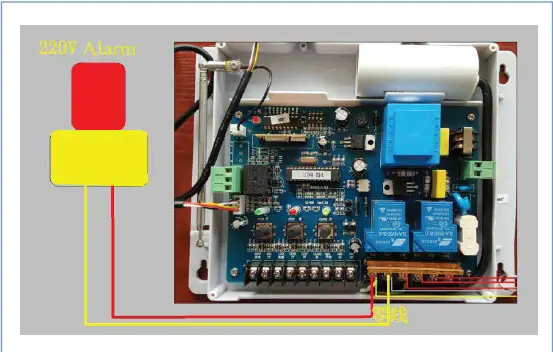

Alarm Connection

1. Please use AC220VAlarm
2. Connect to motor and FEW or FEV

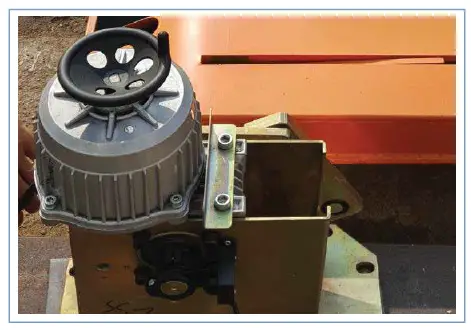

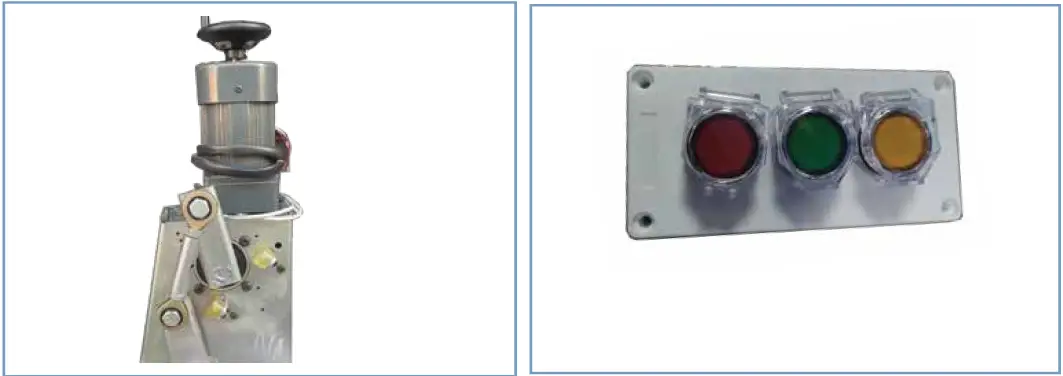

Manual operation

1. Open the casing of the motor
2. Rotate the motor steering by hand
3. Forward-up, reverse-down

Notice

1. Please lubricate the bearing each half year by lubricating oil
2. If it is flush mounted tyre killer, water-drainage is needed when installing.
