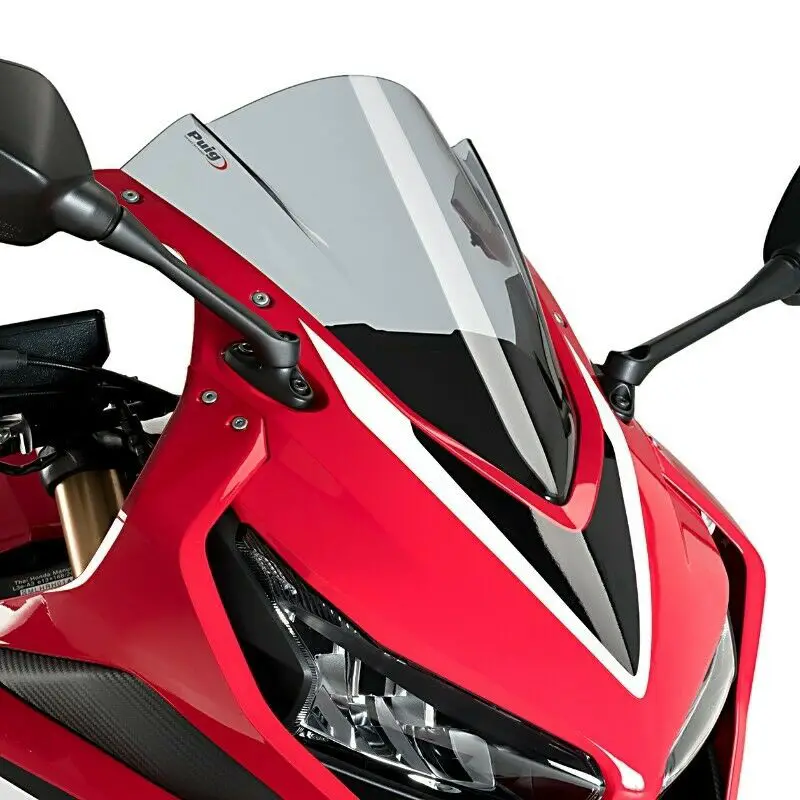

Puig CBR650R Double Bubble Racing Screen Instructions
INSTRUCTIONS TO ASSEMBLE
Remove the fasteners that subject the chassis to the engine. Mount the protectors on each own side as the figure below shows. Tight the set, and place the caps.
All the screws replaced, should be tightened to the torque specified in the oem maintenance manual for your motorcycle. if no torque specifications are provided in the oem maintenance manual, may be used 54Nm for all M10 screws.
Medium strength liquid thread-locker (i.e. “Loctite”) should be used to secure all screws, bolts and nuts. All screws, bolts and nuts should be checked after driving the first 50 km to ensure that all are tightened to the proper torque.
FOR TO ASSEMBLE THE CRASH PADS, IF YOU ARE NOT A TRAINED MECHANIC, PLEASE CONTACT A SPECIALIST. MOTOPLASTIC, S.A. TAKES NO RESPONSIBILITY FOR DAMAGES CAUSED BY IMPROPER INSTALLATION. THE USE OF CRASH PADS DO NOT GUARANTEE A FULL PROTECTION IN CASE OF ACCIDENT. MOTOPLASTIC-PUIG DECLINE ANY RESPONSIBILITY IN CASE OF MOTORCYCLE DAMAGE.
Accessory verified in the basic configuration of the motorcycle. For models with extra factory settings. We cannot assure its compatibility, except for prior consultation. We decline any eventual claim.
| ID. | DESCRIPTION | QTY. | REF.: |
| 1 | Rubber cover | 2 | TAPAPROTECR19-D/I |
| 2 | M10/150X50 DIN912 screw | 1 | M2TM10150050A9B |
| 3 | M10/150X80 DIN912 screw | 1 | M2TM10150080A9B |
| 4 | M10 DIN125/A washer | 4 | M2AM10DIN125AZB |
| 5 | M10 DIN6798/A washer | 2 | M2AM10DIN6798ZB |
| 6 | Nylon protector 85mm | 2 | PROTECNLR19-145 |
| 7 | Right aluminum spacer (20mm) (Black) | 1 | CASQUI21-0-1321 |
| 8 | Left aluminum spacer (48mm) (Black) | 1 | CASQU135-0-1435 |
| 9 | Right platen (Negra) | 1 | PLATI401-1-0401 |
| 10 | Left platen (Negra) | 1 | PLATI402-0-0402 |
| 11 | M10/125×130 DIN912 screw | 1 | M2TM10125130A9B |
| 12 | M12/125×50 DIN912 screw | 1 | M2TM12125050A9B |
| 13 | M10/125×70 DIN912 screw | 1 | TORNIAD912-0336 |
| 14 | Right aluminum spacer (90mm) (Black) | 1 | CASQU460-0-1760 |
| 15 | Left aluminum spacer (32mm) (Black) | 1 | CASQU309-0-1609 |
| 16 | Left spacer (13.5mm) | 1 | CASQU498-0-1798 |
| 17 | Inox horn support | 1 | PLATI403-0-0403 |
| 18 | M6 DIN6923 nut | 1 | TUERCAEM6G-0213 |
| 19 | M10 DIN912 cap (Black) | 2 | TAPA—CHC10800E |
| 20 | M12 DIN433 washer | 1 | ARANM12DIN433ZB |
| 21 | Plastic border (60mm) (Black) | 1 | — |

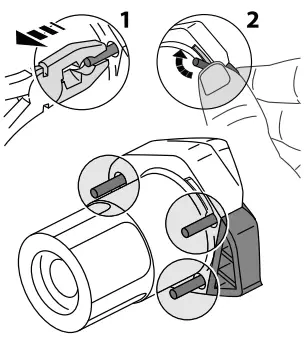

ASSEMBLY

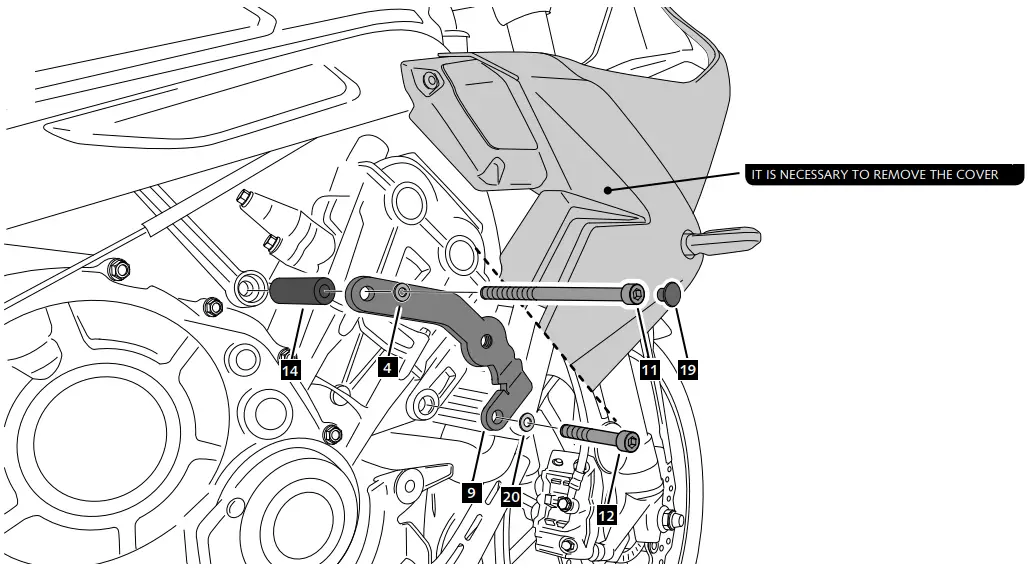

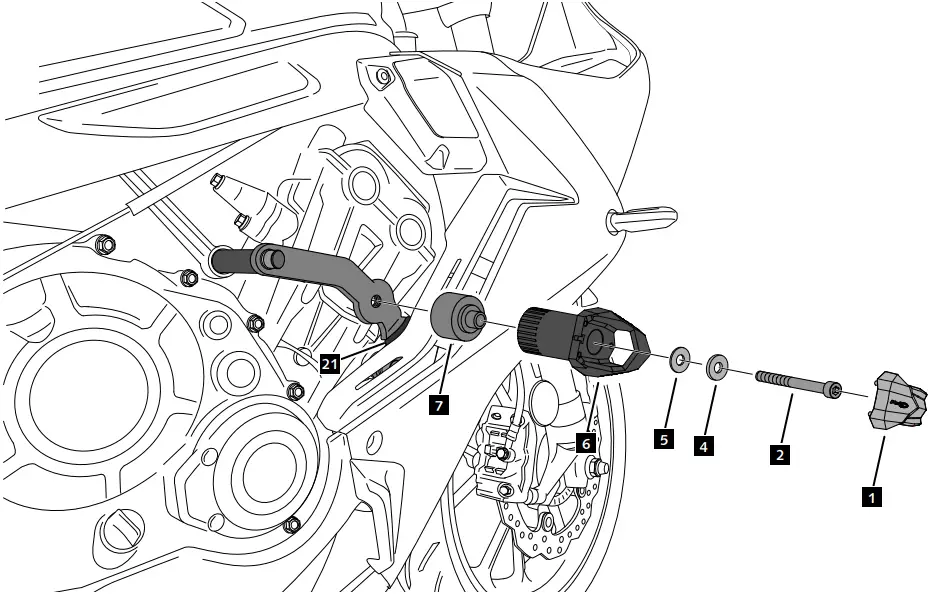

RIGHT SIDE

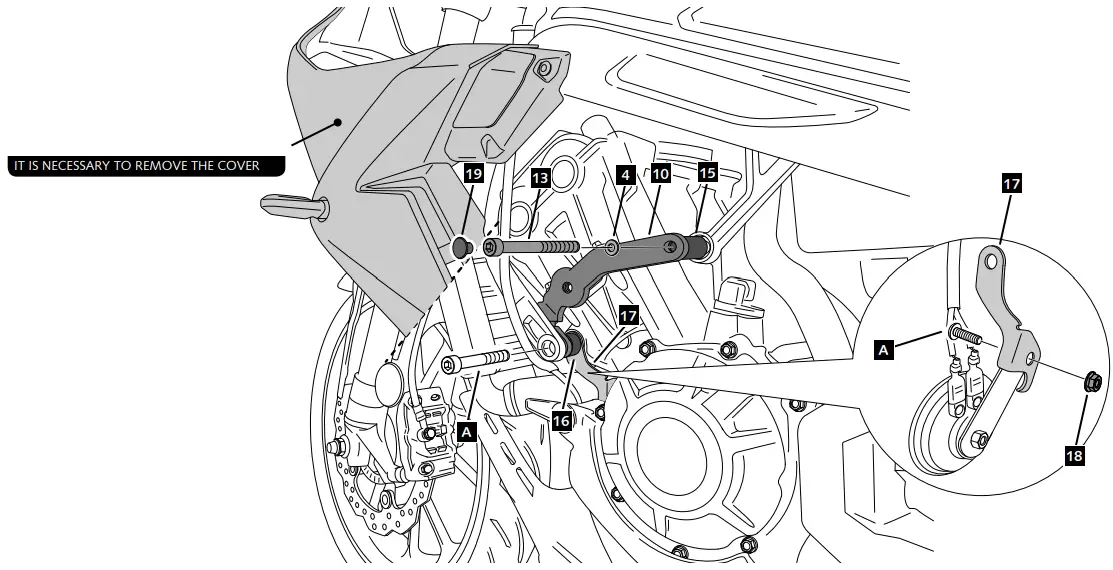

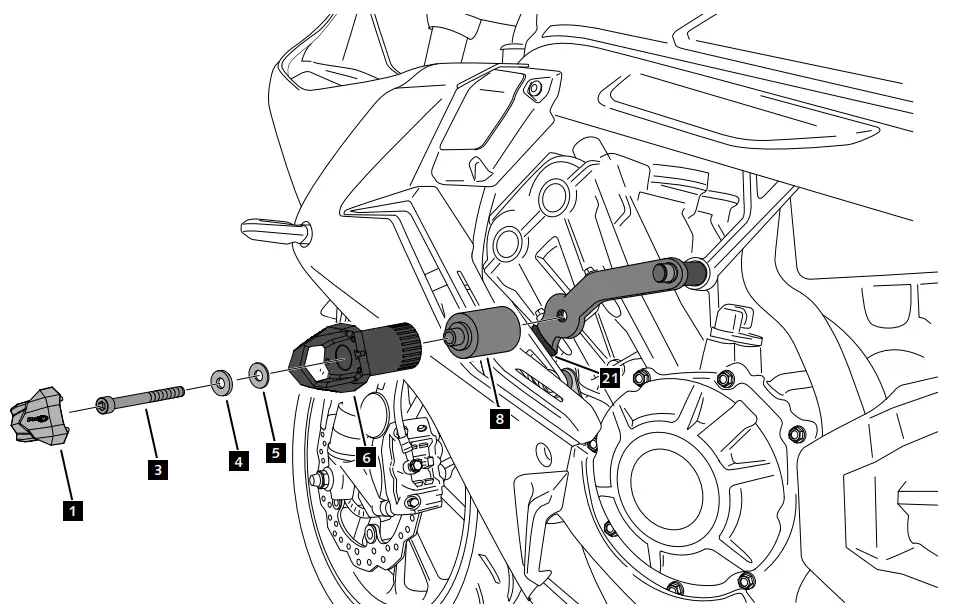

LEFT SIDE
Original screw
MOUNTING VIDEO
