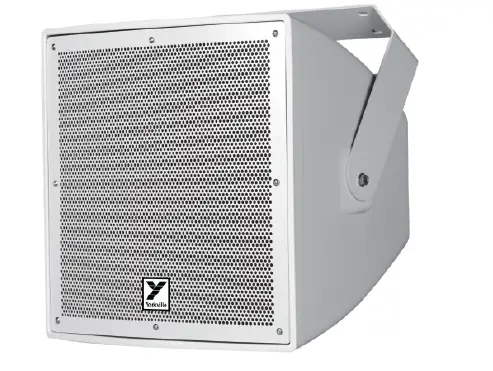

Yorkville C12CW Two-Way Loudspeaker System
To-way Loudspeaker System The C12CW is a compact, 12″ coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker with high SPL, the body is made of engineering plastic injection molding. The system conforms to IP56 international standards.
Features
- Highly weather-resistant IP56 rating
- Engineering plastic injection molding
- High SPL
- Horn loaded design for coaxial components
Applications
- Sports facilities, stadiums, water parks
- Outdoor background music, swimming pools
- A wide variety of other outdoor venue types

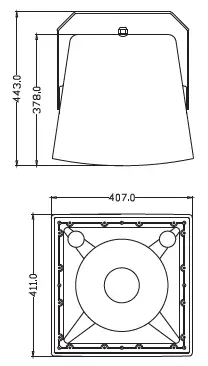

Overall dimensions
Technical specifications
- FREQUENCY RESPONSE: (-3dB) 55Hz-18kHz
- DRIVERS: 1×12＂(300mm)/3＂voice coil LF 1×1＂(25mm) /1.7″voice coil HF
- INPUT: VOLTAGE 100V
- POWER: 50W/100W/200W/OFF/8Ω 300W
- SENSITIVITY: 98 dB 1 watt/1 meter
- MAXIMUM SPL: 123 dB continuous,129dB peak
- IMPEDANCE: 8 ohms nominal
- DISPERSION: (-6 dB) 80°×80°
- CROSSOVER: 2.2 kHz passive
- DIMENSIONS: (W)407mm×(H)411mm×(D)443mm
- WEIGHT: 19.8kg
