Whirlpool Mwp 103 W Freestanding Microwave Oven Specifications And Data Sheet

Whirlpool Mwp 103 W Freestanding Microwave Oven Specifications And Data Sheet

Whirlpool-logo

Whirlpool MWP 103 W Freestanding Microwave Oven

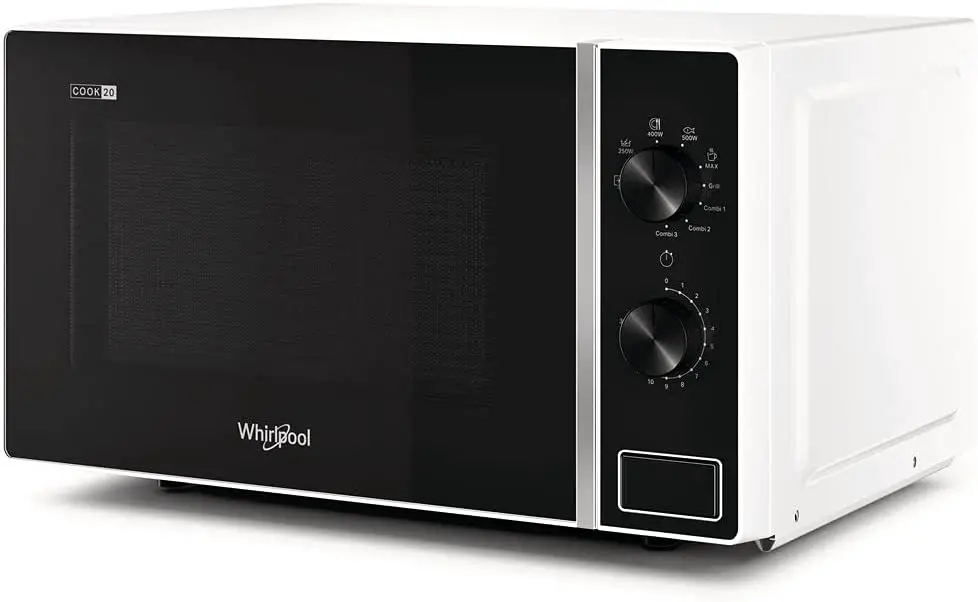

Whirlpool-MWP-103-W-Freestanding-Microwave-Oven-product-img Description

Whirlpool freestanding microwave oven: white color-MWP 103 W

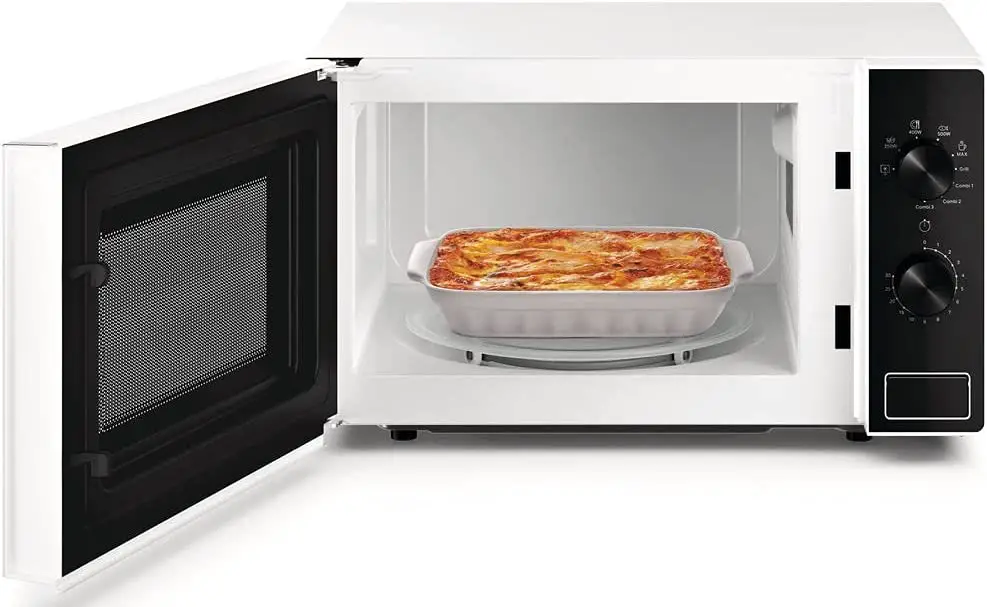

Whirlpool-MWP-103-W-Freestanding-Microwave-Oven-fig- (1)



This Whirlpool freestanding Microwave Oven features a white color. Grill function Whirlpool wants to satisfy every customer’s requirement while offering them a wide range of high-quality goods. Whirlpool will devote more effort to product design in order to achieve this. More and more vintage goods are available in our shop.

Specifications

  • Cavity 20 L
  • 700 W microwave
  • 25 cm turntable
  • Side opening
  • 2 Cooking Methods: Microwave, Grill
  • Grill Grid
  • Reheat
  • Quartz Grill
  • 1000 W Grill Power
  • 5 Power levels
  • Dimensions HxWxD: 262x452x378 mm
  • 700 W, 5 Power levels microwave
  • 20 L cavity with 25 cm turntable
  • White finish, 20 L

Features

The free-standing microwave oven from Whirlpool measures 46 cm. It is offered in white. Both the Grill feature and the healthy cooking option are included.

Whirlpool-MWP-103-W-Freestanding-Microwave-Oven-fig- (2)Grill

Fast grilling, faster cleaning. Your Microwave’s powerful grilling function provides the same delicious results as a traditional oven. The tilting motion of the grill also ensures easier cleaning.



Whirlpool-MWP-103-W-Freestanding-Microwave-Oven-fig- (3)Reheat

Faster reheating. Enjoy your reheated meals in minutes, with the reheat function.

Whirlpool-MWP-103-W-Freestanding-Microwave-Oven-fig- (4)Quartz grill

Ideal cooking experience. The Quartz Grill reheats and cooks your food faster than a traditional infrared grill. It is resource-efficient, reducing your energy costs, and entirely self-cleaning.

MAIN FEATURES
MAIN FEATURES
Product GroupMicrowave
Commercial codeMWP 103 W
The main color of the productWhite
Type of microwave ovenMW+Grill function
Construction typeFree-standing
Door openingButton
Type of controlMechanical
Type of control settingsKnob
Additional cooking method GrillYes
CrispNo
Crisp FryNo
SteamNo
Additional cooking method Fan cookingNo
ClockNo
Automatic programsNo
Height of the product262
Width of the product452
Depth of the product378
Net weight (kg)12
Cavity capacity (l)20
TurntableYes
Turntable diameter (mm)245
Integrated Cleaning systemNo
TECHNICAL FEATURES
TECHNICAL FEATURES
Current (A)6
Voltage (V)230-240
Frequency (Hz)50
Length of Electrical Supply Cord (cm)100
Plug typeSwiss
TimerYes
Grill power (W)1000
Type of grillQuartz
Cavity materialPainted
Interior lightYes
Additional cooking method GrillYes
Position of interior lights of the cavity
Maximum Airflow –0
Minimum airflow –0
Sound power at max. speed (2010/30/EU) –0
Sound power at min. speed (2010/30/EU) –0

PERFORMANCES

PERFORMANCES
6th Sense / Dynamic IntelligenceNo
Number of power levels5
Maximum micro-wave power (W)700
Bread defrostNo
Jet defrostNo
Jet startNo
Energy efficiency class – NEW (2010/30/EU) –

FAQ’s

How long should a microwave oven be kept?

Even with extensive use and inadequate maintenance, the typical microwave oven only lasts around seven years under regular operation. If a big family becomes increasingly dependent on the device to heat up snacks and leftovers or to thaw meals, they may discover that they need to replace it every four to five years.

Why does my Whirlpool microwave operate but doesn’t heat food?

The most frequent cause of your microwave functioning but not cooking your food is a damaged magnetron. The magnetron, which generates the microwaves required to cook your food, is a crucial component of a microwave.

Why won’t my microwave from Whirlpool turn on?

Make that the power cable is plugged into a grounded, working socket. Examine the outlet. If you’re not sure if it’s working, plug in a small item like a light to make sure the outlet is functional. Check to discover whether a household fuse has blown or if a household circuit breaker has tripped.

What does the Whirlpool microwave’s control lock do?

To prevent unauthorized usage of the microwave oven, the Control Lock locks down the control panel buttons. The control lock function is active if “LOC,” “L,” or a lock icon appears in the display.

Has the Whirlpool microwave a reset button?

To erase everything on the display and restart the microwave, press the “Off/Clear” button. You will easily exit any program you have opened thanks to this gentle reset. For instance, pressing it when the reminder that the cooking is finished displays on the display will make the message “Your Dinner Is Ready” vanish.

What stops the microwave from heating?

The most likely culprits for a malfunctioning magnetron, high-voltage capacitor, or diode in your microwave are these components. These three elements are in charge of warming and preparing the meal. If one of these parts breaks, the microwave will still operate, but it won’t be heating or heating as efficiently.

How long is a Whirlpool microwave supposed to last?

You’ll want to take care of it to prevent having to replace it more frequently than once every 10 years, which is how long most manufacturers claim they should last. Even though it doesn’t become as dirty as your oven, keeping your microwave clean is one of the best ways to keep it running well.

What causes microwave failures the most frequently?

The magnetron in a microwave is the most frequent source of failure.

What does the Whirlpool microwave’s start button do?

The play or arrow icon on the display denotes the start button.

How can I off the Whirlpool microwave’s power-saving feature?

Press and hold SETTINGS/CLOCK for 3 seconds to turn off the energy-saving mode. It will say “Energy Saver Off” on the display.

What are the three materials that are safe for microwaves?

The microwave will not damage glass ceramic or heatproof glass items. Wax paper, parchment paper, vented plastic bags, and baskets made of straw and wood (without metal) are all suitable for use in the microwave.

What happens if you operate a microwave while it’s empty?

None, or practically none, of the microwaves, are absorbed while the oven is empty. The oven chamber experiences intense energy reflections that produce enormous standing waves that might harm the appliance.

How is a Whirlpool microwave cleaned?

One cup of water in a microwave-safe bowl should be combined with one tablespoon each of vinegar, lemon juice, and baking soda for cleaning. Let the dish cool before removing it from the microwave after 2 to 5 minutes. Using a moist towel, clean the microwave.

How can I tell whether my microwave is functioning correctly?

When the temperature rises to between 28 and 40 degrees Fahrenheit (15 to 22 degrees Celsius), the microwave oven is appropriately heating/cooking.

Why does the microwave in my Whirlpool disappear after two seconds?

The thermo protector could have been triggered if the microwave operates for a short period of time before stopping.
