Lenovo 14ARB7 YOGA Laptops and Pre-Built Systems

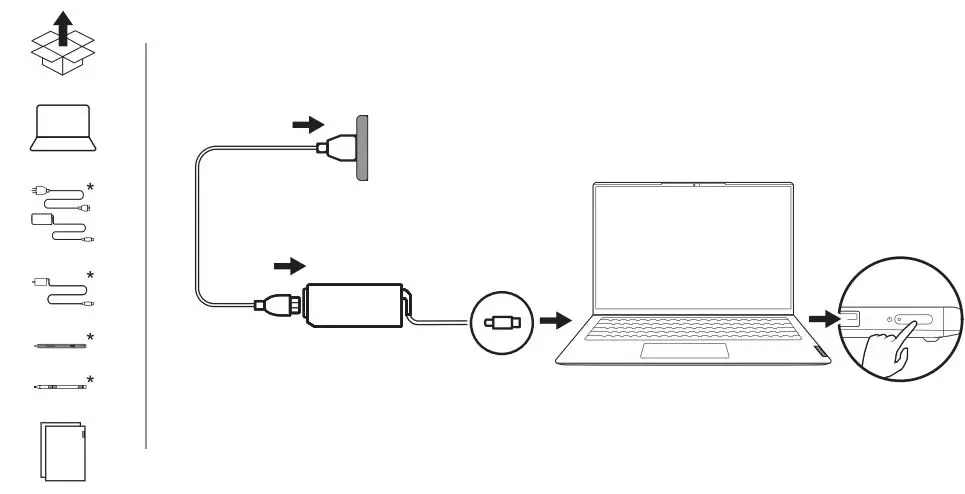

Get it started

The illustrations are for your reference. For selected models:

Yoga 7 14ARB7
Yoga 7 14IAL7
Yoga 7 16IAH7, Yoga 7 16IAP7

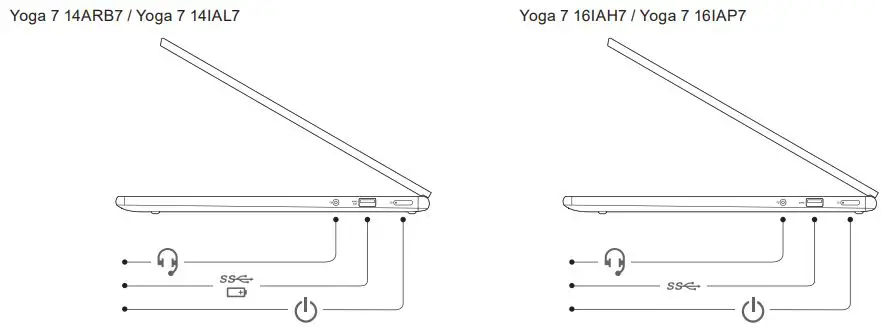

Overview

Combo audio jack
USB (3.2 Gen 1) Type-A connector (always-on)
USB (3.2 Gen 1) Type-A connector
Power button

Scan the User Guide QR code and read the statement on USB transfer rates.

microSD card slot
USB-C® connector
Thunderbolt™ 4 connector
Power connector
HDMI™ 2.0 connector
SD card slot
USB (3.2 Gen 1) Type-A connector (always-on)

Specific absorption rate

YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES. Refer to the following for 10g SAR limit and maximum reported SAR values:

Item	Body-worn SAR	Limb SAR
10g SAR limit	2 W/kg	4 W/kg
Maximum SAR with 0 mm separation distance (1)	0.973 W/kg	0.973 W/kg
Maximum SAR with 0 mm separation distance (2)	0.949 W/kg	0.949 W/kg
Maximum SAR with 0 mm separation distance (3)	0.759 W/kg	0.759 W/kg

For more information about SAR, refer to the Safety and Warranty Guide that came with your device.

European Union (EU) / United Kingdom (UK) — radio frequency and power

This radio equipment operates with the following frequency bands and maximum radio-frequency power:

Technology	Frequency band [MHz]	Maximum transmit power
WLAN 802.11b/g/n/ax	2400 – 2483.5	< 20 dBm
WLAN 802.11a/n/ac/ax	5150 – 5725	< 23 dBm
WLAN 802.11a/n/ac/ax	5725 – 5875	<13.98 dBm
WLAN 802.11ax	5945 – 6425	< 23 dBm
Bluetooth BR/EDR/LE	2400 – 2483.5	< 20 dBm

Note:
Not all wireless bands may be enabled depending on your product configuration. Usage of this device is limited to indoor locations in the bands 5150 – 5350 MHz and 5945 – 6425 MHz.
