Lenovo ThinkBook 14s Yoga Gen 2
User Guide

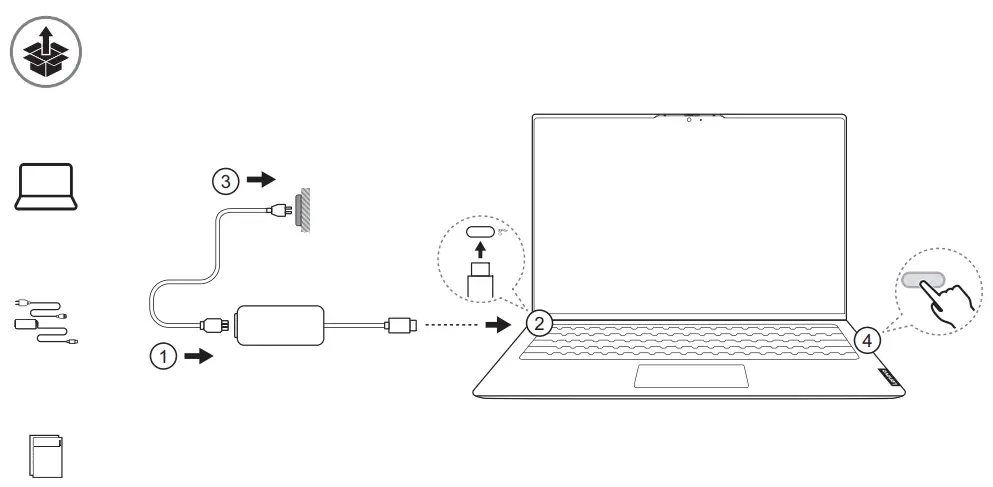

Get it started
Get it started
Selected models may come with a wall-mounted ac power adapter. Power plugs vary by country or region. Product illustrations may not be exactly the same as the actual product. I

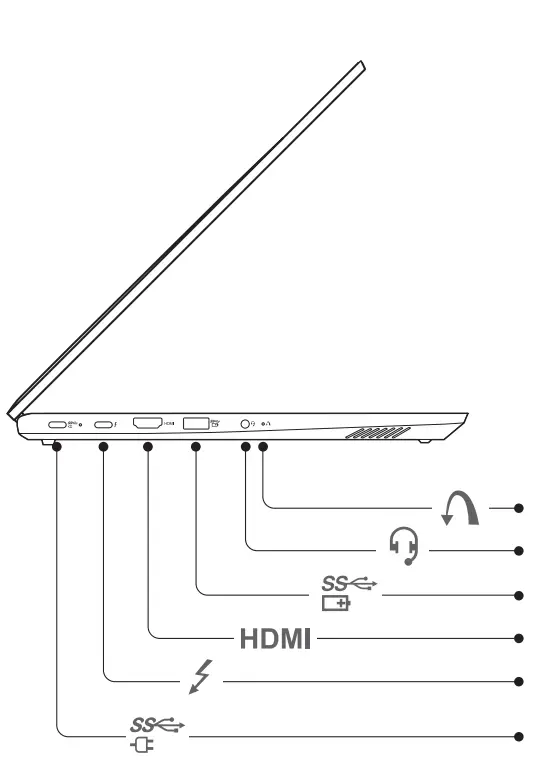

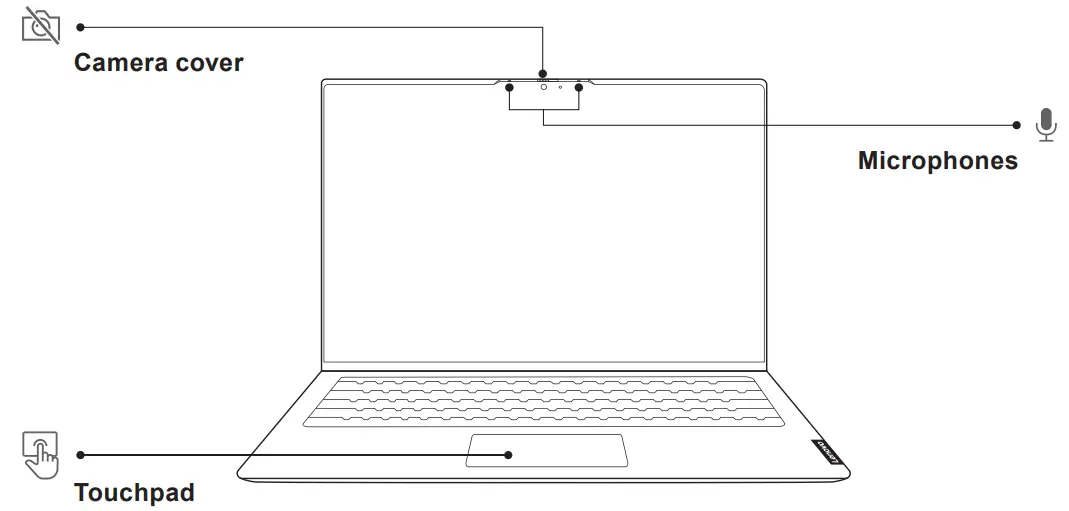

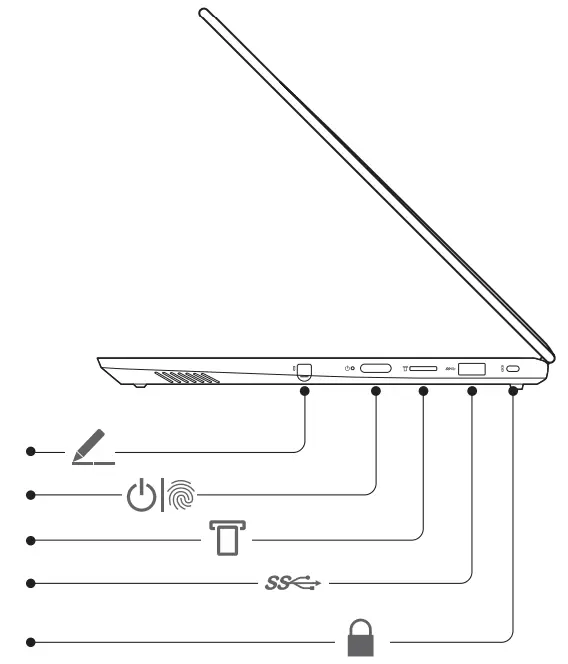

Overview
Overview
 | Lenovo Smart Pen |
 | Power button |
 | microSD card slot |
 | USB 3.2 Gen 1 port |
 | Nano security-lock slot |
For Barcode Position Only
Printed in China
PN: SP41H86342
The power button includes an embedded fingerprint reader.
 | |
 | |
 | |
 | |
 | |
|
https://support.lenovo.com/docs/tb_14s_yoga_g2
Specific absorption rate (SAR)
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Refer to the following for the 10g SAR limit and maximum reported SAR values:
| Item | Body-worn SAR | Limb SAR |
| 10g SAR limit | 2 W/kg | 4 W/kg |
| Maximum SAR with 0 mm separation | 0.178 W/kg | 0.714 W/kg |
For more information about SAR, refer to the Safety and Warranty Guide that came with your device.
European Union (EU)/United Kingdom (UK)—radio frequency and power
This radio equipment operates with the following frequency bands and maximum radio frequency power.
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400–2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150–5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725–5875 | < 13.98 dBm |
| WLAN 802.11ax | 5945–6425 | < 23 dBm |
| Bluetooth BR/EDR/LE | 2400–2483.5 | < 20 dBm |
Note: Not all wireless bands may be enabled depending on your product configuration.
Usage of this device is limited to indoor locations in the bands 5150–5350 MHz and 5945–6425 MHz.
First Edition (March 2022)
© Copyright Lenovo 2022.
Lenovo and the Lenovo logo are trademarks of Lenovo. Thunderbolt is a trademark of Intel Corporation or its subsidiaries. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. USB Type- C is a registered trademark of USB Implementers Forum. All other trademarks are the property of their respective owners.
