User Guide

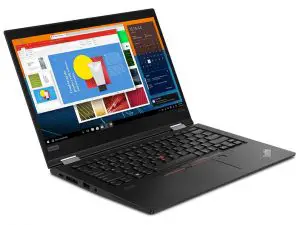

Lenovo ThinkPad x13 Yoga Gen 1

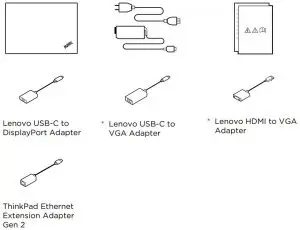

Unpack

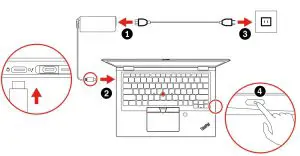

Initial Setup

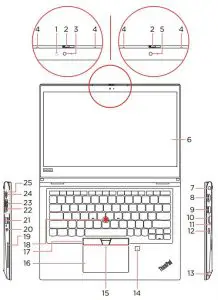

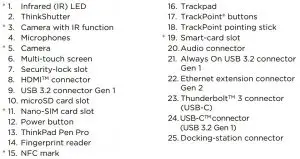

Overview

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.

Customer Replaceable Units (CRUs)

ac power adapter
Power cord
Nano-SIM card tray
ThinkPad Pen Pro
Base cover assembly
M.2 solid-state drive
M.2 solid-state drive bracket
Wireless WAN card

Refer to the User Guide for CRU definition

Additional information

Specific absorption rate for European Union
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.

The Europe 10g Specific Absorption Rate (SAR) limit for mobile devices is 2.0 W/kg. To view your product specific SAR value, go to https://support.lenovo.com/us/en/solutions/sar.

If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply keeping the device away from the body.

European Union — compliance with the Radio Equipment Directive
Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type ThinkPad X13 Yoga Gen 1 is in compliance with Directive 2014/53/EU.

The full text of the system EU declaration of conformity is available at the following Internet address: https://www.lenovo.com/us/en/compliance/eu-doc

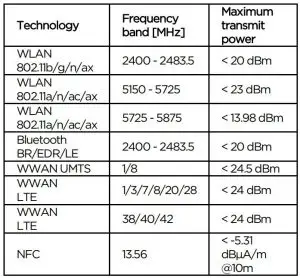

This radio equipment operates with the following frequency bands and maximum radio-frequency power:

Usage of all the radio devices is limited to indoor in the band 5150 MHz to 5350 MHz (channels 36, 40, 44, 48, 52, 56, 60, 64).

E-manual

First Edition (April 2020)
© Copyright Lenovo 2020.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Reduce I Reuse I Recycle
