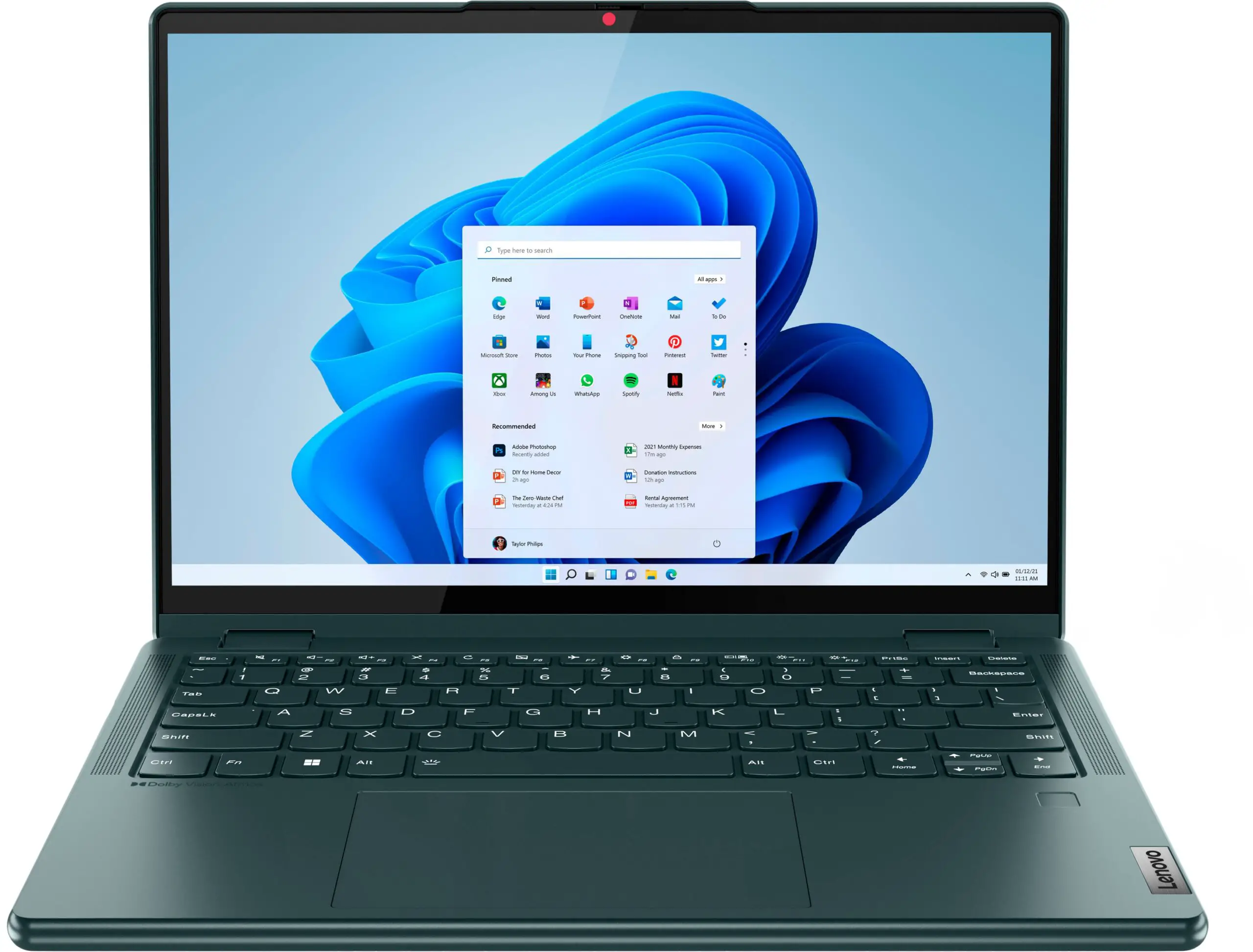

Lenovo 82UD000LBM Yoga Laptop

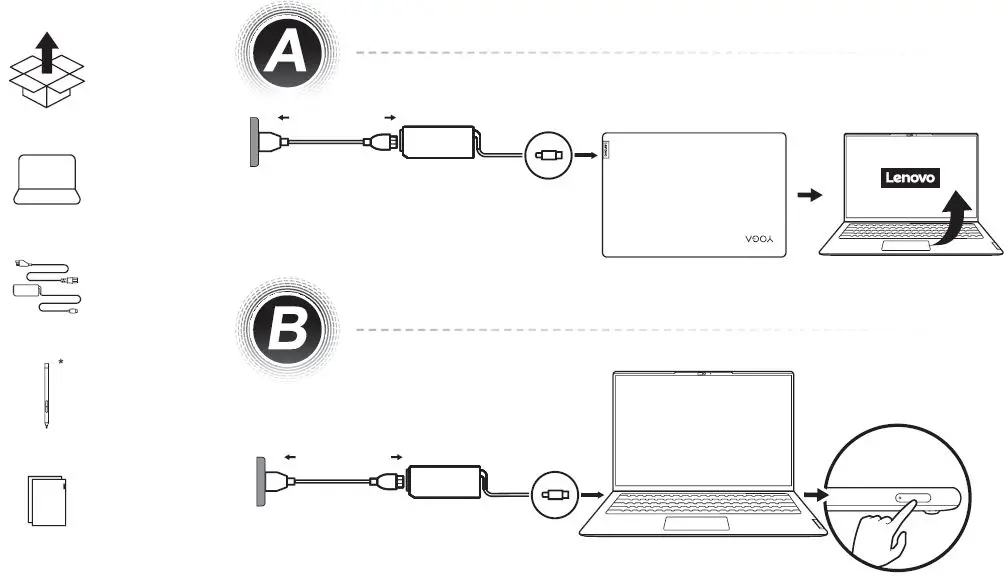

Get it started
The illustrations are for your reference. For selected models

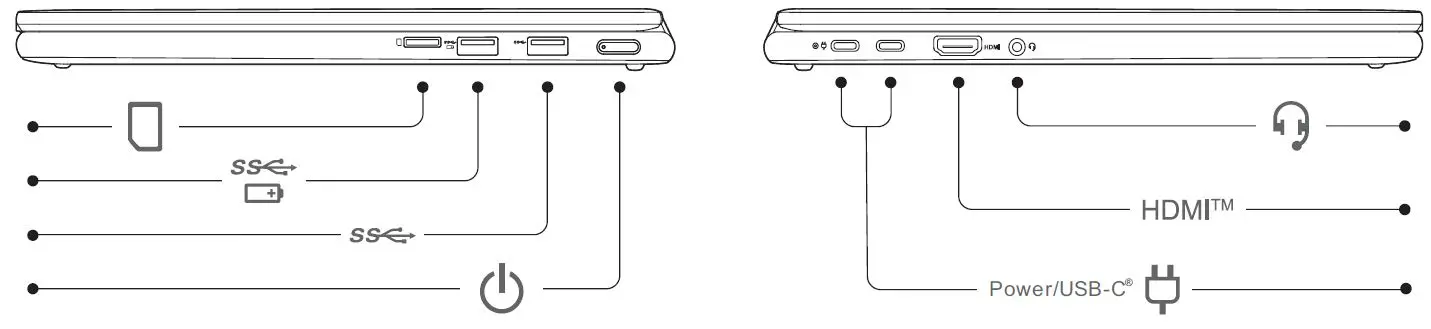

Overview
- microSD card slot
- USB (3.2 Gen 1) Type-A connector (always-on) / Conector USB (3.2 Gen 1) Type-A (Always On) / USB (3.2 Gen 1)
- Connector USB (3.2 Gen 1) Type-A (Always-on) Type-A (Always-on) / Conector USB (3.2 Gen 1) Tipo-A (always-on)
- USB (3.2 Gen 1) Type-A connector / Conector USB (3.2 Gen 1) Tipo A Type-A / Conector USB (3.2 Gen 1) Type-A Type-A / Conetor USB (3.2 Gen 1) Tipo A
- Power button
- Combo audio jack
- HDMI 2.0 connector
- Power connector/USB-C connector
Specific absorption rate (SAR)
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Refer to the following for the 10g SAR limit and maximum reported SAR values:
| Item | Body-worn SAR | Limb SAR |
| 10g SAR limit | 2 W/kg | 4 W/kg |
| Maximum SAR with 0 mm separation distance | 0.475 W/kg | 0.475 W/kg |
For more information about SAR, refer to the Safety and Warranty Guide that came with your device. European Union (EU) / United Kingdom — radio frequency and power
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Scan the User Guide QR code and read the statement on USB transfer rates.
