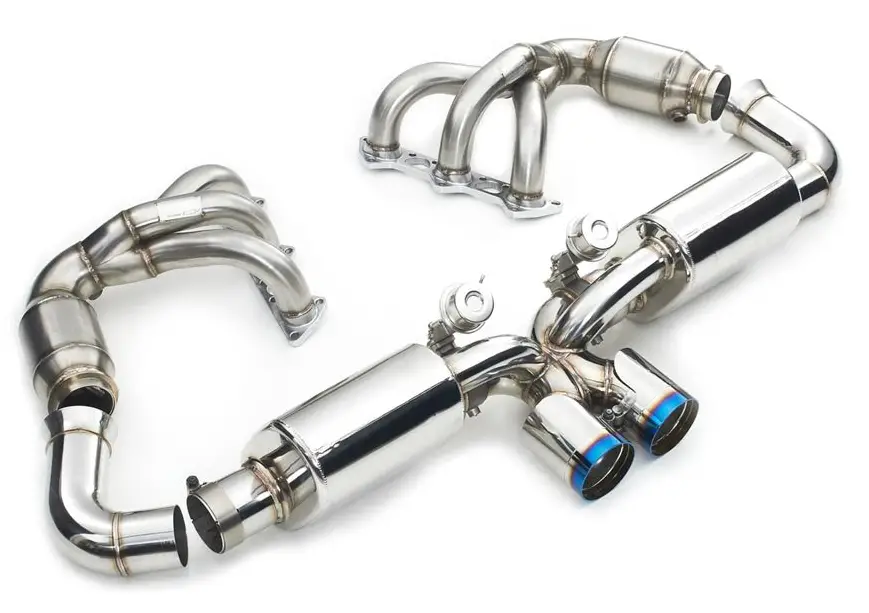

iPE Official P670-4 Exhaust System
Installation Manual

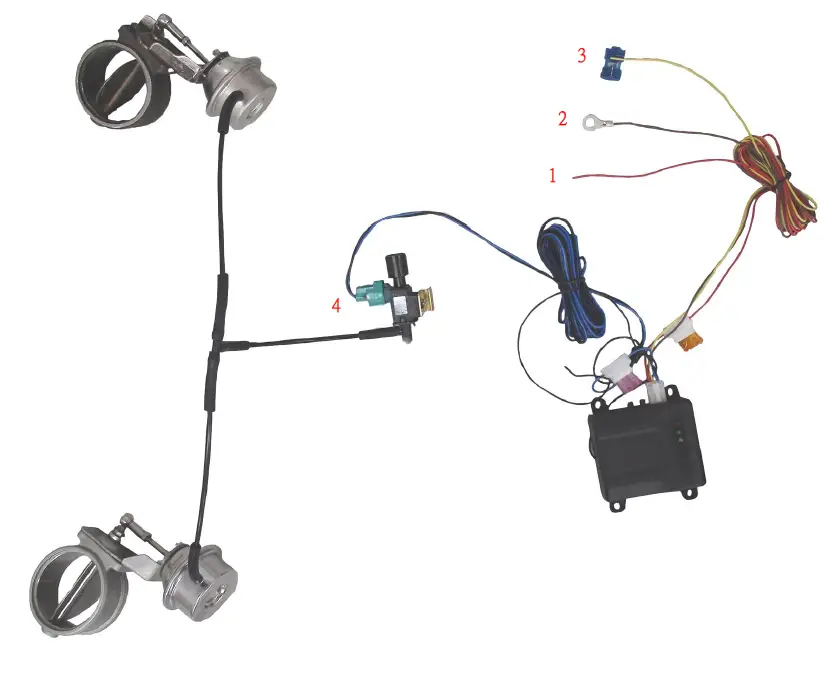

[Remote Controller System]
- Red Cable： Key on Switch
- Brown Cable： GND
- Yello Cable： TPS Voltage Signal 0~5V
- Electronic Valve
Step1. FIND FUSE BOX, CONNECT WITH RED POWER CORD IN ORDER, HANG THE GND AND THROTTLE VALVE SIGNAL 0-5V

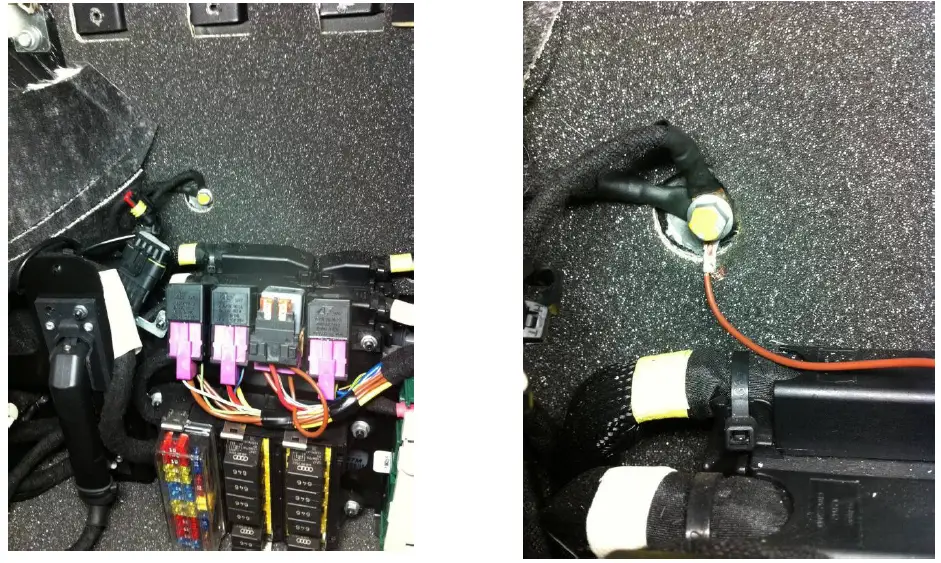

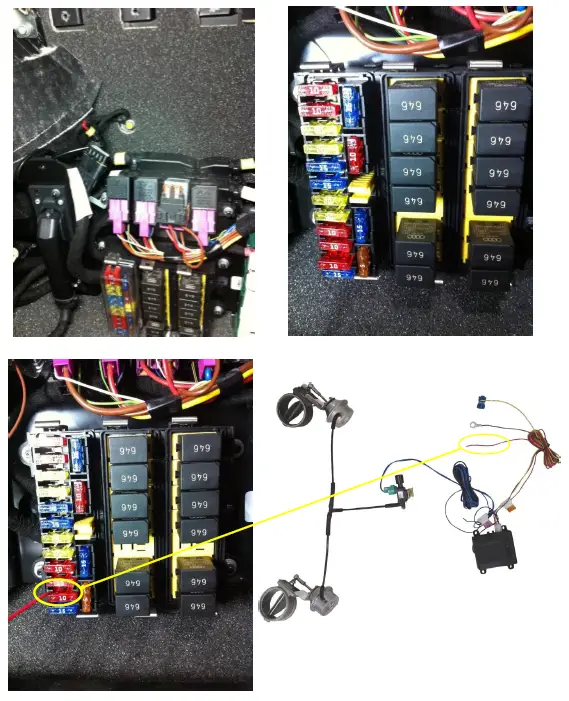

- FIND FUSE BOX UNDER THE GLOVE COMPARTMENT AT PASSENGER’S SEAT AND CONNECT RED POWER CORD ON THE NUBER “10” (THE SECOND-LAST)
↓SEE THE IMAGE BELOW
- HANG GND ABOVE THE FUSE BOX

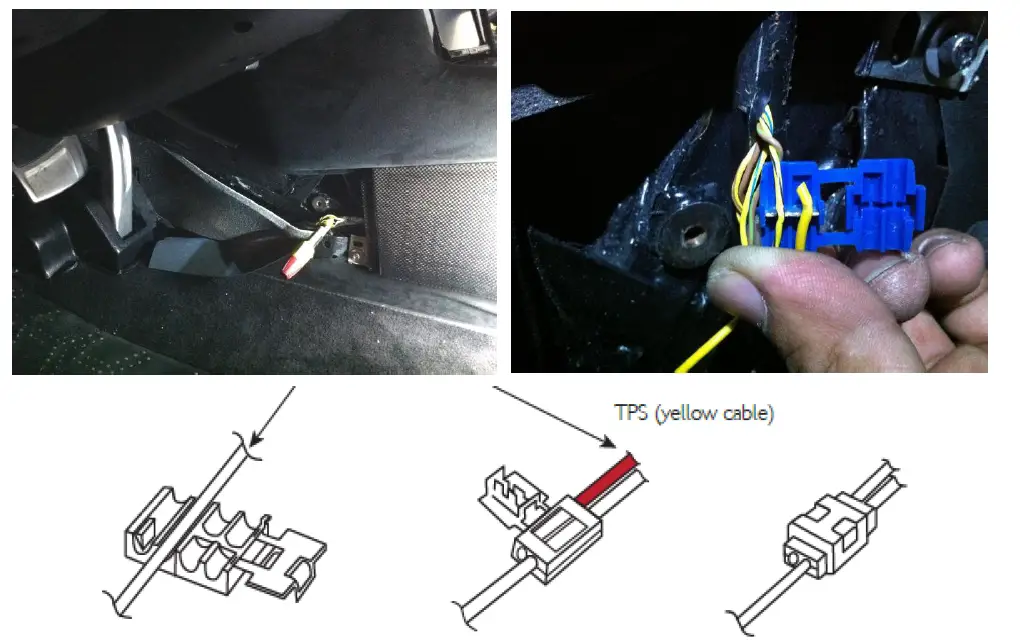

- FIND YELLOW/BLACK CABLE LINES FROM THE ELECTRONIC POWER CONTROL ON THE RIGHT-HAND SIDE OF THE ACCELERATOR PEDAL, THEN CONNECT YELLOW/BLACK CABLES

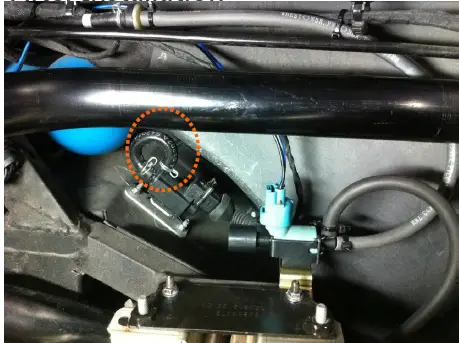

Step2. OPEN THE ENGINE BAY YOU WILL FIND THE SOLENOID VALVE ON YOUR RIGHT-HAND SIDE, PULL OUT THE “IN” AND “OUT ” CABLE LINE

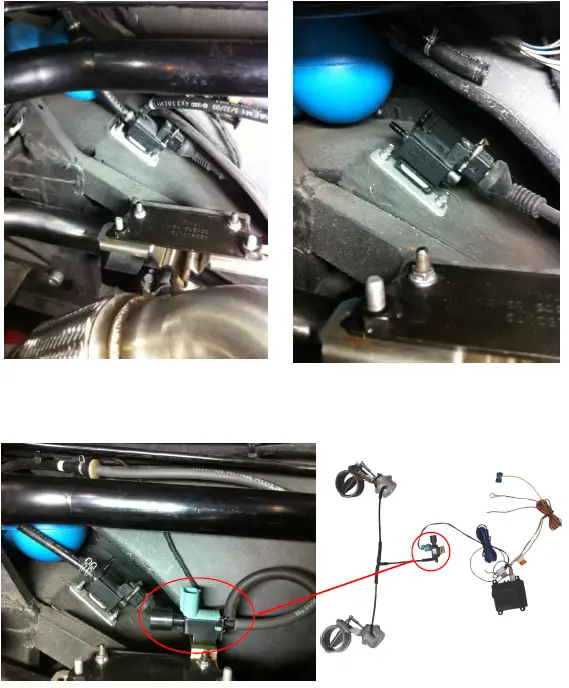

Before
After Installation

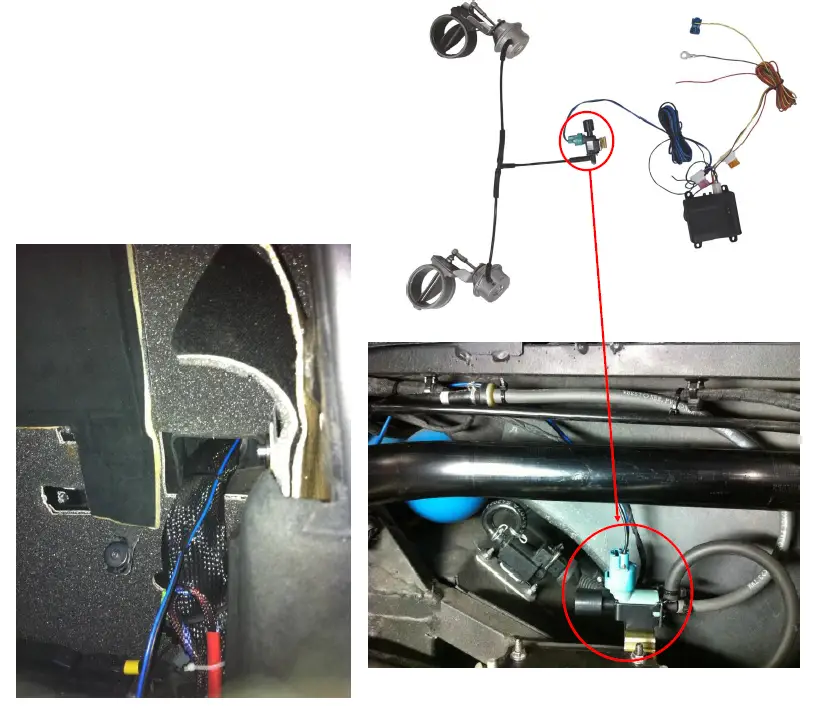

CONNECT THE STOCK “IN” AND “OUT “SOLENOID VALVE TOGETHER WITH CABLE LINES. SEE THE IMAGE ON YOUR LEFT-HAND SIDE.
