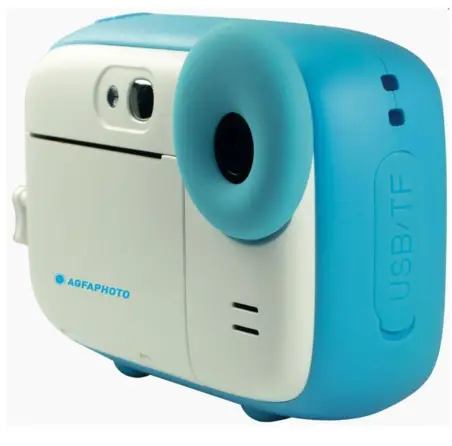

Agfaphoto Arkic-bl Realikids Instant Cam User Manual

Instant Print Camera
Realikids instant Cam
Realikids instant
User manual

PRODUCT KEY FEATURES

• Instant black and white photo printing
• Photo frames
• 5.0 MP CMOS sensor
• 2.4“ HD screen
• Support up to 32 GB micro SD card (not included)

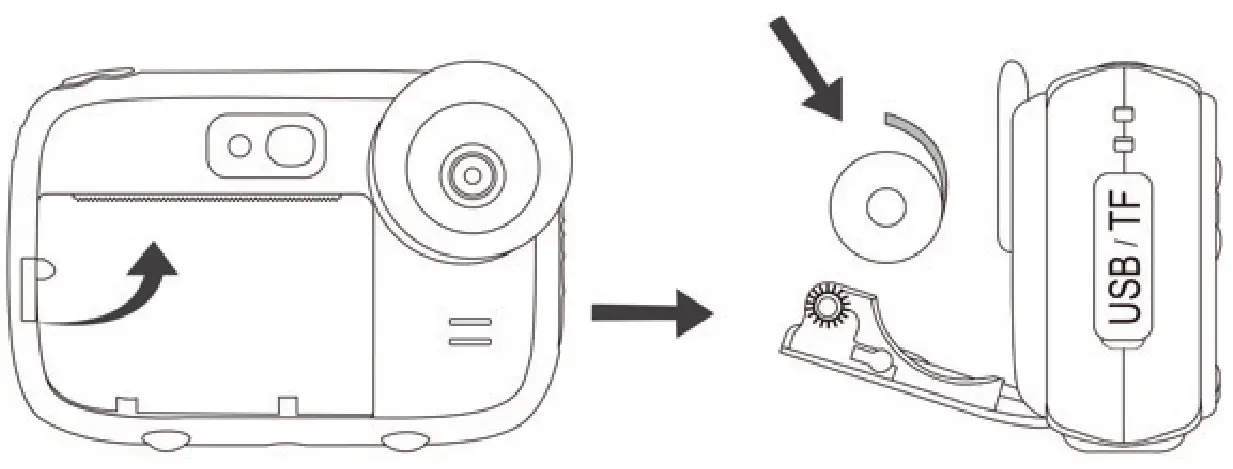

PAPER ROLL INSTALLATION

1. Pull the small lever to the left of the paper slot upwards to open the lid.
2. Place the paper roll inside respecting the position shown on the diagram above.
3. Close the lid and press it firmly until it locks in place.
4. While closing the lid, make sure 5 cm of paper comes out of the printing slot.

Note: the first prints may be more or less sharp because the instant camera requires a short warm-up time.

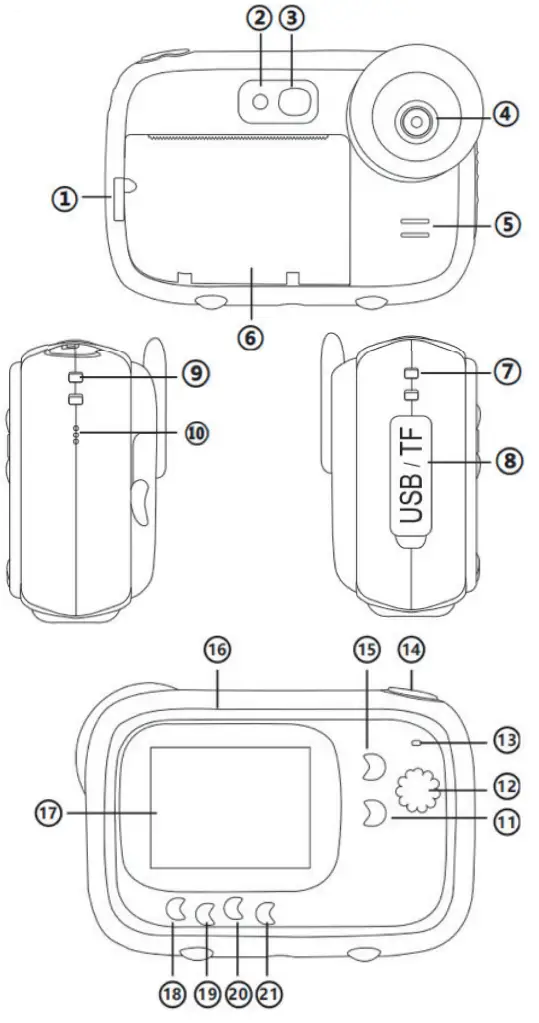

BUTTONS DESCRIPTION

OPERATION GUIDE

Lithium battery charging
To charge the battery, simply connect the instant camera to a computer or an AC adapter with the provided USB cable. The indicator light on the back of the device will light up blue to indicate that the battery is being charged, and will turn off when the instant camera is fully charged.
Photo mode

1. Before using the instant camera, insert a micro SD card in the dedicated slot on the side of the device to extend its storage capacity and save photos you shot to view them in playback mode.
   Note: once having inserted a new memory card into the instant camera, please format it before use.

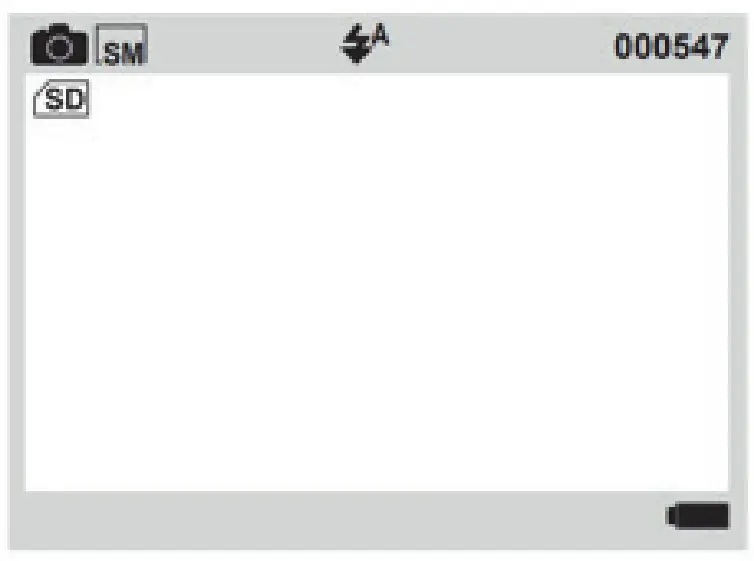

2. After pressing the Power button to switch on the device, the instant camera automatically enters the photo mode as it is the default one. The icon will then show up at the top left of the LCD screen.

3. Before taking photos, you can add a frame or filter by first pressing the Frame button and then the Up / Down buttons to scroll through the choices. To exit the frame mode, press the Frame button again.
4. Press the Shutter button to take a picture.
5. The printing function is on by default, the instant camera will then automatically print the photo you just shot.

Printing function

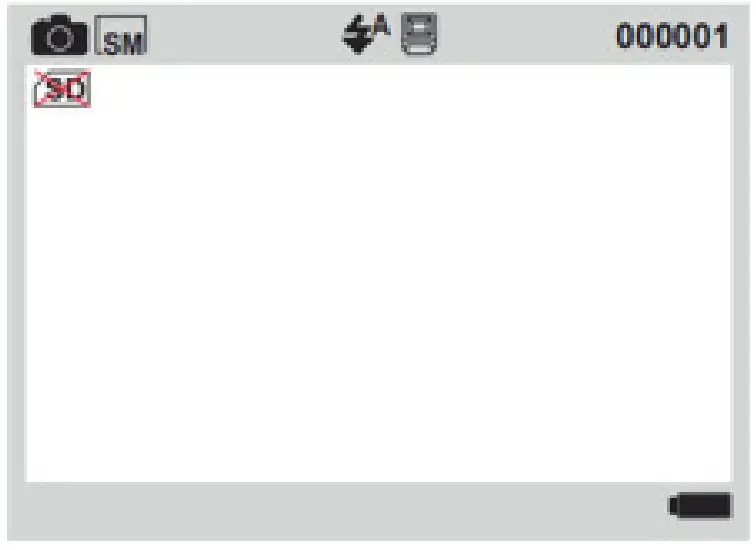

1. When you switch on the instant camera, the printing function is automatically activated in photo mode, as the icon shows at the top of the screen. is automatically activated in photo mode, as the icon shows at the top of the screen.
   Note: this function can work without a micro SD card has been inserted into the instant camera.
2. Possibly add a frame or a filter by first pressing the Frame button and then the Up / Down buttons to scroll through the choices.
3. Press the Shutter button to take pictures.
4. The instant camera will instantly print it.
5. If you do not want to print the photo you have just taken, press the Printing button before pressing the Shutter button to only take a picture. The icon no longer shows up at the top of the LCD screen. only take a picture. The icon no longer shows up at the

Video recording mode

1. After pressing the Power button to switch on the device, the instant camera automatically enters the photo mode as it is the default one.

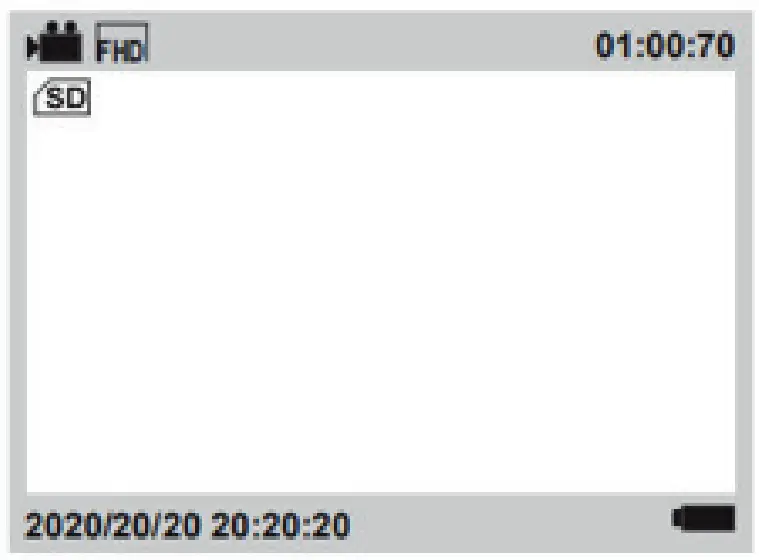

2. Press the Mode button until moving to video recording mode. The icon will then show up at the top left of the LCD screen.

3. Press the Shutter button to start the video recording.
   Note: in video mode, the photo printing function is disabled.

Playback mode

1. After pressing the Power button to switch on the device, the instant camera automatically enters the photo mode as it is the default one.

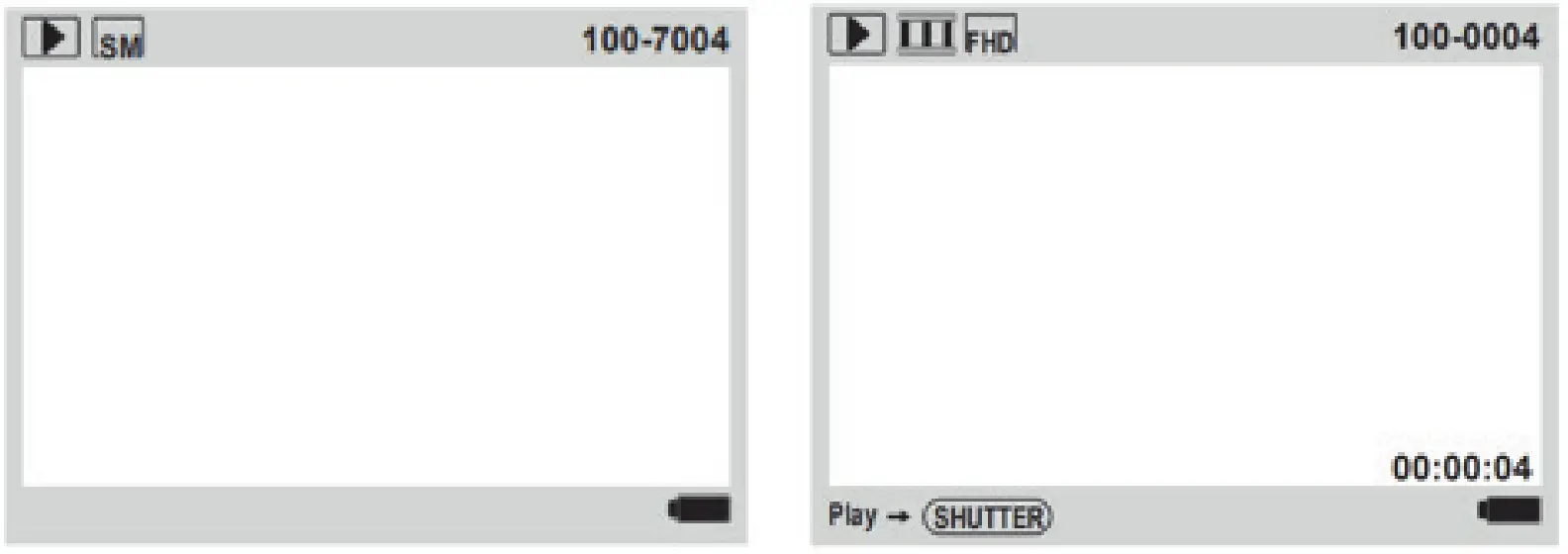

2. Press the Mode button until moving to playback mode. The icon will then show up at the top left of the LCD screen.

3. Press the Up / Down buttons to choose the file you want to view.
4. If you selected a photo, you press the Print button to print it.
5. If you selected a video, press the Shutter button to play it back.
   Note: to delete a file, press the Menu button in playback mode. The «Delete this file?» question will then show up on the LCD screen with OK / Cancel options. Press the Up / Down buttons to make a choice and the Mode button to confirm.

The settings menu in the photo/video mode
If you want to adjust some settings of the instant camera, the Settings menu button to enter the settings menu.

1. The settings menu button is in photo or video mode.
2. Press the Up / Down buttons to choose the setting you want to adjust.
3. Press the Mode button to enter the submenu.
4. The settings menu looks as follows:


   Video Size	HD/FHD
   Resolution	1M/2M/3M/5M/8M/10M
   Print Density	Density 6/5/4/3/2/1
   Fill light	Off/On/Auto
   Sound	On/Off
   Time Setting	Year/Month/Day/Hour/Minute/Second
   Language Setting	English/Simplified Chinese/Traditional Chinese/ Japanese/Korean/Russian/French/German/Italian/ Spanish/Czech/Portuguese/Polish/Turkish/Dutch/ Hungarian
   Flicker	50Hz/60Hz
   Format	OK/Cancel
   Reset System	OK/Cancel
   Version	P01 V1.0.0

5. Press the Up / Down buttons to select a setting option and then the Mode button to confirm.
6. Settings menu button to exit the settings menu.

WARNING! Not suitable for children under 36 months. Small parts and long neck strap. Choking and strangulation hazards.

1 year limited warranty

Made in China
Notice of compliance for the European Union:
products bearing the CE mark comply with the applicable European directives and associated harmonized European standards.
Disposal of waste equipment by users in the European Union:
this symbol means that according to local laws and regulations, it is prohibited to dispose of this product with household waste. Instead, it is your responsibility to protect the environment and human health by handing over your used device to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

After-sales service

@ : [email protected]
+ 33 (0) 1.85.49.10.26
Product manufactured for and distributed by:
GT COMPANY – 5 rue de la Galmy – 77700 Chessy – France
+33 (0) 1.61.10.09.25 – www.gtcompany.fr
GT COMPANY UK LTD – 11 Old Jewry
EC2R 8DU London – United Kingdom
AgfaPhoto is used under the license of Agfa-Gevaert NV. For this product, a sublicense has been granted by AgfaPhoto Holding GmbH (www.agfaphoto.com). Neither Agfa- Gevaert NV nor AgfaPhoto Holding GmbH manufacture this product nor provide any product warranty or support. For service, support, and warranty information, contact the distributor or manufacturer.
Thermal paper compatible
ATP3WH
(3 rolls of 57x30mm white thermal paper)

www.gtcompany.fr/en/customer-support/
