Wireless Car Charger
C50
User Manual

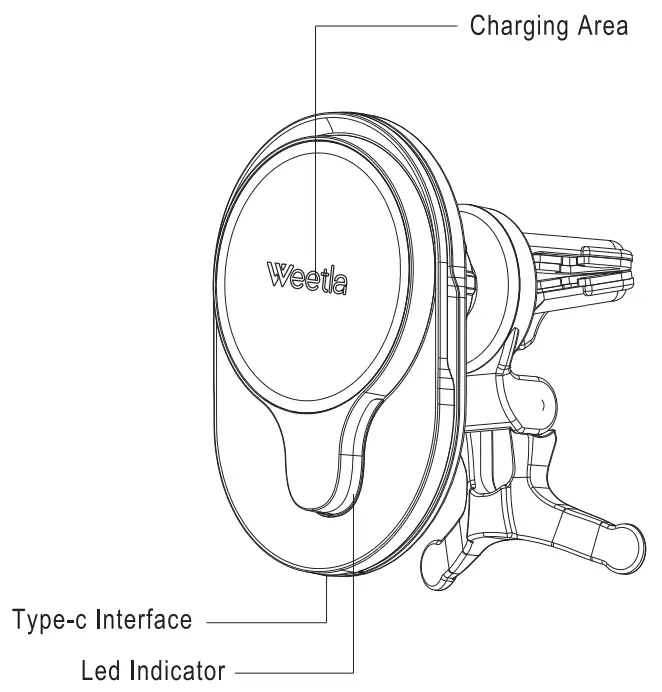

Descriptions
Product Features
- Exquisite and small appearance, with aluminum alloy frame.
- Multistage magnetic combination, strong magnetic power to keep phone steady.
- Double cooling holes design, low charging temperature.
- Up to support 15W wireless fast charging.
- Compatible with iPhone 12/13 Series with or without Magsafe cases.
Parameters
Model: C50
Input: 5V
3.0A or 9V 2.0A
Output: 5W, 7.5W, 10W, 15W
Material: Aluminum alloy+ABS+Tempered Glass
Coil: Single coil
Operation Temperature: -10°C-40°C
Operation Steps

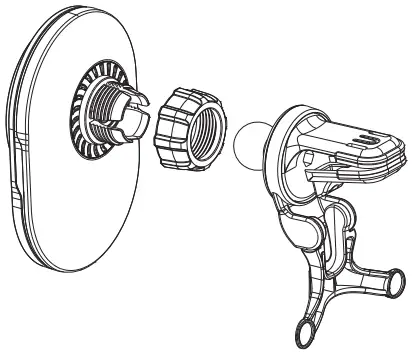

- Air vent clip installation.

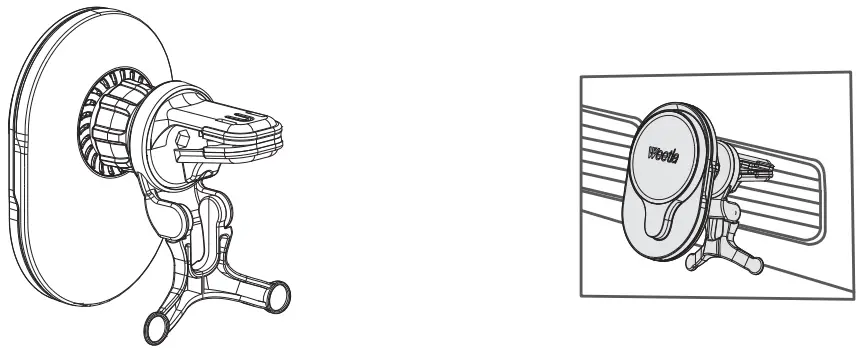

- Horizontal air vents

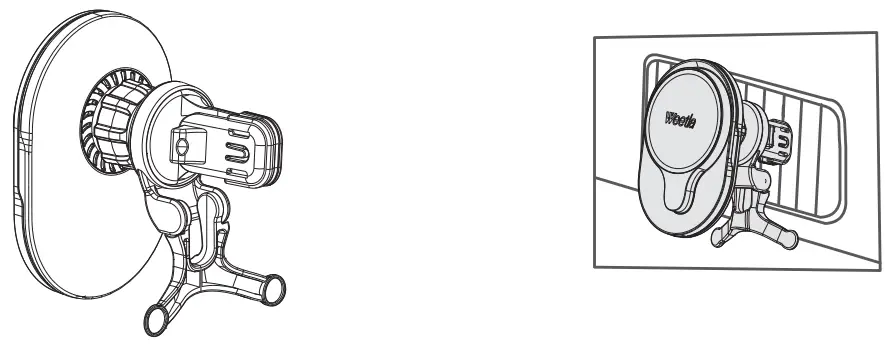

- Vertical air vents
- Horizontal air vents

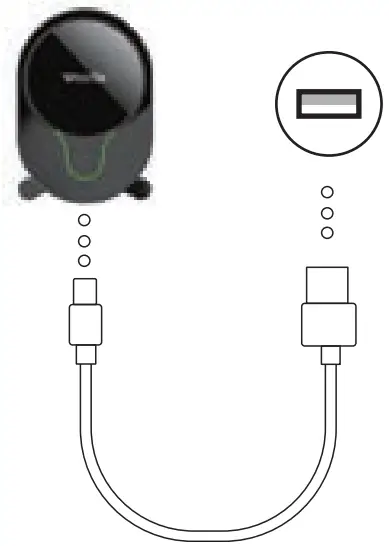

- Connect the wireless charger to the car charger adapter, the green indicator light keeps on.
- Put the phone on the wireless charger, magnetic attractive force aligns the right charging position, and blue indicator light breathing when charging.
Standby Charging Charging completed FOD LED Light Green on/ Flashing Blue Breathing Blue on Blue Green Flashing

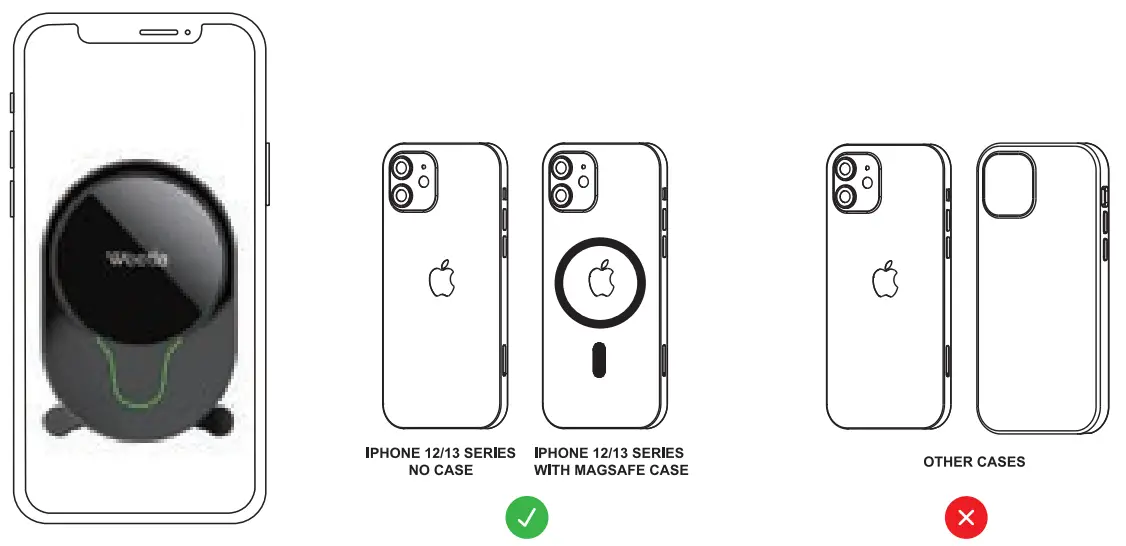

NOTE: only compatible with iPhone 12 /13 series with OR without MagSafe phone case
Within 2mm Thickness Phone Case Recommended
Cautions
- Avoid dropping the product from high places.
- Do not disassemble the charger without authorization. Please contact us if necessary.
- Please do not put metal or magnetic goods (such as coins, bank cards, keys,s, etc) on the charging area while charging, which may cause damage or abnormality to the charger.
- Please keep the charger away from water or other liquid.
- If the charger overheats and stops charging during use, please remove the charging devices and try charging them after cooling down.
- Please do not use the product in high temperature, humidity, and corrosive environment.
FCC WARNING
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator& your body.
After-sales Services
If there is any issue with the item, please contact us through the Amazon Message Center or through the E-mail: [email protected]
In order to solve the problem faster for you, please prepare the following information: the issue of charger, phone model, the type of adapter and phone case you are using, and if possible you can attach a picture or video of the problem.
Packaging List
Wireless Car Charger * 1
Air Vent Clip * 1
Type-C Cable * 1
User Manual *1
Made In China
