Zeehoo Zcf30 Fast Wireless Car Charger User Manual

USER MANUAL

izeehoo.com/support

Power Drive ZCF30
15W 10W 7.5W Auto-clamp, Bulit in cooling Fan
Fast Wireless Car Charger

Matters Needing Attention

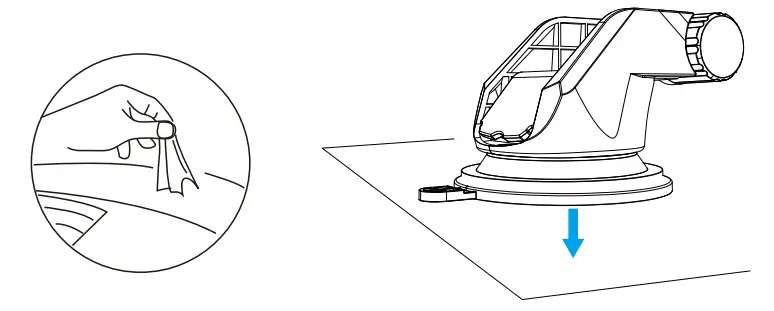

STEP 1 Clean the dashboard/ windshield and peel the protective film from the suction cup bottom.

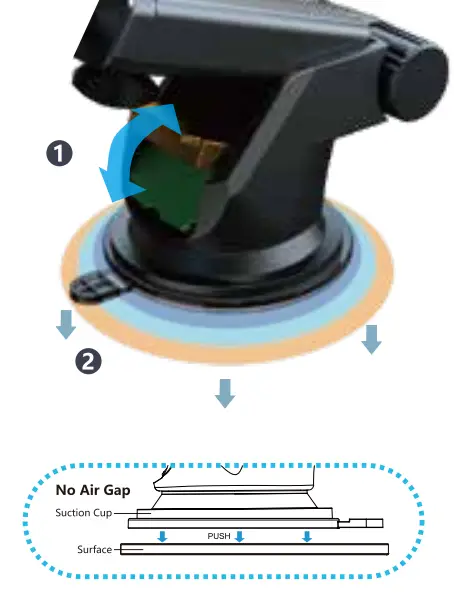

STEP 2Push the suction cup harder against the dashboard/windshield surface ( flat surface preferred) and then pull the locker to the bottom to ensure stability.

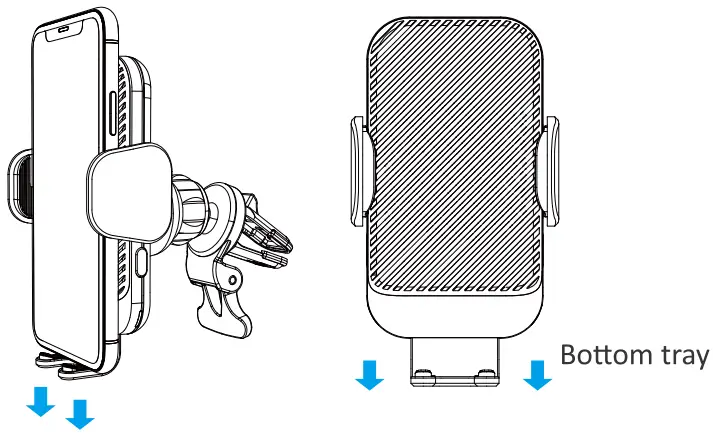

Adjust the bottom tray to align coil for optimal charging performance.

If your phone wears a case, please adjust the bottom tray to the appropriate area for wireless charging, otherwise, it may cause the charging to stop or repeat the power-off charging phenomenon.
During use, please make sure that the charger will not be powered off (like the adapter loose), otherwise, the automatic arm will open automatically, causing the phone to fall.

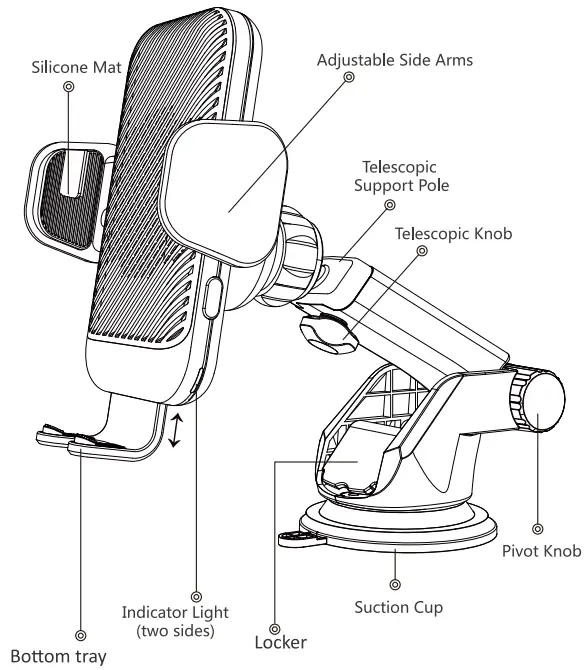

Product Overview

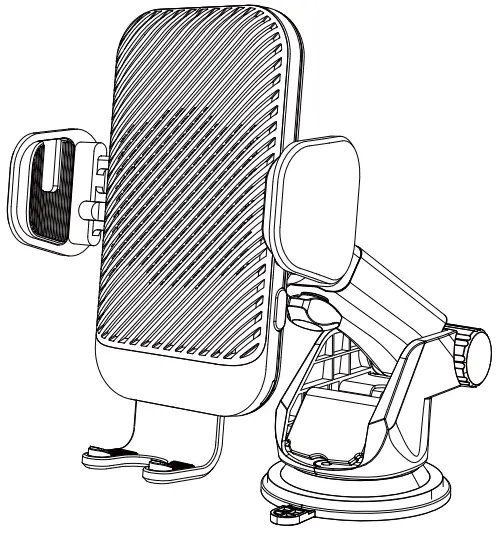

Installing Your ZEEHOO Wireless Car Mount Charger

Installing: Your Car Mount Holder

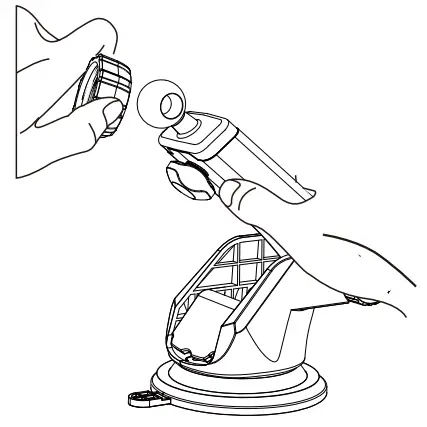

1. Unscrew the nut, let the ball go through the nut

2. Fasten the nut into the spherical top and push the nut forcibly into the round hole, adjust the car mount to the optimal viewing angle, then tighten the nut to secure.

3. Clean the dashboard and mount the suction cup on the dashboard. Please push the suction cup harder against the dashboard and pull the locker to the bottom

4. Adjust the bottom tray to align the coil, then plug in the Type C charging cable to connect the car mount to a car charger.


Mounting Your Smartphone

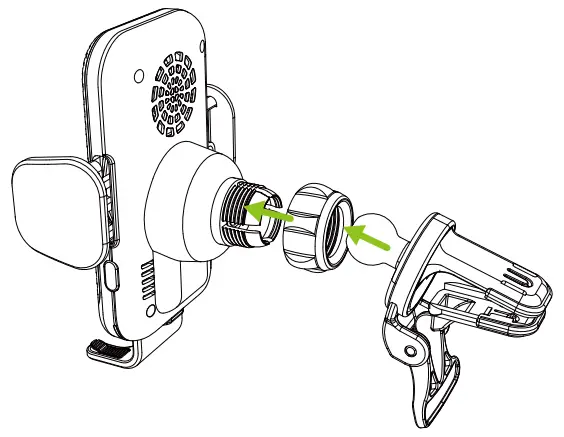

1. Unscrew the nut, let the ball go through the nut

2. Fasten the nut into the spherical top and push the nut forcibly into the round hole, then tighten the nut to secure.

3. Insert the adjustable claw into your car’s air vent, adjust the car mount to the optimal viewing angle make sure the claw is inserted securely in position.

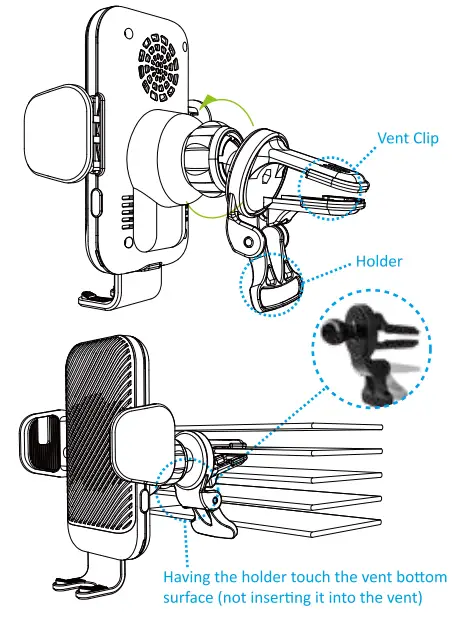

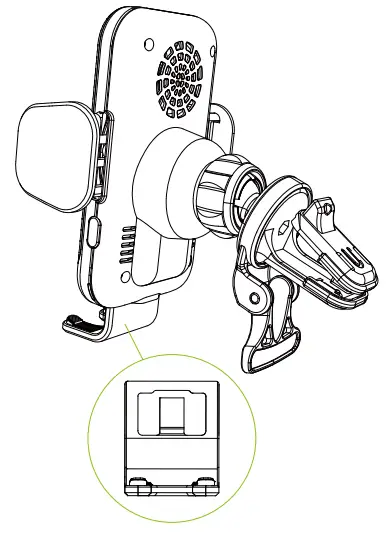

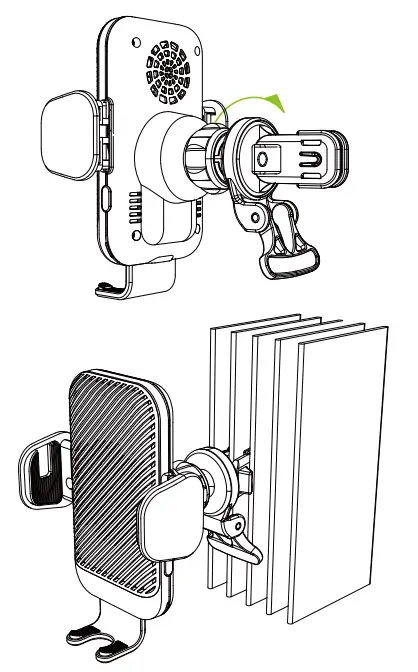

   Adjust the Vent Clip Horizontally/Vertically at a proper angle to match the air vents, having the holder touch the vent bottom surface (not inserting it into the vent) so it can form a triangle position, then press and hold the Clip to insert into your car’s air vents making the claw more stable to hold your phone.
   Horizontally air vents type
   Vertically air vents type

4. Adjust the bottom tray to align coil, then plug in the Type C charging cable to connect the car mount to a car charger

Note

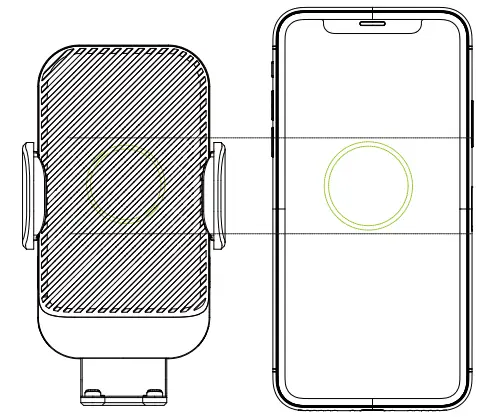

For optimal charging performance, align the smartphone with the Qi coil on the center of the car mount. If there is no grading scale for your smartphone or your phone has a protective cover, you can slightly adjust the bottom tray to align the smartphone with the Qi coil

Charging Your Smartphone Wirelessly

1. Mount your smartphone in your desired location.

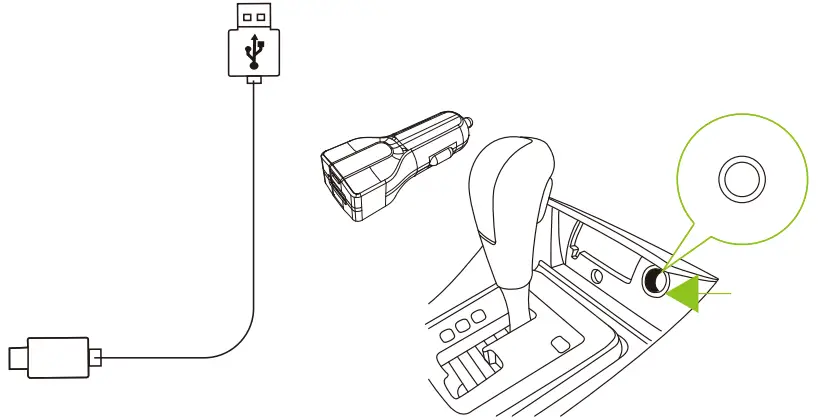

2. Use the USB-C cable to connect the car mount to a car charger.
   (Please Note: the car charger is not included)

Note
Wireless charging function is sensitive to temperature. The in-car high temperature may pause charging or slow down the charging speed, so it is recommended to turn on the air conditioner in your car to avoid overheating.
If the LED indicator turns off, it indicates this product is overheated. The car mount charger will automatically turn off to let it cool down before resuming charging.
For 15W,10VV,7.5W fast charging mode, a QC3.0 car charger adapter is required as its power source.

Taking Your Phone Out of the Wireless Car Charger

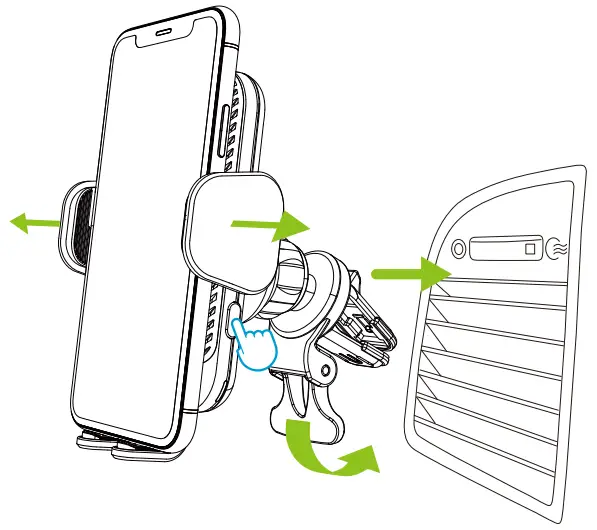

Simply touch the quick release button the two telescopic arms will open automatically then you can take your phone out of the cradle.
Highlight:
When you turn off your car, the wireless car charger still could open and clamp 2-3 times when you touch the side button. So No More Hassles for taking your phone out when you turned off your car. Super Convenient!

Status LED

The LED indicator displays the status of the car mount charger.

Compatibility

Before using this product, make sure your smartphone is compatible with Qi wireless charging technology.

Specification

Input	DC12V 1.5A 9V1.67A 5V2A
Output	5W 7.5W 10W15W
Size (L x W x H)	72.5*116.5*55mm
Charging Induction Distance	510mm
Charging Efficiency	80%
Material	ABS+PC

Important Safety Instructions

• Avoid dropping.
• Do not disassemble.
• Do not ex•ose to liquids.
• For the safest and fastest charge, use original or certified cables.
• The maximum ambient temperature during use of this product must not exceed 40°C.
• Open flame sources, such as candles, must not be placed on this product.
• Only use a dry cloth or brush to clean this product.
• Do not install while driving

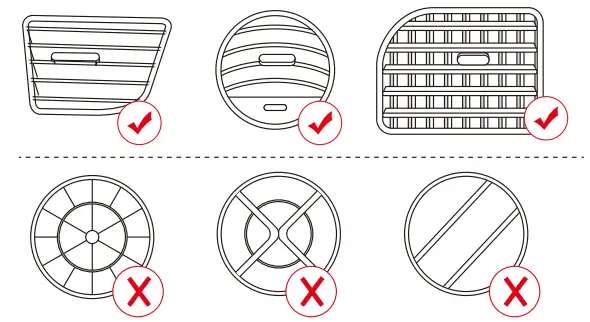

Non-intensive, arc-shaped, or retraction-type air vents are not supported.

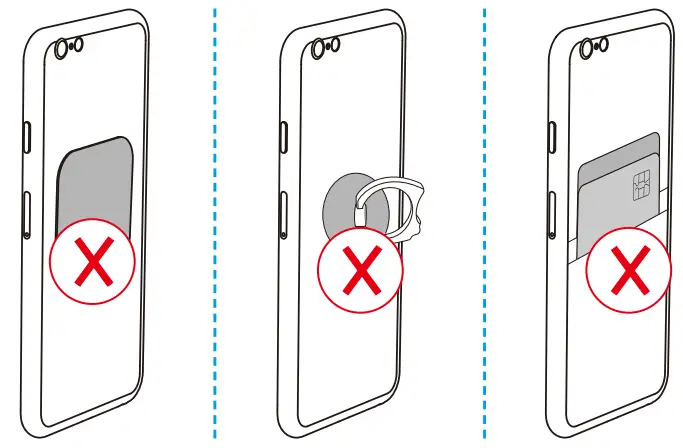

Do not place any foreign objects between your smartphone and the surface of the car mount, including metal objects, credit cards, door keys, coins, or NFC cards, as it may cause overheating.

Using an ultra-thick protective phone case is not recommended as it may affect the wireless charging function.
