User Manual
ME102 0Ω
Horns – 1.0 Inches

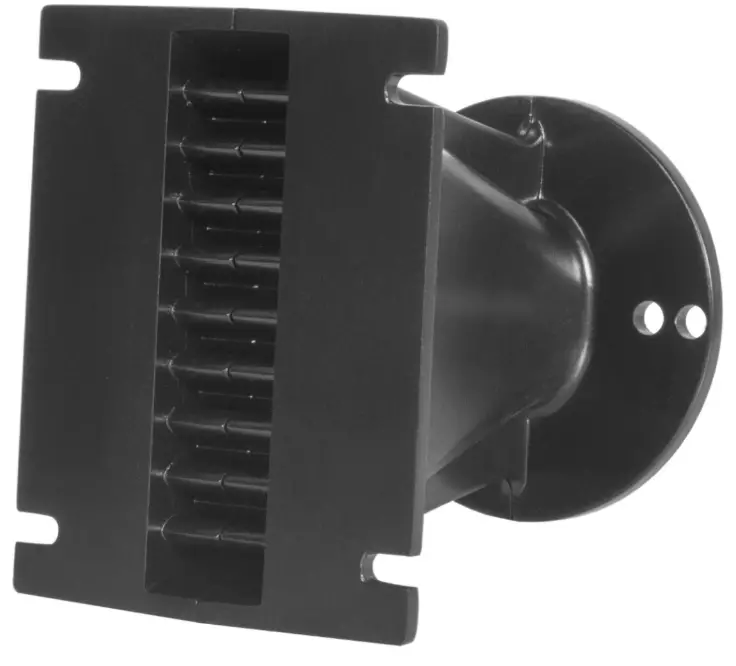

ME102 1.0 Inches Horns
- 1” throat entry
- Line Array optimized Waveguide
- 140° max horizontal coverage
- Vertical coverage depends on the configuration
- Very good loading down to 1 kHz
ME102
Horns- 1.0 Inches
| SPECIFICATIONS¹ | MOUNTING AND SHIPPING INFO | ||
| Throat Diameter | 25 mm (1.0 in) | Baffle Cutout Dimension | 102.4×25.4 mm (4.03×1.00 in) |
| Nominal Coverage Horizontal | 140 ° | Air Volume Occupied by Horn | 0.15 dm³ (0.01 ft ³) |
| Cutoff Frequency | 1.0 kHz | Net Weight | 0.44 kg (0.97 lb) |
| Material | Cast Aluminium | Shipping Units | 20 |
| Design | Line Array Optimized Waveguide | Shipping Weight | 12.1 kg (26.68 lb) |
| Dimensions | 109x87x112 mm (4.29×3.43×4.41 in) | Shipping Box | 540x350x390 mm (21.26×13.78×15.35 in) |
| Other Details Two 6 mm (0.25 in) holes at 180° on 76 mm (3 in) diameter | |||
1. Waveguide mounted on B&C DE400TN compression driver
