User Manual
ME142 0Ω

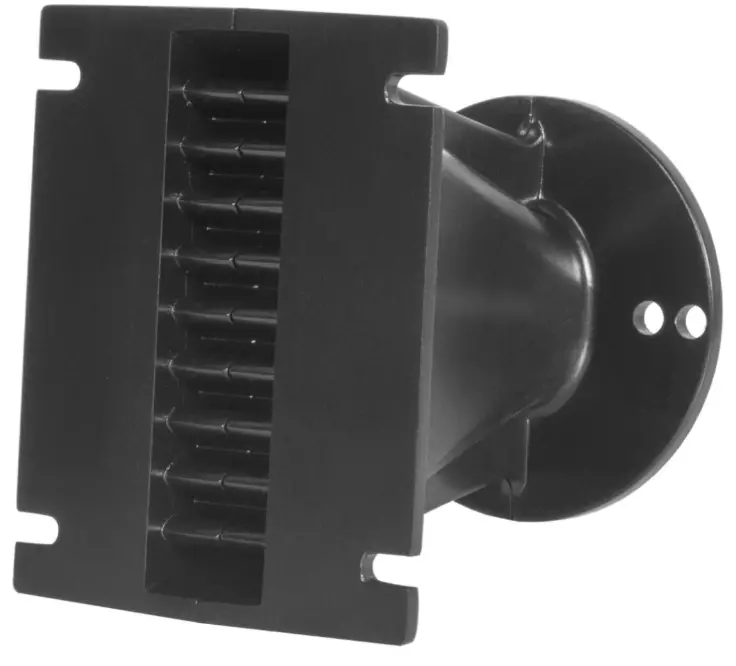

Horns – 1.4 Inches
- 1.4” throat entry
- Line Array optimized Waveguide

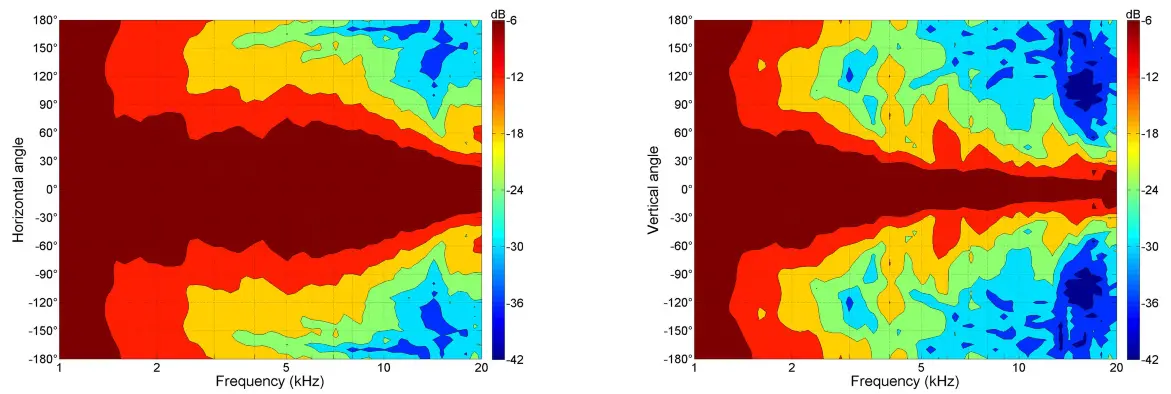

- 120° max horizontal coverage
- Vertical coverage depends on the configuration
- Very good loading down to 800 Hz
ME142
Horns- 1.4 Inches
| SPECIFICATIONS¹ | MOUNTING AND SHIPPING INFO | ||
| Throat Diameter | 36 mm (1.4 in) | Baffle Cutout Dimension | 102.4×25.4 mm (4.03×1.00 in) |
| Nominal Coverage Horizontal | 120 ° | Air Volume Occupied by Horn | 0.34 dm³ (0.01 ft³ ) |
| Cutoff Frequency | 0.8 kHz | Net Weight | 1.0 kg (2.2 lb) |
| Material | Cast Aluminium | Shipping Units | 1 |
| Design | Line Array Optimized Waveguide | Shipping Weight | 1.1 kg (2.43 lb) |

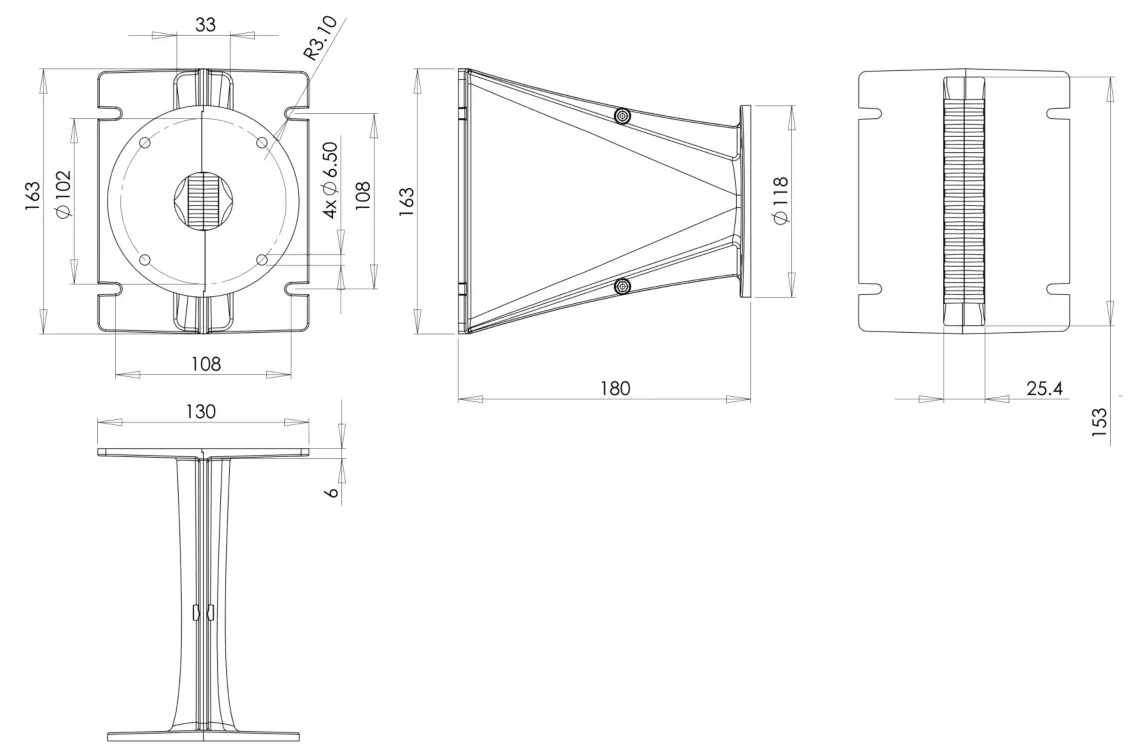

| Dimensions | 163x130x180 mm (6.42×5.12×7.09 in) | Shipping Box | 190x135x165 mm (7.48×5.31×6.50 in) |
| Other Details Four 6.5 mm holes at 90° on 102 mm (4 in) diameter | |||
1. Waveguide mounted on B&C DE800 compression driver
B&C Speakers s.p.a.
Via Poggiomoro, 1 – Loc.
Vallina, 50012 Bagno a Ripoli (FI)
– ITALY – Tel. +39 055 65721
– Fax +39 055 6572312
– [email protected]
